Ferrari SF90 XX Spider — [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL (diagram 0098)

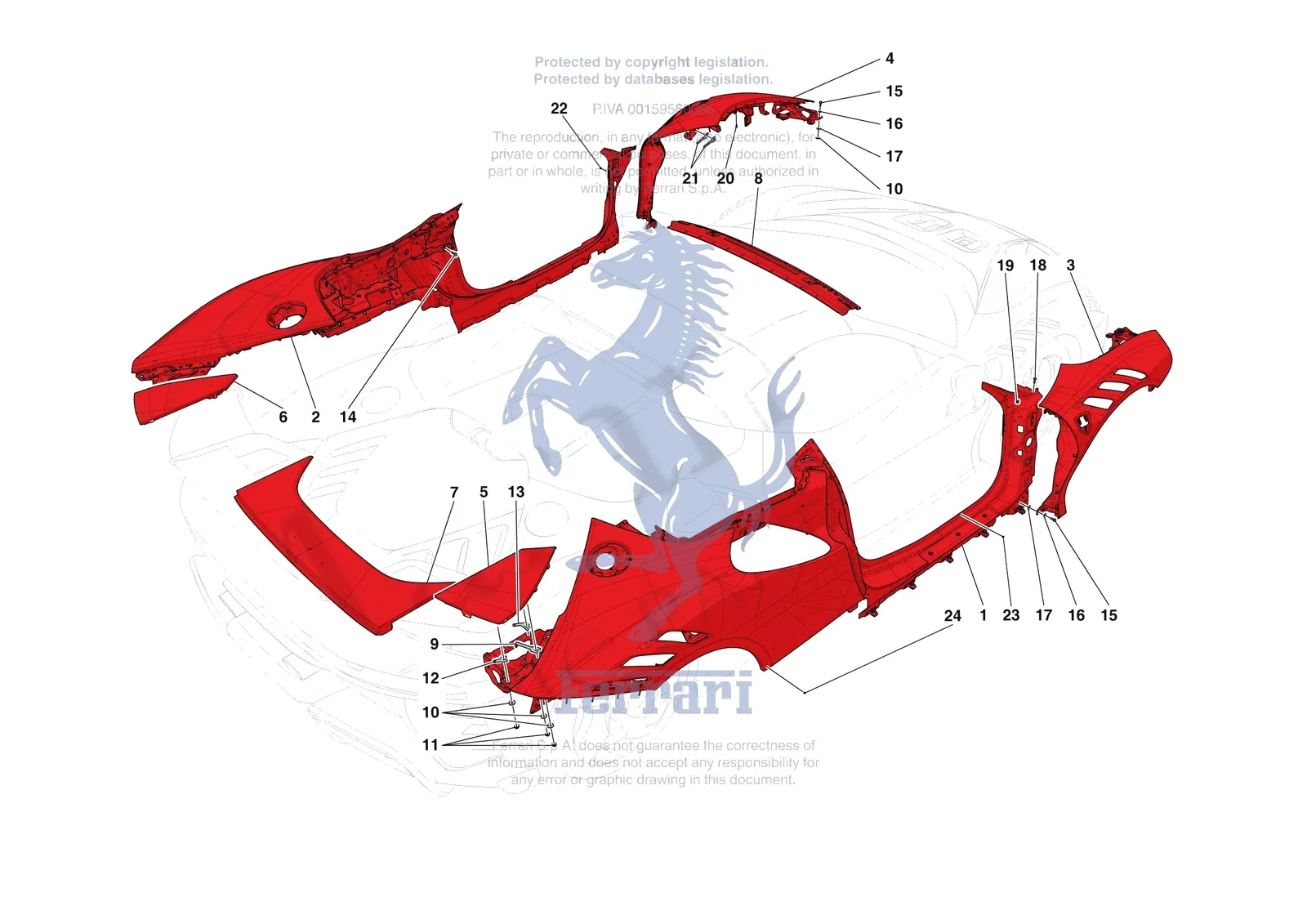

Exploded view of the [vehicle trim] - e.02 - lateral outer bodyshell on the Ferrari SF90 XX Spider, with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Spider [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-spider/0098.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 87583800 | Ferrari Adjuster Shim 1.0mm - 87583800 | $3.68 | Special order, ships in 7-14 days | |
| 87583700 | Ferrari Fork Adjuster Shim - 87583700 | $3.91 | Special order, ships in 7-14 days | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 985940743 | Ferrari RH Flank - 985940743 | $51,857.46 | Contact us to order |
| 2 | 985940384 | Ferrari LH Flank - 985940384 | $51,857.46 | Contact us to order |
| 3 | 985912684 | Ferrari Compl. RH Front Fender - 985912684 | $14,038.80 | Contact us to order |
| 3 | 985941441 | Ferrari Compl. RH Front Fender - 985941441 | $13,882.45 | Contact us to order |
| 4 | 985911823 | Ferrari Compl. LH Front Fender - 985911823 | $14,038.80 | Contact us to order |
| 4 | 985941438 | Ferrari Compl. LH Front Fender - 985941438 | $13,882.45 | Contact us to order |
| 5 | 985899979 | Ferrari RH Fixed Spoiler - 985899979 | $3,494.05 | Special order, ships in 7-14 days |
| 6 | 985899943 | Ferrari LH Fixed Spoiler - 985899943 | $3,494.05 | Special order, ships in 7-14 days |
| 7 | 944443 | Ferrari VARIABLE GEOM. SPOILER - 944443 | Price on request | Contact us for price and availability |
| 7 | 983033 | Ferrari VARIABLE GEOM. SPOILER - 983033 | Price on request | Contact us for price and availability |
| 8 | 985897634 | Ferrari Compl. Upper Windscreen Cros - 985897634 | $1,107.99 | Special order, ships in 7-14 days |
| 9 | 921749 | Ferrari Spess.Con Piego Di Regol.A F - 921749 | $15.74 | Special order, ships in 7-14 days |
| 9 | 921750 | Ferrari Spess.Con Piego Di Regol.A F - 921750 | $14.26 | Special order, ships in 7-14 days |
| 10 | 12647724 | Ferrari Washer - 12647724 | $0.31 | Available, ships in 3-6 days |
| 11 | 13046114 | Ferrari Flanged Nut - 13046114 | $0.31 | Available, ships in 3-6 days |
| 12 | 900885 | Ferrari Adjustment Shim - 900885 | Superseded | Order 87583800 instead |
| 12 | 900889 | Ferrari Adjustment Shim - 900889 | Superseded | Order 87583700 instead |
| 13 | 921747 | Ferrari Spess.Curvo Di Regolaz.A For - 921747 | Superseded | Order 87583800 instead |
| 13 | 921748 | Ferrari Spess.Curvo Di Regolaz.A For - 921748 | $12.29 | Special order, ships in 7-14 days |
| 14 | 16286224 | Ferrari Screw M6x25 - 16286224 | $4.77 | Special order, ships in 7-14 days |
| 15 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 16 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 17 | 68040000 | Ferrari Washer 6X20x2 - 68040000 | $0.27 | Available, ships in 3-6 days |
| 18 | 14639791 | Ferrari Rivet D. 6.4X 14.1 - 14639791 | $2.59 | Special order, ships in 7-14 days |
| 19 | 284430 | Ferrari Rivet - 284430 | $3.91 | Special order, ships in 7-14 days |
| 20 | 14639591 | Ferrari Rivet - 14639591 | $3.03 | Available, ships in 3-6 days |
| 21 | 86847700 | Ferrari Fork Adjuster Shim 0.5mm - 86847700 | Price on request | Contact us for price and availability |
| 21 | 86847600 | Ferrari Fork Adjuster Shim 1.0mm - 86847600 | $9.81 | Special order, ships in 7-14 days |
| 22 | 81126900 | Ferrari Rivet D.4.8X7.5 - 81126900 | $0.86 | Available, ships in 3-6 days |
| 23 | 81126700 | Ferrari Rivet D.3.9X7 - 81126700 | $0.65 | Available, ships in 3-6 days |
| 24 | 81126600 | Ferrari Rivet D.3.9X7 - 81126600 | $0.71 | Available, ships in 3-6 days |
