Ferrari SF90 XX Spider — [VEHICLE TRIM] - E.07 - REAR SUBFRAME (diagram 0103)

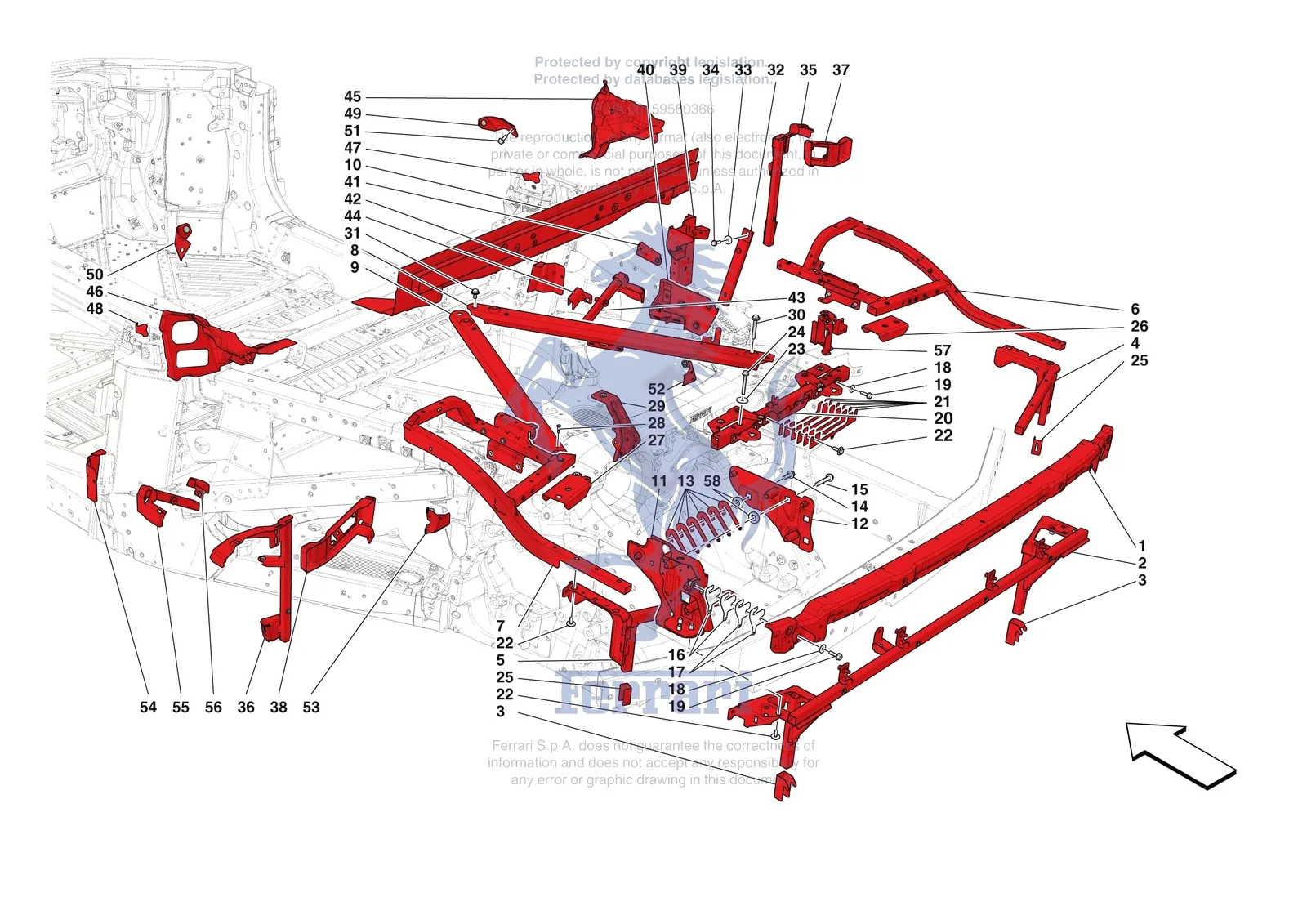

Exploded view of the [vehicle trim] - e.07 - rear subframe on the Ferrari SF90 XX Spider, with 74 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 XX Spider [VEHICLE TRIM] - E.07 - REAR SUBFRAME exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
985896288Ferrari Compl. LH Front Roof Tub Bra - 985896288SupersededOrder 985901877 instead
985896293Ferrari Compl. RH Front Roof Tub Bra - 985896293SupersededOrder 985901889 instead
11617624Ferrari Screw - 11617624SupersededOrder 16287224 instead
80415900Ferrari Screw - 80415900$32.60Available, ships in 3-6 days
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
156093Ferrari Washer - 156093SupersededOrder 12646778 instead
1985886117Ferrari Compl. Pylon Bracket Connect - 985886117$1,255.72Special order, ships in 7-14 days
2985868160Ferrari Compl. Centre Rear Trellis - 985868160$1,107.99Special order, ships in 7-14 days
3830363Ferrari Part Search Results - 830363$18.44Special order, ships in 7-14 days
4985877493Ferrari Traliccio Post. Dx Cpl Cat - 985877493$443.17Special order, ships in 7-14 days
5985877492Ferrari Traliccio Post. Sx Cpl Cat - 985877492$443.17Special order, ships in 7-14 days
6985877477Ferrari Traliccio Fiancata Post. Dx - 985877477$1,428.09Special order, ships in 7-14 days
7985877476Ferrari Traliccio Fiancata Post. Sx - 985877476$1,428.09Special order, ships in 7-14 days
8985745315Ferrari RH Engine Compartment Diagon - 985745315$1,526.57Special order, ships in 7-14 days
9985745302Ferrari LH Engine Compartment Diagon - 985745302$1,526.57Special order, ships in 7-14 days
10985896282Ferrari Rear Roof Tub Cross-Member - 985896282$1,304.98Special order, ships in 7-14 days
11959420Ferrari COMPL. LH BASE BRACKET - 959420$787.90Special order, ships in 7-14 days
11960460Ferrari COMPL. RH BASE BRACKET - 960460$787.90Special order, ships in 7-14 days
12959334Ferrari Compl. LH Pylon Bracket - 959334$295.43Special order, ships in 7-14 days
12959489Ferrari Compl. RH Pylon Bracket - 959489$295.43Special order, ships in 7-14 days
13946823Ferrari Adjustment Shim - 946823$12.23Special order, ships in 7-14 days
1416287224Ferrari Screw M8x25 - 16287224$0.82Available, ships in 3-6 days
1516287721Ferrari Screw - 16287721$2.61Special order, ships in 7-14 days
16905706Ferrari Adjustment Shim - 905706$17.21Special order, ships in 7-14 days
17905667Ferrari Adjustment Shim - 905667$17.21Special order, ships in 7-14 days
1812643724Ferrari/Maserati Washer - 12643724$0.20In stock
1916286121Ferrari Screw M6 x 20 - 16286121$1.23Available, ships in 3-6 days
20985877500Ferrari Supporto Serr.Cofano Motor C - 985877500$1,231.11Special order, ships in 7-14 days
21830401Ferrari Lock Bracket - Thickness 1mm - 830401$16.45Special order, ships in 7-14 days
2281591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
2312640624Ferrari Plain Washer 6mm - 12640624$0.31Available, ships in 3-6 days
2368040000Ferrari Washer 6X20x2 - 68040000$0.27Available, ships in 3-6 days
2414304824Ferrari Allen Screw 6x55 - 14304824$0.50Available, ships in 3-6 days
2416286721Ferrari Screw - 16286721SupersededOrder 14304824 instead
25830381Ferrari Bicchiere Traliccio Vertical - 830381$17.46Special order, ships in 7-14 days
26830370Ferrari Upper Bracket for RH Rear Node - 830370$18.44Special order, ships in 7-14 days
27877549Ferrari Upper Bracket for LH Rear Node - 877549$34.44Special order, ships in 7-14 days
2814639591Ferrari Rivet - 14639591$3.03Available, ships in 3-6 days
29877504Ferrari Complete Mounting Bracket for LH Rear Cover - 877504$64.00Special order, ships in 7-14 days
30985572Ferrari Hex Head Screw M8X60+Colla+R.Imp.D8 - 985572$9.16Special order, ships in 7-14 days
31985571Ferrari Vite Tef M8X18+Colla+R.Imp.D - 985571$3.26Special order, ships in 7-14 days
32896310Ferrari LH Flank Inner Carrier Profi - 896310$59.07Special order, ships in 7-14 days
32896312Ferrari RH Flank Inner Carrier Profi - 896312$59.07Special order, ships in 7-14 days
3312647724Ferrari Washer - 12647724$0.31Available, ships in 3-6 days
3416286224Ferrari Screw M6x25 - 16286224$4.77Special order, ships in 7-14 days
35985877497Ferrari Supporto Filtro Aria Dx Cpl - 985877497$664.78Special order, ships in 7-14 days
36985877494Ferrari Supporto Filtro Aria Sx Cpl - 985877494$664.78Special order, ships in 7-14 days
37985830424Ferrari RH Wheelhouse Bracket - 985830424$219.11Special order, ships in 7-14 days
38985830415Ferrari LH Wheelhouse Bracket - 985830415$219.11Special order, ships in 7-14 days
39985896273Ferrari LH Vertical Extruded Element - 985896273$566.30Special order, ships in 7-14 days
39985896277Ferrari RH Vertical Extruded Element - 985896277$664.78Special order, ships in 7-14 days
40896303Ferrari Compl. LH Flank Reinforcemen - 896303$640.17Special order, ships in 7-14 days
40896305Ferrari Compl. RH Flank Reinforcemen - 896305$640.17Special order, ships in 7-14 days
41831878Ferrari Fixing Bracket - Bulkhead Engine Compartment - 831878$56.60Special order, ships in 7-14 days
42830360Ferrari RH Flank Adjustment Bracket - 830360$56.60Special order, ships in 7-14 days
43985877489Ferrari Tubo Sost. Intercooler Dx Cp - 985877489$467.80Special order, ships in 7-14 days
44877491Ferrari Bicchiere Per Regolazione Dx - 877491$29.52Special order, ships in 7-14 days
45985901889Ferrari Compl. RH Front Roof Tub Bra - 985901889$664.78Special order, ships in 7-14 days
46985901877Ferrari Compl. LH Front Roof Tub Bra - 985901877$664.78Special order, ships in 7-14 days
47910807Ferrari Lamierino Per Chiusura Vano - 910807$23.86Special order, ships in 7-14 days
48910805Ferrari Lamierino Per Chiusura Vano - 910805$23.86Special order, ships in 7-14 days
49905399Ferrari Compl. RH B Pillar Reinforce - 905399$88.61Special order, ships in 7-14 days
50905398Ferrari Compl. LH B Pillar Reinforce - 905398$88.61Special order, ships in 7-14 days
5116297934Ferrari Flanged Screw M8 x 18 - 16297934$1.30Special order, ships in 7-14 days
52925914Ferrari Compl. RH Bracket - RH Rear Flank Trellis - 925914$103.38Special order, ships in 7-14 days
53925913Ferrari Compl. LH Bracket - LH Rear Flank Trellis - 925913$103.38Special order, ships in 7-14 days
54830359Ferrari LH Flank Adjustment Bracket - 830359$56.60Special order, ships in 7-14 days
55985877488Ferrari Tubo Sost. Intercooler Sx Cp - 985877488$467.80Special order, ships in 7-14 days
56877490Ferrari Bicchiere Per Regolazione Sx - 877490$29.52Special order, ships in 7-14 days
57909590Ferrari Complete Strut Mounting Bracket - 909590$243.74Special order, ships in 7-14 days
5812646778Ferrari Washer - 12646778$0.89In stock

All SF90 XX Spider diagrams
