Ferrari SF90 XX Spider — [VEHICLE TRIM] - E.29.01 - DOORS - TRIM (diagram 0128)

Exploded view of the [vehicle trim] - e.29.01 - doors - trim on the Ferrari SF90 XX Spider, with 87 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

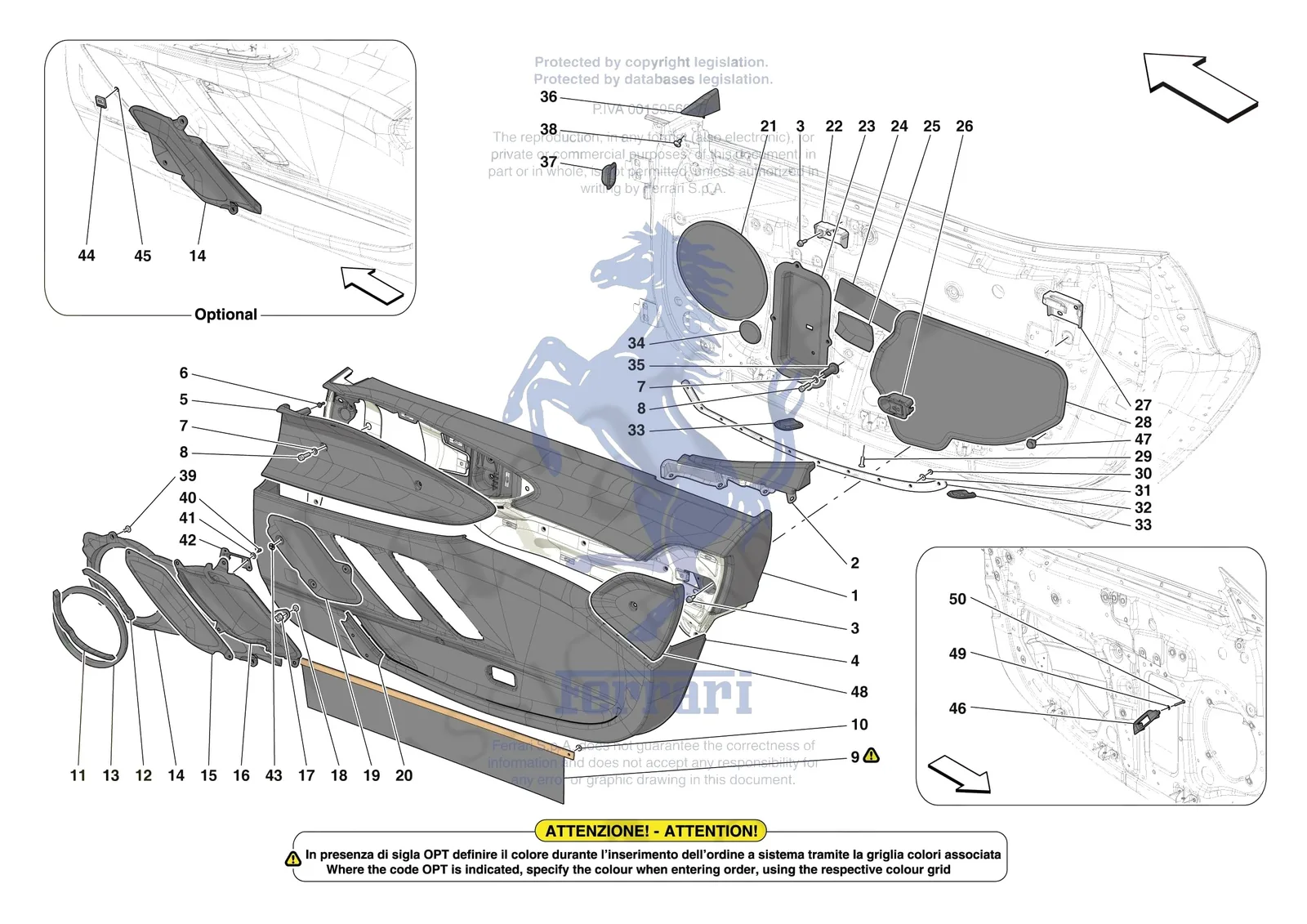

Ferrari SF90 XX Spider [VEHICLE TRIM] - E.29.01 - DOORS - TRIM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
85675300Ferrari Screw - 85675300SupersededOrder 14305387 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
1943312Ferrari LH DOOR SUBSTRUCTURE - 943312Price on requestContact us for price and availability
1943506Ferrari RH Door Substructure - 943506$4,080.29Special order, ships in 7-14 days
255013274Ferrari COMPL. LH REAR FIN - 55013274Price on requestContact us for price and availability
255013275Ferrari COMPL. RH REAR FIN - 55013275Price on requestContact us for price and availability
3256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
4943204Ferrari LH DOOR PANEL SUBSTRUCTURE - 943204Price on requestContact us for price and availability
4943625Ferrari LH DOOR PANEL SUBSTRUCTURE - 943625Price on requestContact us for price and availability
4943507Ferrari RH DOOR PANEL SUBSTRUCTURE - 943507$22,886.00Contact us to order
4943630Ferrari RH DOOR PANEL SUBSTRUCTURE - 943630$23,075.02Contact us to order
5943358Ferrari Compl. LH Front Door Card - 943358$3,116.50Special order, ships in 7-14 days
5943474Ferrari Compl. RH Front Door Card - 943474$3,116.50Special order, ships in 7-14 days
682535800Ferrari Press Fastener Pin - 82535800$3.03Available, ships in 3-6 days
7975634Ferrari Washer - 975634$10.04Special order, ships in 7-14 days
814305387Ferrari Screw - 14305387$1.04Special order, ships in 7-14 days
970008408Ferrari LH DOOR POCKET MESH - 70008408Price on requestContact us for price and availability
9914550Ferrari LH DOOR POCKET MESH - 914550Price on requestContact us for price and availability
970008407Ferrari RH DOOR POCKET MESH - 70008407Price on requestContact us for price and availability
9914578Ferrari RH DOOR POCKET MESH - 914578Price on requestContact us for price and availability
1085739500Ferrari Washer - 85739500$6.98Special order, ships in 7-14 days
11988475Ferrari LOWER LH WOOFER GRILLE SURROUND SEAL - 988475Price on requestContact us for price and availability
11988477Ferrari LOWER RH WOOFER GRILLE SURROUND SEAL - 988477Price on requestContact us for price and availability
12988474Ferrari UPPER LH WOOFER GRILLE SURROUND SEAL - 988474Price on requestContact us for price and availability
12988476Ferrari UPPER RH WOOFER GRILLE SURROUND SEAL - 988476Price on requestContact us for price and availability
13910851Ferrari Guarnizione D 146 - 910851$15.49Special order, ships in 7-14 days
13910852Ferrari Guarnizione D 153 - 910852$28.42Special order, ships in 7-14 days
14817769Ferrari COMPL. LH GRILLE SURROUND - 817769Price on requestContact us for price and availability
14817780Ferrari COMPL. LH GRILLE SURROUND - 817780Price on requestContact us for price and availability
14914528Ferrari Compl. LH Grille Surround - 914528$960.25Special order, ships in 7-14 days
14943675Ferrari COMPL. LH GRILLE SURROUND - 943675Price on requestContact us for price and availability
14817777Ferrari COMPL. RH GRILLE SURROUND - 817777Price on requestContact us for price and availability
14817779Ferrari COMPL. RH GRILLE SURROUND - 817779Price on requestContact us for price and availability
14914598Ferrari Compl. RH Grille Surround - 914598$960.25Special order, ships in 7-14 days
14946375Ferrari COMPL. RH GRILLE SURROUND - 946375Price on requestContact us for price and availability
15945284Ferrari LH Central Grille - 945284$243.74Special order, ships in 7-14 days
15950001Ferrari LH Central Grille - 950001$295.43Special order, ships in 7-14 days
15945537Ferrari RH Central Grille - 945537$243.74Special order, ships in 7-14 days
15950002Ferrari RH Central Grille - 950002$295.43Special order, ships in 7-14 days
16914603Ferrari LH PULL CUP - 914603Price on requestContact us for price and availability
16914606Ferrari RH PULL CUP - 914606Price on requestContact us for price and availability
1767278400Ferrari BRACKET - 67278400$21.60Special order, ships in 7-14 days
1885691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
19914551Ferrari LH Speaker Grille - 914551$295.43Special order, ships in 7-14 days
19914586Ferrari RH Speaker Grille - 914586$295.43Special order, ships in 7-14 days
20975125Ferrari LH DOOR PANEL LIGHT COVER - 975125Price on requestContact us for price and availability
20975133Ferrari RH DOOR PANEL LIGHT COVER - 975133Price on requestContact us for price and availability
21912149Ferrari Telina Riparo Acqua Porta No - 912149$159.79Special order, ships in 7-14 days
22908870Ferrari LH Front Shelf Bracket - 908870$56.60Special order, ships in 7-14 days
22908873Ferrari RH Front Shelf Bracket - 908873$56.60Special order, ships in 7-14 days
23951144Ferrari LH Door Substructure Cover - 951144$86.15Special order, ships in 7-14 days
23951146Ferrari RH Door Substructure Cover - 951146$86.15Special order, ships in 7-14 days
24142798Ferrari Rubber Shim - 142798$2.82Available, ships in 3-6 days
25914538Ferrari ANTI-VIBRATION FOAM PAD - 914538Price on requestContact us for price and availability
26884011Ferrari Compl. Internal Backup Handl - 884011$100.78Special order, ships in 7-14 days
27908872Ferrari Rear LH Shelf Bracket - 908872$71.38Special order, ships in 7-14 days
27908874Ferrari Rear RH Shelf Bracket - 908874$71.38Special order, ships in 7-14 days
28878880Ferrari LH Door Waterproof Membrane - 878880$86.15Special order, ships in 7-14 days
28878882Ferrari Telina Riparo Acqua Porta Dx - 878882$86.15Special order, ships in 7-14 days
2962797600Ferrari Allen Bolt C/Sunk M6 x 20 TSEI - 62797600$1.99Available, ships in 3-6 days
3010794011Ferrari Nut M4 x 0.7mm - 10794011$0.06Available, ships in 3-6 days
3114446924Ferrari Washer - 14446924$0.54Available, ships in 3-6 days
32876227Ferrari Bracket for Assetto Fiorano Trim - 876227$115.69Special order, ships in 7-14 days
32904665Ferrari Spugna Rete Tasca Dx Fio - 904665$78.76Special order, ships in 7-14 days
32904667Ferrari Spugna Rete Tasca Sx Fio - 904667$78.76Special order, ships in 7-14 days
33815687Ferrari Tappo Otturazione Asola - 815687$13.32Special order, ships in 7-14 days
3414507187Ferrari Rubber Plug - 14507187$13.95Available, ships in 3-6 days
35914633Ferrari Spacer - 914633$110.78Special order, ships in 7-14 days
36834165Ferrari Compl. LH Mirror Triangle Trim - 834165$66.45Special order, ships in 7-14 days
36834166Ferrari Compl. RH Mirror Triangle Trim - 834166$66.45Special order, ships in 7-14 days
3846401657Ferrari Screw TBEI M6 x 12 Torx - 46401657$1.04Available, ships in 3-6 days
3985692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
4014418131Ferrari Screw M3 x 10 TCEI - 14418131$0.38Available, ships in 3-6 days
4112639478Ferrari Washer - 12639478$1.46Special order, ships in 7-14 days
42943200Ferrari Adapter Mount - 943200$29.52Special order, ships in 7-14 days
42945567Ferrari RH ADAPTER MOUNT - 945567Price on requestContact us for price and availability
43853181Ferrari Starlock - 853181$7.86Special order, ships in 7-14 days
4483198200Ferrari JBL Logo - 83198200$44.24Available, ships in 3-6 days
4514227474Ferrari Motif Clips - 14227474$0.27Available, ships in 3-6 days
46914530Ferrari LH BUTTON PANEL - 914530$88.61Special order, ships in 7-14 days
46950056Ferrari RH BUTTON PANEL - 950056Price on requestContact us for price and availability
4782672700Ferrari Fixing Clip - 82672700$1.67Available, ships in 3-6 days
48943362Ferrari Compl. LH Rear Door Card - 943362$2,110.49Special order, ships in 7-14 days
48943462Ferrari Compl. RH Rear Door Card - 943462$2,110.49Special order, ships in 7-14 days
4914496101Ferrari Washer - 14496101$0.12Available, ships in 3-6 days
50908510Ferrari Screw M3 x 20 Inox - 908510$0.46Special order, ships in 7-14 days

All SF90 XX Spider diagrams
