Ferrari SF90 XX Spider — [VEHICLE TRIM] - E.29.03 - DOORS - WINDOW AND WINDOW LIFTER (diagram 0130)

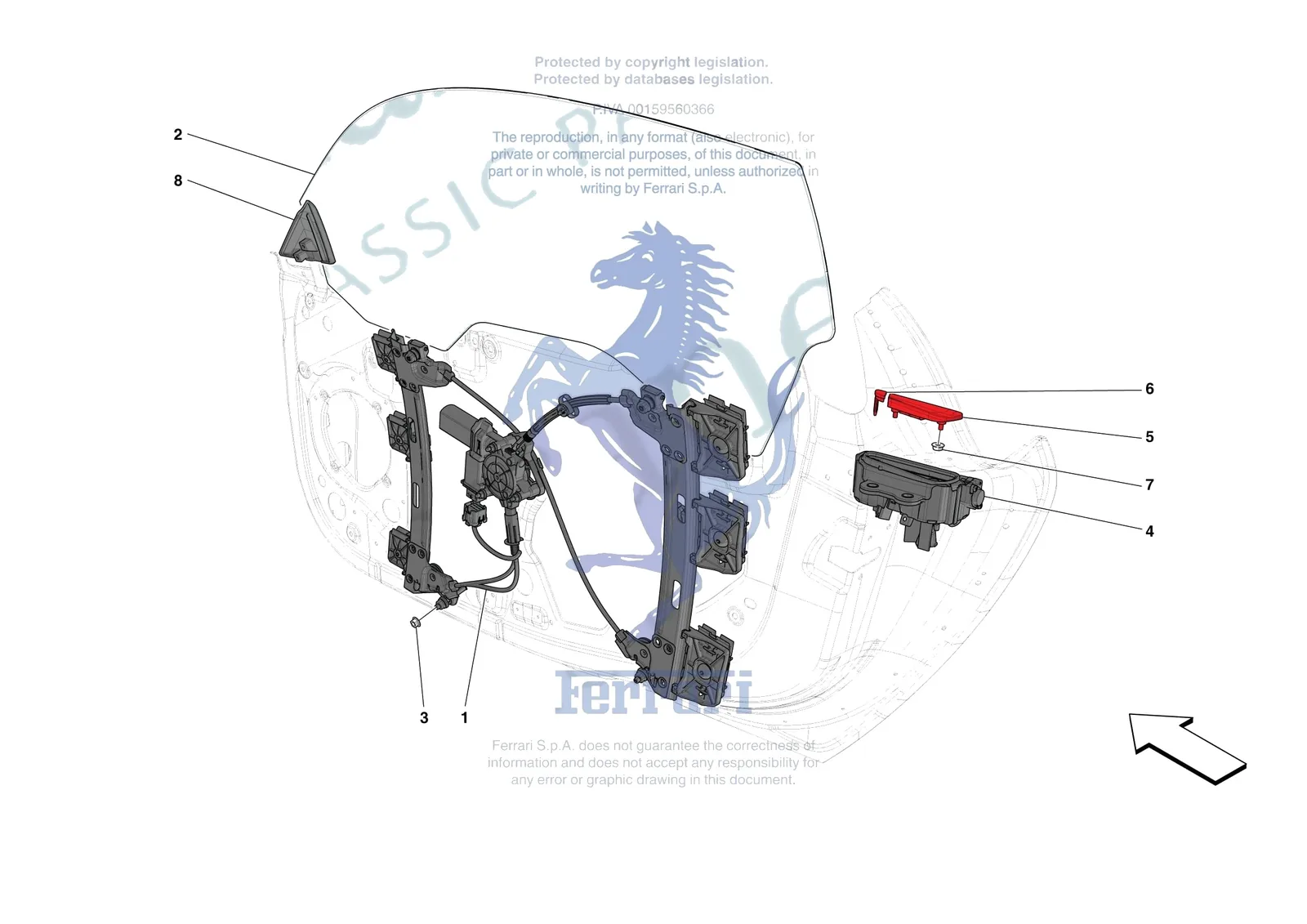

Exploded view of the [vehicle trim] - e.29.03 - doors - window and window lifter on the Ferrari SF90 XX Spider, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Spider [VEHICLE TRIM] - E.29.03 - DOORS - WINDOW AND WINDOW LIFTER exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-spider/0130.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 798062 | Ferrari LH Outer Door Handle - 798062 | Superseded | Order 787877 instead | |
| 798068 | Ferrari LH Outer Door Handle - 798068 | Superseded | Order 787884 instead | |
| 798065 | Ferrari RH Outer Door Handle - 798065 | Superseded | Order 787881 instead | |
| 798070 | Ferrari RH Outer Door Handle - 798070 | Superseded | Order 787887 instead | |
| 1 | 808735 | Ferrari LH Door Window Lifter - 808735 | $1,203.74 | Special order, ships in 7-14 days |
| 1 | 808737 | Ferrari RH Front Door Window Lifter - 808737 | $1,203.74 | Special order, ships in 7-14 days |
| 2 | 922726 | Ferrari Cristallo Porta Dx Spider - 922726 | $415.82 | Contact us to order |
| 2 | 922725 | Ferrari Cristallo Porta Sx Spider - 922725 | $415.82 | Contact us to order |
| 3 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 4 | 787877 | Ferrari LH Outer Door Handle - 787877 | $738.64 | Special order, ships in 7-14 days |
| 4 | 787884 | Ferrari LH Outer Door Handle - 787884 | $467.80 | Special order, ships in 7-14 days |
| 4 | 787881 | Ferrari RH Outer Door Handle - 787881 | $467.80 | Special order, ships in 7-14 days |
| 4 | 787887 | Ferrari RH Outer Door Handle - 787887 | $738.64 | Special order, ships in 7-14 days |
| 5 | 960251 | Ferrari LH Shift Paddle - 960251 | $115.69 | Special order, ships in 7-14 days |
| 5 | 960253 | Ferrari RH Shift Paddle - 960253 | $115.69 | Special order, ships in 7-14 days |
| 6 | 960252 | Ferrari LH Button - 960252 | $29.52 | Special order, ships in 7-14 days |
| 6 | 960255 | Ferrari RH Button - 960255 | $29.52 | Special order, ships in 7-14 days |
| 7 | 12578011 | Ferrari Flanged Nyloc Nut - 12578011 | $0.31 | Available, ships in 3-6 days |
| 8 | 825466 | Ferrari LH Door Triangle Trim - 825466 | $492.43 | Special order, ships in 7-14 days |
| 8 | 825467 | Ferrari RH Door Triangle Trim - 825467 | $492.43 | Special order, ships in 7-14 days |
