Ferrari SF90 XX Spider — [VEHICLE TRIM] - E.32 - DOOR SEALS (diagram 0133)

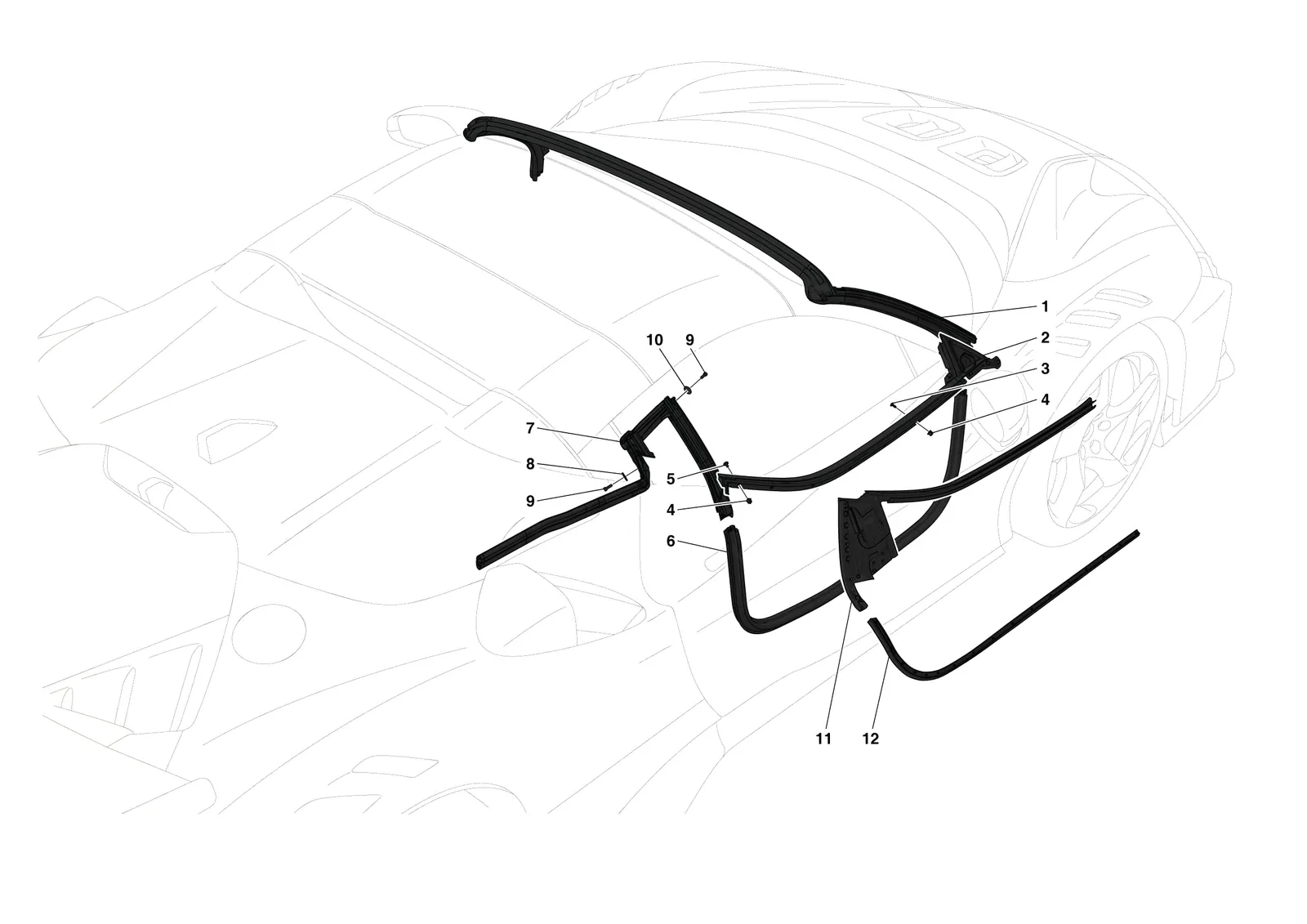

Exploded view of the [vehicle trim] - e.32 - door seals on the Ferrari SF90 XX Spider, with 25 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Spider [VEHICLE TRIM] - E.32 - DOOR SEALS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-spider/0133.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 967810 | Ferrari Guarnizione Contorno Inferio - 967810 | $282.82 | Special order, ships in 7-14 days | |
| 866560 | Ferrari Guarnizione Contorno Porta D - 866560 | $634.68 | Special order, ships in 7-14 days | |
| 866562 | Ferrari Guarnizione Contorno Porta S - 866562 | $634.68 | Special order, ships in 7-14 days | |
| 917611 | Ferrari LH Door Lower Inner Perimete - 917611 | Superseded | Order 917631 instead | |
| 873544 | Ferrari LH Door Outer Perimeter Seal - 873544 | $717.98 | Special order, ships in 7-14 days | |
| 917610 | Ferrari LH Door Upper Inner Perimete - 917610 | $456.89 | Special order, ships in 7-14 days | |
| 917613 | Ferrari RH Door Lower Inner Perimete - 917613 | $304.58 | Special order, ships in 7-14 days | |
| 873545 | Ferrari RH Door Outer Perimeter Seal - 873545 | Superseded | Order 898546 instead | |
| 12647729 | Ferrari Washer 6.45-21X - 12647729 | $0.13 | Special order, ships in 7-14 days | |
| 1 | 857095 | Ferrari Guarnizione Anello Parabrez - 857095 | $1,269.41 | Special order, ships in 7-14 days |
| 2 | 898529 | Ferrari LH Door Outer Perimeter Seal - 898529 | $744.13 | Special order, ships in 7-14 days |
| 2 | 898546 | Ferrari RH Door Outer Perimeter Seal - 898546 | $744.13 | Special order, ships in 7-14 days |
| 3 | 15689601 | Ferrari Screw D. 4.2 x 13 - 15689601 | $0.46 | Available, ships in 3-6 days |
| 4 | 14115885 | Ferrari Fixing Block - 14115885 | $0.31 | Available, ships in 3-6 days |
| 5 | 15538777 | Ferrari Screw 8x13 - 15538777 | $0.34 | Available, ships in 3-6 days |
| 6 | 898528 | Ferrari Guarnizione Contorno Inferio - 898528 | $306.38 | Special order, ships in 7-14 days |
| 7 | 981930 | Ferrari Guarnizione Contorno Porta D - 981930 | $634.68 | Special order, ships in 7-14 days |
| 7 | 981928 | Ferrari Guarnizione Contorno Porta S - 981928 | $634.68 | Special order, ships in 7-14 days |
| 8 | 12624178 | Ferrari Washer D. 5.45 - 22 x 2 - 12624178 | $0.71 | Available, ships in 3-6 days |
| 9 | 14304287 | Ferrari Screw 5x16 - 14304287 | $0.71 | Special order, ships in 7-14 days |
| 10 | 12647727 | Ferrari Washer 6X21 - 12647727 | $0.12 | Special order, ships in 7-14 days |
| 11 | 917630 | Ferrari LH Door Upper Inner Perimete - 917630 | $459.60 | Special order, ships in 7-14 days |
| 11 | 917632 | Ferrari RH Door Upper Inner Perimeter Seal - 917632 | $456.89 | Special order, ships in 7-14 days |
| 12 | 917631 | Ferrari LH Door Lower Inner Perimete - 917631 | $328.27 | Special order, ships in 7-14 days |
| 12 | 917633 | Ferrari RH Door Lower Inner Perimete - 917633 | $328.27 | Special order, ships in 7-14 days |
