Ferrari SF90 XX Spider — [VEHICLE TRIM] - E.47.01 - DASHBOARD - SUBSTRUCTURE -Not for RHD- (diagram 0149)

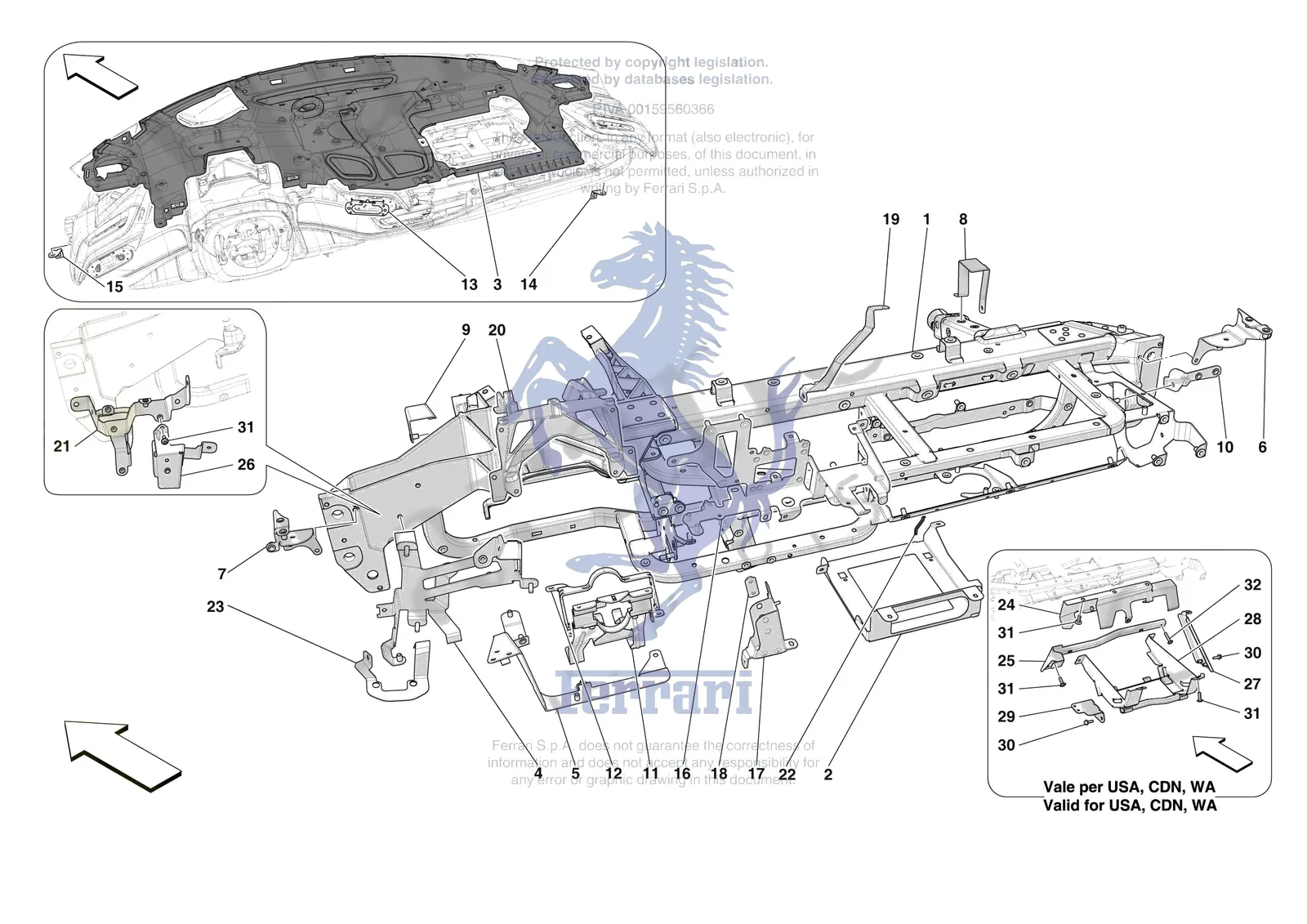

Exploded view of the [vehicle trim] - e.47.01 - dashboard - substructure -not for rhd- on the Ferrari SF90 XX Spider, with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Spider [VEHICLE TRIM] - E.47.01 - DASHBOARD - SUBSTRUCTURE -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-spider/0149.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 838290 | Ferrari Bracket Fastening Extrusion to Tunnel - 838290 | Superseded | Order 791384 instead | |
| 65841900 | Ferrari Gasket - 65841900 | $1.80 | Special order, ships in 7-14 days | |
| 83332100 | Ferrari Gasket - 83332100 | $3.91 | Special order, ships in 7-14 days | |
| 946096 | Ferrari Myferrari Connect ECU Bracke - 946096 | $61.52 | Special order, ships in 7-14 days | |
| 1 | 768836 | Ferrari Dashboard Cross Member - 768836 | $6,354.95 | Special order, ships in 7-14 days |
| 1 | 773128 | Ferrari Dashboard Cross Member - 773128 | $6,458.14 | Special order, ships in 7-14 days |
| 2 | 808174 | Ferrari NIT Fastener Bracket - 808174 | $100.93 | Special order, ships in 7-14 days |
| 2 | 969505 | Ferrari Nit Fastener Bracket - 969505 | $369.30 | Special order, ships in 7-14 days |
| 3 | 805434 | Ferrari Compl. Dashboard Structure - 805434 | $2,321.54 | Special order, ships in 7-14 days |
| 4 | 911514 | Ferrari Body Computer Bracket - 911514 | $224.04 | Special order, ships in 7-14 days |
| 4 | 946429 | Ferrari Body Computer Bracket - 946429 | $192.03 | Special order, ships in 7-14 days |
| 5 | 911511 | Ferrari Driver Side Underdashboard T - 911511 | $369.30 | Special order, ships in 7-14 days |
| 5 | 946445 | Ferrari Driver Side Underdashboard T - 946445 | $152.62 | Special order, ships in 7-14 days |
| 6 | 852358 | Ferrari RH Demister Duct Bracket - 852358 | $71.38 | Special order, ships in 7-14 days |
| 7 | 852361 | Ferrari LH Demister Duct Bracket - 852361 | $71.38 | Special order, ships in 7-14 days |
| 8 | 827518 | Ferrari RH Dashboard Mounting Bracket - 827518 | $34.44 | Special order, ships in 7-14 days |
| 9 | 913351 | Ferrari LH Dashboard Mounting Bracke - 913351 | $41.82 | Special order, ships in 7-14 days |
| 10 | 827521 | Ferrari Staffetta Supporto Rele Dx - 827521 | $36.92 | Special order, ships in 7-14 days |
| 11 | 837920 | Ferrari Lower Bracket for Steering Column Trim - 837920 | $155.10 | Special order, ships in 7-14 days |
| 12 | 830574 | Ferrari Upper Bracket For Lower Stee - 830574 | $36.92 | Special order, ships in 7-14 days |
| 13 | 835864 | Ferrari Haptic Control Mounting Bracket - 835864 | $56.60 | Special order, ships in 7-14 days |
| 14 | 819965 | Ferrari RH Bracket Fastening Satellite to Chassis - 819965 | $18.44 | Special order, ships in 7-14 days |
| 15 | 819964 | Ferrari LH Bracket Fastening Satellite to Chassis - 819964 | $13.01 | Special order, ships in 7-14 days |
| 16 | 971988 | Ferrari Centre Mounting Bracket - Dashboard - 971988 | $295.43 | Special order, ships in 7-14 days |
| 17 | 791384 | Ferrari Bracket Fastening Extrusion to Tunnel - 791384 | $164.95 | Special order, ships in 7-14 days |
| 17 | 791385 | Ferrari Bracket Fastening Extrusion to Tunnel - 791385 | $155.10 | Special order, ships in 7-14 days |
| 18 | 85441400 | Ferrari Plate - 85441400 | $10.91 | Special order, ships in 7-14 days |
| 19 | 821382 | Ferrari Lateral Fixing Bracket - HVAC - 821382 | $91.08 | Special order, ships in 7-14 days |
| 20 | 805519 | Ferrari Bracket - Instrument Panel - 805519 | $204.34 | Special order, ships in 7-14 days |
| 21 | 911512 | Ferrari LH Mount Bracket - 911512 | $150.17 | Special order, ships in 7-14 days |
| 21 | 852386 | Ferrari LH Mounting Bracket - Dashboard - 852386 | $160.02 | Special order, ships in 7-14 days |
| 22 | 67934100 | Ferrari Gasket - 67934100 | $2.13 | Special order, ships in 7-14 days |
| 23 | 902624 | Ferrari Myferrari Connect ECU Bracke - 902624 | Superseded | Order 946096 instead |
| 24 | 904454 | Ferrari Glove Compartment Reinforcem - 904454 | $295.43 | Special order, ships in 7-14 days |
| 25 | 938125 | Ferrari Reinforcement - 938125 | $295.43 | Special order, ships in 7-14 days |
| 26 | 911517 | Ferrari Door Backing Bracket - 911517 | $123.09 | Special order, ships in 7-14 days |
| 27 | 959482 | Ferrari Dashboard Reinforcement Brac - 959482 | $96.01 | Special order, ships in 7-14 days |
| 28 | 969498 | Ferrari Passenger Side Bracket - 969498 | $640.17 | Special order, ships in 7-14 days |
| 29 | 959484 | Ferrari Dashboard Reinforcement Brac - 959484 | $59.07 | Special order, ships in 7-14 days |
| 30 | 16285127 | Ferrari Screw M5 x 16 - 16285127 | $1.05 | Special order, ships in 7-14 days |
| 31 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 32 | 85834000 | Ferrari Screw M5 x 25 - 85834000 | $0.71 | Special order, ships in 7-14 days |
