Ferrari SF90 XX Spider — [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT (diagram 0185)

Exploded view of the [electrical system] - f.10 - audio unit on the Ferrari SF90 XX Spider, with 55 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

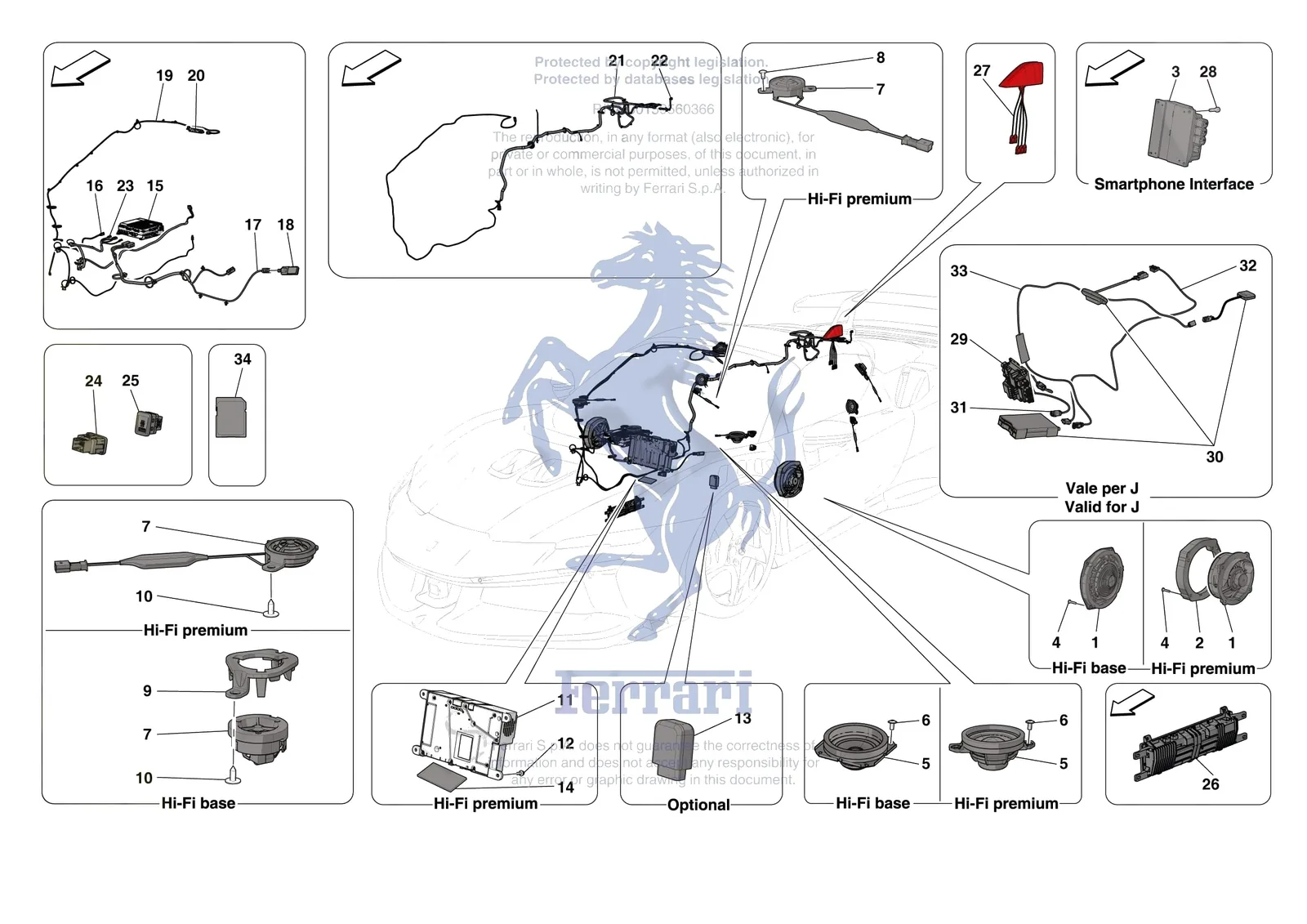

Ferrari SF90 XX Spider [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
951166Ferrari Dongle - 951166SupersededOrder 951168 instead
951167Ferrari Dongle - 951167$2,060.69Special order, ships in 7-14 days
192623Ferrari Screw - 192623$5.40Special order, ships in 7-14 days
290589Ferrari Screw 4x8 - 290589SupersededOrder 309629 instead
288974Ferrari USB Socket - 288974SupersededOrder 303226 instead
14303324Ferrari/Maserati Screw - 14303324$0.29In stock
1328469Ferrari Woofer - 328469$1,289.48Special order, ships in 7-14 days
1334279Ferrari Woofer - 334279$183.56Special order, ships in 7-14 days
2260130Ferrari LH Woofer Adapter - 260130$44.24Special order, ships in 7-14 days
2260131Ferrari RH Woofer Adapter - 260131$44.24Special order, ships in 7-14 days
3875005Ferrari USB Splitter - Apple Car Play Version - 875005$1,598.19Contact us to order
485834100Ferrari Screw M5 x 30 TBFTX - 85834100$0.79Special order, ships in 7-14 days
5321889Ferrari Speaker - 321889$305.96Special order, ships in 7-14 days
5269772Ferrari Twiddler - 269772$109.25Special order, ships in 7-14 days
685692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
7251541Ferrari Tweeter - 251541$56.79Special order, ships in 7-14 days
7321882Ferrari Tweeter - 321882$131.10Special order, ships in 7-14 days
8309629Ferrari Screw 4x8 - 309629$4.77Special order, ships in 7-14 days
988202500Ferrari Tweeter Support - 88202500$4.39Special order, ships in 7-14 days
1015782504Ferrari Screw 3.5x10 - 15782504$0.86Available, ships in 3-6 days
11783828Ferrari Amplifier - 783828$7,832.32Special order, ships in 7-14 days
1216286124Ferrari Screw M6x20 - 16286124$0.71Special order, ships in 7-14 days
13951168Ferrari MYFERRARI CONNECT ECU - 951168$1,920.19Special order, ships in 7-14 days
13951169Ferrari MYFERRARI CONNECT ECU - 951169$2,060.69Special order, ships in 7-14 days
14179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
15894458Ferrari Nit - 894458$15,624.81Contact us to order
15894460Ferrari Nit - 894460$15,624.81Contact us to order
15894461Ferrari Nit - 894461$17,062.29Contact us to order
15894464Ferrari Nit - 894464$17,388.26Contact us to order
17881107Ferrari Cavo Cpl Wi/Fi - Bt - 881107$177.25Special order, ships in 7-14 days
18843076Ferrari Antenna Bt-Wifi Dual Band - 843076$85.22Special order, ships in 7-14 days
19776219Ferrari Fm2 Antenna Cable - 776219$320.06Special order, ships in 7-14 days
19783175Ferrari Fm2 Antenna Cable - 783175$270.83Special order, ships in 7-14 days
19936809Ferrari Fm2 Antenna Cable - 936809$231.42Special order, ships in 7-14 days
19966438Ferrari Fm2 Antenna Cable - 966438$241.27Special order, ships in 7-14 days
20771351Ferrari FM2/DAB Amplifier - 771351$226.19Special order, ships in 7-14 days
20771352Ferrari Fm2/Dab Amplifier - 771352$270.44Special order, ships in 7-14 days
21770565Ferrari Passenger Compartment Antenn - 770565$1,852.54Special order, ships in 7-14 days
21892815Ferrari Passenger Compartment Antenn - 892815$1,403.46Special order, ships in 7-14 days
22893484Ferrari Spoiler Mirror Video Cable - 893484$130.29Special order, ships in 7-14 days
23907560Ferrari Dab1-Am/Fm-Fm2-Lte-Gps-Passe - 907560$517.04Special order, ships in 7-14 days
23968496Ferrari Dab1-Am/Fm-Fm2-Lte-Gps-Passe - 968496$861.77Special order, ships in 7-14 days
23770566Ferrari Dashboard Antenna Cable - 770566$787.90Special order, ships in 7-14 days
24303226Ferrari USB Socket - 303226$100.78Special order, ships in 7-14 days
25848476Ferrari Presa Usb Smartphone Project - 848476$211.43Special order, ships in 7-14 days
26866235Ferrari Ndp Display Passeggero Spec. - 866235$4,114.39Special order, ships in 7-14 days
27866624Ferrari Fin Antenna - 866624$656.57Special order, ships in 7-14 days
27866625Ferrari Fin Antenna - 866625$831.68Special order, ships in 7-14 days
2814303224Ferrari Screw 4x16 - 14303224$1.15Special order, ships in 7-14 days
29951766Ferrari 4-Way Usb Hub For Dsrc Jrc - 951766$1,598.19Special order, ships in 7-14 days
30928349Ferrari Compl. Drsc-Vics Kit - 928349$14,542.12Special order, ships in 7-14 days
31928354Ferrari Dsrc/Hub Cable - 928354$130.29Special order, ships in 7-14 days
32958191Ferrari Dsrc 5.8Ghz Advance Antenna - 958191$181.93Special order, ships in 7-14 days
33958192Ferrari Dsrc Beacon Antenna Cable - 958192$66.35Special order, ships in 7-14 days
3470006011Ferrari Sd Card Navigation Maps - 70006011$1,256.70Special order, ships in 7-14 days
