Ferrari SF90 XX Stradale — [ENGINE] - B.01 - CRANKCASE (diagram 0004)

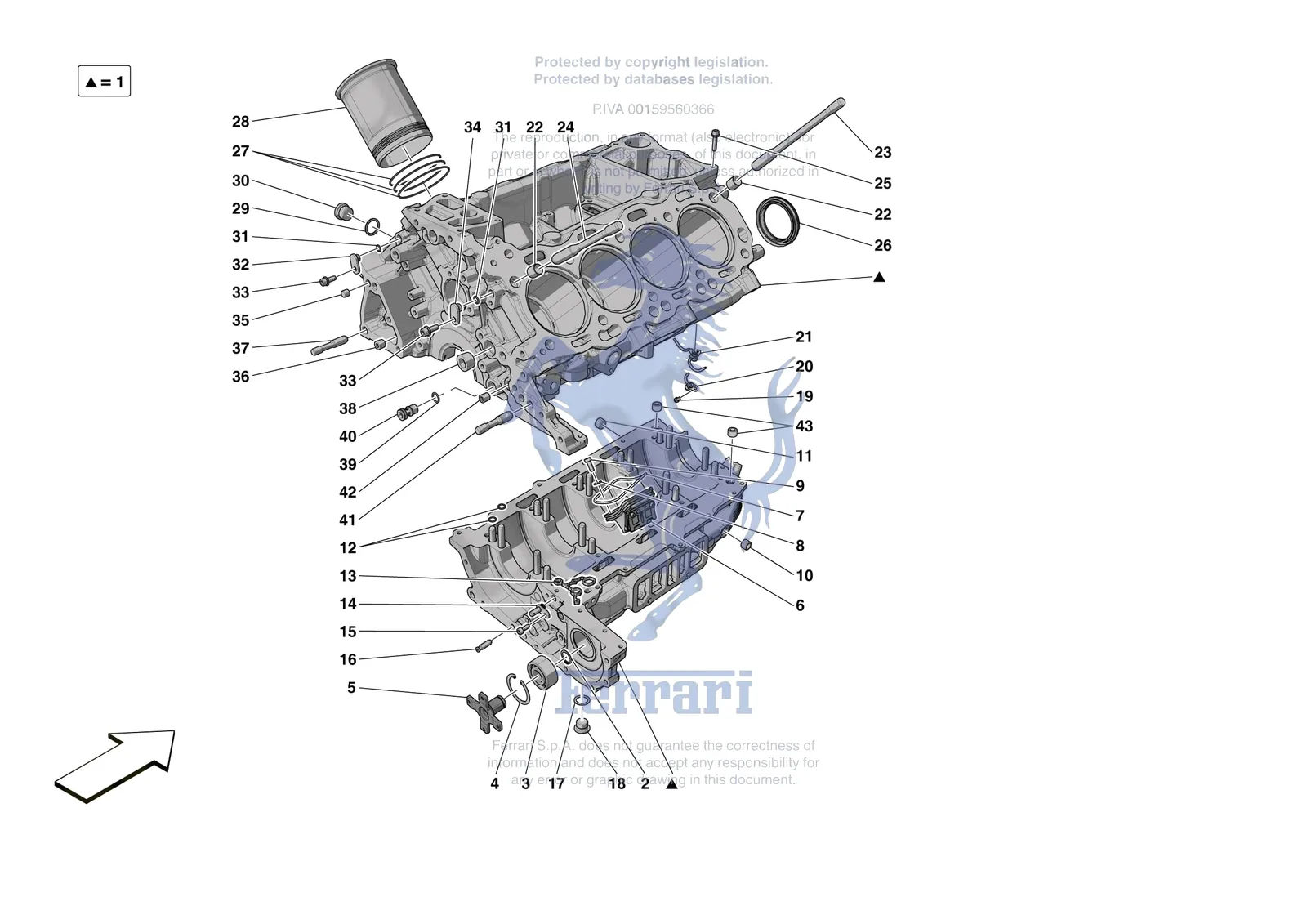

Exploded view of the [engine] - b.01 - crankcase on the Ferrari SF90 XX Stradale, with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Stradale [ENGINE] - B.01 - CRANKCASE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-stradale/0004.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 817509 | Ferrari Assemblato Bas Sottobasament - 817509 | Superseded | Order 925899 instead | |
| 302154 | Ferrari Cap - 302154 | $13.03 | Special order, ships in 7-14 days | |
| 300499 | Ferrari Screw - 300499 | $1.44 | Special order, ships in 7-14 days | |
| 11066875 | Ferrari Snap Ring - 11066875 | Superseded | Order 11066876 instead | |
| 183447 | Ferrari Threaded Plug - 183447 | $18.48 | Available, ships in 3-6 days | |
| 194490 | Ferrari Threaded Plug - 194490 | Superseded | Order 164400 instead | |
| 194495 | Ferrari Threaded Plug - 194495 | Superseded | Order 282755 instead | |
| 14326001 | Ferrari Threaded Plug D 10x1.25 - 14326001 | Superseded | Order 282755 instead | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 925899 | Ferrari Assemblato Bas Sottobasament - 925899 | $7,829.33 | Special order, ships in 7-14 days |
| 2 | 11066876 | Ferrari Circlip 20E - 11066876 | $0.13 | Available, ships in 3-6 days |
| 3 | 247049 | Ferrari Bearing - 247049 | $87.40 | Special order, ships in 7-14 days |
| 4 | 11060276 | Ferrari Circlip - 11060276 | $0.92 | Available, ships in 3-6 days |
| 5 | 304697 | Ferrari Drive Joint - 304697 | $295.43 | Special order, ships in 7-14 days |
| 6 | 881112 | Ferrari Porta Valvole Cpl - 881112 | $344.69 | Special order, ships in 7-14 days |
| 7 | 103994 | Ferrari Gasket - 103994 | $9.33 | Special order, ships in 7-14 days |
| 8 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 9 | 13027024 | Ferrari Screw TCEI M6 x 16 - 13027024 | $0.38 | Special order, ships in 7-14 days |
| 10 | 164400 | Ferrari Threaded Plug - 164400 | $6.96 | Special order, ships in 7-14 days |
| 11 | 127635 | Ferrari Threaded Plug M18 x 11 x 1.5 - 127635 | $6.75 | Available, ships in 3-6 days |
| 12 | 134705 | Ferrari O-Ring - 134705 | $0.76 | In stock |
| 13 | 925945 | Ferrari Gasket - 925945 | $15.06 | Special order, ships in 7-14 days |
| 14 | 339523 | Ferrari Assieme Sald.Ugello Raffred - 339523 | $108.31 | Special order, ships in 7-14 days |
| 15 | 282392 | Ferrari Screw 6x14 - 282392 | $0.96 | Available, ships in 3-6 days |
| 16 | 766469 | Ferrari Pin for Tensioner - 766469 | $12.86 | Special order, ships in 7-14 days |
| 17 | 10259960 | Ferrari Copper Washer - 10259960 | $1.21 | In stock |
| 18 | 306145 | Ferrari 488 Crankcase Drain Plug - 306145 | $11.99 | In stock |
| 19 | 315493 | Ferrari Screw - 315493 | $2.13 | Special order, ships in 7-14 days |
| 20 | 298859 | Ferrari Piston Cooling Nozzle Assembly - 298859 | $44.29 | Special order, ships in 7-14 days |
| 21 | 298858 | Ferrari Piston Cooling Nozzle Assembly - 298858 | $64.00 | Special order, ships in 7-14 days |
| 22 | 185360 | Ferrari Centering Dowel - 185360 | $5.44 | Special order, ships in 7-14 days |
| 23 | 897847 | Ferrari Prigioniero M14X1.5 Gambo M1 - 897847 | $41.55 | Special order, ships in 7-14 days |
| 24 | 897848 | Ferrari Prigioniero M14X1.5 Gambo M1 - 897848 | $39.37 | Special order, ships in 7-14 days |
| 25 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 26 | 271598 | Ferrari/Maserati Front Crankshaft Oil Seal - 271598 | $62.78 | In stock |
| 27 | 338795 | Ferrari Guarnizione O-Ring (87 X 2) - 338795 | $7.63 | Special order, ships in 7-14 days |
| 28 | 334275 | Ferrari Canna Cilindri (Alesagg - 334275 | $441.81 | Special order, ships in 7-14 days |
| 29 | 10263460 | Ferrari/Maserati Copper Washer - 10263460 | $1.93 | In stock |
| 30 | 307477 | Ferrari/Maserati Crankcase Threaded Plug - 307477 | $5.35 | In stock |
| 31 | 291544 | Ferrari O-Ring 1.50X7 - 291544 | $0.79 | Special order, ships in 7-14 days |
| 32 | 753181 | Ferrari Tappo - 753181 | $15.29 | Special order, ships in 7-14 days |
| 33 | 282393 | Ferrari Screw 6x16 - 282393 | $1.48 | Available, ships in 3-6 days |
| 34 | 781384 | Ferrari Tappo - 781384 | $15.29 | Special order, ships in 7-14 days |
| 35 | 311001 | Ferrari Alignment Dowel - 311001 | $6.10 | Special order, ships in 7-14 days |
| 36 | 291078 | Ferrari Threaded Plug 12x11 - 291078 | $5.02 | Special order, ships in 7-14 days |
| 37 | 278120 | Ferrari Stud Bolt - 278120 | $39.37 | Special order, ships in 7-14 days |
| 38 | 282753 | Ferrari Cover - Threaded Plug - 282753 | $13.09 | Special order, ships in 7-14 days |
| 39 | 137192 | Ferrari/Maserati O-Ring - 137192 | $1.25 | In stock |
| 40 | 901018 | Ferrari Tappo Passaggio Olio - 901018 | $41.82 | Special order, ships in 7-14 days |
| 41 | 342332 | Ferrari Prigioniero M11X1.5 Gambo M - 342332 | $32.79 | Special order, ships in 7-14 days |
| 42 | 282755 | Ferrari Threaded Plug D 10x1.25 - 282755 | $4.35 | Available, ships in 3-6 days |
| 43 | 939188 | Ferrari Bushing - 939188 | $10.25 | Special order, ships in 7-14 days |
