Ferrari SF90 XX Stradale — [ENGINE] - B.29 - AC COMPRESSOR (diagram 0034)

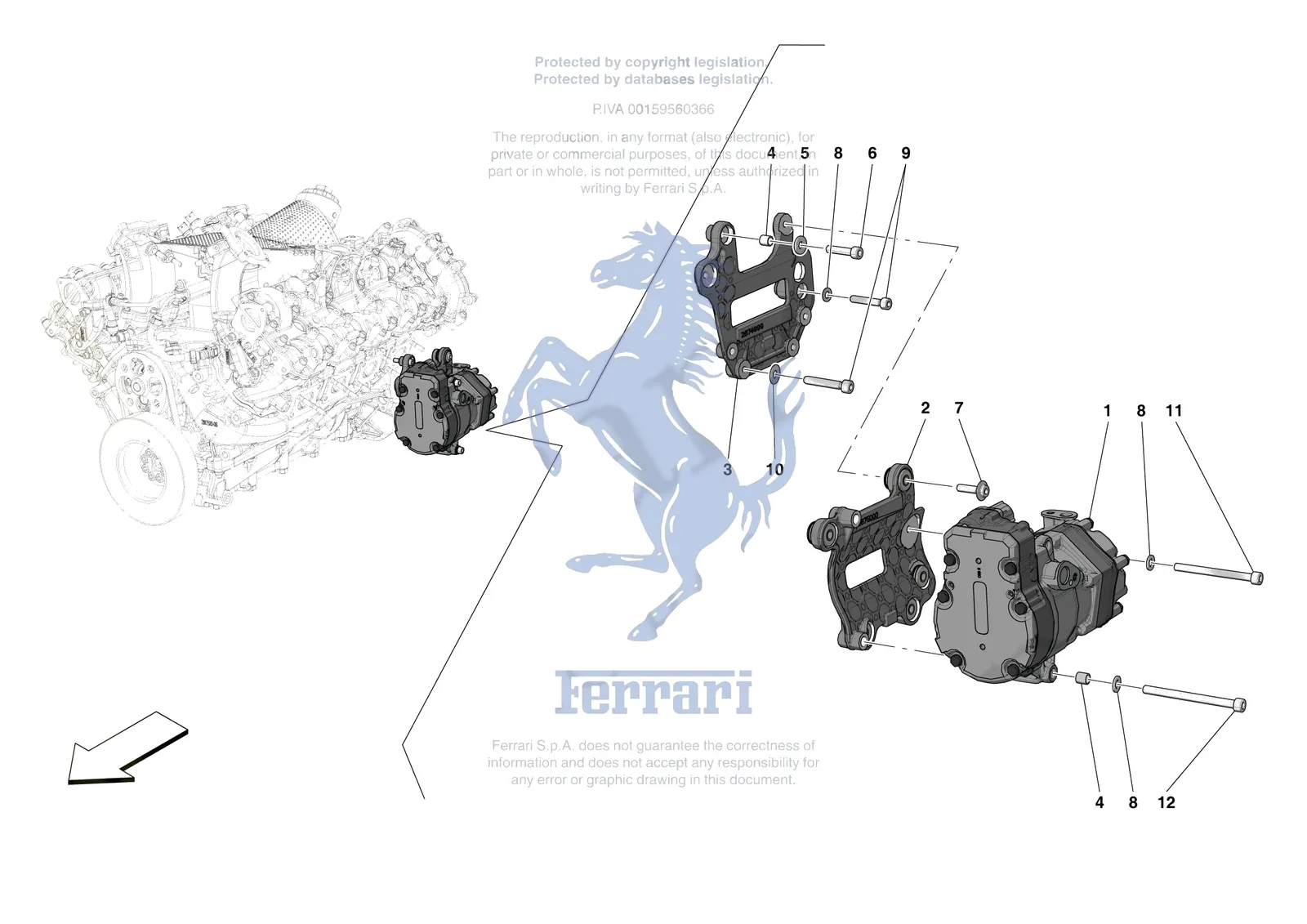

Exploded view of the [engine] - b.29 - ac compressor on the Ferrari SF90 XX Stradale, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Stradale [ENGINE] - B.29 - AC COMPRESSOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-stradale/0034.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10413870 | Ferrari Belleville Washer - 10413870 | Superseded | Order 12646724 instead | |
| 14306621 | Ferrari Screw 8X35 - 14306621 | Superseded | Order 14306624 instead | |
| 12601570 | Ferrari Washer - 12601570 | Superseded | Order 12646724 instead | |
| 12601571 | Ferrari Washer - 12601571 | Superseded | Order 12646724 instead | |
| 12646721 | Ferrari Washer - 12646721 | Superseded | Order 12646724 instead | |
| 1 | 803367 | Ferrari Compressore Elett. A/C Mahle - 803367 | $4,508.58 | Special order, ships in 7-14 days |
| 2 | 879772 | Ferrari Air Conditioner Mounting Bra - 879772 | $1,009.51 | Special order, ships in 7-14 days |
| 3 | 879771 | Ferrari Compl. Interface Bracket - 879771 | $418.56 | Special order, ships in 7-14 days |
| 4 | 100041 | Ferrari Dowel - 100041 | $14.22 | Available, ships in 3-6 days |
| 5 | 12646724 | Ferrari Washer 8.45-20x2 - 12646724 | $0.19 | Available, ships in 3-6 days |
| 6 | 14306624 | Ferrari Screw 8x35mm - 14306624 | $0.52 | Special order, ships in 7-14 days |
| 7 | 815958 | Ferrari Vite Flangiata Rib. M8X1.25X - 815958 | $16.83 | Special order, ships in 7-14 days |
| 8 | 11193874 | Ferrari Washer D.8.4-16x1.4 - 11193874 | $0.12 | Available, ships in 3-6 days |
| 9 | 14306828 | Ferrari Allen Head Bolt M8X45 - 14306828 | $4.35 | Special order, ships in 7-14 days |
| 10 | 12625224 | Ferrari Washer - 12625224 | $0.13 | Available, ships in 3-6 days |
| 11 | 14307124 | Ferrari Screw M8 x 90 - 14307124 | $1.30 | Available, ships in 3-6 days |
| 12 | 14302124 | Ferrari Allen Head Bolt M 8X100 - 14302124 | $2.59 | Special order, ships in 7-14 days |
