Ferrari SF90 XX Stradale — [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER (diagram 0052)

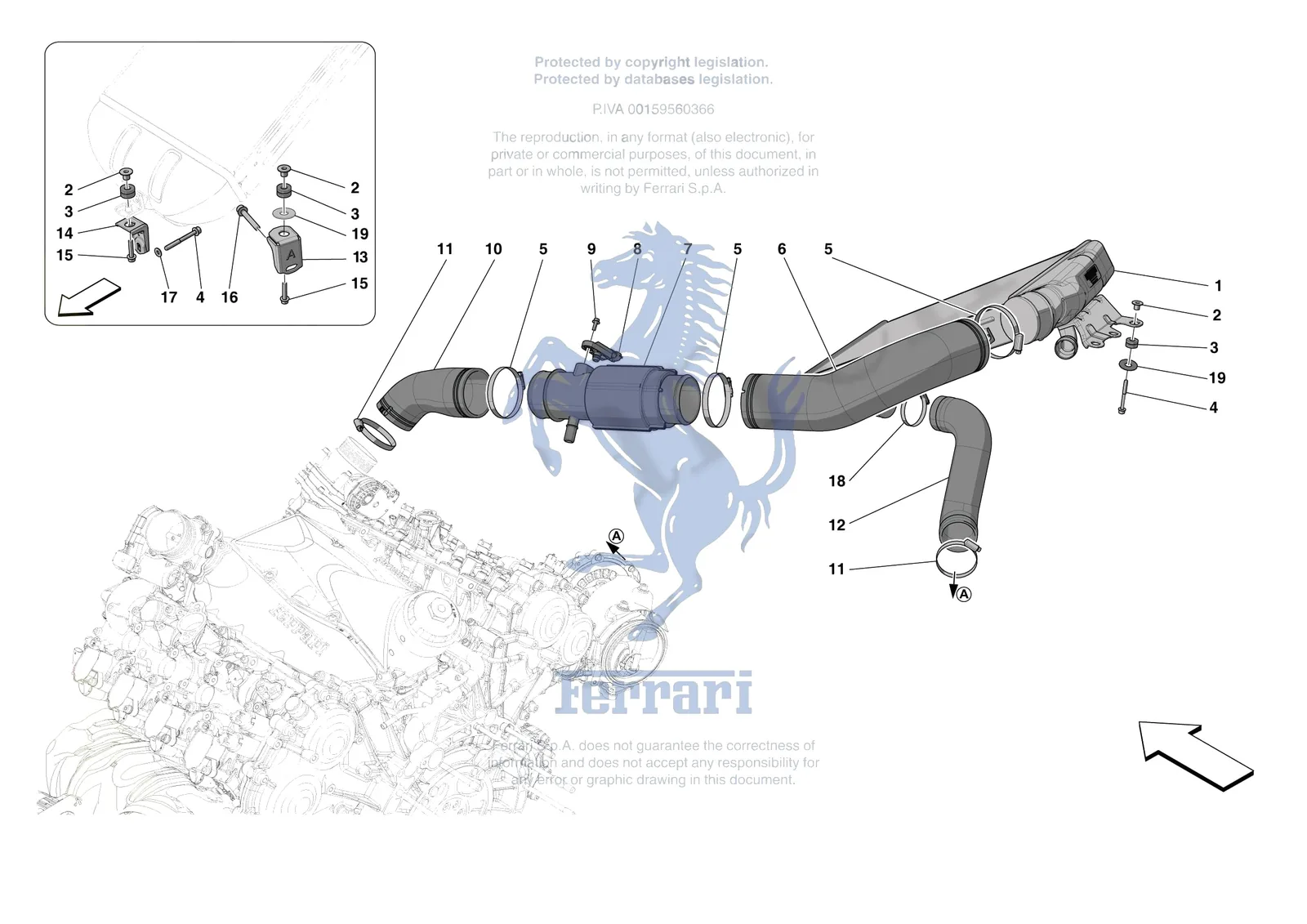

Exploded view of the [mechanical system] - d.04.02 - intercooler on the Ferrari SF90 XX Stradale, with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 XX Stradale [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14306824Ferrari Bolt M8 x 45 TCEI - 14306824$1.04Available, ships in 3-6 days
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1925696Ferrari Intercooler Sx - 925696$3,531.56Special order, ships in 7-14 days
1967491Ferrari RH Intercooler - 967491$3,259.54Special order, ships in 7-14 days
2149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
3812273Ferrari Cable Grommet D. 9 x 25 - 812273$3.47Special order, ships in 7-14 days
4255494Ferrari Screw - 255494$18.76Available, ships in 3-6 days
5296786Ferrari Hose Clamp 70 to 90mm - 296786$28.42Special order, ships in 7-14 days
6963027Ferrari Manicotto Uscita Ic Dx - 963027$199.41Special order, ships in 7-14 days
6963028Ferrari Manicotto Uscita Ic Sx - 963028$204.34Special order, ships in 7-14 days
7904316Ferrari Tubo Ap Risuonatore Dx - 904316$295.43Special order, ships in 7-14 days
7904317Ferrari Tubo Ap Risuonatore Sx - 904317$295.43Special order, ships in 7-14 days
8283538Ferrari Intake Pressure Sensor - 283538$61.16Special order, ships in 7-14 days
9256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
10968824Ferrari Manicotto Su Corpo Farfal D5 - 968824$211.73Special order, ships in 7-14 days
10968825Ferrari Manicotto Su Corpo Farfal D5 - 968825$211.73Special order, ships in 7-14 days
11296785Ferrari Hose Clamp 60 to 80mm - 296785$24.05Available, ships in 3-6 days
12951971Ferrari Manicotto Tc-Ic Dx - 951971$886.38Special order, ships in 7-14 days
12951972Ferrari Manicotto Tc-Ic Sx - 951972$861.77Special order, ships in 7-14 days
13861313Ferrari Front Support Bracket -Intercooler - 861313$27.06Special order, ships in 7-14 days
14861315Ferrari Rear Support Bracket - Intercooler - 861315$18.44Special order, ships in 7-14 days
15231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
16285494Ferrari Screw 8x50 - 285494$1.99Available, ships in 3-6 days
17276781Ferrari Washer - 276781$0.79Special order, ships in 7-14 days
18859764Ferrari Screw Collar D.55-75 x 9 - 859764$8.72Special order, ships in 7-14 days
1912643724Ferrari/Maserati Washer - 12643724$0.20In stock
