Ferrari SF90 XX Stradale — [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR (diagram 0057)

Exploded view of the [mechanical system] - d.08.02 - exhaust system - rear on the Ferrari SF90 XX Stradale, with 72 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

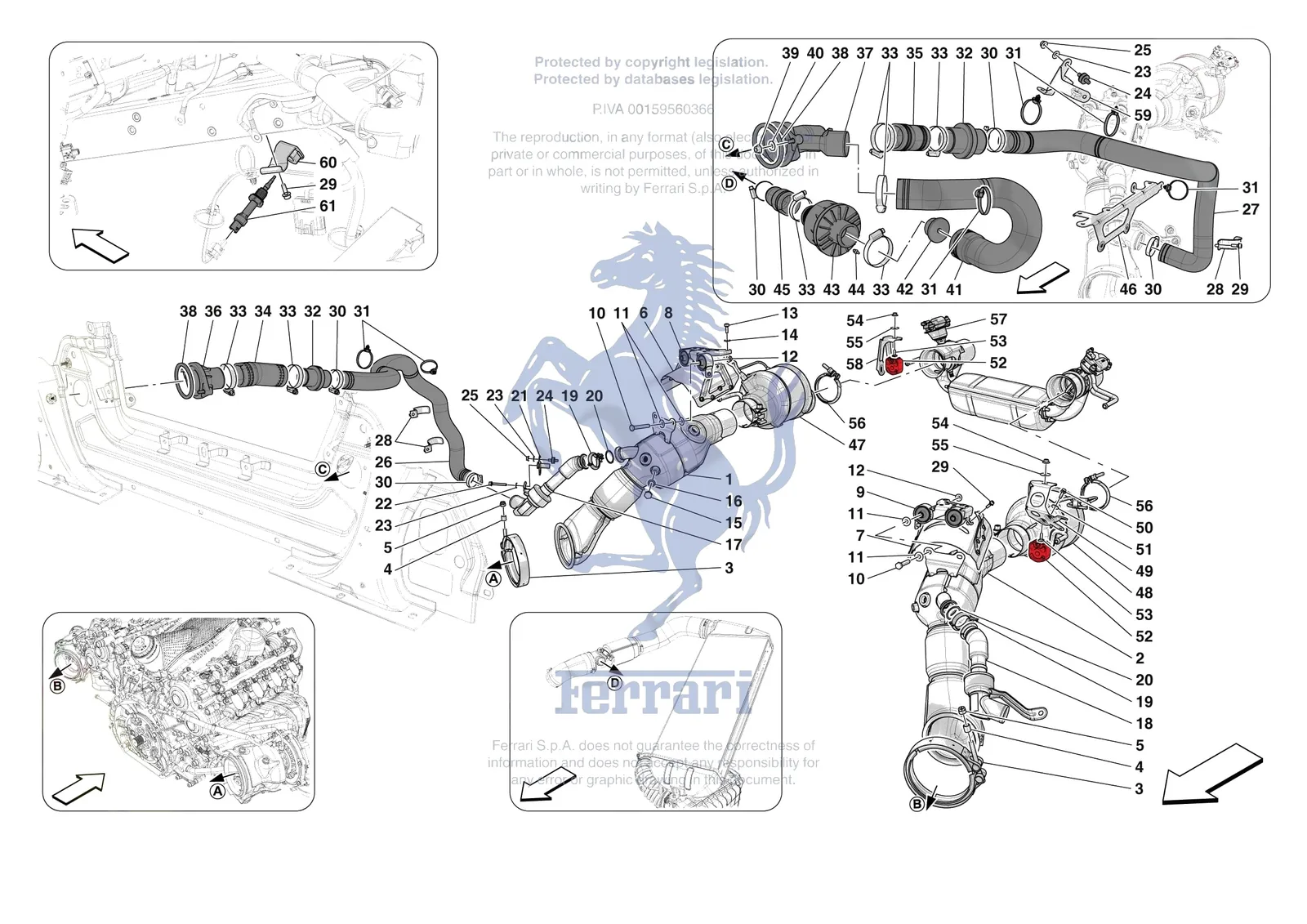

Ferrari SF90 XX Stradale [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
938340Ferrari Muffler Light Titanium F173 - 938340SupersededOrder 958641 instead
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1939970Ferrari Precat Light Inconel F173 RH - 939970$22,849.06Contact us to order
2939972Ferrari Precat Light Inconel F173 LH - 939972$22,827.35Contact us to order
3290743Ferrari V-Clamp For Fastening Catalytic Converter to Manifold - 290743$164.72Special order, ships in 7-14 days
4292946Ferrari 812/F12 Exhaust Clamp Shim/Spacer - 292946$9.75In stock
5292945Ferrari Nut M8 x 1.25 - 292945$28.39Special order, ships in 7-14 days
6826110Ferrari Riparo Cat Dx - 826110$177.25Special order, ships in 7-14 days
7826111Ferrari Riparo Cat Sx - 826111$177.25Special order, ships in 7-14 days
8981836Ferrari Complete RH Catalytic Converter Bracket - 981836$443.17Special order, ships in 7-14 days
9981838Ferrari Complete LH Catalytic Converter Bracket - 981838$443.17Special order, ships in 7-14 days
1016044224Ferrari Screw M8 x 50mm TE - 16044224$0.79Available, ships in 3-6 days
1112625224Ferrari Washer - 12625224$0.13Available, ships in 3-6 days
1214059311Ferrari NUT - 14059311$0.52Available, ships in 3-6 days
13216565Ferrari Screw 6X20 - 216565$0.92Special order, ships in 7-14 days
1414498824Ferrari Washer D. 6.4 - 16.3 - 14498824$0.27Available, ships in 3-6 days
15110860Ferrari Manifold Blanking Plug - 110860$25.09Available, ships in 3-6 days
1610298460Ferrari Washer - 10298460$1.10In stock
17968310Ferrari Tubaz Rig Sg Dx - 968310$1,822.04Special order, ships in 7-14 days
18968311Ferrari Tubaz Rig Sg Sx - 968311$1,822.04Special order, ships in 7-14 days
19855141Ferrari V-Clamp - 855141$71.28Special order, ships in 7-14 days
20898288Ferrari Guarnizione Per Flangia Tubo - 898288$30.57Special order, ships in 7-14 days
21842654Ferrari Bracket for Rigid Pipe - 842654$44.29Special order, ships in 7-14 days
22231624Ferrari Allen Screw M6 x 45 - 231624SupersededOrder 14305924 instead
2312644404Ferrari Washer - 12644404SupersededOrder 12644424 instead
2312644424Ferrari Washer 6.15-15 x 1 - 12644424$0.12Available, ships in 3-6 days
24225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
2514040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
26949108Ferrari Tubo Spiralato Dx D=38 L=870 - 949108$320.06Special order, ships in 7-14 days
27898522Ferrari LH Coiled Pipe - 898522$418.56Special order, ships in 7-14 days
28880303Ferrari Bracket - RH Coiled Pipe - 880303$44.24Special order, ships in 7-14 days
29256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
30296781Ferrari Hose Clamp - 296781$5.59In stock
31217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
32941621Ferrari Membrane Holder Pipe - 941621$189.56Special order, ships in 7-14 days
33296782Ferrari Hose Clamp 32-50mm - 296782$17.67Available, ships in 3-6 days
34939880Ferrari Manicotto Piegato Per Sg - 939880$91.08Special order, ships in 7-14 days
35775552Ferrari Two-Way Pipe Connector - 775552$132.94Special order, ships in 7-14 days
36917223Ferrari Trombetta - 917223$34.44Special order, ships in 7-14 days
37915276Ferrari Three-Way Elbow - 915276$39.37Special order, ships in 7-14 days
38901095Ferrari Gasket - 901095$8.72Special order, ships in 7-14 days
3914040511Ferrari Nut - Self Locking - 14040511$1.11Special order, ships in 7-14 days
4012638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
41745692Ferrari Hose - 745692$169.87Special order, ships in 7-14 days
42898520Ferrari Reducer For Resonator - 898520$21.64Special order, ships in 7-14 days
43310096Ferrari Sound Generator - 310096$417.97Special order, ships in 7-14 days
44314100Ferrari Rivet - 314100$0.96Special order, ships in 7-14 days
45745912Ferrari Hose - 745912$96.01Special order, ships in 7-14 days
46939195Ferrari Wiring Harness Bracket - 939195$88.61Special order, ships in 7-14 days
47832344Ferrari Compl. RH Gpf - 832344$37,433.65Contact us to order
47867548Ferrari RH Complete GPF - 867548$16,039.87Contact us to order
48832347Ferrari Compl. LH Gpf - 832347$37,433.65Contact us to order
48867549Ferrari Gpf Cpl Sx - 867549$16,039.87Contact us to order
49919089Ferrari Bracket for LH Gas Particulate Filter - 919089$91.08Special order, ships in 7-14 days
49827919Ferrari Bracket for RH Gas Particulate Filter - 827919$68.92Special order, ships in 7-14 days
50231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
5112643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
52239798Ferrari Rubber Exhaust Mount - 239798$112.88In stock
53250222Ferrari Screw Squared Head 6x18.5 - 250222$5.44Special order, ships in 7-14 days
5414039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
5512648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
56806375Ferrari V-Clamp - 806375$94.09Special order, ships in 7-14 days
57958641Ferrari Muffler Light Titanium F173 - 958641$18,562.56Contact us to order
58917049Ferrari Exhaust Bracket - Front Section - 917049$78.76Special order, ships in 7-14 days
59898521Ferrari Bracket - 898521$44.29Special order, ships in 7-14 days
60895925Ferrari Supporto Sens Temp Sg Dx - 895925$91.08Special order, ships in 7-14 days
60895926Ferrari Supporto Sens Temp Sg Sx - 895926$86.15Special order, ships in 7-14 days
61890950Ferrari Measured Air Temperature Sen - 890950$177.00Special order, ships in 7-14 days

All SF90 XX Stradale diagrams
