Ferrari SF90 XX Stradale — [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS (diagram 0077)

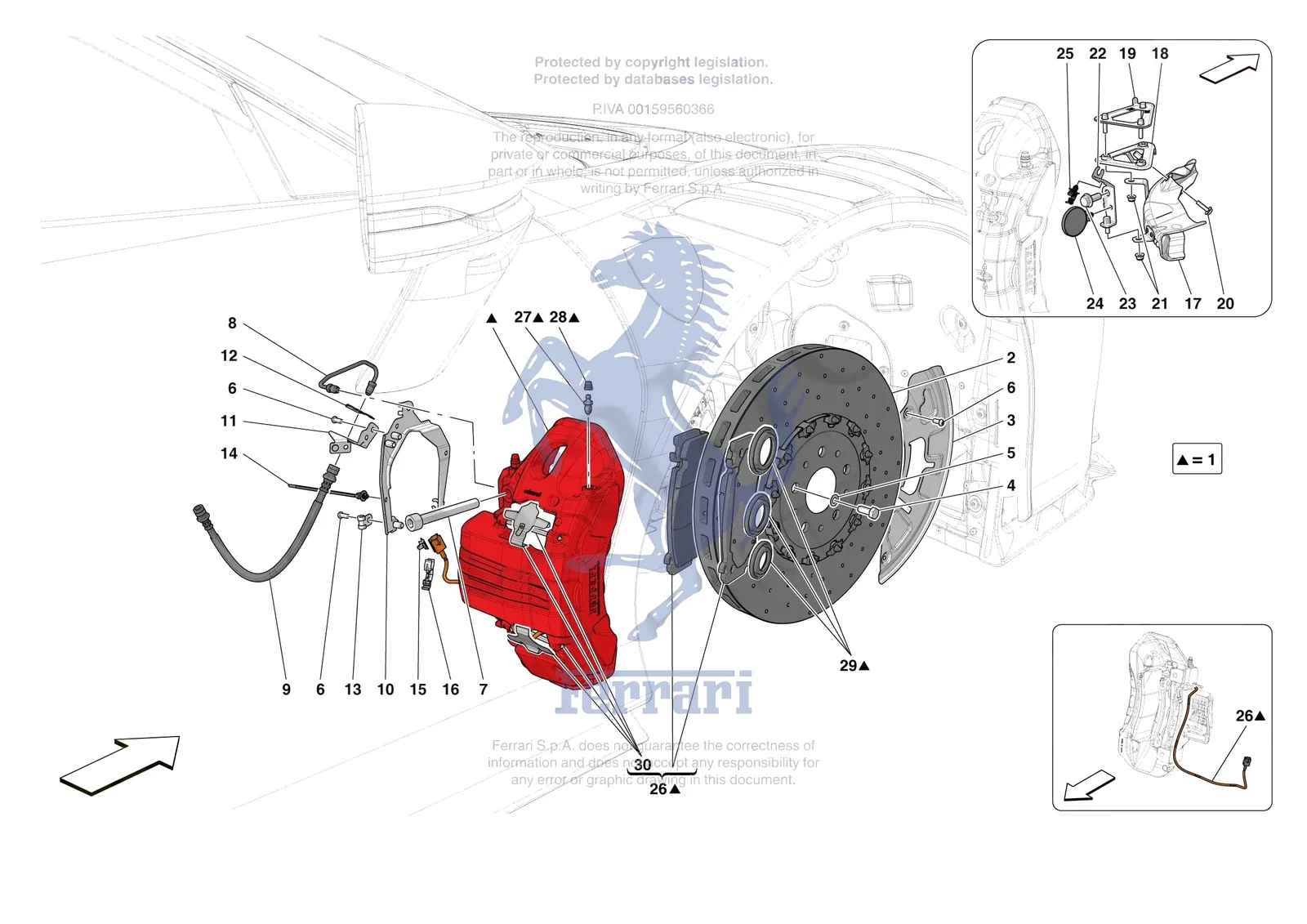

Exploded view of the [mechanical system] - d.25.03 - front suspension - calipers and discs on the Ferrari SF90 XX Stradale, with 60 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 XX Stradale [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
12486580Ferrari Botton - 12486580SupersededOrder 204781 instead
175871Ferrari Clip - 175871SupersededOrder 204781 instead
323365Ferrari Connector Fastener Clip - 323365SupersededOrder 204781 instead
190870Ferrari Screw 6x14 - 190870$4.10Special order, ships in 7-14 days
1890716Ferrari COMPLETE L.H. FRONT CALIPER - 890716Price on requestContact us for price and availability
1890717Ferrari COMPLETE L.H. FRONT CALIPER - 890717Price on requestContact us for price and availability
1890718Ferrari COMPLETE L.H. FRONT CALIPER - 890718Price on requestContact us for price and availability
1890719Ferrari COMPLETE L.H. FRONT CALIPER - 890719Price on requestContact us for price and availability
1890721Ferrari COMPLETE L.H. FRONT CALIPER - 890721Price on requestContact us for price and availability
1890722Ferrari COMPLETE L.H. FRONT CALIPER - 890722Price on requestContact us for price and availability
1890742Ferrari COMPLETE L.H. FRONT CALIPER - 890742Price on requestContact us for price and availability
1890743Ferrari COMPLETE L.H. FRONT CALIPER - 890743$8,425.36Special order, ships in 7-14 days
1899625Ferrari Complete L.H. Front Caliper - 899625$8,266.93Special order, ships in 7-14 days
1890758Ferrari COMPLETE RH FRONT CALIPER - 890758Price on requestContact us for price and availability
1890766Ferrari COMPLETE RH FRONT CALIPER - 890766Price on requestContact us for price and availability
1890767Ferrari COMPLETE RH FRONT CALIPER - 890767Price on requestContact us for price and availability
1890772Ferrari COMPLETE RH FRONT CALIPER - 890772Price on requestContact us for price and availability
1890786Ferrari COMPLETE RH FRONT CALIPER - 890786Price on requestContact us for price and availability
1890839Ferrari COMPLETE RH FRONT CALIPER - 890839Price on requestContact us for price and availability
1890840Ferrari COMPLETE RH FRONT CALIPER - 890840Price on requestContact us for price and availability
1891033Ferrari COMPLETE RH FRONT CALIPER - 891033Price on requestContact us for price and availability
1899898Ferrari Complete RH Front Caliper - 899898$8,266.93Special order, ships in 7-14 days
2833468Ferrari Front Brake Disc - 833468$9,772.43Special order, ships in 7-14 days
2843297Ferrari FRONT BRAKE DISC - 843297$10,160.30Special order, ships in 7-14 days
3321235Ferrari Front LH Disc Shield - 321235$81.11Special order, ships in 7-14 days
3321236Ferrari Front RH Disc Shield - 321236$81.11Special order, ships in 7-14 days
4228131Ferrari Screw M8 x 20 - 228131$1.53Available, ships in 3-6 days
5228132Ferrari Spring Washer - 228132$0.59Available, ships in 3-6 days
6250657Ferrari Screw M6 x 14 TBTX - 250657$13.36Available, ships in 3-6 days
7195167Ferrari Screw TCEI M12 x 1.5 x 95 - 195167$34.94Available, ships in 3-6 days
8843130Ferrari Tubo Freno Da Pinaz A Flex.D - 843130$44.29Special order, ships in 7-14 days
8843127Ferrari Tubo Freno Da Pinza A Flex.S - 843127$44.29Special order, ships in 7-14 days
9777000Ferrari Brake Hose L.376 mm - 777000$103.25Available, ships in 3-6 days
10956357Ferrari LH Front Brake Hose Mounting - 956357$132.94Special order, ships in 7-14 days
10956359Ferrari RH Front Brake Hose Mounting - 956359$132.94Special order, ships in 7-14 days
11877584Ferrari LH Front Brake Hose Bracket - 877584$41.82Special order, ships in 7-14 days
11877586Ferrari RH Front Brake Hose Bracket - 877586$41.82Special order, ships in 7-14 days
12326837Ferrari Clip - 326837$4.77Available, ships in 3-6 days
1310440890Ferrari P Clip Bracket With Sheath - 10440890$1.04Available, ships in 3-6 days
14918784Ferrari Clamp Hellermann Pa4.6 15 - 918784$0.82Special order, ships in 7-14 days
15204781Ferrari Clip - 204781$1.67Available, ships in 3-6 days
16310942Ferrari Triple Clip - 310942$3.26Special order, ships in 7-14 days
17876350Ferrari Compl. LH Front Brake Air Du - 876350$192.03Special order, ships in 7-14 days
17876365Ferrari Compl. RH Front Brake Air Du - 876365$192.03Special order, ships in 7-14 days
18957592Ferrari Fastener Plate For LH Front - 957592$204.34Special order, ships in 7-14 days
18957600Ferrari Fastener Plate For RH Front - 957600$204.34Special order, ships in 7-14 days
19957591Ferrari Fastener Plate For Front Duc - 957591$76.30Special order, ships in 7-14 days
2084487600Ferrari Screw - 84487600$1.34Special order, ships in 7-14 days
2114058421Ferrari Nut M6 x 6 - 14058421$2.38Available, ships in 3-6 days
22876335Ferrari Cable Bracket On LH Front Su - 876335$86.15Special order, ships in 7-14 days
22876349Ferrari Cable Bracket On RH Front Su - 876349$86.15Special order, ships in 7-14 days
2316288434Ferrari Screw 10X1.25X - 16288434$1.23Special order, ships in 7-14 days
24217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
25291408Ferrari Clip - 291408$0.34Special order, ships in 7-14 days
2655004277Ferrari Set Of Front Pads With Sprin - 55004277$5,517.41Special order, ships in 7-14 days
2670007774Ferrari Set Of Front Pads With Spring - 70007774$4,663.43Available, ships in 3-6 days
27215665Ferrari Bleed Nipple Valve - 215665$78.66Available, ships in 3-6 days
28215666Ferrari Cap For Bleed Nipple - 215666$51.62Available, ships in 3-6 days
2970003492Ferrari Front Brake Caliper Dust Seal Kit - 70003492$184.38Special order, ships in 7-14 days
3070004533Ferrari Spring And Pin Kit - 70004533$238.47Special order, ships in 7-14 days
