Ferrari SF90 XX Stradale — [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE (diagram 0096)

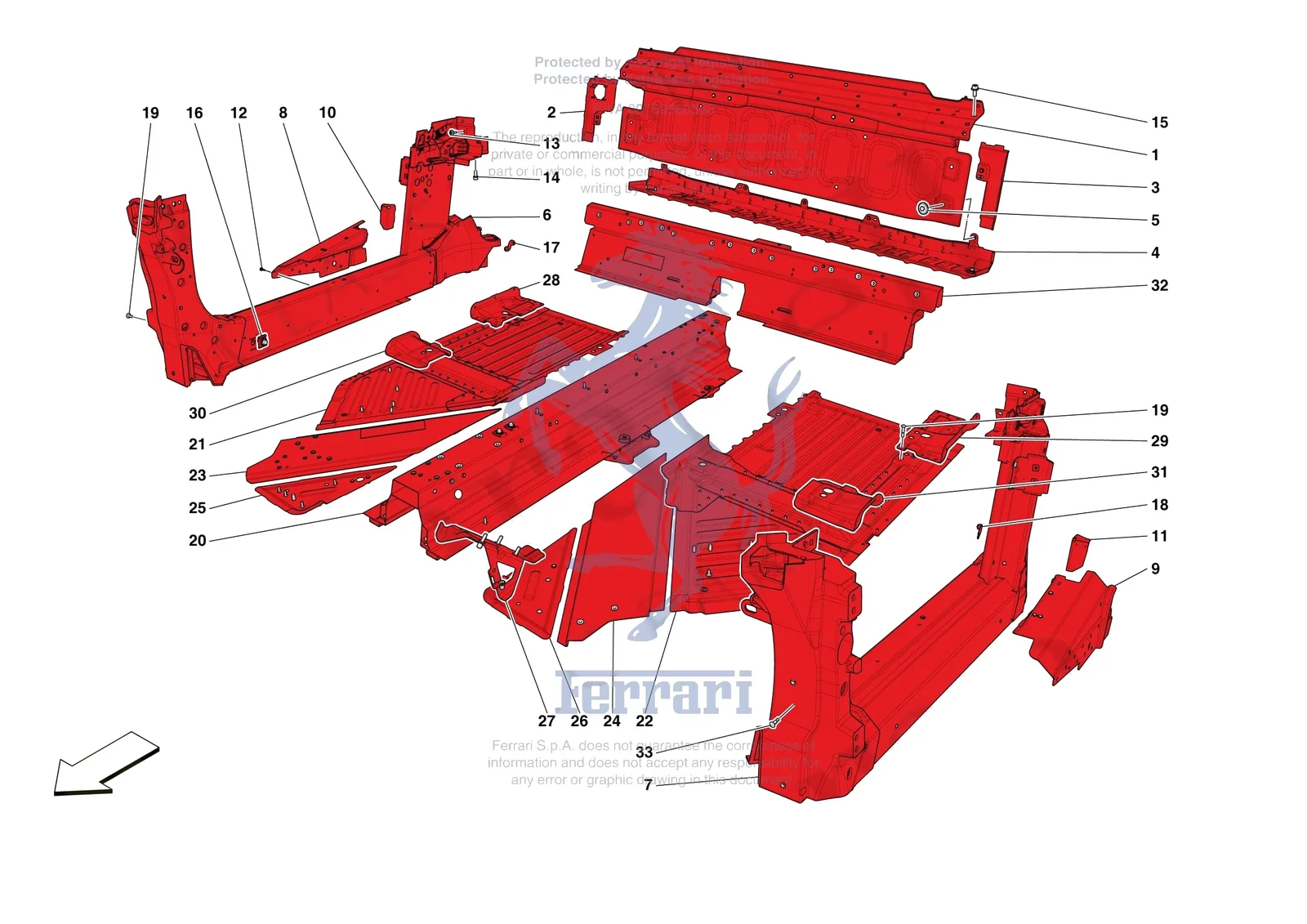

Exploded view of the [vehicle trim] - e.01.02 - structures and elements centre of vehicle on the Ferrari SF90 XX Stradale, with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Stradale [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-stradale/0096.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 985855212 | Ferrari Centre Tunnel Console - 985855212 | Superseded | Order 985788492 instead | |
| 864637 | Ferrari Firewall Assembly - 864637 | Superseded | Order 741156 instead | |
| 985876107 | Ferrari Traversa Post Pavimen. Cpl F - 985876107 | $7,210.90 | Special order, ships in 7-14 days | |
| 1 | 741156 | Ferrari Firewall Assembly - 741156 | $22,779.56 | Contact us to order |
| 2 | 985864948 | Ferrari Lamiera Interfac.Mont.B Dx C - 985864948 | $911.01 | Special order, ships in 7-14 days |
| 3 | 985864929 | Ferrari Lamiera Interfac.Mont. B Sx - 985864929 | $837.14 | Special order, ships in 7-14 days |
| 4 | 985864926 | Ferrari Parafiamma Posteriore Inf. C - 985864926 | $2,682.68 | Special order, ships in 7-14 days |
| 5 | 968262 | Ferrari Hex Head Screw M5X14+Col+R.I.D6X25. - 968262 | $39.37 | Special order, ships in 7-14 days |
| 6 | 985829476 | Ferrari RH Centre Sidewall - 985829476 | $21,751.91 | Contact us to order |
| 7 | 985829477 | Ferrari LH Centre Sidewall - 985829477 | $21,751.91 | Contact us to order |
| 8 | 985925987 | Ferrari Controvent. Mont.B Dx Cpl F1 - 985925987 | $1,034.12 | Special order, ships in 7-14 days |
| 9 | 985864735 | Ferrari Controvent. Mont.B Sx Cpl F1 - 985864735 | $1,034.12 | Special order, ships in 7-14 days |
| 10 | 813655 | Ferrari LH Corner Bracket Fastening to Chassis - 813655 | $56.60 | Special order, ships in 7-14 days |
| 11 | 813654 | Ferrari RH Corner Bracket Fastening to Chassis - 813654 | $56.60 | Special order, ships in 7-14 days |
| 12 | 330777 | Ferrari Ejoform Fds M5X25 - 330777 | $8.72 | Special order, ships in 7-14 days |
| 13 | 880041 | Ferrari Allen Head Bolt M6X26+R.Imp.D6X20X - 880041 | $11.58 | Special order, ships in 7-14 days |
| 14 | 985569 | Ferrari Allen Head Bolt M10X28+Col+R.Imp.D - 985569 | $12.02 | Special order, ships in 7-14 days |
| 15 | 985568 | Ferrari Vite Tcti M10X1.5X25+Co+R.Im - 985568 | $14.22 | Special order, ships in 7-14 days |
| 16 | 252821 | Ferrari Compl. Ground - 252821 | $61.45 | Special order, ships in 7-14 days |
| 17 | 865404 | Ferrari Compl. RH Tank Heat Shield Bracket - 865404 | $86.15 | Special order, ships in 7-14 days |
| 18 | 865401 | Ferrari Compl. LH Tank Heat Shield Bracket - 865401 | $86.15 | Special order, ships in 7-14 days |
| 19 | 204430 | Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430 | $2.82 | Available, ships in 3-6 days |
| 20 | 955013276 | Ferrari Centre Tunnel - 955013276 | $6,263.50 | Special order, ships in 7-14 days |
| 20 | 985788492 | Ferrari Centre Tunnel Console - 985788492 | $5,808.58 | Special order, ships in 7-14 days |
| 21 | 985918789 | Ferrari Pavimento Dx Cs F173 Cataf - 985918789 | $5,468.54 | Special order, ships in 7-14 days |
| 22 | 985918786 | Ferrari Pavimento Sx Cs F173 Cataf - 985918786 | $5,468.54 | Special order, ships in 7-14 days |
| 23 | 985878852 | Ferrari Estruso Rinf.Torque Box Dx C - 985878852 | $2,040.14 | Special order, ships in 7-14 days |
| 23 | 985895610 | Ferrari RH Torque Box Reinforcement - 985895610 | $1,329.59 | Special order, ships in 7-14 days |
| 24 | 985873788 | Ferrari LH Torque Box Reinforcement - 985873788 | $1,206.48 | Special order, ships in 7-14 days |
| 24 | 985891075 | Ferrari LH Torque Box Reinforcement - 985891075 | $1,501.96 | Special order, ships in 7-14 days |
| 25 | 985849008 | Ferrari Chiusura Pianale Ant Dx Cpl - 985849008 | $714.03 | Special order, ships in 7-14 days |
| 25 | 985893584 | Ferrari Compl. Front RH Floor Endpie - 985893584 | $689.41 | Special order, ships in 7-14 days |
| 26 | 985864721 | Ferrari Chiu.Pianale Anteriore Sx Cp - 985864721 | $615.54 | Special order, ships in 7-14 days |
| 26 | 985893582 | Ferrari Compl. Front LH Floor Endpie - 985893582 | $443.17 | Special order, ships in 7-14 days |
| 27 | 985866360 | Ferrari Compl. Accelerator Pedal Bra - 985866360 | $517.04 | Special order, ships in 7-14 days |
| 27 | 985940425 | Ferrari Compl. Accelerator Pedal Bra - 985940425 | $492.43 | Special order, ships in 7-14 days |
| 28 | 985771121 | Ferrari Rinforzo Att Sedile Est Post - 985771121 | $787.90 | Special order, ships in 7-14 days |
| 29 | 985771120 | Ferrari Rinforzo Att Sedile Est Post - 985771120 | $787.90 | Special order, ships in 7-14 days |
| 30 | 985864733 | Ferrari Rinforzo Att Sedile Est Ant - 985864733 | $738.64 | Special order, ships in 7-14 days |
| 31 | 985864732 | Ferrari Rinforzo Att Sedile Est Ant - 985864732 | $738.64 | Special order, ships in 7-14 days |
| 32 | 985873225 | Ferrari Traversa Post Pavimen. Cpl F - 985873225 | $8,362.29 | Special order, ships in 7-14 days |
| 33 | 14639791 | Ferrari Rivet D. 6.4X 14.1 - 14639791 | $2.59 | Special order, ships in 7-14 days |
