Ferrari SF90 XX Stradale — [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE (diagram 0097)

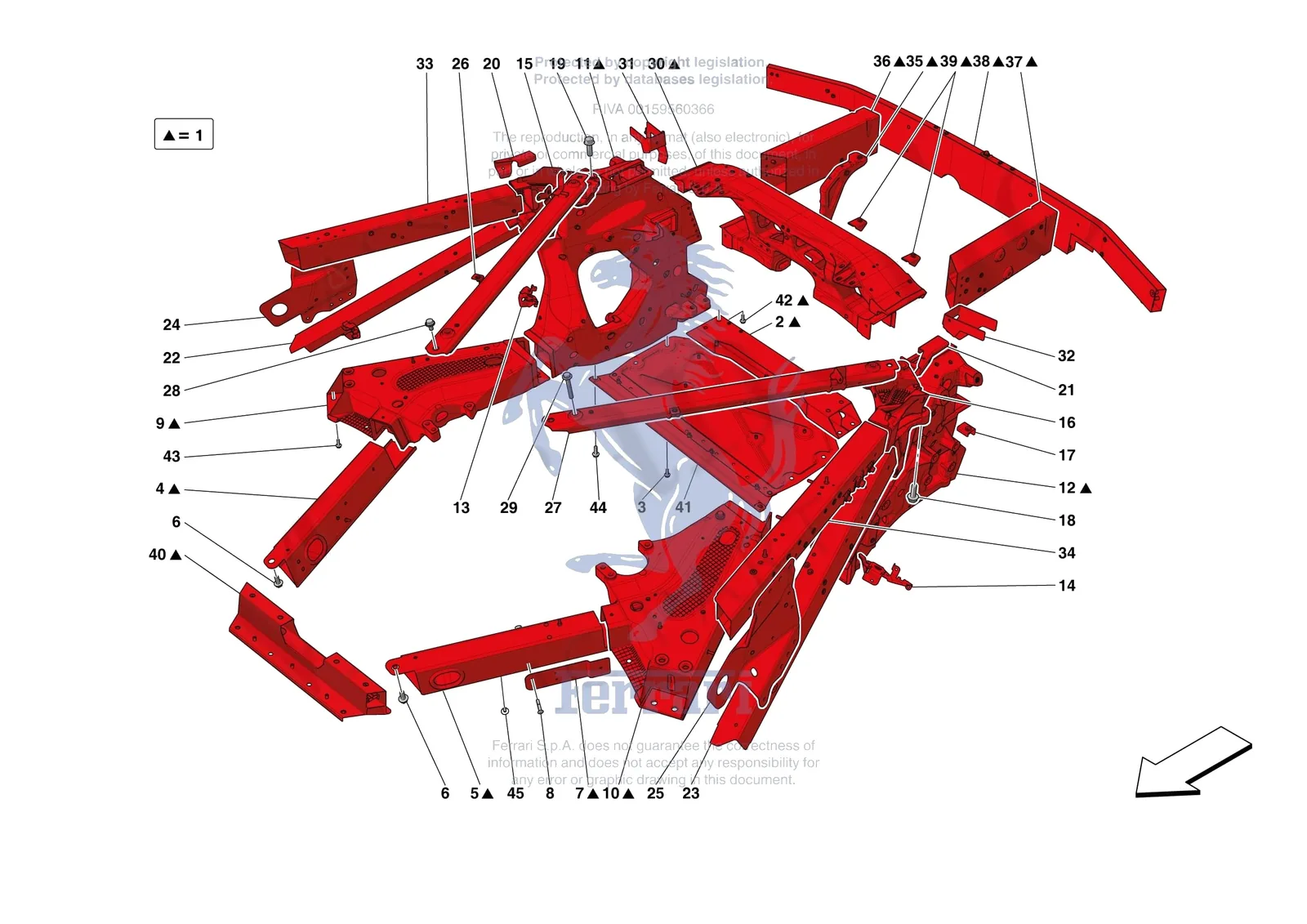

Exploded view of the [vehicle trim] - e.01.03 - structures and elements rear of vehicle on the Ferrari SF90 XX Stradale, with 46 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Stradale [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-stradale/0097.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 985883301 | Ferrari Rear Subframe - 985883301 | $71,063.12 | Contact us to order |
| 2 | 985866351 | Ferrari Traversa Inf Supp Cambio Cpl - 985866351 | $1,329.59 | Special order, ships in 7-14 days |
| 3 | 16287234 | Ferrari SCREW - 16287234 | $1.05 | Available, ships in 3-6 days |
| 4 | 985820842 | Ferrari Traversa Supp Zampa Ant Dx C - 985820842 | $1,895.91 | Special order, ships in 7-14 days |
| 5 | 985820839 | Ferrari Traversa Supp Zampa Ant Sx C - 985820839 | $1,899.43 | Special order, ships in 7-14 days |
| 6 | 16288474 | Ferrari Vite Tef M10X1.25X25 Gamb.In - 16288474 | $2.59 | Special order, ships in 7-14 days |
| 7 | 985965200 | Ferrari LH Tank Guard Reinforcement - 985965200 | $418.56 | Special order, ships in 7-14 days |
| 7 | 985965201 | Ferrari RH Tank Guard Reinforcement - 985965201 | $418.56 | Special order, ships in 7-14 days |
| 8 | 204430 | Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430 | $2.82 | Available, ships in 3-6 days |
| 9 | 985829436 | Ferrari Compl. RH Engine Strut Mount - 985829436 | $4,917.47 | Special order, ships in 7-14 days |
| 10 | 985829435 | Ferrari Supporto Zampa Motore Sx Cpl - 985829435 | $4,758.01 | Special order, ships in 7-14 days |
| 11 | 985829433 | Ferrari COMPL. RH REAR SUSPENSION CASTING - 985829433 | Price on request | Contact us for price and availability |
| 12 | 985829432 | Ferrari COMPL. LH REAR SUSPENSION CASTING - 985829432 | Price on request | Contact us for price and availability |
| 13 | 928000 | Ferrari Rear RH Brake Bracket - 928000 | $184.65 | Special order, ships in 7-14 days |
| 14 | 927999 | Ferrari Rear LH Brake Bracket - 927999 | $184.65 | Special order, ships in 7-14 days |
| 15 | 985827116 | Ferrari Fusione Att Rst Dx Cpl F173 - 985827116 | $3,315.82 | Special order, ships in 7-14 days |
| 16 | 985827113 | Ferrari Fusione Att Rst Sx Cpl F173 - 985827113 | $3,315.82 | Special order, ships in 7-14 days |
| 17 | 865534 | Ferrari Complete Rear Bracket - Magnaride - 865534 | $113.24 | Special order, ships in 7-14 days |
| 18 | 16289834 | Ferrari Screw Flanged M12 x 1.25 x 30 - 16289834 | $2.82 | Available, ships in 3-6 days |
| 19 | 811998 | Ferrari Vite Tef M14X1.5X40 - 811998 | $19.42 | Special order, ships in 7-14 days |
| 20 | 803290 | Ferrari RH Front Corner Bracket - 803290 | $103.38 | Special order, ships in 7-14 days |
| 21 | 865531 | Ferrari LH Front Corner Bracket - 865531 | $115.69 | Special order, ships in 7-14 days |
| 22 | 985865541 | Ferrari Diagonale Laterale Post Dx C - 985865541 | $1,477.33 | Special order, ships in 7-14 days |
| 23 | 985865527 | Ferrari Diagonale Laterale Post Sx C - 985865527 | $1,403.46 | Special order, ships in 7-14 days |
| 24 | 985865591 | Ferrari RH Tank Guard Bracket - 985865591 | $1,107.99 | Special order, ships in 7-14 days |
| 25 | 985865525 | Ferrari LH Tank Guard Bracket - 985865525 | $1,107.99 | Special order, ships in 7-14 days |
| 26 | 865762 | Ferrari RH Upper Internal Engine Com - 865762 | $517.04 | Special order, ships in 7-14 days |
| 27 | 865767 | Ferrari LH Upper Internal Engine Com - 865767 | $492.43 | Special order, ships in 7-14 days |
| 28 | 985571 | Ferrari Vite Tef M8X18+Colla+R.Imp.D - 985571 | $3.26 | Special order, ships in 7-14 days |
| 29 | 985572 | Ferrari Hex Head Screw M8X60+Colla+R.Imp.D8 - 985572 | $9.16 | Special order, ships in 7-14 days |
| 30 | 985829434 | Ferrari Compl. Gearbox Cross Member - 985829434 | $9,044.70 | Special order, ships in 7-14 days |
| 31 | 837374 | Ferrari Lower Bracket for Rear RH Node - 837374 | $224.04 | Special order, ships in 7-14 days |
| 32 | 865532 | Ferrari Lower Bracket for Rear LH Node - 865532 | $147.72 | Special order, ships in 7-14 days |
| 33 | 985865366 | Ferrari Diagonale Post Sup Est Dx Cs - 985865366 | $1,526.57 | Special order, ships in 7-14 days |
| 34 | 985865360 | Ferrari LH Outer Upper Rear Diagonal - 985865360 | $1,871.30 | Special order, ships in 7-14 days |
| 35 | 985830426 | Ferrari Compl. LH Lock trellis Mounting Bracket - 985830426 | $935.64 | Special order, ships in 7-14 days |
| 35 | 985830432 | Ferrari Compl. RH Lock Trellis Mounting Bracket - 985830432 | $935.64 | Special order, ships in 7-14 days |
| 36 | 985865537 | Ferrari Puntone Posteriore Dx Cs F17 - 985865537 | $5,977.41 | Special order, ships in 7-14 days |
| 37 | 985877104 | Ferrari Puntone Posteriore Sx Cs F17 - 985877104 | $5,574.07 | Special order, ships in 7-14 days |
| 38 | 985874570 | Ferrari Rear Bumper Cross Member - 985874570 | $3,529.22 | Special order, ships in 7-14 days |
| 39 | 820098 | Ferrari Staf Sald.Fiss.Tralic.Inver. - 820098 | $61.52 | Special order, ships in 7-14 days |
| 40 | 985924638 | Ferrari Traversa Ant Telaio Post Cs - 985924638 | $2,412.99 | Special order, ships in 7-14 days |
| 41 | 865055 | Ferrari Rear Structural Undertray - 865055 | $787.90 | Contact us to order |
| 42 | 16288434 | Ferrari Screw 10X1.25X - 16288434 | $1.23 | Special order, ships in 7-14 days |
| 44 | 918937 | Ferrari Screw - 918937 | $1.84 | Special order, ships in 7-14 days |
| 45 | 81591700 | Ferrari Screw TE M6 x 18 with washer - 81591700 | $4.12 | Available, ships in 3-6 days |
