Ferrari SF90 XX Stradale — [VEHICLE TRIM] - E.05 - FRONT SUBSTRUCTURE (diagram 0101)

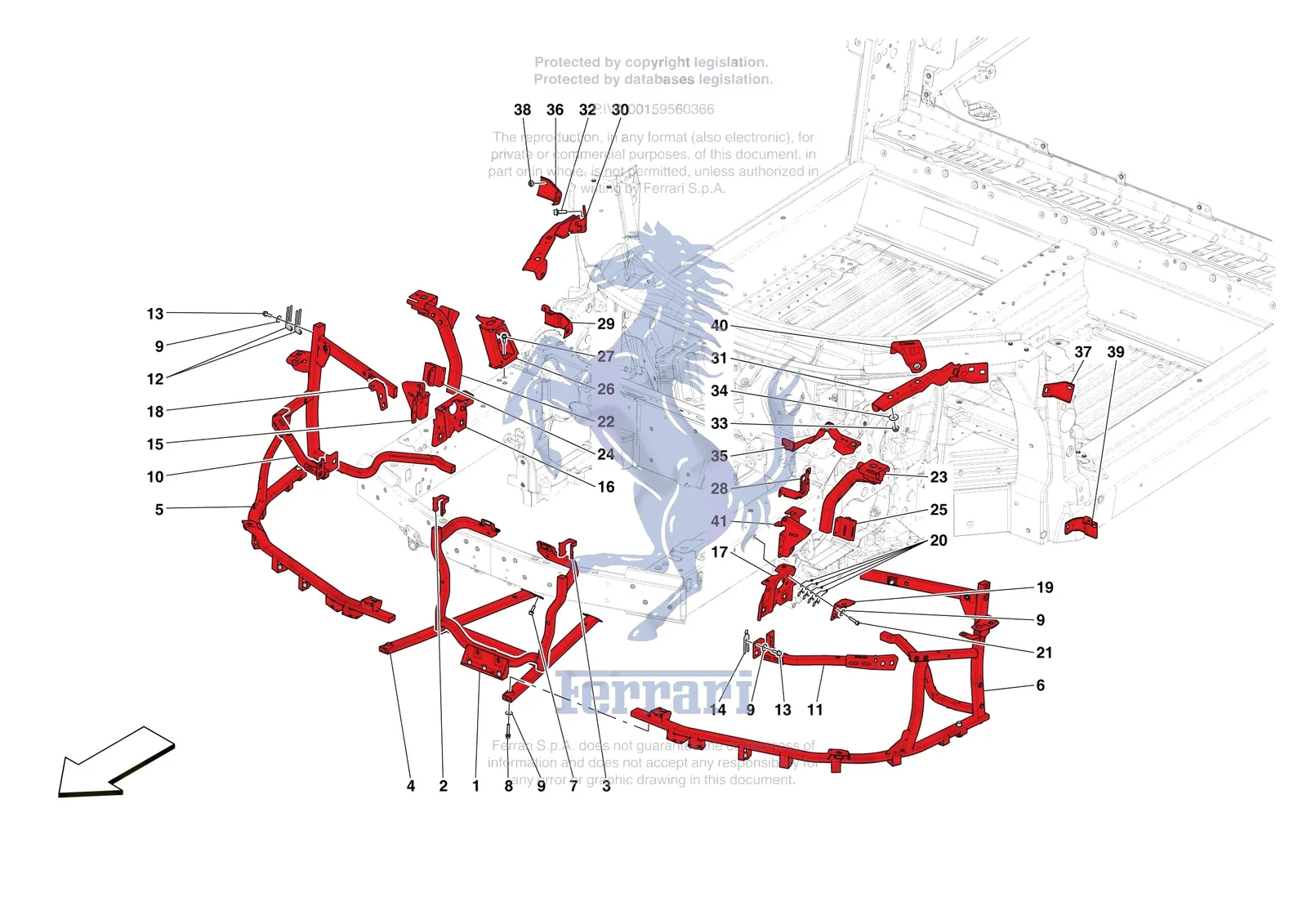

Exploded view of the [vehicle trim] - e.05 - front substructure on the Ferrari SF90 XX Stradale, with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 XX Stradale [VEHICLE TRIM] - E.05 - FRONT SUBSTRUCTURE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1985954400Ferrari Compl. Centre Front Subframe - 985954400$2,227.73Special order, ships in 7-14 days
2868764Ferrari RH U-Bolt - 868764$51.67Special order, ships in 7-14 days
3868521Ferrari LH U-Bolt - 868521$51.67Special order, ships in 7-14 days
4985954399Ferrari Cpl. Subframe - 985954399$1,871.30Special order, ships in 7-14 days
5985954397Ferrari Compl. RH Front Subframe - 985954397$2,157.38Special order, ships in 7-14 days
6985954398Ferrari Compl. LH Front Subframe - 985954398$2,157.38Special order, ships in 7-14 days
7231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
7261442Ferrari SCREW - 261442Price on requestContact us for price and availability
816286434Ferrari SCREW - 16286434Price on requestContact us for price and availability
8231622Ferrari Screw M6 x 35 - 231622$0.65Available, ships in 3-6 days
912643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
912643724Ferrari/Maserati Washer - 12643724$0.20In stock
10985902196Ferrari RH Mounting Trellis - 985902196$443.17Special order, ships in 7-14 days
11985902194Ferrari LH Mounting Trellis - 985902194$443.17Special order, ships in 7-14 days
12852947Ferrari Spessore 1Mm - 852947$5.44Special order, ships in 7-14 days
1316286121Ferrari Screw M6 x 20 - 16286121$1.23Available, ships in 3-6 days
14821189Ferrari Adjuster Shim - 821189$5.14Special order, ships in 7-14 days
15853029Ferrari Mounting Bracket for Front RH Trellis - 853029$59.07Special order, ships in 7-14 days
16780746Ferrari Compl. RH Fender Mounting Br - 780746$78.76Special order, ships in 7-14 days
17780541Ferrari Compl. LH Fender Mounting Br - 780541$78.76Special order, ships in 7-14 days
18780807Ferrari Compl. RH Headlamp Mounting - 780807$110.78Special order, ships in 7-14 days
19780599Ferrari Compl. LH Headlamp Mounting - 780599$110.78Special order, ships in 7-14 days
20781367Ferrari Shim - 781367$14.01Special order, ships in 7-14 days
21157218Ferrari Bolt M6 x 25 - 157218$1.17Available, ships in 3-6 days
22985853030Ferrari Compl. RH Fender Mounting Tr - 985853030$886.38Special order, ships in 7-14 days
23985854547Ferrari Compl. LH Fender Mounting Tr - 985854547$886.38Special order, ships in 7-14 days
24853028Ferrari Lower Bracket for RH Front Trellis - 853028$24.34Special order, ships in 7-14 days
25853036Ferrari Lower Bracket for LH Front Trellis - 853036$24.34Special order, ships in 7-14 days
26888787Ferrari Lid Bracket - 888787$187.10Special order, ships in 7-14 days
27231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
28868451Ferrari Bowden Cable Bracket - 868451$76.30Special order, ships in 7-14 days
29852883Ferrari RH Lower Door Jamb Mounting Bracket - 852883$49.22Special order, ships in 7-14 days
30852996Ferrari RH Front Lid Hinge - 852996$295.43Special order, ships in 7-14 days
31852995Ferrari LH Front Lid Hinge - 852995$295.43Special order, ships in 7-14 days
3216287234Ferrari SCREW - 16287234$1.05Available, ships in 3-6 days
3314059311Ferrari NUT - 14059311$0.52Available, ships in 3-6 days
3413578301Ferrari Washer - 13578301$0.17Special order, ships in 7-14 days
35985866709Ferrari Compl. Scuttle Drain-LH Wipe - 985866709$590.91Special order, ships in 7-14 days
35985883586Ferrari Compl. Scuttle Drain-RH Wipe - 985883586$443.17Special order, ships in 7-14 days
36852881Ferrari RH Upper Door Jamb Mounting Bracket - 852881$46.75Special order, ships in 7-14 days
37830996Ferrari LH Upper Door Jamb Bracket - 830996$46.75Special order, ships in 7-14 days
3813046114Ferrari Flanged Nut - 13046114$0.31Available, ships in 3-6 days
39831137Ferrari LH Lower Door Jamb Bracket - 831137$49.22Special order, ships in 7-14 days
40873259Ferrari Mounting Bracket for Front LH Trellis - 873259$128.01Special order, ships in 7-14 days
41890415Ferrari Compl. LH Windscreen Wiper Mounting Bracket - 890415$66.35Special order, ships in 7-14 days
41883584Ferrari Compl. RH Windscreen Wiper M - 883584$76.19Special order, ships in 7-14 days

All SF90 XX Stradale diagrams
