Ferrari SF90 XX Stradale — [VEHICLE TRIM] - E.20 - ENGINE COMPARTMENT INSULATION (diagram 0119)

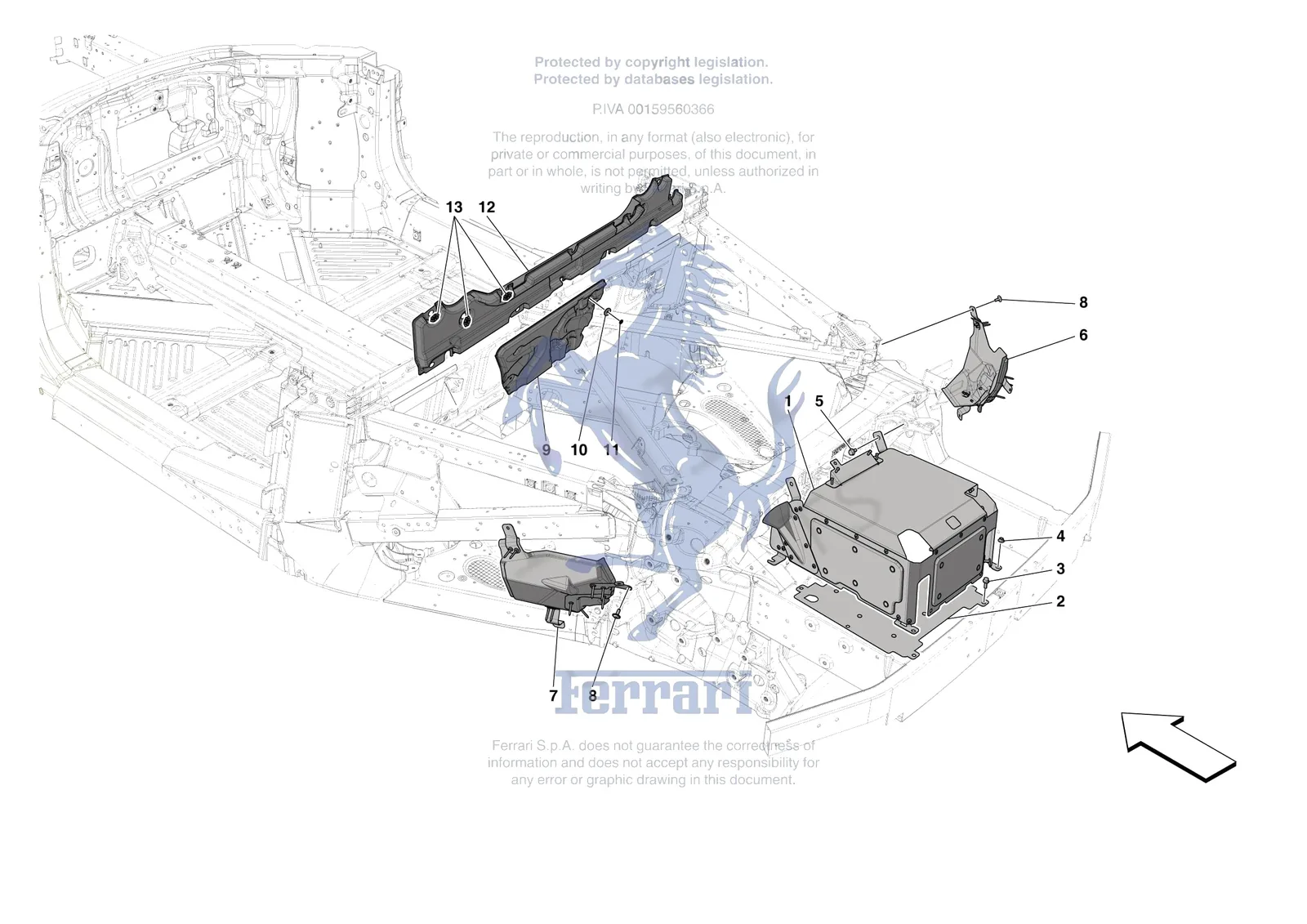

Exploded view of the [vehicle trim] - e.20 - engine compartment insulation on the Ferrari SF90 XX Stradale, with 15 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Stradale [VEHICLE TRIM] - E.20 - ENGINE COMPARTMENT INSULATION exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-stradale/0119.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 881061 | Ferrari Screw M6x18 with Washer - 881061 | Superseded | Order 936581 instead | |
| 1 | 917834 | Ferrari Compl. Upper Inverter Heat S - 917834 | $787.90 | Special order, ships in 7-14 days |
| 2 | 809013 | Ferrari Lower Inverter Heat Shield - 809013 | $66.45 | Special order, ships in 7-14 days |
| 3 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
| 4 | 13046014 | Ferrari Nut - 13046014 | $0.63 | Special order, ships in 7-14 days |
| 5 | 16296934 | Ferrari Screw 6x14 - 16296934 | $0.90 | Special order, ships in 7-14 days |
| 6 | 774882 | Ferrari Compl. RH Rear Brake Heat Sh - 774882 | $320.06 | Special order, ships in 7-14 days |
| 7 | 774863 | Ferrari Compl. LH Rear Brake Heat Sh - 774863 | $344.69 | Special order, ships in 7-14 days |
| 8 | 936581 | Ferrari M6x18 Screw With Captive Washer - 936581 | $1.34 | Special order, ships in 7-14 days |
| 9 | 865353 | Ferrari Engine Compartment Insulation - 865353 | $130.47 | Special order, ships in 7-14 days |
| 10 | 12624101 | Ferrari Washer - 12624101 | $0.12 | Available, ships in 3-6 days |
| 11 | 881058 | Ferrari Fissatore Tondo Per Perno D. - 881058 | $1.09 | Special order, ships in 7-14 days |
| 12 | 865354 | Ferrari Engine Compartment Rear Screen Insulation - 865354 | $238.82 | Special order, ships in 7-14 days |
| 12 | 879990 | Ferrari Engine Compartment Rear Screen Insulation - 879990 | $566.30 | Special order, ships in 7-14 days |
| 13 | 67315400 | Ferrari Washer - 67315400 | $0.82 | Special order, ships in 7-14 days |
