Ferrari SF90 XX Stradale — [VEHICLE TRIM] - E.23 - LATERAL AIR INTAKES (diagram 0122)

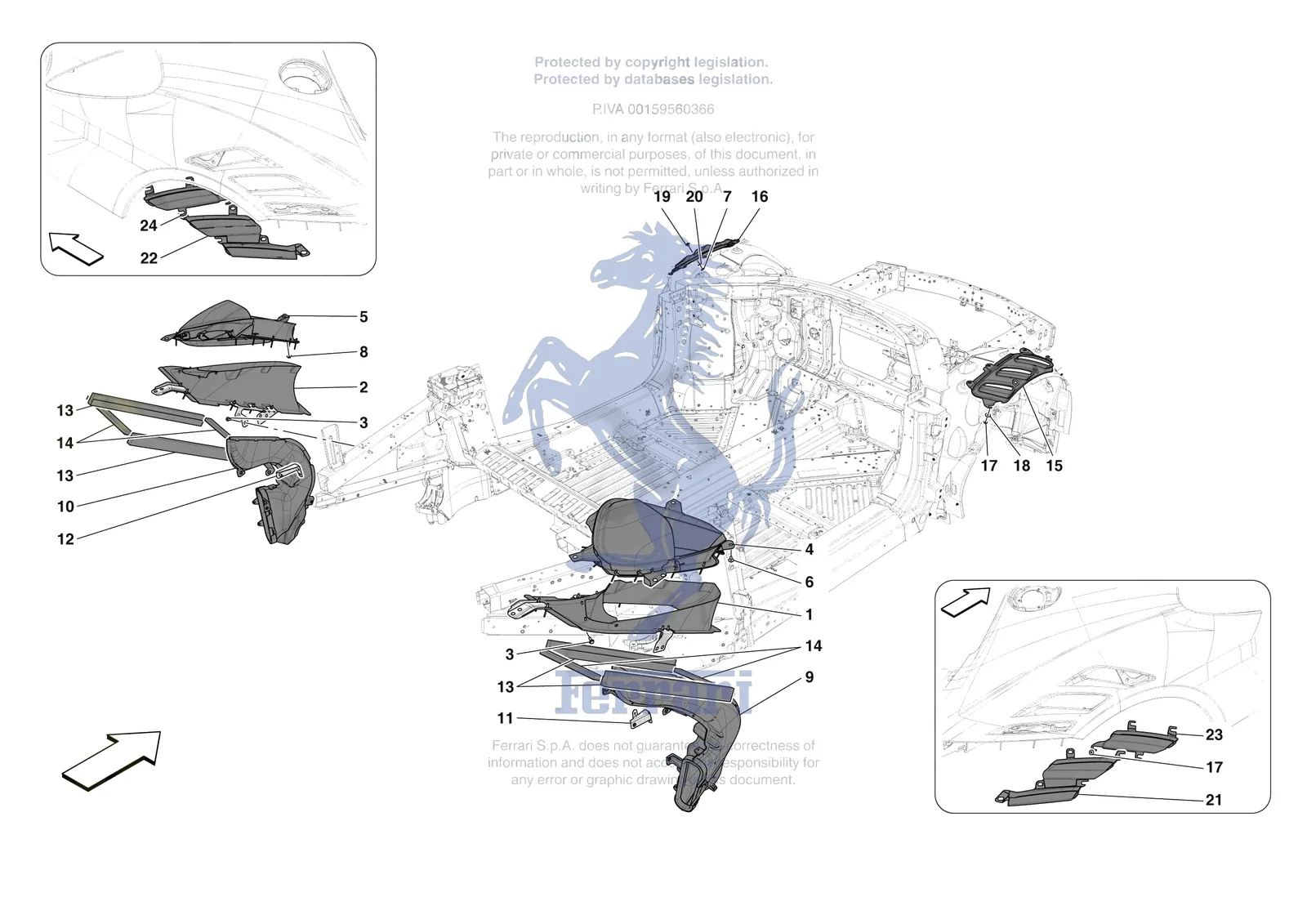

Exploded view of the [vehicle trim] - e.23 - lateral air intakes on the Ferrari SF90 XX Stradale, with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Stradale [VEHICLE TRIM] - E.23 - LATERAL AIR INTAKES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-stradale/0122.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 16100825 | Ferrari Nut - 16100825 | Superseded | Order 16102314 instead | |
| 16102315 | Ferrari Nut - 16102315 | Superseded | Order 16102314 instead | |
| 16102321 | Ferrari Nut - 16102321 | Price on request | Contact us for price and availability | |
| 16100821 | Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821 | Superseded | Order 16102314 instead | |
| 1 | 902638 | Ferrari Compl. RH Air Intake Duct - 902638 | $492.43 | Special order, ships in 7-14 days |
| 2 | 902615 | Ferrari Compl. LH Air Intake Duct - 902615 | $492.43 | Special order, ships in 7-14 days |
| 3 | 11625824 | Ferrari Screw 6x18 - 11625824 | $0.71 | Available, ships in 3-6 days |
| 4 | 812688 | Ferrari RH Air Intake External Surro - 812688 | $7,675.21 | Special order, ships in 7-14 days |
| 4 | 812712 | Ferrari RH Air Intake External Surro - 812712 | $8,141.87 | Special order, ships in 7-14 days |
| 4 | 70008442 | Ferrari RH AIR INTAKE EXTERNAL SURROUND - 70008442 | Price on request | Contact us for price and availability |
| 4 | 838239 | Ferrari RH AIR INTAKE EXTERNAL SURROUND - 838239 | Price on request | Contact us for price and availability |
| 4 | 838468 | Ferrari RH AIR INTAKE EXTERNAL SURROUND - 838468 | Price on request | Contact us for price and availability |
| 5 | 812622 | Ferrari LH Air Intake External Surro - 812622 | $7,897.98 | Special order, ships in 7-14 days |
| 5 | 812703 | Ferrari LH Air Intake External Surro - 812703 | $8,184.08 | Special order, ships in 7-14 days |
| 5 | 70008443 | Ferrari LH AIR INTAKE EXTERNAL SURROUND - 70008443 | Price on request | Contact us for price and availability |
| 5 | 840104 | Ferrari LH AIR INTAKE EXTERNAL SURROUND - 840104 | Price on request | Contact us for price and availability |
| 5 | 840106 | Ferrari LH AIR INTAKE EXTERNAL SURROUND - 840106 | Price on request | Contact us for price and availability |
| 6 | 897538 | Ferrari Screw M6 x 18 - 897538 | $3.26 | Special order, ships in 7-14 days |
| 7 | 16102314 | Ferrari Nut M8 x 5 - 16102314 | $0.13 | Available, ships in 3-6 days |
| 7 | 16102311 | Ferrari RH Thread Nut - 16102311 | Superseded | Order 16102314 instead |
| 8 | 911976 | Ferrari Wide Flange Hex Nut - 911976 | $24.02 | Special order, ships in 7-14 days |
| 9 | 862299 | Ferrari Condotto Presa Aria Motore D - 862299 | $369.30 | Special order, ships in 7-14 days |
| 10 | 862252 | Ferrari Condotto Presa Aria Motore S - 862252 | $443.17 | Special order, ships in 7-14 days |
| 11 | 862316 | Ferrari Complete RH Bracket - Air Intake - 862316 | $76.30 | Special order, ships in 7-14 days |
| 12 | 862314 | Ferrari Complete LH Bracket - Air Intake - 862314 | $76.30 | Special order, ships in 7-14 days |
| 13 | 862270 | Ferrari Guarnizione Lat.Est.Conv.I.C - 862270 | $105.03 | Special order, ships in 7-14 days |
| 14 | 862268 | Ferrari Upper/Lower Duct Gasket - 862268 | $16.18 | Special order, ships in 7-14 days |
| 15 | 822845 | Ferrari Compl. RH Slit Air Intakes - 822845 | $369.30 | Special order, ships in 7-14 days |
| 16 | 822768 | Ferrari Compl. LH Front Slit Air Int - 822768 | $369.30 | Special order, ships in 7-14 days |
| 17 | 897207 | Ferrari Nut - 897207 | $18.32 | Special order, ships in 7-14 days |
| 18 | 68040000 | Ferrari Washer 6X20x2 - 68040000 | $0.27 | Available, ships in 3-6 days |
| 19 | 83335900 | Ferrari Adjuster Bush - 83335900 | $43.68 | Special order, ships in 7-14 days |
| 20 | 12625224 | Ferrari Washer - 12625224 | $0.13 | Available, ships in 3-6 days |
| 21 | 915877 | Ferrari Compl. LH Slit Air Intakes - 915877 | $4,476.60 | Special order, ships in 7-14 days |
| 22 | 915876 | Ferrari Compl. LH Rear Slit Air Inta - 915876 | $4,476.60 | Special order, ships in 7-14 days |
| 23 | 915878 | Ferrari Compl. LH Slit Air Intakes - 915878 | $3,048.49 | Special order, ships in 7-14 days |
| 24 | 915870 | Ferrari Compl. LH Rear Slit Air Inta - 915870 | $3,048.49 | Special order, ships in 7-14 days |
