Ferrari SF90 XX Stradale — [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS (diagram 0157)

Exploded view of the [vehicle trim] - e.47.09 - dashboard - fasteners on the Ferrari SF90 XX Stradale, with 55 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

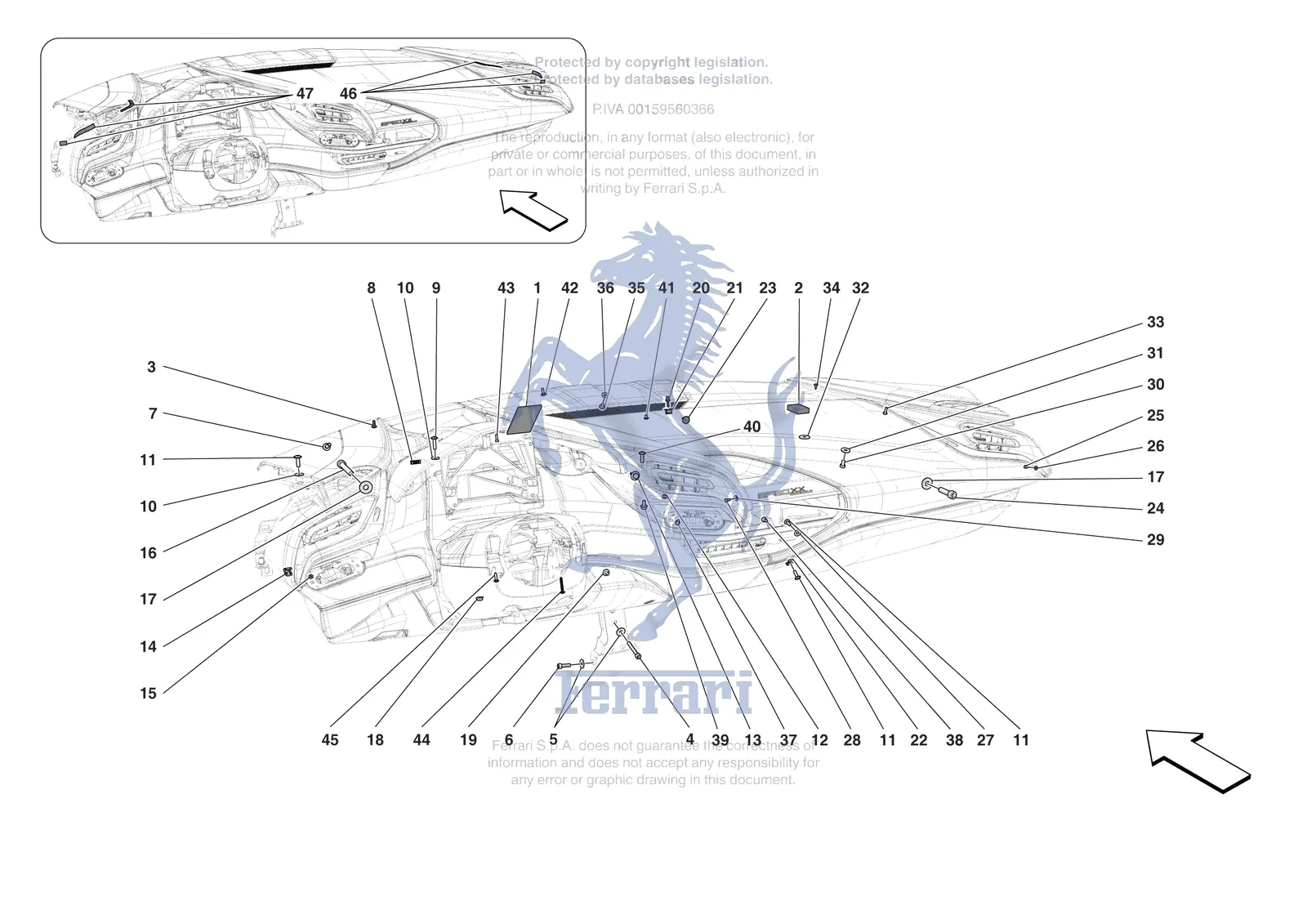

Ferrari SF90 XX Stradale [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
13337547Ferrari Washer D.5 - 13337547SupersededOrder 12642821 instead
1179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
2827520Ferrari Dashboard Mounting Spacer - 827520$2.59Special order, ships in 7-14 days
316083501Ferrari Trim Screw 4x12 - 16083501$0.12Available, ships in 3-6 days
414305924Ferrari Allen Screw 6x45 - 14305924$0.38Available, ships in 3-6 days
4231624Ferrari Allen Screw M6 x 45 - 231624SupersededOrder 14305924 instead
512643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
614305324Ferrari Screw M6 x 20mm - 14305324$0.17Available, ships in 3-6 days
7231620Ferrari/Maserati Screw - 231620$0.58In stock
8835458Ferrari Raymond Clip - 835458$0.82Special order, ships in 7-14 days
985692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
1012638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
1185833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
12963365Ferrari Self-Tapping Screw D.35 x 8 - 963365$2.38Special order, ships in 7-14 days
1381045300Ferrari Screw 6x16 - 81045300$1.36Special order, ships in 7-14 days
1485599600Ferrari Snap Fastener Clip - 85599600$0.44Special order, ships in 7-14 days
1516101777Ferrari Nut - 16101777$0.31Available, ships in 3-6 days
16898133Ferrari Allen Head Bolt M10X1.25X 75 Esloc - 898133$13.53Special order, ships in 7-14 days
1712626221Ferrari Washer - 12626221SupersededOrder 12626224 instead
1712626224Ferrari Washer - 12626224$0.38Available, ships in 3-6 days
1814059121Ferrari Nut M5 - 14059121$0.31Available, ships in 3-6 days
1985691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
2082535800Ferrari Press Fastener Pin - 82535800$3.03Available, ships in 3-6 days
21967402Ferrari Metal Clip 46 X 18 - 967402$6.96Special order, ships in 7-14 days
2267278400Ferrari BRACKET - 67278400$21.60Special order, ships in 7-14 days
2314591687Ferrari Fixing Button - 14591687$0.13Available, ships in 3-6 days
24898398Ferrari Screw - 898398$11.77Special order, ships in 7-14 days
2514418074Ferrari Screw M3x8 - 14418074$0.40Available, ships in 3-6 days
2612639901Ferrari Washer - 12639901$0.17Available, ships in 3-6 days
2712644401Ferrari Washer - 12644401$0.08Available, ships in 3-6 days
2813270417Ferrari Screw 3x8 - 13270417$0.13Special order, ships in 7-14 days
2913579001Ferrari Washer D.4.15-9X0.5 - 13579001SupersededOrder 12642821 instead
3010902028Ferrari Screw M6 x 12 - 10902028$0.96Available, ships in 3-6 days
3110523424Ferrari Washer D 6.15-18x2 - 10523424$0.92Available, ships in 3-6 days
3212624178Ferrari Washer D. 5.45 - 22 x 2 - 12624178$0.71Available, ships in 3-6 days
3313272011Ferrari Screw 4x12 - 13272011$0.44Available, ships in 3-6 days
3416083401Ferrari Screw - 16083401$1.17Available, ships in 3-6 days
3585692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
3612638124Ferrari Washer - 12638124$0.08Available, ships in 3-6 days
3612638101Ferrari Washer White - 12638101SupersededOrder 12638124 instead
3780365900Ferrari Screw M4 x 12 TSEI - 80365900$0.31Available, ships in 3-6 days
3865752800Ferrari Screw M4 x 10 TBEI - 65752800$4.12Available, ships in 3-6 days
3916284934Ferrari Screw - 16284934$1.61Available, ships in 3-6 days
3916284927Ferrari Screw 5x10 - 16284927SupersededOrder 16284934 instead
4065377400Ferrari Screw M6 x 1 x 18 - 65377400$3.91Available, ships in 3-6 days
4187511200Ferrari Screw - 87511200$0.79Special order, ships in 7-14 days
4285833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
4211566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
4314418131Ferrari Screw M3 x 10 TCEI - 14418131$0.38Available, ships in 3-6 days
4415689201Ferrari Screw M3.5 x 25 - 15689201$1.92Available, ships in 3-6 days
4563343400Ferrari Screw 4x15 - 63343400$5.02Available, ships in 3-6 days
4515688801Ferrari Screw M3.5 x 13 - 15688801SupersededOrder 63343400 instead
