Ferrari SF90 XX Stradale — [VEHICLE TRIM] - E.61 - BATTERY INSTALLATION (diagram 0174)

Exploded view of the [vehicle trim] - e.61 - battery installation on the Ferrari SF90 XX Stradale, with 15 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

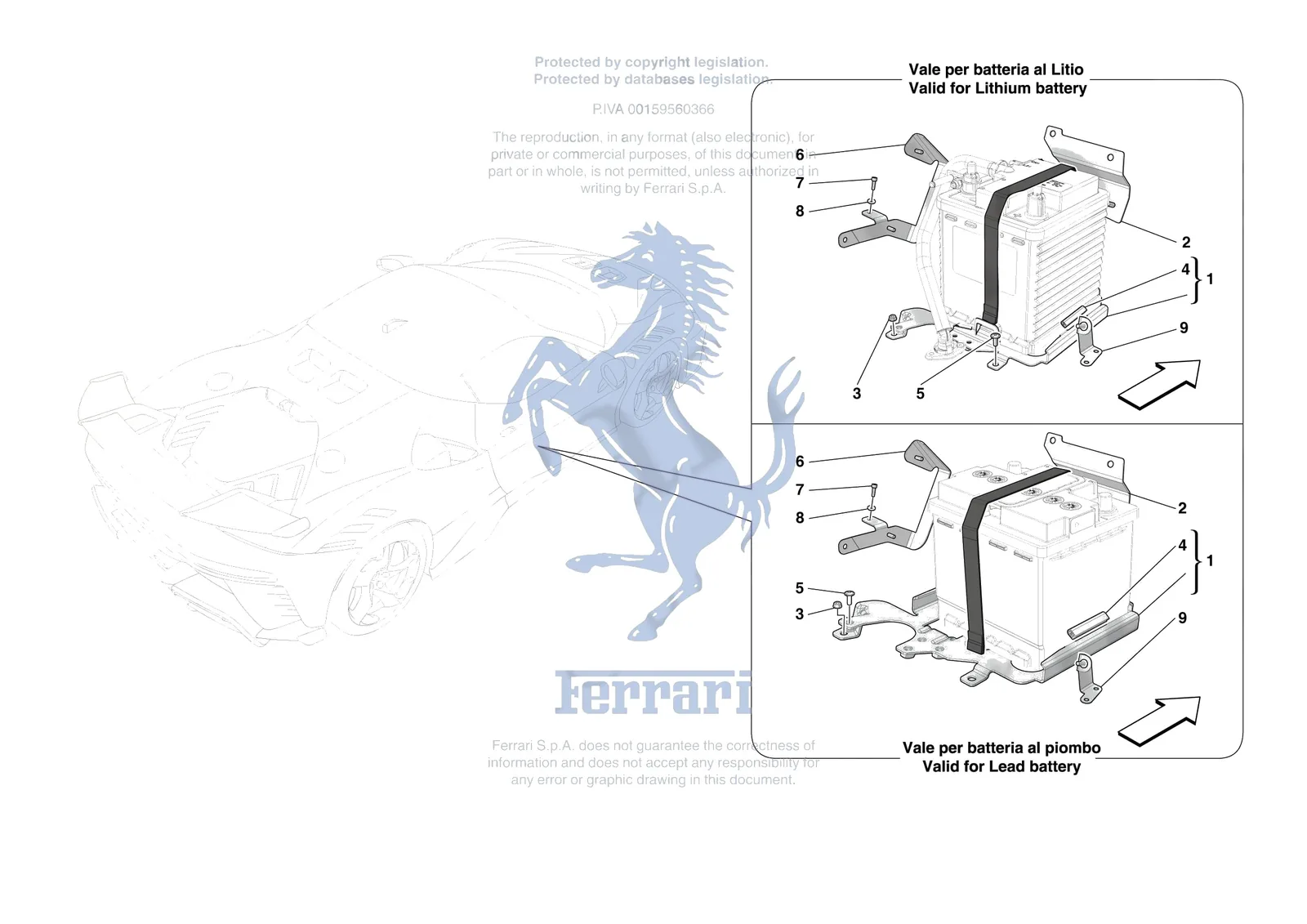

Ferrari SF90 XX Stradale [VEHICLE TRIM] - E.61 - BATTERY INSTALLATION exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
1747984Ferrari Compl. Battery Bracket - 747984$664.78Special order, ships in 7-14 days
1810376Ferrari Compl. Battery Bracket - 810376$615.54Special order, ships in 7-14 days
2951152Ferrari Frb Mounting Bracket - 951152$66.45Special order, ships in 7-14 days
2954753Ferrari Frb Mounting Bracket - 954753$66.45Special order, ships in 7-14 days
314039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
314084111Ferrari Nut - 14084111SupersededOrder 11673111 instead
4961965Ferrari GASKET - 961965$3.47Special order, ships in 7-14 days
585833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
6951106Ferrari Relay Box Mounting Bracket - 951106$64.00Special order, ships in 7-14 days
6954751Ferrari Relay Box Mounting Bracket - 954751$66.45Special order, ships in 7-14 days
714305324Ferrari Screw M6 x 20mm - 14305324$0.17Available, ships in 3-6 days
812643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
9951343Ferrari Frb Bracket - 951343$68.92Special order, ships in 7-14 days
9954816Ferrari Frb Bracket - 954816$66.45Special order, ships in 7-14 days

All SF90 XX Stradale diagrams
