Ferrari SF90 XX Stradale — [ELECTRICAL SYSTEM] - F.07 - LOW VOLTAGE WIRING HARNESSES (diagram 0182)

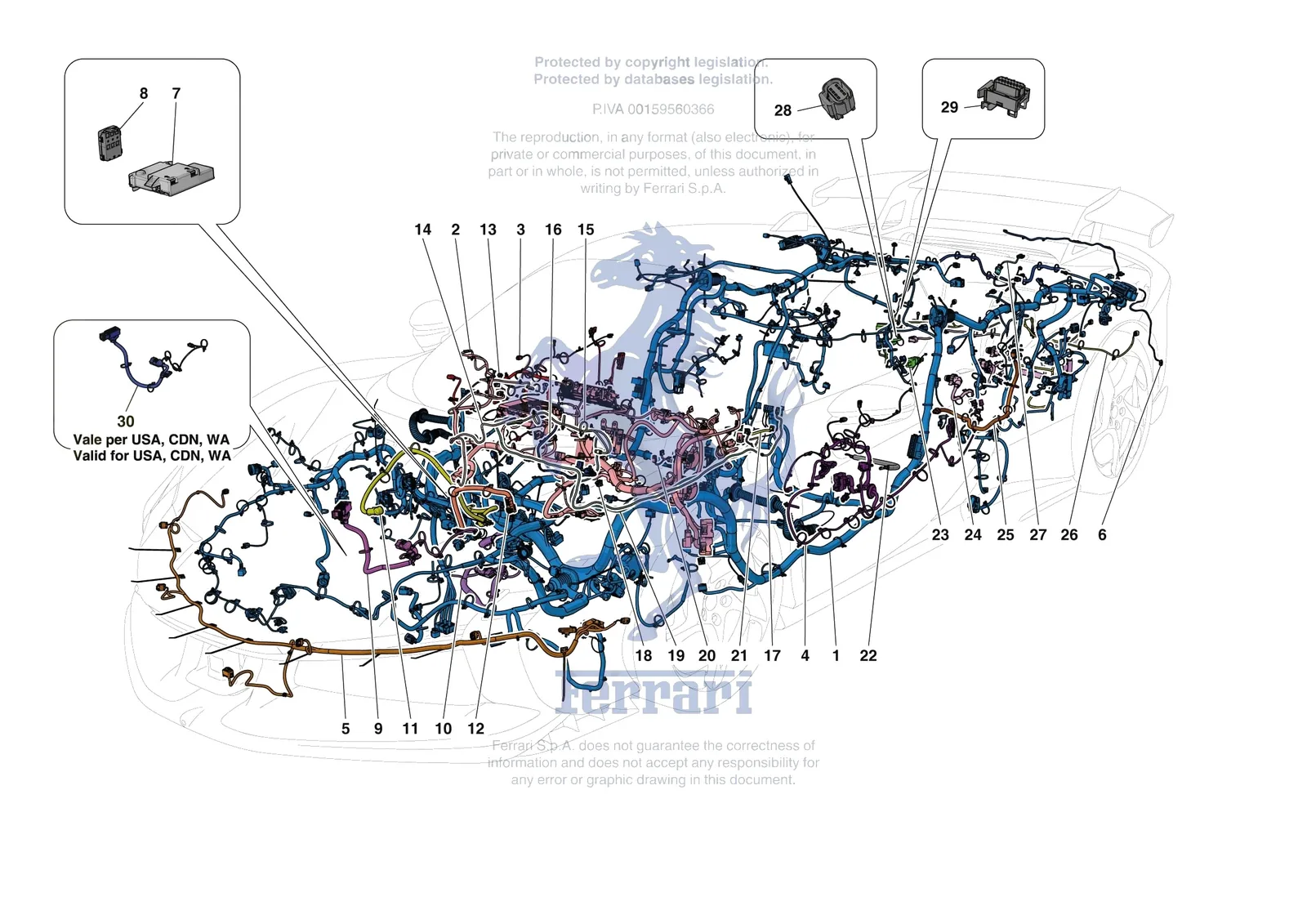

Exploded view of the [electrical system] - f.07 - low voltage wiring harnesses on the Ferrari SF90 XX Stradale, with 125 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Stradale [ELECTRICAL SYSTEM] - F.07 - LOW VOLTAGE WIRING HARNESSES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-stradale/0182.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 817113 | Ferrari LH AXLe Wiring Harness - 817113 | Superseded | Order 873331 instead | |
| 817115 | Ferrari RH AXLe Wiring Harness - 817115 | Superseded | Order 873332 instead | |
| 1 | 55017651 | Ferrari Body Cable - 55017651 | Price on request | Contact us for price and availability |
| 1 | 55017652 | Ferrari Body Cable - 55017652 | Price on request | Contact us for price and availability |
| 1 | 55017653 | Ferrari Body Cable - 55017653 | Price on request | Contact us for price and availability |
| 1 | 55017655 | Ferrari Body Cable - 55017655 | Price on request | Contact us for price and availability |
| 1 | 55017656 | Ferrari BODY CABLE - 55017656 | Price on request | Contact us for price and availability |
| 1 | 55017657 | Ferrari Body Cable - 55017657 | $19,292.55 | Contact us to order |
| 1 | 55017658 | Ferrari BODY CABLE - 55017658 | Price on request | Contact us for price and availability |
| 1 | 55017659 | Ferrari BODY CABLE - 55017659 | Price on request | Contact us for price and availability |
| 1 | 55017660 | Ferrari Body Cable - 55017660 | $19,885.66 | Contact us to order |
| 1 | 55017661 | Ferrari BODY CABLE - 55017661 | $23,144.54 | Contact us to order |
| 1 | 55017662 | Ferrari BODY CABLE - 55017662 | Price on request | Contact us for price and availability |
| 1 | 55017663 | Ferrari BODY CABLE - 55017663 | Price on request | Contact us for price and availability |
| 1 | 55017668 | Ferrari BODY CABLE - 55017668 | Price on request | Contact us for price and availability |
| 1 | 55017669 | Ferrari BODY CABLE - 55017669 | Price on request | Contact us for price and availability |
| 1 | 55017676 | Ferrari Body Cable - 55017676 | Price on request | Contact us for price and availability |
| 1 | 55017677 | Ferrari Body Cable - 55017677 | Price on request | Contact us for price and availability |
| 1 | 55017678 | Ferrari Body Cable - 55017678 | Price on request | Contact us for price and availability |
| 1 | 55017679 | Ferrari Body Cable - 55017679 | Price on request | Contact us for price and availability |
| 1 | 55017680 | Ferrari Body Cable - 55017680 | Price on request | Contact us for price and availability |
| 1 | 55017681 | Ferrari Body Cable - 55017681 | Price on request | Contact us for price and availability |
| 1 | 55017682 | Ferrari Body Cable - 55017682 | Price on request | Contact us for price and availability |
| 1 | 55017683 | Ferrari Body Cable - 55017683 | Price on request | Contact us for price and availability |
| 1 | 55017684 | Ferrari Body Cable - 55017684 | Price on request | Contact us for price and availability |
| 1 | 55017685 | Ferrari Body Cable - 55017685 | Price on request | Contact us for price and availability |
| 1 | 55017687 | Ferrari Body Cable - 55017687 | Price on request | Contact us for price and availability |
| 1 | 55017688 | Ferrari Body Cable - 55017688 | Price on request | Contact us for price and availability |
| 1 | 55017689 | Ferrari Body Cable - 55017689 | Price on request | Contact us for price and availability |
| 1 | 55017690 | Ferrari Body Cable - 55017690 | Price on request | Contact us for price and availability |
| 1 | 55017691 | Ferrari Body Cable - 55017691 | Price on request | Contact us for price and availability |
| 1 | 750864 | Ferrari BODY CABLE - 750864 | Price on request | Contact us for price and availability |
| 1 | 750865 | Ferrari BODY CABLE - 750865 | Price on request | Contact us for price and availability |
| 1 | 750870 | Ferrari BODY CABLE - 750870 | Price on request | Contact us for price and availability |
| 1 | 750883 | Ferrari BODY CABLE - 750883 | Price on request | Contact us for price and availability |
| 1 | 750887 | Ferrari BODY CABLE - 750887 | Superseded | Order 55017661 instead |
| 1 | 750888 | Ferrari Body Cable - 750888 | Superseded | Order 55017660 instead |
| 1 | 750889 | Ferrari BODY CABLE - 750889 | Price on request | Contact us for price and availability |
| 1 | 750890 | Ferrari BODY CABLE - 750890 | Price on request | Contact us for price and availability |
| 1 | 750891 | Ferrari Body Cable - 750891 | Superseded | Order 55017657 instead |
| 1 | 750893 | Ferrari BODY CABLE - 750893 | Price on request | Contact us for price and availability |
| 1 | 750894 | Ferrari Body Cable - 750894 | Price on request | Contact us for price and availability |
| 1 | 750896 | Ferrari Body Cable - 750896 | Price on request | Contact us for price and availability |
| 1 | 750898 | Ferrari Body Cable - 750898 | Price on request | Contact us for price and availability |
| 1 | 750900 | Ferrari Body Cable - 750900 | Price on request | Contact us for price and availability |
| 1 | 894514 | Ferrari Body Cable - 894514 | Price on request | Contact us for price and availability |
| 1 | 894515 | Ferrari Body Cable - 894515 | Price on request | Contact us for price and availability |
| 1 | 894516 | Ferrari Body Cable - 894516 | Price on request | Contact us for price and availability |
| 1 | 894517 | Ferrari Body Cable - 894517 | Price on request | Contact us for price and availability |
| 1 | 894518 | Ferrari Body Cable - 894518 | Price on request | Contact us for price and availability |
| 1 | 894519 | Ferrari Body Cable - 894519 | Price on request | Contact us for price and availability |
| 1 | 894521 | Ferrari Body Cable - 894521 | Price on request | Contact us for price and availability |
| 1 | 894522 | Ferrari Body Cable - 894522 | Price on request | Contact us for price and availability |
| 1 | 894523 | Ferrari Body Cable - 894523 | Price on request | Contact us for price and availability |
| 1 | 894525 | Ferrari Body Cable - 894525 | Price on request | Contact us for price and availability |
| 1 | 894526 | Ferrari Body Cable - 894526 | Price on request | Contact us for price and availability |
| 1 | 987214 | Ferrari Body Cable - 987214 | Price on request | Contact us for price and availability |
| 1 | 987215 | Ferrari Body Cable - 987215 | Price on request | Contact us for price and availability |
| 1 | 987216 | Ferrari Body Cable - 987216 | Price on request | Contact us for price and availability |
| 1 | 987217 | Ferrari Body Cable - 987217 | Price on request | Contact us for price and availability |
| 2 | 55017670 | Ferrari DASHBOARD CABLE - 55017670 | $4,004.99 | Special order, ships in 7-14 days |
| 2 | 55017671 | Ferrari DASHBOARD CABLE - 55017671 | Price on request | Contact us for price and availability |
| 2 | 55017672 | Ferrari DASHBOARD CABLE - 55017672 | Price on request | Contact us for price and availability |
| 2 | 55017674 | Ferrari DASHBOARD CABLE - 55017674 | Price on request | Contact us for price and availability |
| 2 | 55017675 | Ferrari DASHBOARD CABLE - 55017675 | Price on request | Contact us for price and availability |
| 2 | 55017692 | Ferrari Dashboard Cable - 55017692 | Price on request | Contact us for price and availability |
| 2 | 55017693 | Ferrari Dashboard Cable - 55017693 | Price on request | Contact us for price and availability |
| 2 | 55017694 | Ferrari Dashboard Cable - 55017694 | Price on request | Contact us for price and availability |
| 2 | 55017696 | Ferrari Dashboard Cable - 55017696 | Price on request | Contact us for price and availability |
| 2 | 55017699 | Ferrari Dashboard Cable - 55017699 | Price on request | Contact us for price and availability |
| 2 | 964238 | Ferrari Dashboard Cable - 964238 | Price on request | Contact us for price and availability |
| 2 | 964329 | Ferrari Dashboard Cable - 964329 | Price on request | Contact us for price and availability |
| 2 | 964333 | Ferrari Dashboard Cable - 964333 | Price on request | Contact us for price and availability |
| 2 | 964334 | Ferrari Dashboard Cable - 964334 | Price on request | Contact us for price and availability |
| 2 | 964335 | Ferrari Dashboard Cable - 964335 | Price on request | Contact us for price and availability |
| 2 | 964341 | Ferrari DASHBOARD CABLE - 964341 | Price on request | Contact us for price and availability |
| 2 | 964342 | Ferrari DASHBOARD CABLE - 964342 | Superseded | Order 55017670 instead |
| 2 | 964344 | Ferrari DASHBOARD CABLE - 964344 | Price on request | Contact us for price and availability |
| 2 | 964346 | Ferrari DASHBOARD CABLE - 964346 | Price on request | Contact us for price and availability |
| 2 | 965098 | Ferrari DASHBOARD CABLE - 965098 | Price on request | Contact us for price and availability |
| 3 | 888949 | Ferrari PASSENGER SIDE DOOR CABLE - 888949 | Price on request | Contact us for price and availability |
| 3 | 888950 | Ferrari PASSENGER SIDE DOOR CABLE - 888950 | Price on request | Contact us for price and availability |
| 3 | 888951 | Ferrari PASSENGER SIDE DOOR CABLE - 888951 | $541.67 | Special order, ships in 7-14 days |
| 3 | 895140 | Ferrari Passenger Side Door Cable - 895140 | $517.04 | Special order, ships in 7-14 days |
| 3 | 895143 | Ferrari Passenger Side Door Cable - 895143 | $467.80 | Special order, ships in 7-14 days |
| 3 | 895156 | Ferrari Passenger Side Door Cable - 895156 | $492.43 | Special order, ships in 7-14 days |
| 4 | 888938 | Ferrari DRIVER SIDE DOOR CABLE - 888938 | Price on request | Contact us for price and availability |
| 4 | 888940 | Ferrari DRIVER SIDE DOOR CABLE - 888940 | Price on request | Contact us for price and availability |
| 4 | 888941 | Ferrari DRIVER SIDE DOOR CABLE - 888941 | Price on request | Contact us for price and availability |
| 4 | 894858 | Ferrari Driver Side Door Cable - 894858 | $590.91 | Special order, ships in 7-14 days |
| 4 | 895045 | Ferrari Driver Side Door Cable - 895045 | $517.04 | Special order, ships in 7-14 days |
| 4 | 895046 | Ferrari Driver Side Door Cable - 895046 | $566.30 | Special order, ships in 7-14 days |
| 5 | 888956 | Ferrari FRONT BUMPER CABLE - 888956 | $367.14 | Special order, ships in 7-14 days |
| 5 | 888957 | Ferrari FRONT BUMPER CABLE - 888957 | $514.01 | Special order, ships in 7-14 days |
| 5 | 899972 | Ferrari FRONT BUMPER CABLE - 899972 | $318.19 | Special order, ships in 7-14 days |
| 5 | 899973 | Ferrari FRONT BUMPER CABLE - 899973 | $367.14 | Special order, ships in 7-14 days |
| 6 | 975727 | Ferrari REAR BUMPER CABLE - 975727 | $685.34 | Special order, ships in 7-14 days |
| 6 | 975729 | Ferrari REAR BUMPER CABLE - 975729 | Price on request | Contact us for price and availability |
| 7 | 963617 | Ferrari Cpl Cba F173 (40H) - 963617 | $344.69 | Special order, ships in 7-14 days |
| 8 | 963618 | Ferrari Centralina Fusibili Cfo - 963618 | $213.88 | Special order, ships in 7-14 days |
| 9 | 873332 | Ferrari Briglia Assale Dx - 873332 | $369.30 | Special order, ships in 7-14 days |
| 10 | 873331 | Ferrari Briglia Assale Sx - 873331 | $393.93 | Special order, ships in 7-14 days |
| 11 | 910580 | Ferrari Dcdc-Cba Cable - 910580 | $270.83 | Special order, ships in 7-14 days |
| 11 | 950237 | Ferrari Dcdc-Cba Cable - 950237 | $320.06 | Special order, ships in 7-14 days |
| 12 | 971274 | Ferrari Battery Earth Cable - 971274 | $120.62 | Special order, ships in 7-14 days |
| 12 | 971225 | Ferrari Ground Cable - 971225 | $130.47 | Special order, ships in 7-14 days |
| 13 | 873321 | Ferrari Passenger Airbag Cable - 873321 | $78.76 | Special order, ships in 7-14 days |
| 14 | 880777 | Ferrari Dashboard Camera Cable - 880777 | $93.53 | Special order, ships in 7-14 days |
| 15 | 838701 | Ferrari Cavo Presa Usb Da Nit A Spli - 838701 | $270.83 | Special order, ships in 7-14 days |
| 16 | 814102 | Ferrari Cavo Most Hifi F173 - 814102 | $78.76 | Special order, ships in 7-14 days |
| 16 | 909365 | Ferrari Fibre-Optic Cable - 909365 | $199.41 | Special order, ships in 7-14 days |
| 17 | 878807 | Ferrari Cavo Lvds Nit Vs Nsw - 878807 | $295.43 | Special order, ships in 7-14 days |
| 18 | 914959 | Ferrari Cavo Presa Usb Nit - 914959 | $566.30 | Special order, ships in 7-14 days |
| 19 | 823696 | Ferrari Carplay Usb Cable - 823696 | $590.91 | Special order, ships in 7-14 days |
| 20 | 890269 | Ferrari Centre Tunnel Wiring Harness - 890269 | $160.02 | Special order, ships in 7-14 days |
| 21 | 873333 | Ferrari Dashboard Wiring Harness - 873333 | $44.29 | Special order, ships in 7-14 days |
| 22 | 873325 | Ferrari Treccia Massa?Motore Telaio - 873325 | $88.61 | Special order, ships in 7-14 days |
| 23 | 899539 | Ferrari Cavo Sollevatore - 899539 | $393.93 | Special order, ships in 7-14 days |
| 24 | 922006 | Ferrari Briglia Dct Con Cavi Bldc 4M - 922006 | $1,181.86 | Special order, ships in 7-14 days |
| 25 | 917359 | Ferrari Briglia Logica Compressore T - 917359 | $140.32 | Special order, ships in 7-14 days |
| 26 | 875069 | Ferrari DIFFUSER CABLE - 875069 | $391.61 | Special order, ships in 7-14 days |
| 27 | 951411 | Ferrari CENTRE TAIL UNIT WIRING HARNESS - 951411 | Price on request | Contact us for price and availability |
| 28 | 899540 | Ferrari Tappo Per Briglia Sollevator - 899540 | $31.93 | Special order, ships in 7-14 days |
| 29 | 261704 | Ferrari Cap Connector For ECU - 261704 | $78.66 | Special order, ships in 7-14 days |
| 30 | 873330 | Ferrari Radiator Wiring Harness - 873330 | $34.44 | Special order, ships in 7-14 days |
