Ferrari SF90 XX Stradale — [ELECTRICAL SYSTEM] - F.08 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM (diagram 0183)

Exploded view of the [electrical system] - f.08 - various fastenings for the electrical system on the Ferrari SF90 XX Stradale, with 57 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

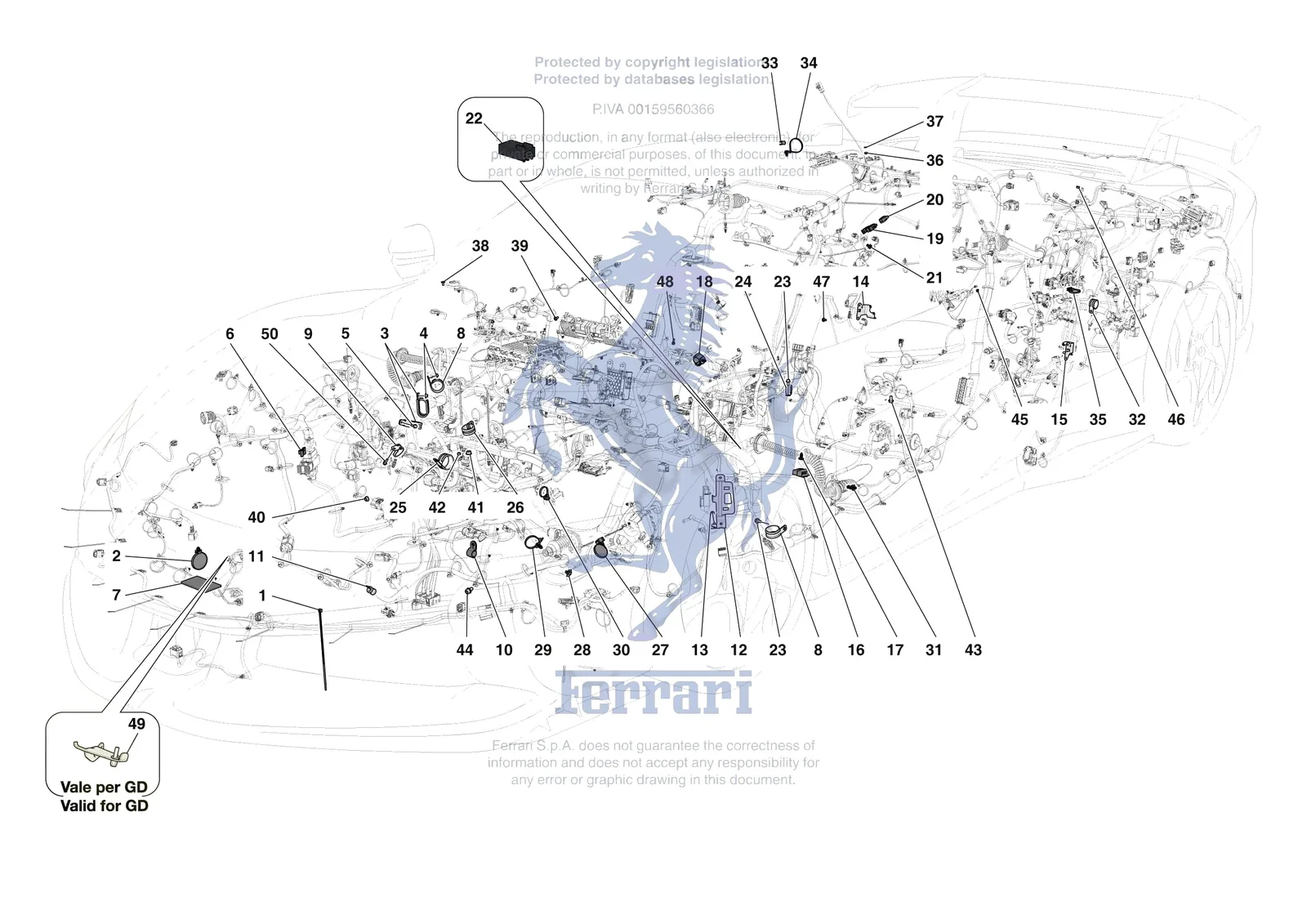

Ferrari SF90 XX Stradale [ELECTRICAL SYSTEM] - F.08 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14569480Ferrari Clip 10x3.8 Black - 14569480$0.54Available, ships in 3-6 days
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
10615301Ferrari Washer - 10615301SupersededOrder 149951 instead
1145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
2217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
361712600Ferrari P Clip Bracket With Sheath D28 - 61712600$3.26Available, ships in 3-6 days
414039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
516285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
610852087Ferrari Moun Clip - 10852087$41.82Special order, ships in 7-14 days
7179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
810448890Ferrari Bracket With Sheath - 10448890$4.16Available, ships in 3-6 days
9291225Ferrari P clip Bracket With Sheath - 291225$7.86Special order, ships in 7-14 days
10244221Ferrari Clip - 244221$8.28Available, ships in 3-6 days
1110441290Ferrari P Clip Bracket With Sheath 28mm D.10 - 10441290$1.02Available, ships in 3-6 days
12883369Ferrari Fixing Bracket to Body - 883369$61.52Special order, ships in 7-14 days
1314059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
14831082Ferrari RH Bracket - Rear Motion Sensor - 831082$34.40Special order, ships in 7-14 days
15831081Ferrari LH Bracket - Rear Motion Sensor - 831081$34.40Special order, ships in 7-14 days
1685159800Ferrari CONNECTOR - 85159800$34.40Special order, ships in 7-14 days
1784487000Ferrari CLIP - 84487000$6.96Special order, ships in 7-14 days
18248061Ferrari Clip - 248061$4.12Available, ships in 3-6 days
19270085Ferrari Clip - 270085$3.68Available, ships in 3-6 days
20149773Ferrari Clip - 149773$0.90Available, ships in 3-6 days
21918833Ferrari Clip Hellermann Per Connetto - 918833$0.52Special order, ships in 7-14 days
22860456Ferrari AIRBAG RESISTOR - 860456$295.03Special order, ships in 7-14 days
2316296924Ferrari Screw M6 x 14 TE - 16296924$0.54Available, ships in 3-6 days
2410441990Ferrari P Clip Bracket With Sheath - 10441990$1.42Available, ships in 3-6 days
25175119Ferrari Bracket With Sheath - 175119$11.29Special order, ships in 7-14 days
26323137Ferrari Bracket With Sheath - 323137$46.69Special order, ships in 7-14 days
27242384Ferrari Clip - 242384$0.59Available, ships in 3-6 days
28288378Ferrari Clip - 288378$1.02Special order, ships in 7-14 days
29303385Ferrari Clip - 303385$0.57Special order, ships in 7-14 days
30786155Ferrari Clip - 786155$1.80Special order, ships in 7-14 days
31291408Ferrari Clip - 291408$0.34Special order, ships in 7-14 days
3210442290Ferrari P Clip Bracket With Sheath - 10442290$1.42Special order, ships in 7-14 days
33317027Ferrari Clip - 317027$1.02Special order, ships in 7-14 days
34743009Ferrari Clip - 743009$1.48Special order, ships in 7-14 days
35255869Ferrari Clip - 255869$3.91Special order, ships in 7-14 days
3611673111Ferrari Nut - 11673111$0.52Available, ships in 3-6 days
37149951Ferrari Shake Proof Washer - 149951$0.59Available, ships in 3-6 days
3885692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
3985692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
4014059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days
4114059311Ferrari NUT - 14059311$0.52Available, ships in 3-6 days
4214084111Ferrari Nut - 14084111SupersededOrder 11673111 instead
4316287024Ferrari Screw - 16287024$1.00In stock
44280460Ferrari Screw M8 x 14 TCEI with Washer - 280460$9.16Available, ships in 3-6 days
4514059121Ferrari Nut M5 - 14059121$0.31Available, ships in 3-6 days
4614040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
4785833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
48256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
49963118Ferrari Bracket - 963118$56.60Special order, ships in 7-14 days
5016281827Ferrari Screw 5x14 - 16281827$0.46Special order, ships in 7-14 days
