Ferrari SF90 XX Stradale — [ELECTRICAL SYSTEM] - F.09 - LIGHTING SYSTEMS (diagram 0184)

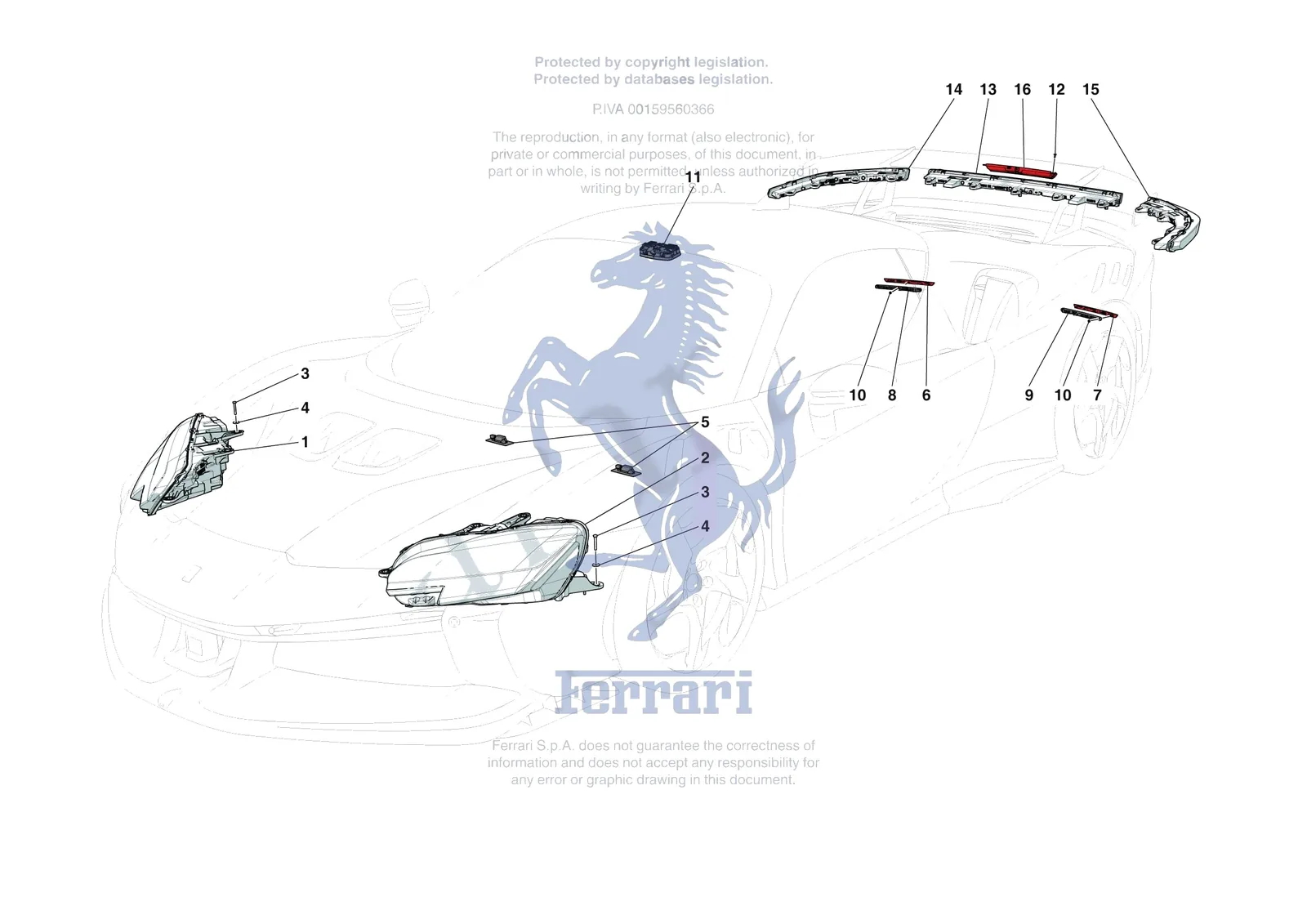

Exploded view of the [electrical system] - f.09 - lighting systems on the Ferrari SF90 XX Stradale, with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Stradale [ELECTRICAL SYSTEM] - F.09 - LIGHTING SYSTEMS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-stradale/0184.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10903221 | Ferrari Bolt - 10903221 | Superseded | Order 10903224 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 1 | 882834 | Ferrari Proiettore Dx -Ece/China Med - 882834 | $7,237.21 | Special order, ships in 7-14 days |
| 1 | 816045 | Ferrari RH Headlamp - 816045 | $7,241.39 | Special order, ships in 7-14 days |
| 1 | 841108 | Ferrari RH Headlamp - 841108 | $7,166.34 | Special order, ships in 7-14 days |
| 1 | 882836 | Ferrari RH Headlamp - 882836 | $7,241.39 | Special order, ships in 7-14 days |
| 1 | 882838 | Ferrari RH Headlamp - 882838 | $7,241.39 | Special order, ships in 7-14 days |
| 1 | 882840 | Ferrari RH Headlamp - 882840 | $7,164.24 | Special order, ships in 7-14 days |
| 2 | 816044 | Ferrari LH Headlamp - 816044 | $7,241.39 | Special order, ships in 7-14 days |
| 2 | 841109 | Ferrari LH Headlamp - 841109 | $7,166.34 | Special order, ships in 7-14 days |
| 2 | 882837 | Ferrari LH Headlamp - 882837 | $7,241.39 | Special order, ships in 7-14 days |
| 2 | 882839 | Ferrari LH Headlamp - 882839 | $7,241.39 | Special order, ships in 7-14 days |
| 2 | 882841 | Ferrari LH Headlamp - 882841 | $7,164.24 | Special order, ships in 7-14 days |
| 2 | 882835 | Ferrari Proiettore Sx -Ece/China Med - 882835 | $7,237.21 | Special order, ships in 7-14 days |
| 3 | 10903224 | Ferrari Screw M6 x 40 - 10903224 | $0.50 | Available, ships in 3-6 days |
| 4 | 68040000 | Ferrari Washer 6X20x2 - 68040000 | $0.27 | Available, ships in 3-6 days |
| 5 | 318013 | Ferrari Light Unit - 318013 | $61.45 | Special order, ships in 7-14 days |
| 6 | 84806800 | Ferrari Right Rear Reflector - 84806800 | $29.40 | In stock |
| 7 | 84806900 | Ferrari Left Rear Reflector - 84806900 | $29.75 | In stock |
| 8 | 813788 | Ferrari Bracket For RH Reflector - 813788 | $44.29 | Special order, ships in 7-14 days |
| 9 | 813796 | Ferrari Bracket For LH Reflector - 813796 | $44.29 | Special order, ships in 7-14 days |
| 10 | 84784600 | Ferrari Washer For Pin - 84784600 | $43.68 | Special order, ships in 7-14 days |
| 11 | 941491 | Ferrari Ceiling Light Unit - 941491 | $1,895.91 | Special order, ships in 7-14 days |
| 11 | 744262 | Ferrari Plafoniera Padiglione - 744262 | $1,770.31 | Special order, ships in 7-14 days |
| 12 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 13 | 917259 | Ferrari Centre Tail Light - 917259 | $2,330.39 | Special order, ships in 7-14 days |
| 14 | 917264 | Ferrari RH Tail Light - 917264 | $2,001.05 | Special order, ships in 7-14 days |
| 15 | 917260 | Ferrari LH Tail Light - 917260 | $2,001.05 | Special order, ships in 7-14 days |
| 16 | 945181 | Ferrari Third Brake Light - 945181 | $525.26 | Special order, ships in 7-14 days |
