Ferrari SF90 XX Stradale — [ELECTRICAL SYSTEM] - F.14 - HIGH VOLTAGE WIRING HARNESSES (diagram 0189)

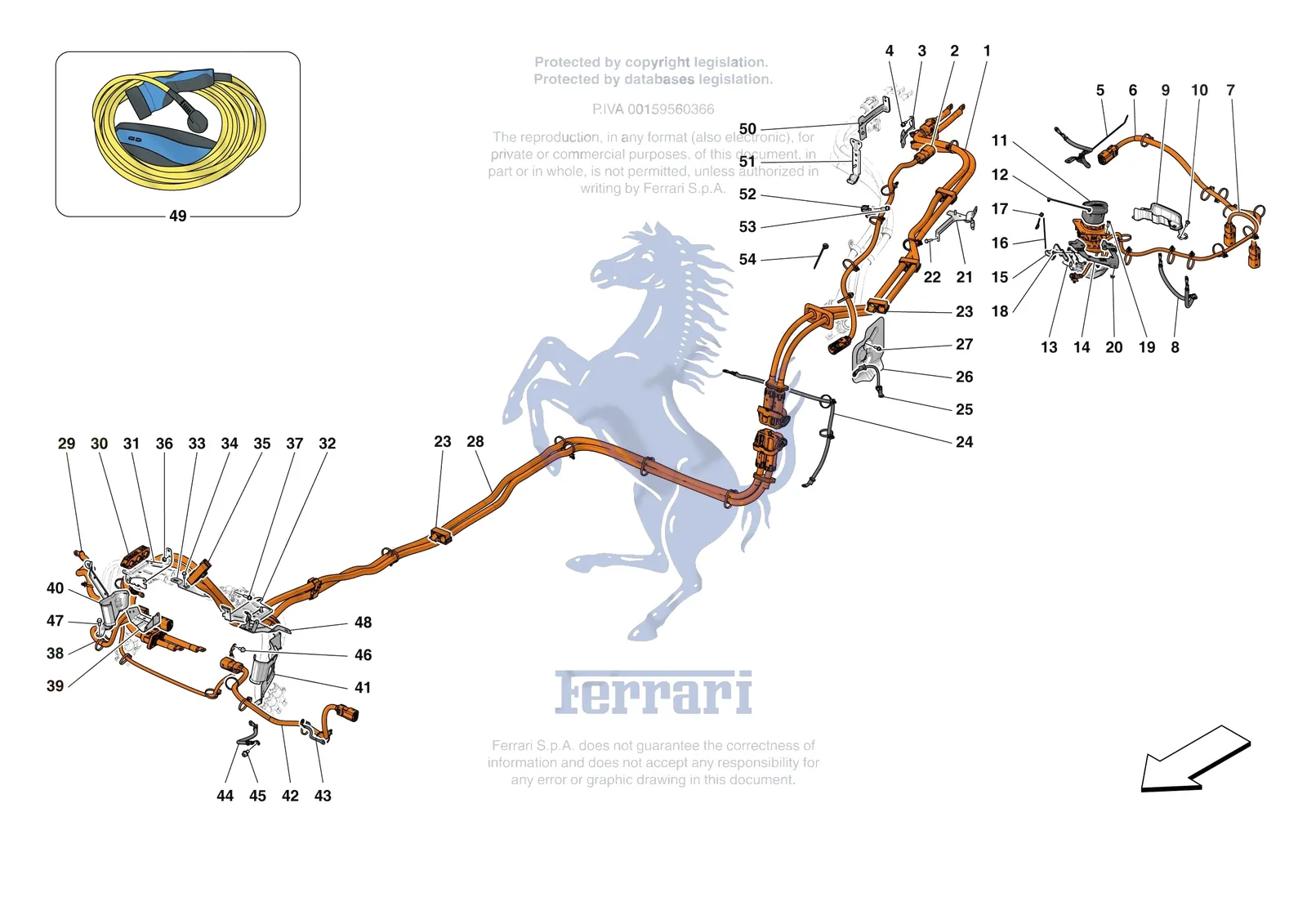

Exploded view of the [electrical system] - f.14 - high voltage wiring harnesses on the Ferrari SF90 XX Stradale, with 79 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 XX Stradale [ELECTRICAL SYSTEM] - F.14 - HIGH VOLTAGE WIRING HARNESSES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
873338Ferrari Cavo Da Inverter P4 A Dcdc - 873338SupersededOrder 783409 instead
935643Ferrari Cavo Sblocco Emergenza Att P - 935643SupersededOrder 811962 instead
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
917256Ferrari Gogna 2 Vani Con Rinforzo Cn - 917256SupersededOrder 961295 instead
809597Ferrari RH Hv Cable Holder Bracket - 809597SupersededOrder 850764 instead
1867779Ferrari Cable from HVB Battery to P2 Inverter - 867779$2,321.54Special order, ships in 7-14 days
2873341Ferrari Cavo Da Inv P2 A Compressore - 873341$714.03Special order, ships in 7-14 days
3924294Ferrari Bracket - High Voltage Cable HVC6 - 924294$44.29Special order, ships in 7-14 days
4323665Ferrari Allen Head Bolt with Washer M6X14 - 323665$0.63Special order, ships in 7-14 days
5958955Ferrari P2 Inverter Ground Cable - 958955$73.85Special order, ships in 7-14 days
6943954Ferrari Cable From Obc To P2 Inverte - 943954$714.03Special order, ships in 7-14 days
7877010Ferrari Cable from OBC to Charging Socket - 877010$2,087.03Special order, ships in 7-14 days
7910644Ferrari Cavo Da Obc A Presa Di Ricar - 910644$1,748.17Special order, ships in 7-14 days
7877009Ferrari Cavo Obc A Presa Di Ricarica - 877009$2,063.59Special order, ships in 7-14 days
8966277Ferrari Cavo Massa Obc - 966277$49.22Special order, ships in 7-14 days
9933899Ferrari Riparo Calore Cavi Hv Trav. - 933899$320.06Special order, ships in 7-14 days
1085833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
11890449Ferrari Tappo Ferrari Presa Ric. Eur - 890449$110.61Special order, ships in 7-14 days
12905181Ferrari Charge Socket Cord - 905181$39.31Special order, ships in 7-14 days
13914283Ferrari Riparo Calore Presa Ric Tyco - 914283$369.30Special order, ships in 7-14 days
14904473Ferrari Adattatore Presa Ric. Eur Ty - 904473$56.60Special order, ships in 7-14 days
14877012Ferrari Adattatore Presa Ricarica Na - 877012$73.85Special order, ships in 7-14 days
14890843Ferrari Charging Socket Adapter - 890843$73.85Special order, ships in 7-14 days
15914433Ferrari Manual Release Bracket Socket - 914433$103.38Special order, ships in 7-14 days
16811962Ferrari Emergency Release Cable - Charging Socket - 811962$2.93Special order, ships in 7-14 days
17748925Ferrari Rubber Cable Grommet - 748925$4.16Special order, ships in 7-14 days
1816083401Ferrari Screw - 16083401$1.17Available, ships in 3-6 days
1914440724Ferrari Screw M5 x 16 TSEI - 14440724$0.65Available, ships in 3-6 days
2014040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
21912176Ferrari P2 Inverter Two Phase Cable Bracket - 912176$73.85Special order, ships in 7-14 days
2216286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
2216285124Ferrari Screw 5x16 - 16285124SupersededOrder 16286024 instead
23961295Ferrari Gogna 2 Vani Con Rinforzo Cn - 961295$10.91Special order, ships in 7-14 days
24879698Ferrari Cavo Massa Hvb - 879698$66.45Special order, ships in 7-14 days
25917360Ferrari Cavo Massa Compressore Hv - 917360$39.37Special order, ships in 7-14 days
26985240Ferrari Riparo Calore Compr. Ac - 985240$201.88Special order, ships in 7-14 days
27256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
28914487Ferrari Hv Cable From Hvb To P4 Inve - 914487$2,933.60Special order, ships in 7-14 days
28943949Ferrari Hv Cable From Hvb To P4 Inve - 943949$2,755.36Special order, ships in 7-14 days
29958956Ferrari Cavo Massa Inverter P4/Dcdc - 958956$179.73Special order, ships in 7-14 days
30983081Ferrari Triple Retainer Block - High Voltage Loom - 983081$86.15Special order, ships in 7-14 days
31897127Ferrari Compl. RH P4 HV Cable Bracket - 897127$93.53Special order, ships in 7-14 days
32918553Ferrari Complete LH High Voltage Cable Bracket - 918553$93.53Special order, ships in 7-14 days
33890901Ferrari Compl. HVB DC-DC Cable Bracket - 890901$71.38Special order, ships in 7-14 days
33934708Ferrari Compl. Hvb Dcdc Cable Bracke - 934708$83.68Special order, ships in 7-14 days
3416281824Ferrari Screw - 16281824$0.82Available, ships in 3-6 days
35961316Ferrari Clip - 961316$14.84Available, ships in 3-6 days
3613046014Ferrari Nut - 13046014$0.63Special order, ships in 7-14 days
37323668Ferrari Screw - 323668$0.65Special order, ships in 7-14 days
38850612Ferrari Cable From P4 Inverter To Dc - 850612$886.38Special order, ships in 7-14 days
38783409Ferrari Cavo Da Inverter P4 A Dcdc - 783409$714.03Special order, ships in 7-14 days
39855351Ferrari Compl. Lower RH P4 HV Cable Bracket - 855351$59.07Special order, ships in 7-14 days
40850764Ferrari RH HV Cable Holder Bracket - 850764$590.91Special order, ships in 7-14 days
4155060472Ferrari LH Hv Cable Holder Bracket - 55060472$443.17Special order, ships in 7-14 days
41793224Ferrari LH Hv Cable Holder Bracket - 793224$418.56Special order, ships in 7-14 days
41809598Ferrari LH Hv Cable Holder Bracket - 809598$418.56Special order, ships in 7-14 days
42873339Ferrari Cavo Da Inv P4 A Heater - 873339$738.64Special order, ships in 7-14 days
43873336Ferrari Cavo Massa Riscaldatore Elet - 873336$27.06Special order, ships in 7-14 days
44914122Ferrari Cavo Massa Assale Con Pdm M8 - 914122$41.82Special order, ships in 7-14 days
45280460Ferrari Screw M8 x 14 TCEI with Washer - 280460$9.16Available, ships in 3-6 days
4616285924Ferrari Screw - 16285924$0.40Available, ships in 3-6 days
4716296924Ferrari Screw M6 x 14 TE - 16296924$0.54Available, ships in 3-6 days
48934889Ferrari Firewall Bracket For Hvb Cab - 934889$91.08Special order, ships in 7-14 days
48915132Ferrari Firewall Bracket for HVB Cables to P4 Inverter - 915132$64.00Special order, ships in 7-14 days
49811457Ferrari HVB Battery Charger - 811457$1,147.41Special order, ships in 7-14 days
49830475Ferrari HVB Battery Charger - 830475$1,873.35Special order, ships in 7-14 days
49879949Ferrari HVB Battery Charger - 879949$1,049.07Special order, ships in 7-14 days
49879950Ferrari HVB Battery Charger - 879950$1,212.98Special order, ships in 7-14 days
49879951Ferrari HVB Battery Charger - 879951$1,147.41Special order, ships in 7-14 days
49905975Ferrari HVB Battery Charger - 905975$1,606.40Special order, ships in 7-14 days
49924665Ferrari HVB Battery Charger - 924665$1,049.07Special order, ships in 7-14 days
49966429Ferrari HVB Battery Charger - 966429$1,049.07Special order, ships in 7-14 days
49966430Ferrari HVB Battery Charger - 966430$1,212.98Special order, ships in 7-14 days
49924664Ferrari Mrk HVB Battery Charger - UK - 924664$1,049.07Available, ships in 3-6 days
50856635Ferrari P2 Three Phase Connector Bracket - 856635$49.22Special order, ships in 7-14 days
51856636Ferrari P2 Three Phase Cable Bracket - 856636$44.29Special order, ships in 7-14 days
52292861Ferrari Clip - 292861$2.38Special order, ships in 7-14 days
53231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
54918784Ferrari Clamp Hellermann Pa4.6 15 - 918784$0.82Special order, ships in 7-14 days
