Ferrari Testarossa TR 87 — Engine Cooling (Apr89) (diagram 024)

Exploded view of the engine cooling (apr89) on the Ferrari Testarossa TR 87, with 55 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

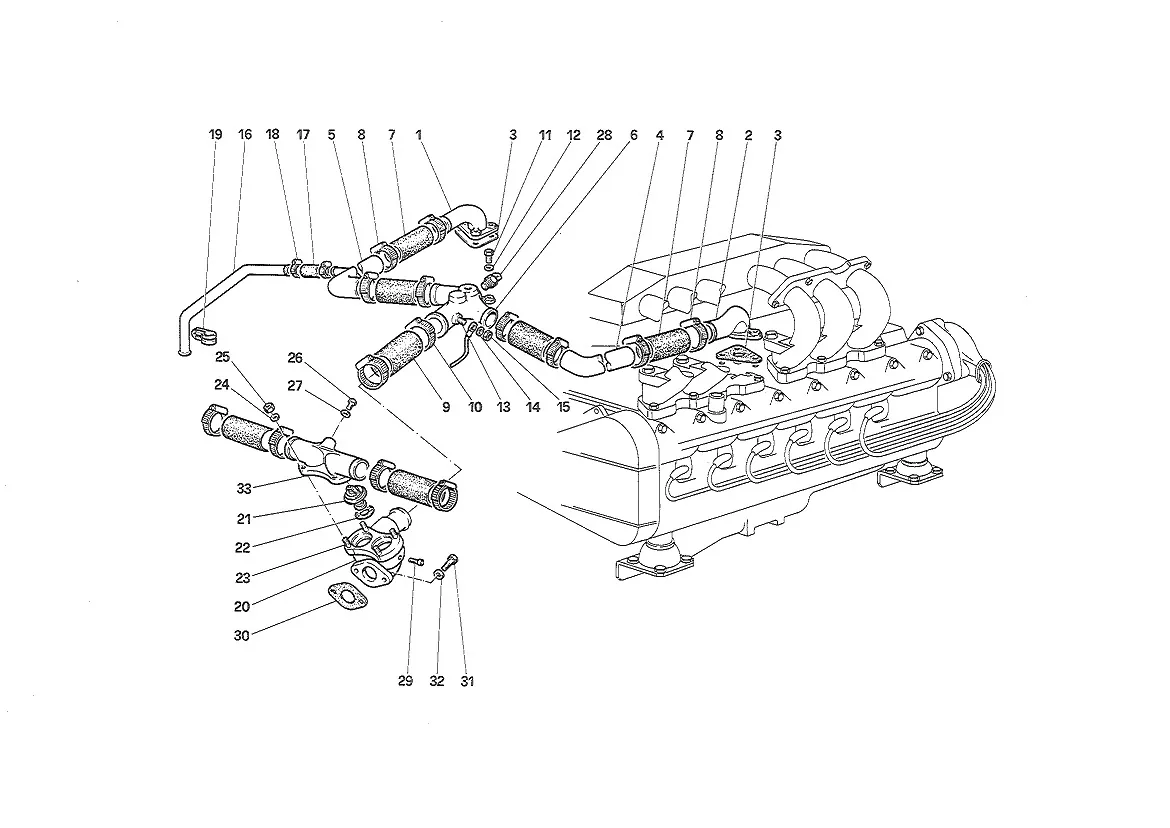

Ferrari Testarossa TR 87 Engine Cooling (Apr89) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1121030Ferrari Water Union from RH Cyl Head - 121030$150.02Special order, ships in 7-14 days
2121031Ferrari Water Union from LH Cyl Head - 121031$150.02Special order, ships in 7-14 days
3134952Ferrari Water Outlet Gasket - 134952$7.55In stock
3121032Ferrari Gasket - 121032SupersededOrder 134952 instead
4121122Ferrari Tube - 121122Price on requestContact us for price and availability
5121121Ferrari Tube - 121121Price on requestContact us for price and availability
6121148Ferrari Water Manifold - 121148Price on requestContact us for price and availability
6121471Ferrari Water Manifold - 121471Price on requestContact us for price and availability
7AW5500000Ferrari Testarossa Cooling Hose Kit - AW5500000$247.50In stock
7121166Ferrari Coolant Hose - 121166$27.38In stock
813000590Ferrari Hose Clip 25 - 40mm - 13000590$1.48Available, ships in 3-6 days
812173890Ferrari Fuel Hose Clip 25-40 - 12173890$1.48Available, ships in 3-6 days
9122938Ferrari Testarossa Coolant Hose-122938$49.98In stock
1013000690Ferrari/Maserati Hose Clamp - 13000690$1.49In stock
1012174090Ferrari Hose Clip 32-50 - 12174090SupersededOrder 13000690 instead
1110902424Ferrari Bolt M6 x 20 - 10902424$0.27Available, ships in 3-6 days
1110902421Ferrari Bolt M6 - 10902421$0.25Available, ships in 3-6 days
1212601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
1212601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
1311499921Ferrari Stud - 11499921$16.43Available, ships in 3-6 days
1412601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
1410615479Ferrari Washer - 10615479Price on requestSpecial order, ships in 7-14 days
1515896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
16124960Ferrari Tube - 124960Price on requestContact us for price and availability
17124961Ferrari Rubber Pipe - 124961$41.17Available, ships in 3-6 days
1812179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
1813000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
1910450490Ferrari Bracket P Clip16mm - 10450490$1.04Available, ships in 3-6 days
20124145Ferrari Thermostat Body - 124145$449.19Available, ships in 3-6 days
21109671Ferrari Thermostat - 109671$107.80In stock
21109671/AFerrari Water Thermostat - CHECK MODEL - 109671/A$135.85Available, ships in 3-6 days
22105192Ferrari Thermostat O-Ring - 105192$5.45In stock
2313540924Ferrari Stud - 13540924$78.66Available, ships in 3-6 days
2313540921Ferrari Stud - 13540921SupersededOrder 13540924 instead
2610300240Ferrari Plug - 10300240$10.66Available, ships in 3-6 days
2710297760Ferrari/Maserati Copper Washer - 10297760$0.42In stock
28104628Ferrari Water-Oil Temperature Switch - 104628$53.35In stock
29112030Ferrari Union - 112030$15.21Available, ships in 3-6 days
30134963Ferrari Thermostat Housing Gasket - 134963$9.48In stock
30123184Ferrari Gasket - 123184SupersededOrder 134963 instead
3110903421Ferrari Screw - 10903421Price on requestContact us for price and availability
3211193274Ferrari Washer - 11193274$0.06Available, ships in 3-6 days
3211193279Ferrari Washer - 11193279SupersededOrder 11193274 instead
33124144Ferrari Thermostat Cover - 124144$433.80Available, ships in 3-6 days
10902426Ferrari Bolt - 10902426SupersededOrder 10902424 instead
105303Ferrari Clamp - 105303SupersededOrder 13000690 instead
95026Ferrari Clamp 29-41 - 95026Price on requestContact us for price and availability
12173990Ferrari Clip - 12173990SupersededOrder 13000690 instead
105672Ferrari Hose Clamp - 105672$3.26Available, ships in 3-6 days
108785Ferrari Hose Clip - 108785$3.26Available, ships in 3-6 days
12177090Ferrari Hose Clip 32-50 - 12177090SupersededOrder 13000690 instead
100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
152875Ferrari Pipe - 152875$460.15Available, ships in 3-6 days
103372Ferrari Washer - 103372SupersededOrder 12601279 instead
105191Ferrari Water Thermostat - 105191Price on requestContact us for price and availability

All Testarossa TR 87 diagrams
