Ferrari Testarossa TR 90 — Front Suspension - Shock Absorber And Brake Disc (Until Car No. 75995) (diagram 045)

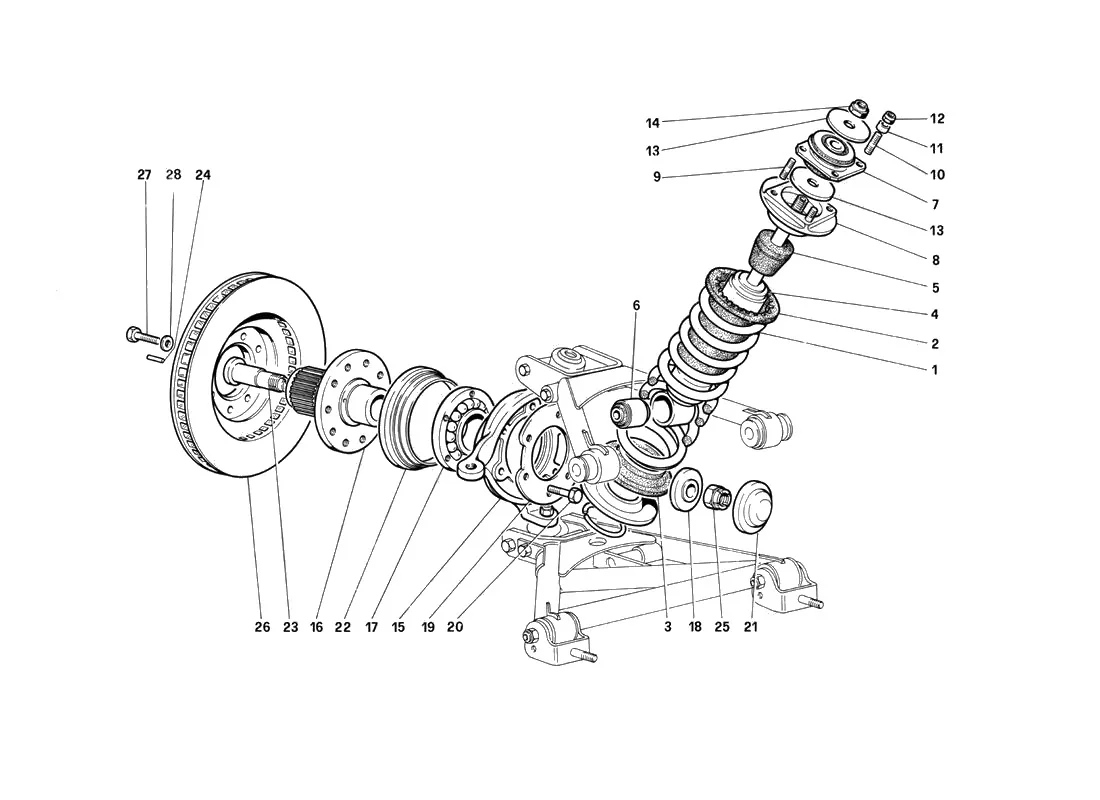

Exploded view of the front suspension - shock absorber and brake disc (until car no. 75995) on the Ferrari Testarossa TR 90, with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 124981 | Ferrari Road Spring Front - 124981 | Price on request | Contact us for price and availability |
| 2 | 113582 | Ferrari Shock Upper Dust Boot - 113582 | $126.50 | In stock |
| 3 | 113581 | Ferrari Spring Pad - 113581 | $31.35 | In stock |
| 4 | 125048 | Ferrari Testarossa Front Shock Absorber - 125048 | $988.90 | In stock |
| 5 | 116358 | Ferrari Front/Rear Shock Bump Stop - 116358 | $98.34 | In stock |
| 6 | 100809 | Ferrari Shock Bushing - 100809 | $25.25 | In stock |
| 7 | 114812 | Ferrari Shock Absorber Mount - 114812 | $143.00 | In stock |
| 8 | 114809 | Ferrari Shock Absorber Top Bush Support - 114809 | Price on request | Contact us for price and availability |
| 9 | 13543321 | Ferrari Short Stud - 13543321 | Superseded | Order 13543324 instead |
| 9 | 13543324 | Ferrari Stud M8 x 16 - Shank 20mm - 13543324 | $11.58 | Available, ships in 3-6 days |
| 10 | 13543621 | Ferrari Stud - 13543621 | Price on request | Contact us for price and availability |
| 11 | 13605811 | Ferrari Spacer 10mm - 13605811 | $17.63 | Available, ships in 3-6 days |
| 12 | 104030 | Ferrari/Maserati Nut - 104030 | $0.88 | In stock |
| 12 | 16104121 | Ferrari Nyloc Nut - 16104121 | Superseded | Order 104030 instead |
| 13 | 114815 | Ferrari Washer - 114815 | $3.07 | Available, ships in 3-6 days |
| 14 | 148020 | Ferrari Nut - 148020 | $7.65 | In stock |
| 14 | 16105121 | Ferrari Nyloc Nut - 16105121 | Superseded | Order 148020 instead |
| 15 | 116722 | Ferrari RH Front Stub Axle - 116722 | Price on request | Contact us for price and availability |
| 15 | 116721 | Ferrari LH Front Stub Axle - 116721 | Price on request | Contact us for price and availability |
| 16 | 125724 | Ferrari RH Front Wheel Hub - 125724 | $628.21 | Available, ships in 3-6 days |
| 16 | 125723 | Ferrari LH Front Wheel Hub - 125723 | $541.23 | Available, ships in 3-6 days |
| 17 | 112799 | Ferrari Front Wheel Bearing Assembly -112799 | $852.50 | In stock |
| 18 | 124510 | Ferrari Washer - 124510 | Price on request | Contact us for price and availability |
| 19 | 118522 | Ferrari Washer - 118522 | $16.66 | Available, ships in 3-6 days |
| 20 | 14238731 | Ferrari Bolt - 14238731 | $1.40 | Available, ships in 3-6 days |
| 21 | 124511 | Ferrari Dust Cap - 124511 | $155.17 | Available, ships in 3-6 days |
| 22 | 120066 | Ferrari Hub Shield - 120066 | $91.08 | Available, ships in 3-6 days |
| 23 | 125725 | Ferrari Shaft - Front Hub - - 125725 | Price on request | Contact us for price and availability |
| 24 | 13909870 | Ferrari Shaft Pin - 13909870 | $0.96 | Available, ships in 3-6 days |
| 25 | 124642 | Ferrari Front Wheel Hub Nut - 124642 | $26.18 | In stock |
| 26 | 125734KIT | Ferrari Testarossa Front Brake Pad & Rotor Set 125734KIT | $998.98 | In stock |
| 26 | 125734/2 | Ferrari 288/Testarossa Front Brake Rotor Pair (2) - 125734/2 | $859.96 | In stock |
| 27 | 125736 | Ferrari Bolt - 125736 | $20.81 | Available, ships in 3-6 days |
| 28 | 12601474 | Ferrari Wavy Washer 10mm - 12601474 | $0.06 | Available, ships in 3-6 days |
| 28 | 106853 | Ferrari Spring Washer 10mm - 106853 | Superseded | Order 12601474 instead |
| 16104125 | Ferrari Nut - 16104125 | Superseded | Order 104030 instead | |
| 16505121 | Ferrari Nut - 16505121 | Superseded | Order 148020 instead | |
| 13516821 | Ferrari RH Threaded Stud - 13516821 | Superseded | Order 13543324 instead | |
| 13543624 | Ferrari Stud Bolt M8x16 -Shank length 30- - 13543624 | Price on request | Contact us for price and availability | |
| 151547 | Ferrari Support - 151547 | Price on request | Contact us for price and availability | |
| 10516873 | Ferrari Washer - 10516873 | Superseded | Order 12601474 instead | |
| 12601471 | Ferrari Washer - 12601471 | Superseded | Order 12601474 instead |
