Ferrari Testarossa TR 90 — Carpet And Insulation Panels (diagram 107)

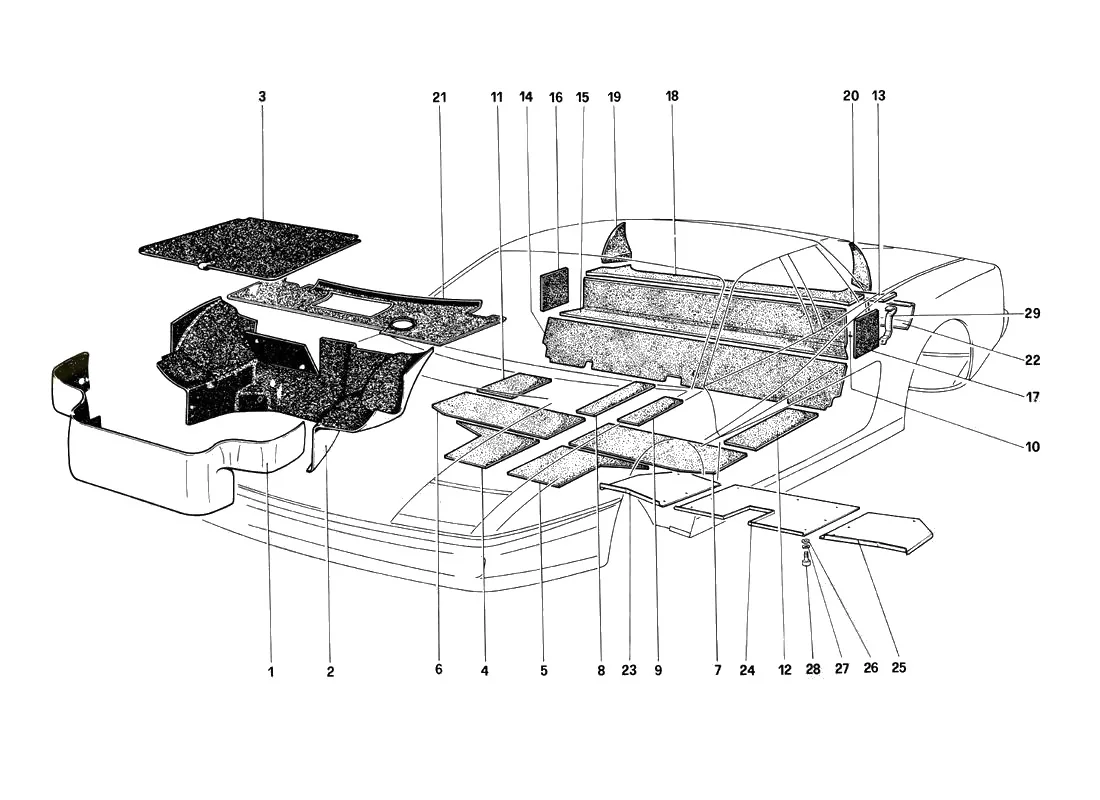

Exploded view of the carpet and insulation panels on the Ferrari Testarossa TR 90, with 54 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 61492400 | Ferrari Front Luggage Carpet - 61492400 | Price on request | Contact us for price and availability |
| 2 | 61492500 | Ferrari Rear Luggage Carpet LHD - 61492500 | Price on request | Contact us for price and availability |
| 2 | 61492600 | Ferrari Rear Luggage Carpet RHD - 61492600 | Price on request | Contact us for price and availability |
| 3 | 61492700 | Ferrari Spare Wheel Covering Carpet - 61492700 | Price on request | Contact us for price and availability |
| 4 | 61492800 | Ferrari RH Front Sound Insulation LHD - 61492800 | $233.87 | Available, ships in 3-6 days |
| 4 | 61492900 | Ferrari RH Front Sound Insulation RHD - 61492900 | Price on request | Contact us for price and availability |
| 5 | 61493000 | Ferrari LH Front Sound Insulation LHD - 61493000 | $290.20 | Available, ships in 3-6 days |
| 5 | 61493100 | Ferrari LH Front Sound Insulation RHD - 61493100 | $91.64 | Available, ships in 3-6 days |
| 6 | 61493200 | Ferrari RH Central Sound Insulation LHD - 61493200 | Price on request | Contact us for price and availability |
| 6 | 61493300 | Ferrari RH Central Sound Insulation RHD - 61493300 | $104.13 | Available, ships in 3-6 days |
| 7 | 61493400 | Ferrari LH Central Sound Insulation LHD - 61493400 | $355.98 | Available, ships in 3-6 days |
| 7 | 61493500 | Ferrari LH Central Sound Insulation RHD - 61493500 | Price on request | Contact us for price and availability |
| 8 | 61493600 | Ferrari RH Rear Central Sound Insulation LHD - 61493600 | Price on request | Contact us for price and availability |
| 8 | 61493700 | Ferrari RH Rear Central Sound Insulation RHD - 61493700 | Price on request | Contact us for price and availability |
| 9 | 61493800 | Ferrari LH Rear Central Sound Insulation LHD - 61493800 | Price on request | Contact us for price and availability |
| 9 | 61493900 | Ferrari LH Rear Central Sound Insulation RHD - 61493900 | Price on request | Contact us for price and availability |
| 10 | 61494000 | Ferrari Shield - 61494000 | Price on request | Contact us for price and availability |
| 11 | 61494200 | Ferrari RH Rear Sound Insulation LHD - 61494200 | Price on request | Contact us for price and availability |
| 11 | 61494300 | Ferrari RH Rear Sound Insulation RHD - 61494300 | Price on request | Contact us for price and availability |
| 12 | 61494400 | Ferrari LH Rear Sound Insulation LHD - 61494400 | $29.19 | Special order, ships in 7-14 days |
| 12 | 61494500 | Ferrari LH Rear Sound Insulation RHD - 61494500 | Price on request | Contact us for price and availability |
| 13 | 61494600 | Ferrari Shield - 61494600 | Price on request | Contact us for price and availability |
| 14 | 61494700 | Ferrari Insulation - 61494700 | Price on request | Contact us for price and availability |
| 15 | 61494800 | Ferrari Insulation - 61494800 | Price on request | Contact us for price and availability |
| 16 | 61494900 | Ferrari Insulation - 61494900 | Price on request | Contact us for price and availability |
| 17 | 61495000 | Ferrari Insulation - 61495000 | Price on request | Contact us for price and availability |
| 18 | 61495100 | Ferrari Insulation - 61495100 | Price on request | Contact us for price and availability |
| 19 | 61495200 | Ferrari Insulation - 61495200 | Price on request | Contact us for price and availability |
| 20 | 61495300 | Ferrari Insulation - 61495300 | Price on request | Contact us for price and availability |
| 21 | 61531400 | Ferrari Front Compartment Rear Carpet LHD - 61531400 | Price on request | Contact us for price and availability |
| 21 | 61531500 | Ferrari Front Compartment Rear Carpet RHD - 61531500 | Price on request | Contact us for price and availability |
| 22 | 61532600 | Ferrari Rear Thermal Insulation - 61532600 | $80.83 | Available, ships in 3-6 days |
| 22 | 61559600 | Ferrari Rear Thermal Insulation - 61559600 | Price on request | Contact us for price and availability |
| 23 | 132662 | Ferrari RH Plate - 132662 | Superseded | Order 137637 instead |
| 23 | 137637 | Ferrari Shield - 137637 | $516.54 | Available, ships in 3-6 days |
| 24 | 132660 | Ferrari Central Plate - 132660 | $1,033.05 | Available, ships in 3-6 days |
| 25 | 132661 | Ferrari LH Plate - 132661 | Price on request | Contact us for price and availability |
| 26 | 12646601 | Ferrari Washer - 12646601 | Superseded | Order 12646604 instead |
| 27 | 127494 | Ferrari Lock Washer - 127494 | $0.50 | In stock |
| 28 | 10902324 | Ferrari Screw M6 x 18 - 10902324 | $0.27 | Available, ships in 3-6 days |
| 28 | 10902321 | Ferrari Bolt - 10902321 | Superseded | Order 10902324 instead |
| 29 | 61578000 | Ferrari Bracket - 61578000 | $29.80 | Available, ships in 3-6 days |
| 29 | 61580800 | Ferrari Bracket - 61580800 | $7.53 | Available, ships in 3-6 days |
| 106850 | Ferrari Spring Washer 6mm - 106850 | Superseded | Order 127494 instead | |
| 10516470 | Ferrari Washer 6 R 4 - 10516470 | Superseded | Order 127494 instead | |
| 10516471 | Ferrari Washer - 10516471 | Superseded | Order 127494 instead | |
| 10516473 | Ferrari Washer - 10516473 | Superseded | Order 127494 instead | |
| 10516477 | Ferrari Washer - 10516477 | Superseded | Order 127494 instead | |
| - | 61567200 | Ferrari Luggage Compartment Carpet Set LHD Beaver - 61567200 | Price on request | Contact us for price and availability |
| - | 61570900 | Ferrari Luggage Compartment Carpet Set LHD Black - 61570900 | Price on request | Contact us for price and availability |
| - | 61558000 | Ferrari Luggage Compartment Carpet Set LHD Grey - 61558000 | Price on request | Contact us for price and availability |
| - | 61567300 | Ferrari Luggage Compartment Carpet Set RHD Beaver - 61567300 | $1,355.26 | Available, ships in 3-6 days |
| - | 61571000 | Ferrari Luggage Compartment Carpet Set RHD Black - 61571000 | Price on request | Contact us for price and availability |
| - | 61558100 | Ferrari Luggage Compartment Carpet Set RHD Grey - 61558100 | Price on request | Contact us for price and availability |
