Ferrari 348/355 Clutch Release Bearing Flange – CRBF-348/355

PART # CRBF-348/355

$1,091.19

Clutch Release Bearing Flange

Fits the following:
348
F355

Part Number: CRBF-348/355
Replaces part number 168589

Hill Engineering’s Clutch release bearing flange – (#168589)
Used mainly to upgrade 348 & early 355’s so that they can use the later style clutch release bearings.
Comes complete with 2 x #65928500 at no extra cost (these must be fitted by the customer).

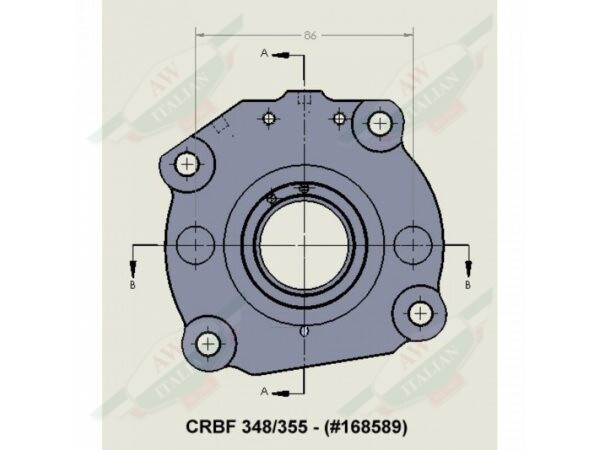

CRB355MS / #168594 should only be fitted the later style flange (CRBF 348/355 – #168589) & 158209 (late 355). An easy way to tell if you have the later flange is by measuring the spring hole centers shown in the additional image above. Early flanges have a dimension of 82mm while the later flange as shown has 86mm.

Please note that this flange is not a replacement for the late 355 flange #158209.

Valid from gearbox Nr. 2439 and till Nr. 2715 for complete gearbox 168372 – Not for complete gearbox 174037.
(Also Valid up to Gearbox Nr. 2438 when using CRB-355MS Clutch Release Bearing)

Please note that this part does not come with seal or O-rings – See SK-CRBF-348/355

Weight 4 lbs
Dimensions 6 × 6 × 6 in
