Ferrari 12 Cilindri Spider — [MECHANICAL SYSTEM] - D.01 - ENGINE SUSPENSION BUSH (diagram 0048)

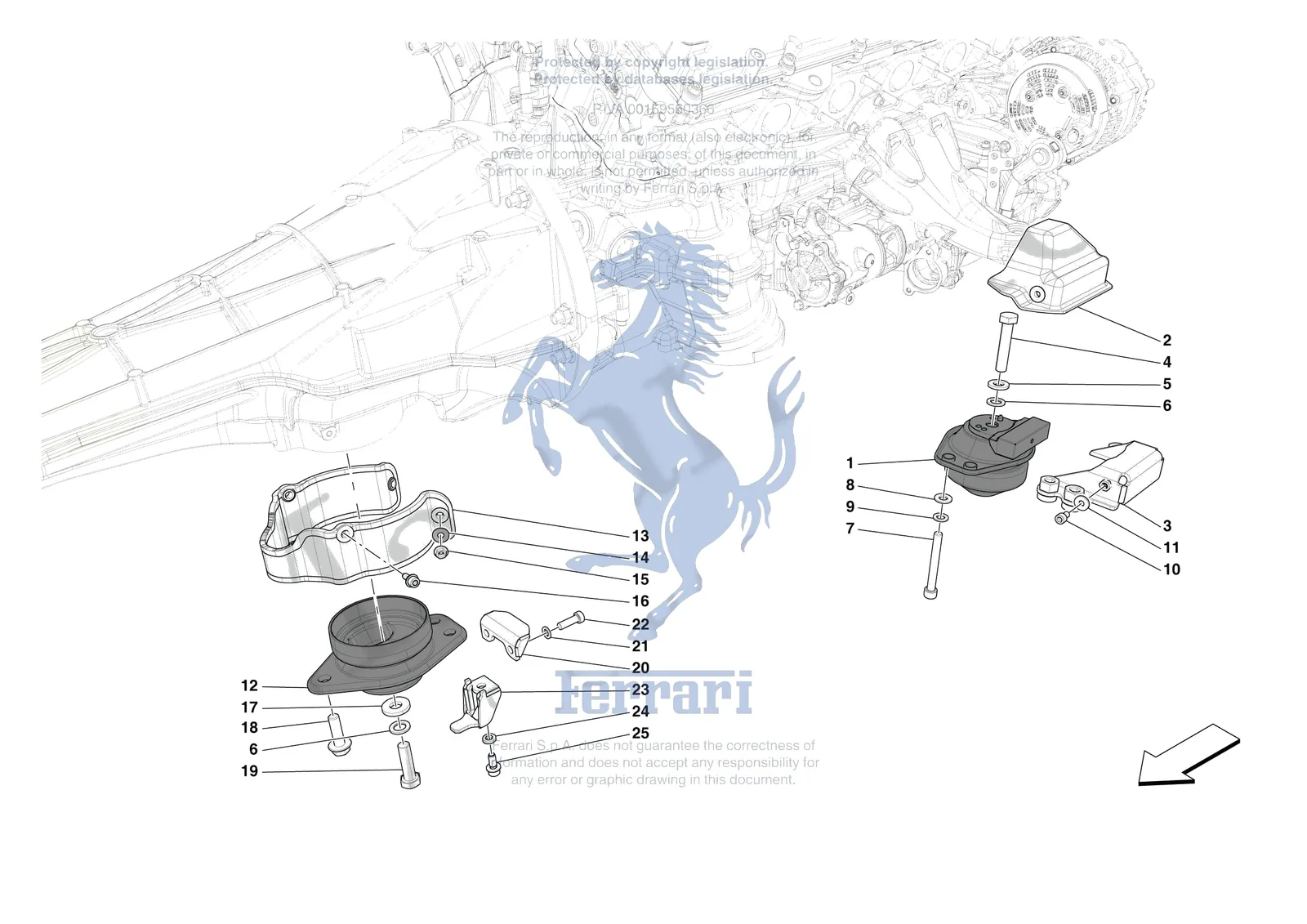

Exploded view of the [mechanical system] - d.01 - engine suspension bush on the Ferrari 12 Cilindri Spider, with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [MECHANICAL SYSTEM] - D.01 - ENGINE SUSPENSION BUSH exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0048.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 106853 | Ferrari Spring Washer 10mm - 106853 | Superseded | Order 12601474 instead | |
| 14496609 | Ferrari Steel Washer - 14496609 | Superseded | Order 12646824 instead | |
| 10516873 | Ferrari Washer - 10516873 | Superseded | Order 12601474 instead | |
| 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead | |
| 126648 | Ferrari Washer - 126648 | Superseded | Order 14496624 instead | |
| 14496601 | Ferrari Washer - 14496601 | Superseded | Order 12646824 instead | |
| 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead | |
| 1 | 259757 | Ferrari Left Side Engine Mount - 259757 | $500.67 | In stock |
| 1 | 259756 | Ferrari Right Side Engine Mount - 259756 | $620.00 | In stock |
| 2 | 277259 | Ferrari Bush Heat Shield - 277259 | $184.38 | Special order, ships in 7-14 days |
| 3 | 269829 | Ferrari LH Engine Mounting Bush Limiter Bracket - 269829 | $243.40 | Special order, ships in 7-14 days |
| 3 | 269828 | Ferrari RH Engine Mounting Bush Limiter Bracket - 269828 | $243.40 | Special order, ships in 7-14 days |
| 4 | 15215834 | Ferrari Screw - 15215834 | $3.26 | Special order, ships in 7-14 days |
| 5 | 13550521 | Ferrari Washer - 13550521 | $0.96 | Available, ships in 3-6 days |
| 6 | 127498 | Ferrari Spring Washer 12mm - 127498 | $0.27 | Available, ships in 3-6 days |
| 7 | 285972 | Ferrari Screw - 285972 | $27.03 | Special order, ships in 7-14 days |
| 8 | 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days |
| 9 | 127497 | Ferrari Spring Washer 10mm - 127497 | $0.69 | In stock |
| 10 | 14305024 | Ferrari Screw - 14305024 | $0.38 | Special order, ships in 7-14 days |
| 11 | 12647624 | Ferrari Washer D 6.45-16x2 - 12647624 | $0.19 | Available, ships in 3-6 days |
| 12 | 247141 | Ferrari Rubber Bushing - 247141 | $319.62 | Available, ships in 3-6 days |
| 12 | 289309 | Ferrari Rubber Bushing - 289309 | Superseded | Order 247141 instead |
| 13 | 870777 | Ferrari Transmission Housing Bushing - 870777 | $368.79 | Special order, ships in 7-14 days |
| 14 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 15 | 14059114 | Ferrari Nut M5 - 14059114 | $0.27 | Available, ships in 3-6 days |
| 16 | 797723 | Ferrari Screw - 797723 | $0.86 | Special order, ships in 7-14 days |
| 17 | 12648524 | Ferrari Washer - 12648524 | $1.09 | Available, ships in 3-6 days |
| 18 | 18754424 | Ferrari Screw - 18754424 | $27.03 | Special order, ships in 7-14 days |
| 19 | 11599524 | Ferrari Screw - 11599524 | Superseded | Order 11599534 instead |
| 19 | 11599534 | Ferrari Screw - 11599534 | $3.91 | Available, ships in 3-6 days |
| 20 | 277524 | Ferrari Bracket - 277524 | $71.28 | Special order, ships in 7-14 days |
| 21 | 14499401 | Ferrari Washer - 14499401 | $0.54 | Available, ships in 3-6 days |
| 21 | 14499424 | Ferrari Washer - 14499424 | Superseded | Order 14499401 instead |
| 22 | 13028734 | Ferrari Allen Screw M8 x 25 - 13028734 | $0.92 | Available, ships in 3-6 days |
| 23 | 868442 | Ferrari Bracket - 868442 | $142.58 | Special order, ships in 7-14 days |
| 24 | 12648424 | Ferrari Washer - 12648424 | $3.68 | Available, ships in 3-6 days |
| 25 | 248471 | Ferrari Screw 8x20 - 248471 | $2.07 | Available, ships in 3-6 days |
