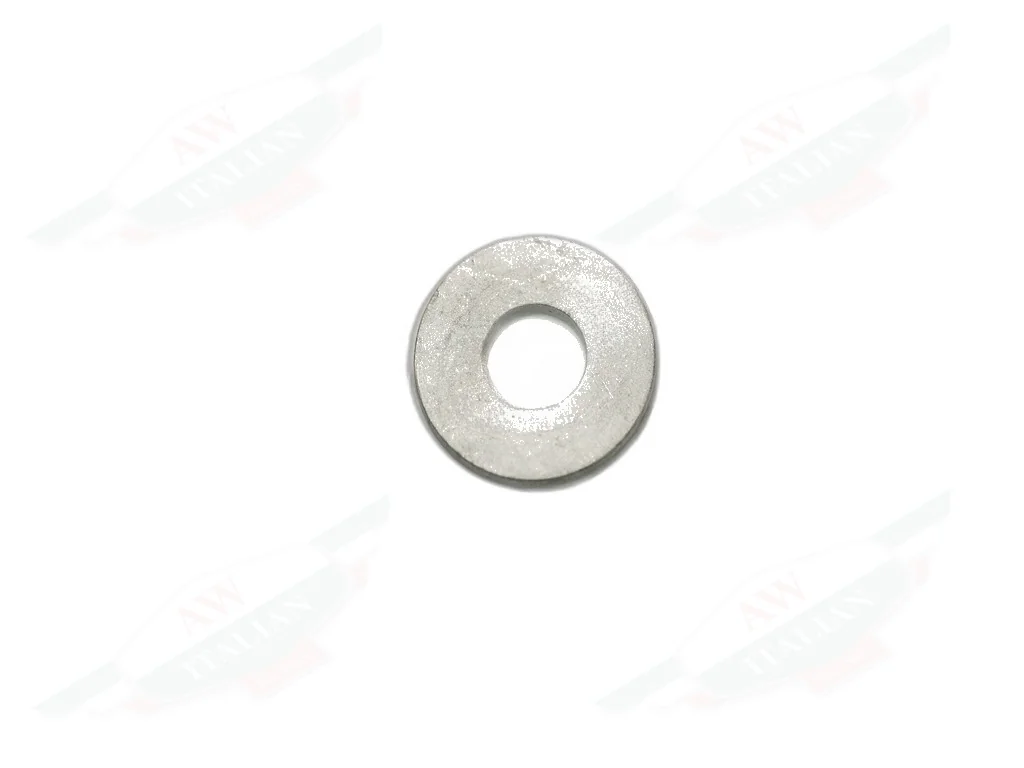

Ferrari Washer – 12646824

Name: Ferrari Washer - 12646824
Brand: Ferrari
SKU: 12646824
Price: 0.19 USD
Availability: InStock

Original or OEM

?Original or OEM — genuine Ferrari parts, or parts made by the Original Equipment Manufacturer that supplies Ferrari. AW Approved — quality aftermarket parts vetted and approved by AW Italian.

PART # 12646824

$0.19

SUPERSEDEDPlease order 14496624 instead.

Description

Ferrari Washer, part number 12646824. Listed in our catalogue for 80 Ferrari models, including the 12 Cilindri, 12 Cilindri Spider, 208 GTB/GTS Turbo. Replaces part numbers 14496621,14496601,14496609. This number has been superseded by 14496624.

Every product we sell is backed by our 1-year warranty, giving you added confidence with every purchase. We're committed to knowledgeable service, reliable fulfillment, and helping you get the right part the first time.

Not sure it’s the right part for your car? Contact our team before you order and we’ll help you confirm it.

Fits the following vehicles

80 vehicles · 362 positions

Ferrari 12 Cilindri7 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.01 - ENGINE SUSPENSION BUSH	6
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	4
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
6	`0106` [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE	4
10	`0157` [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS	4
15	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	8
35	`0095` [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE	6

Ferrari 12 Cilindri Spider7 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.01 - ENGINE SUSPENSION BUSH	6
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	4
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
2	`0157` [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS	4
3	`0107` [VEHICLE TRIM] - E.11 - ROLLBAR COMPARTMENT	4
15	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	8
35	`0095` [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE	6

Ferrari 208 GTB/GTS Turbo1 position

Item No.	Diagram (page)	Qty
—	`050` Air Conditioning Compressor And Controls (Starting From Car No. 77247)	2

Ferrari 288 GTO1 position

Item No.	Diagram (page)	Qty
—	`041` Air Conditioning Compressor And Controls	1

Ferrari 296 GTB7 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.01 - ENGINE SUSPENSION BUSH	6
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	12
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
7	`0096` [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE	8
15	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	8
36	`0063` [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS	4
42	`0097` [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE	2

Ferrari 296 GTS6 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.01 - ENGINE SUSPENSION BUSH	6
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	12
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
8	`0096` [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE	8
15	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	8
43	`0097` [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE	2

Ferrari 308 Quattrovalvole2 positions

Item No.	Diagram (page)	Qty
—	`006` Cylinder Head (Left)	1
—	`041` Air Conditioning Compressor And Controls	12

Ferrari 328 GTB/GTS (1985)2 positions

Item No.	Diagram (page)	Qty
—	`006` Cylinder Head (Left)	1
—	`044` Air Conditioning Compressor And Controls (Not For U.S. Version)	2

Ferrari 328 GTB/GTS (1988)2 positions

Item No.	Diagram (page)	Qty
—	`006` Cylinder Head (Left)	1
—	`054` Air Conditioning Compressor And Controls (Not For Us And Sa Version)	2

Ferrari 348 GTB/GTS/GTC/Spider4 positions

Item No.	Diagram (page)	Qty
—	`001` CRANKCASE	4
—	`010` FUEL TANK	4
—	`024` CLUTCH AND CONTROLS	1
—	`027` GEARBOX DIFFERENTIAL HOUSING AND INTERMEDIATE CASING	2

Ferrari 348 tb/ts4 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	4
—	`010` Fuel Tank	4
—	`021` Clutch - Controls	1
—	`023` Gearbox - Differential Housing And Intermediate Casing	2

Ferrari 360 Challenge4 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	8
—	`035` Hydraulic Steering Box And Serpentine	4
—	`039` Front Suspension - Wishbones	8
—	`041` Rear Suspension - Wishbones	8

Ferrari 360 Challenge Stradale5 positions

Item No.	Diagram (page)	Qty
—	`031` Gearbox - Covers	6
—	`043` Hydraulic Steering Box And Serpentine	4
—	`047` Front Suspension - Wishbones	8
—	`049` Rear Suspension - Wishbones	8
44	`001` Crankcase	8

Ferrari 360 Modena5 positions

Item No.	Diagram (page)	Qty
—	`033` Gearbox - Covers	6
—	`046` Hydraulic Steering Box And Serpentine	4
—	`050` Front Suspension - Wishbones	8
—	`052` Rear Suspension - Wishbones	8
44	`001` Crankcase	8

Ferrari 360 Spider5 positions

Item No.	Diagram (page)	Qty
—	`033` Gearbox - Covers	6
—	`046` Hydraulic Steering Box And Serpentine	4
—	`050` Front Suspension - Wishbones	8
—	`052` Rear Suspension - Wishbones	8
44	`001` Crankcase	8

Ferrari 430 Scuderia5 positions

Item No.	Diagram (page)	Qty
—	`031` Gearbox - Covers	7
—	`042` Hydraulic Power Steering Box And Serpentine Coil	4
—	`046` Front Suspension - Arms	8
—	`048` Rear Suspension - Arms	8
47	`001` Crankcase	8

Ferrari 430 Scuderia Spider 16M5 positions

Item No.	Diagram (page)	Qty
—	`031` Gearbox - Covers	7
—	`042` Hydraulic Power Steering Box And Serpentine Coil	4
—	`046` Front Suspension - Arms	8
—	`048` Rear Suspension - Arms	8
47	`001` Crankcase	8

Ferrari 456 GT/GTA1 position

Item No.	Diagram (page)	Qty
—	`030` Different. Carrier And Gearbox Cooling Radiator -Not For 456 Gta-	8

Ferrari 456 MGT/MGTA 6 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	8
—	`032` Complete Gearbox -Valid For 456M Gta-	4
—	`033` Differential Carrier And Gearbox Cooling Radiator -Not For 456M Gta-	8
10	`106` Rear Bumper	8
11	`028` Water Pump	1
25	`105` Front Bumper	8

Ferrari 458 Italia5 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	6
—	`032` Hydraulic Power Steering Box	4
—	`038` Rear Suspension - Arms	16
4	`110` Front Lid And Opening Mechanism	4
10	`036` Front Suspension - Arms	8

Ferrari 458 Speciale5 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	6
—	`031` Hydraulic Power Steering Box	4
—	`037` Rear Suspension - Arms	12
4	`110` Front Lid And Opening Mechanism	4
10	`035` Front Suspension - Arms	8

Ferrari 458 Speciale Aperta (Convertible)4 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	6
—	`031` Hydraulic Power Steering Box	4
—	`037` Rear Suspension - Arms	12
10	`035` Front Suspension - Arms	8

Ferrari 458 Spider5 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	6
—	`032` Hydraulic Power Steering Box	4
—	`038` Rear Suspension - Arms	16
4	`111` Front Lid And Opening Mechanism	4
10	`036` Front Suspension - Arms	8

Ferrari 488 GTB4 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	6
—	`035` Hydraulic Power Steering Box	8
—	`041` Rear Suspension - Arms	12
10	`039` Front Suspension - Arms	8

Ferrari 488 Pista6 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.01 - ENGINE SUSPENSION BUSH	6
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	12
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
—	`0108` [VEHICLE TRIM] - E.12 - ROLLBAR	8
—	`0141` [VEHICLE TRIM] - E.40 - FRONT BUMPER	15
18	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	8

Ferrari 488 Pista Spider5 positions

Item No.	Diagram (page)	Qty
—	`047` Engine Suspension Bush	6
—	`079` Rear Suspension - Arms	12
—	`085` Steering Box	8
—	`140` Front Bumper	15
18	`075` Front Suspension - Arms	8

Ferrari 488 Spider4 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	6
—	`035` Hydraulic Power Steering Box	8
—	`041` Rear Suspension - Arms	12
10	`039` Front Suspension - Arms	8

Ferrari 512 M1 position

Item No.	Diagram (page)	Qty
—	`053` Air Conditioning Compressor	2

Ferrari 512 TR1 position

Item No.	Diagram (page)	Qty
—	`055` Air Conditioning Compressor	2

Ferrari 550 Barchetta4 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	8
11	`027` Water Pump	1
15	`105` Front Bumper	8
19	`106` Rear Bumper	8

Ferrari 550 Maranello4 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	8
11	`028` Water Pump	1
15	`106` Front Bumper	8
19	`107` Rear Bumper	8

Ferrari 575 SuperAmerica5 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	8
—	`035` Inside Gearbox Controls -Valid For F1-	1
11	`027` Water Pump	1
15	`105` Front Bumper	8
19	`106` Rear Bumper	8

Ferrari 575M Maranello5 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	8
—	`035` Inside Gearbox Controls -Valid For F1-	1
11	`027` Water Pump	1
15	`106` Front Bumper	8
19	`107` Rear Bumper	8

Ferrari 599 GTB Fiorano9 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	4
—	`026` Differential Case And Gearbox Cooling Radiator	4
—	`029` Internal Gearbox Controls -Not For F1-	1
—	`030` Internal Gearbox Controls -Applicable For F1-	1
—	`044` Hydraulic Power Steering Box	8
—	`048` Front Suspension - Arms And Stabiliser Bar	8
—	`050` Rear Suspension - Arms And Stabiliser Bar	8
9	`010` Fuel Tank - Insulation And Protection	4
15	`010` Fuel Tank - Insulation And Protection	4

Ferrari 599 GTO5 positions

Item No.	Diagram (page)	Qty
—	`040` Hydraulic Power Steering Box	8
—	`044` Front Suspension - Arms And Stabiliser Bar	8
—	`046` Rear Suspension - Arms And Stabiliser Bar	8
9	`010` Fuel Tank - Insulation And Protection	4
15	`010` Fuel Tank - Insulation And Protection	4

Ferrari 599 SA Aperta5 positions

Item No.	Diagram (page)	Qty
—	`040` Hydraulic Power Steering Box	8
—	`044` Front Suspension - Arms And Stabiliser Bar	8
—	`046` Rear Suspension - Arms And Stabiliser Bar	8
9	`010` Fuel Tank - Insulation And Protection	4
15	`010` Fuel Tank - Insulation And Protection	4

Ferrari 612 Scaglietti8 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	4
—	`032` Differential Case And Gearbox Cooling Radiator	4
—	`036` Internal Gearbox Controls -Applicable For F1-	1
—	`050` Hydraulic Power Steering Box	8
—	`055` Front Suspension - Arms And Stabiliser Bar	8
—	`057` Rear Suspension - Arms And Stabiliser Bar	8
11	`027` Water Pump	1
31	`125` Dashboard	4

Ferrari 612 Sessanta8 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	4
—	`032` Differential Case And Gearbox Cooling Radiator	4
—	`036` Internal Gearbox Controls -Applicable For F1-	1
—	`050` Hydraulic Power Steering Box	8
—	`055` Front Suspension - Arms And Stabiliser Bar	8
—	`057` Rear Suspension - Arms And Stabiliser Bar	8
11	`027` Water Pump	1
31	`125` Dashboard	4

Ferrari 812 Competizione5 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH	6
—	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	16
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	8
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
44	`0157` [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS	4

Ferrari 812 CompetizioneA5 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH	6
—	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	16
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	8
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
44	`0157` [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS	4

Ferrari 812 GTS6 positions

Item No.	Diagram (page)	Qty
—	`0001` CRANKCASE	6
—	`0030` ELECTRIC STEERING BOX	8
—	`0033` FRONT SUSPENSION - ARMS	16
—	`0035` REAR SUSPENSION - ARMS	8
15	`0128` DASHBOARD FASTENINGS	4
72	`0104` STRUCTURES AND ELEMENTS REAR OF VEHICLE	2

Ferrari 812 Superfast5 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	6
—	`029` Electric Steering Box	8
—	`032` Front Suspension - Arms	16
—	`034` Rear Suspension - Arms	8
7	`127` Dashboard Fastenings	4

Ferrari California7 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	4
—	`024` Transmission Housing	2
—	`042` Steering Box And Power Steering Pump	8
—	`047` Rear Suspension	16
—	`113` Wheelhouses And Doors	6
16	`045` Front Suspension	8
26	`127` Front Lid	4

Ferrari California T4 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	6
—	`039` Hydraulic Power Steering Box	8
—	`045` Rear Suspension - Arms	16
14	`043` Front Suspension - Arms	8

Ferrari Daytona SP33 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.01 - ENGINE SUSPENSION BUSH	6
—	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	4
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	4

Ferrari Enzo7 positions

Item No.	Diagram (page)	Qty
—	`041` Front Suspension - Wishbones	4
—	`101` Rear Frame	2
—	`113` Doors - Hinge And Open Control	12
—	`117` Dashboard	2
8	`105` Front Bumper And Flat Floor Pan	4
23	`106` Rear Bumper And Flat Floor Pan	4
33	`106` Rear Bumper And Flat Floor Pan	4

Ferrari F12 Berlinetta4 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	6
—	`032` Hydraulic Power Steering Box	8
—	`036` Front Suspension - Arms	16
—	`038` Rear Suspension - Arms	16

Ferrari F12tdf4 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	6
—	`030` Hydraulic Power Steering Box	8
—	`034` Front Suspension - Arms	16
—	`036` Rear Suspension - Arms	8

Ferrari F355 B/GTS/Spider Mo. 2.74 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	8
—	`011` Fuel Tank	4
—	`024` Clutch And Controls	1
—	`027` Gearbox - Differential Housing And Intermediate Casing	6

Ferrari F355 B/GTS/Spider Mo. 5.2 / ABS Bosch F15 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	8
—	`010` Fuel Tank	4
—	`024` Clutch Control	1
—	`030` Gearbox/Differential Housing And Intermediate Casing	6
4	`022` Water Pump And Oil/Water Heat Exchanger	1

Ferrari F402 positions

Item No.	Diagram (page)	Qty
—	`031` Differential Gearbox	1
—	`054` Air Conditioned Compressor	1

Ferrari F430 Challenge5 positions

Item No.	Diagram (page)	Qty
—	`025` Gearbox - Covers	7
—	`034` Hydraulic Steering Box And Serpentine	4
—	`038` Front Suspension - Wishbones	8
—	`040` Rear Suspension - Wishbones	8
47	`001` Crankcase	8

Ferrari F430 Coupe5 positions

Item No.	Diagram (page)	Qty
—	`029` Gearbox - Covers	7
—	`041` Hydraulic Power Steering Box And Serpentine Coil	4
—	`045` Front Suspension - Arms	8
—	`047` Rear Suspension - Arms	8
47	`001` Crankcase	8

Ferrari F430 Spider5 positions

Item No.	Diagram (page)	Qty
—	`029` Gearbox - Covers	7
—	`041` Hydraulic Power Steering Box And Serpentine Coil	4
—	`045` Front Suspension - Arms	8
—	`047` Rear Suspension - Arms	8
47	`001` Crankcase	8

Ferrari F502 positions

Item No.	Diagram (page)	Qty
—	`047` Alternator And Starting Motor	1
—	`049` Air Conditioning Compressor	10

Ferrari F8 Spider4 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH	6
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	16
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
11	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	8

Ferrari F8 Tributo4 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.01 - ENGINE SUSPENSION BUSH	6
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	16
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
11	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	8

Ferrari F805 positions

Item No.	Diagram (page)	Qty
—	`0049` [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH	6
—	`0089` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	4
—	`0098` [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE	8
18	`0070` [MECHANICAL SYSTEM] - D.20 - PEDAL BOARD	4
32	`0100` [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE	4

Ferrari FF6 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	6
—	`033` Hydraulic Power Steering Box	8
—	`037` Front Suspension - Arms	4
—	`039` Rear Suspension - Arms	16
—	`106` Flat Undertray And Wheelhouses	7
62	`124` Dashboard	4

Ferrari GTC4 Lusso4 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	6
—	`032` Hydraulic Power Steering Box	8
—	`036` Front Suspension - Arms	4
—	`038` Rear Suspension - Arms	12

Ferrari GTC4 Lusso T4 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	6
—	`037` Hydraulic Power Steering Box	8
—	`041` Front Suspension - Arms	4
—	`043` Rear Suspension - Arms	12

Ferrari La Ferrari3 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	6
—	`030` Front Suspension - Arms	8
—	`032` Rear Suspension - Arms	4

Ferrari La Ferrari Aperta3 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	6
—	`030` Front Suspension - Arms	8
—	`032` Rear Suspension - Arms	4

Ferrari Mondial Cabriolet 3.2 (Inc Coupe)3 positions

Item No.	Diagram (page)	Qty
—	`006` Cylinder Head (Left)	1
—	`051` Air Conditioning Compressor And Controls	2
—	`115` Bumpers And Moldings	4

Ferrari Mondial QV Coupe & Cabriolet1 position

Item No.	Diagram (page)	Qty
—	`046` Air Conditioning Compressor And Controls	2

Ferrari Mondial t Coupe & Cabriolet9 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	4
—	`013` Tank And Fuel Vent Systems -Coupé - Not For Cars With Catalyst-	6
—	`014` Fuel Tank - Coupé - For Cars With Catalysts Sa And De-Catalysts-	6
—	`015` Tank And Fuel Breather Device -Cabriolet - Not For Cars With Catalysts-	6
—	`016` Fuel Tank -Cabriolet - For Cars With Catalysts And De-Catalysts-	6
—	`029` Clutch And Controls	1
—	`034` Gearbox Housing And Interm. Casing -Valid For Cars With 3P-	2
—	`035` Gearbox Housing And Interm. Casing -Valid For Cars With 4P-	2
—	`126` Bumpers	4

Ferrari Monza SP15 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH	6
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	8
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
14	`0157` [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS	4
24	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	8

Ferrari Monza SP25 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH	6
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	8
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
14	`0157` [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS	4
24	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	8

Ferrari Portofino5 positions

Item No.	Diagram (page)	Qty
—	`047` Engine Mounting Bush	6
—	`075` Front Suspension - Arms	16
—	`079` Rear Suspension - Arms	16
—	`085` Steering Box	8
7	`156` Dashboard - Fasteners	4

Ferrari Portofino M6 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH	6
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	16
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
3	`0157` [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS	4
16	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	8
34	`0095` [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE	6

Ferrari Purosangue9 positions

Item No.	Diagram (page)	Qty
—	`0049` [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH	6
—	`0077` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	8
—	`0082` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	4
—	`0089` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
3	`0110` [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE	4
3	`0164` [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS	4
9	`0101` [VEHICLE TRIM] - E.2 - LATERAL OUTER BODYSHELL	14
22	`0105` [VEHICLE TRIM] - E.6 - LATERAL SUBSTRUCTURE	8
27	`0098` [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE	4

Ferrari Roma6 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH	6
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	20
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
2	`0157` [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS	4
13	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	8
41	`0095` [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE	6

Ferrari Roma Spider7 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH	6
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	16
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
2	`0157` [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS	4
13	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	8
25	`0110` [VEHICLE TRIM] - E.13.02 - ROOF - KINEMATICS	6
41	`0095` [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE	6

Ferrari SF90 Spider5 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.01 - ENGINE SUSPENSION BUSH	6
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	16
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
—	`0192` [ELECTRICAL SYSTEM] - F.17 - ELECTRIC AXLE	4
15	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	8

Ferrari SF90 Stradale5 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.01 - ENGINE SUSPENSION BUSH	6
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	16
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
—	`0192` [ELECTRICAL SYSTEM] - F.17 - ELECTRIC AXLE	4
15	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	8

Ferrari SF90 XX Spider5 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.01 - ENGINE SUSPENSION BUSH	6
—	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	12
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	12
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
—	`0192` [ELECTRICAL SYSTEM] - F.17 - ELECTRIC AXLE	4

Ferrari SF90 XX Stradale5 positions

Item No.	Diagram (page)	Qty
—	`0048` [MECHANICAL SYSTEM] - D.01 - ENGINE SUSPENSION BUSH	6
—	`0076` [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS	12
—	`0080` [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS	12
—	`0086` [MECHANICAL SYSTEM] - D.31 - STEERING BOX	8
—	`0192` [ELECTRICAL SYSTEM] - F.17 - ELECTRIC AXLE	4

Ferrari Testarossa TR 851 position

Item No.	Diagram (page)	Qty
—	`049` Air Conditioning System	2

Ferrari Testarossa TR 871 position

Item No.	Diagram (page)	Qty
—	`049` Air Conditioning System	2

Ferrari Testarossa TR 901 position

Item No.	Diagram (page)	Qty
—	`057` Air Conditioning System	2

Additional Information

Superseded by	14496624 — we recommend ordering the replacement.
Replaces	14496621, 14496601, 14496609
Also known as	126648, 14496624
Alternative parts	12646821
