Ferrari 12 Cilindri Spider — [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS (diagram 0080)

Exploded view of the [mechanical system] - d.27.02 - rear suspension - arms on the Ferrari 12 Cilindri Spider, with 76 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

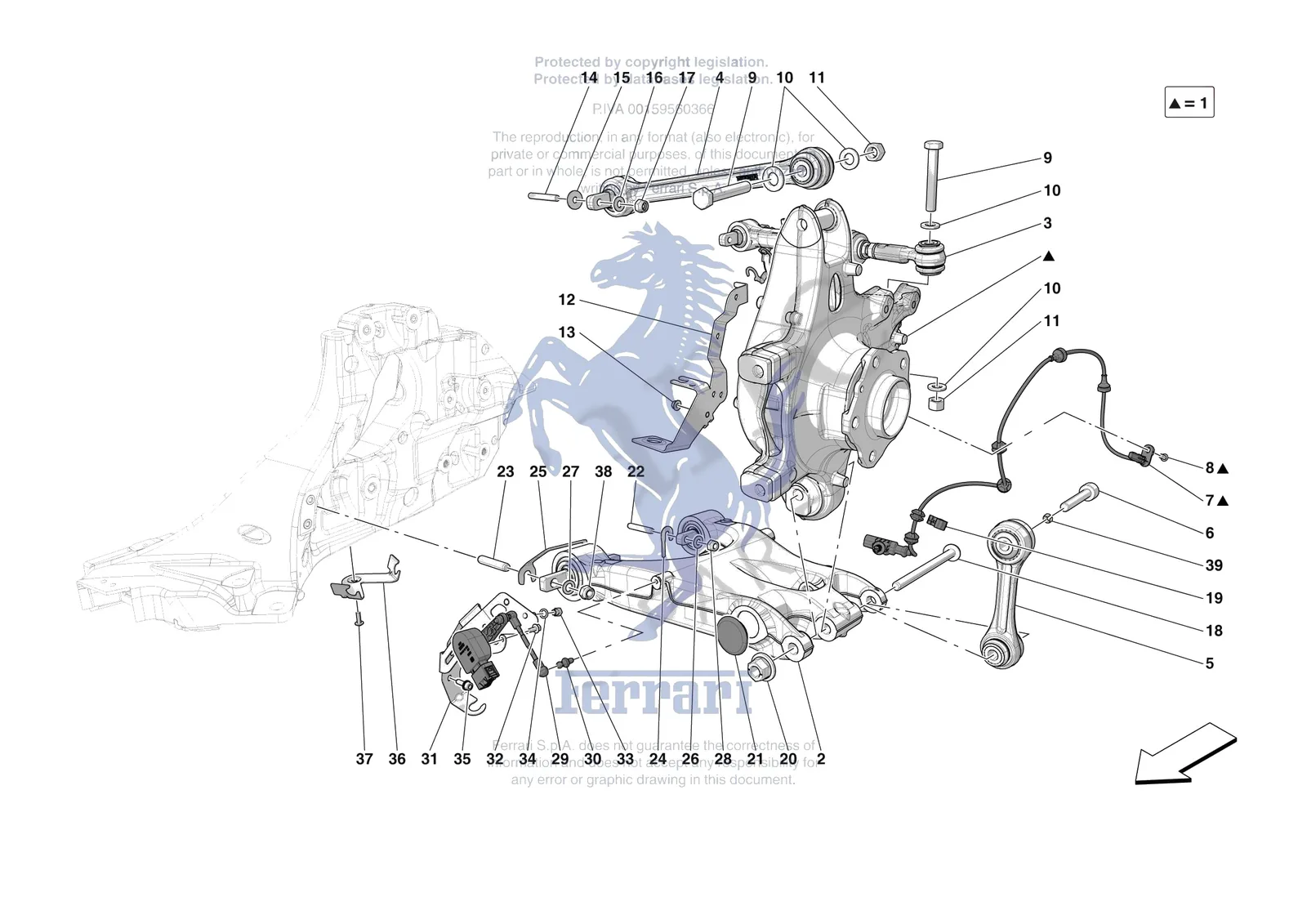

Ferrari 12 Cilindri Spider [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
238693Ferrari Camber Spacer 1.0mm - 238693$10.25Special order, ships in 7-14 days
238881Ferrari Camber Spacer 1.5mm - 238881$10.25Special order, ships in 7-14 days
238694Ferrari Camber Spacer 2.0mm - 238694SupersededOrder 263035 instead
238882Ferrari Camber Spacer 2.5mm - 238882$10.25Special order, ships in 7-14 days
238884Ferrari Camber Spacer 3.5mm - 238884$10.25Special order, ships in 7-14 days
238885Ferrari Camber Spacer 4.0mm - 238885$10.25Special order, ships in 7-14 days
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
55080434Ferrari LH Actuator - 55080434$15,423.29Special order, ships in 7-14 days
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
236783Ferrari Rear Suspension Link Arm - 236783SupersededOrder 259688 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
12646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
126648Ferrari Washer - 126648SupersededOrder 14496624 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
1825598Ferrari Portamozzo Post Dx Cpl - 825598$4,165.90Special order, ships in 7-14 days
1825597Ferrari Portamozzo Post Sx Cpl - 825597$4,165.90Special order, ships in 7-14 days
2894441Ferrari Compl. Lower LH Rear Arm - 894441$1,721.15Special order, ships in 7-14 days
2894442Ferrari Compl. Lower RH Rear Arm - 894442$1,721.15Special order, ships in 7-14 days
3950508Ferrari LH Actuator - 950508SupersededOrder 55080434 instead
3950509Ferrari RH Actuator - 950509$10,307.74Special order, ships in 7-14 days
4295792Ferrari Rear Upper Arm - 295792$888.98Available, ships in 3-6 days
5259688Ferrari Anti Rotation Linkage - 259688$295.03Special order, ships in 7-14 days
6238258Ferrari Screw M12 x 1.25 x 75 - 238258$63.37Special order, ships in 7-14 days
7336026Ferrari ABS Sensor - 336026$120.18Available, ships in 3-6 days
915541434Ferrari Screw 12x1.25x80 - 15541434$4.12Special order, ships in 7-14 days
1014496721Ferrari Washer - 14496721$0.19Special order, ships in 7-14 days
11203666Ferrari Nut - 203666$1.80Available, ships in 3-6 days
12338394Ferrari LH Rear Joint Bracket - 338394$41.76Special order, ships in 7-14 days
12338395Ferrari RH Rear Joint Bracket - 338395$41.76Special order, ships in 7-14 days
1314040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
14302406Ferrari Threaded Rod - 302406$4.77Special order, ships in 7-14 days
1513578321Ferrari Washer D.8.15-24x2 - 13578321$1.04Available, ships in 3-6 days
1614496524Ferrari Washer - 14496524$0.19Available, ships in 3-6 days
17104030Ferrari/Maserati Nut - 104030$0.88In stock
18238656Ferrari Special Screw TCEI M14 x 1.5 x 21 - 238656$45.87Available, ships in 3-6 days
19310942Ferrari Triple Clip - 310942$3.26Special order, ships in 7-14 days
20238063Ferrari Nut M14 x 1.x - 238063$7.40Available, ships in 3-6 days
2114507987Ferrari Rubber Plug - 14507987$3.85In stock
22264528Ferrari Threaded Rod 10x1.25 - 264528$7.63Available, ships in 3-6 days
23896438Ferrari Barra Filettata M12X1.25 L.6 - 896438$7.63Special order, ships in 7-14 days
24263032Ferrari Camber Spacer 0.5mm - 263032$24.02Available, ships in 3-6 days
24263033Ferrari Camber Spacer 1.0mm - 263033$7.19Special order, ships in 7-14 days
24263034Ferrari Camber Spacer 1.5mm - 263034$7.19Special order, ships in 7-14 days
24263035Ferrari Camber Spacer 2.0mm - 263035$7.19Available, ships in 3-6 days
24263036Ferrari Camber Spacer 2.5mm - 263036$10.25Special order, ships in 7-14 days
24238883Ferrari Camber Spacer 3.0mm - 238883$10.25Available, ships in 3-6 days
24263037Ferrari Camber Spacer 3.0mm - 263037SupersededOrder 238883 instead
24263038Ferrari Camber Spacer 3.5mm - 263038$10.25Special order, ships in 7-14 days
24263039Ferrari Camber Spacer 4.0mm - 263039$10.25Special order, ships in 7-14 days
25969297Ferrari Spacer 0.5mm - 969297$43.68Special order, ships in 7-14 days
25969298Ferrari Spacer 1.0mm - 969298$50.24Special order, ships in 7-14 days
25969299Ferrari Spacer 1.5mm - 969299$54.61Special order, ships in 7-14 days
25969296Ferrari Spacer 2.0mm - 969296$61.16Special order, ships in 7-14 days
25969300Ferrari Spacer 2.5mm - 969300$63.37Special order, ships in 7-14 days
25969301Ferrari Spacer 3.0mm - 969301$72.10Special order, ships in 7-14 days
25969302Ferrari Spacer 3.5mm - 969302$78.66Special order, ships in 7-14 days
25969303Ferrari Spacer 4.0mm - 969303$80.84Special order, ships in 7-14 days
2614496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
2713507434Ferrari Flat Washer 12 - 13507434$2.59Special order, ships in 7-14 days
28104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
29942671Ferrari Compl. Rear Sensor - 942671$349.68Special order, ships in 7-14 days
30343376Ferrari Ball Joint - 343376$34.40Special order, ships in 7-14 days
31951355Ferrari LH Rear Sensor Bracket - 951355$181.93Special order, ships in 7-14 days
31951356Ferrari RH Rear Sensor Bracket - 951356$147.51Special order, ships in 7-14 days
3216284934Ferrari Screw - 16284934$1.61Available, ships in 3-6 days
3216284927Ferrari Screw 5x10 - 16284927SupersededOrder 16284934 instead
33741924Ferrari Nut - 741924$17.90Special order, ships in 7-14 days
3412642724Ferrari Washer - 12642724$0.50Special order, ships in 7-14 days
35231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
36919936Ferrari Fastener Bracket - 919936$36.86Special order, ships in 7-14 days
37269959Ferrari Screw - 269959$1.61In stock
38102825Ferrari Locking Suspension Nut - 102825$1.10In stock
39222956Ferrari Compensator Ring 24x12 - 222956$20.76Available, ships in 3-6 days
