Ferrari 12 Cilindri Spider — [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE (diagram 0095)

Exploded view of the [vehicle trim] - e.01.01 - structures and elements front of vehicle on the Ferrari 12 Cilindri Spider, with 57 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

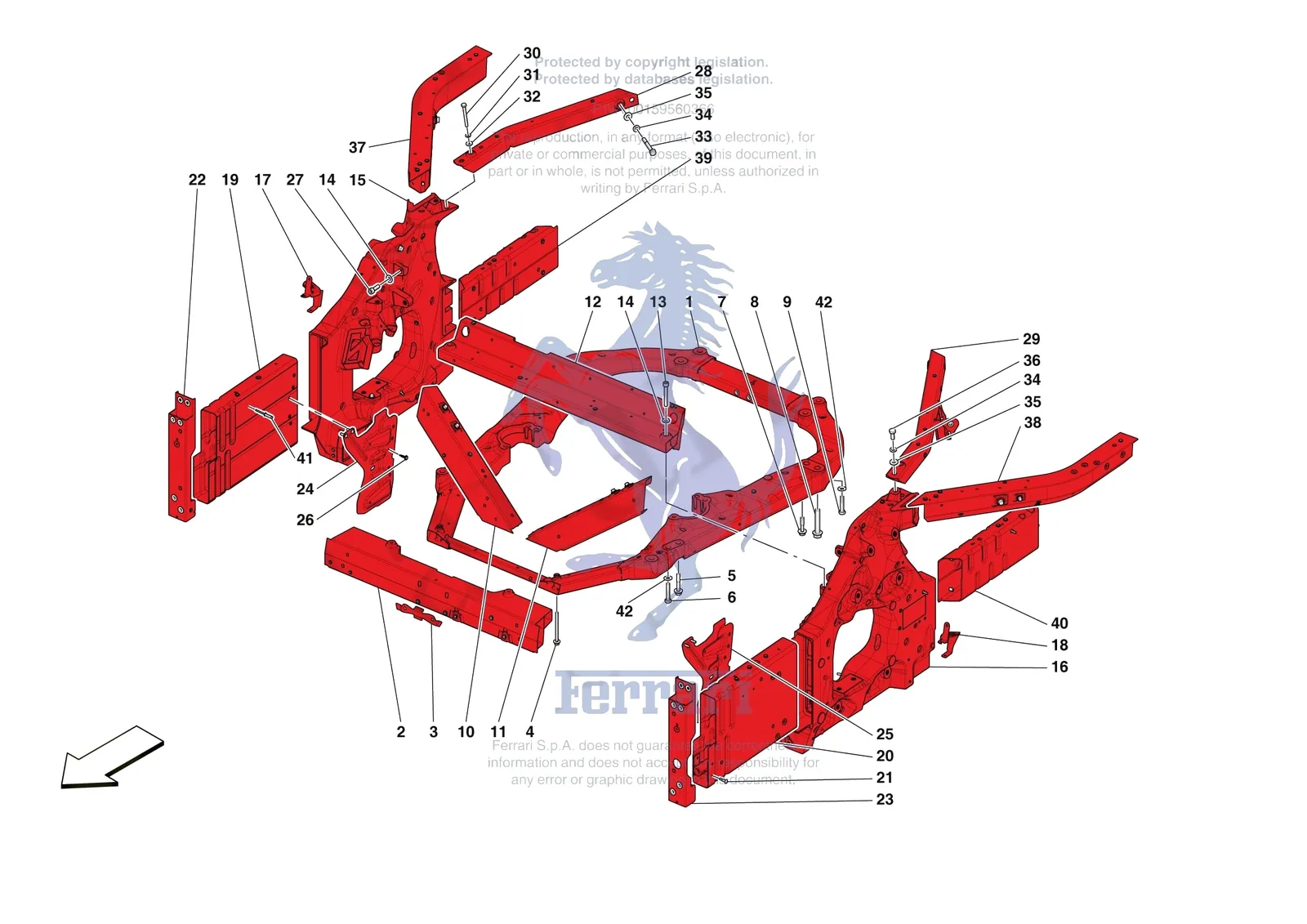

Ferrari 12 Cilindri Spider [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
101632Ferrari Half Shaft Bolt - 101632$14.50In stock
265036Ferrari Screw - 265036SupersededOrder 101632 instead
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
14496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
128944Ferrari Washer D10.2-20 - 128944$3.68Available, ships in 3-6 days
1985874159Ferrari Subframe - 985874159$19,758.00Contact us to order
2985903091Ferrari Lower Front Cross Member - 985903091$3,350.99Special order, ships in 7-14 days
3874083Ferrari F167_Staffa Supporto Termost - 874083$100.78Special order, ships in 7-14 days
4749849Ferrari Screw TE M8 x 100 with Washer - 749849$4.12Available, ships in 3-6 days
5749853Ferrari Screw TE M10 x 1.25 x 60 with Washer - 749853$5.44Available, ships in 3-6 days
615888724Ferrari Screw - 15888724$2.01Available, ships in 3-6 days
7299580Ferrari Screw TE M10 x 1.25 x 50 with Washer - 299580$4.77Available, ships in 3-6 days
8827401Ferrari Screw - 827401$13.95Special order, ships in 7-14 days
10985902953Ferrari RH K-BRACE - 985902953Price on requestContact us for price and availability
11985902902Ferrari LH K-Brace - 985902902$2,318.29Special order, ships in 7-14 days
12985874051Ferrari Compl. Strut Tower Connector - 985874051$2,988.03Special order, ships in 7-14 days
1314308234Ferrari Screw - 14308234SupersededOrder 101632 instead
1412642524Ferrari Washer - 12642524$0.40Available, ships in 3-6 days
15985874180Ferrari COMPL. RH FST - 985874180Price on requestContact us for price and availability
16985874092Ferrari Compl. LH Fst - 985874092$17,094.59Contact us to order
17873976Ferrari F167_Staffa Flex Freno Ant D - 873976$204.05Special order, ships in 7-14 days
18874059Ferrari F167_Staffa Flex Freno Ant S - 874059$204.05Special order, ships in 7-14 days
19985820303Ferrari RH Front Spar - 985820303$2,571.20Special order, ships in 7-14 days
20985820301Ferrari LH Front Spar - 985820301$2,894.35Special order, ships in 7-14 days
2114639791Ferrari Rivet D. 6.4X 14.1 - 14639791$2.59Special order, ships in 7-14 days
22985820297Ferrari Compl. RH Front Crash Box Up - 985820297$1,745.74Special order, ships in 7-14 days
23985820290Ferrari Compl. LH Front Crash Box Up - 985820290$1,598.19Special order, ships in 7-14 days
24985900923Ferrari Compl. RH Strut Reinforcemen - 985900923$762.20Special order, ships in 7-14 days
25985900896Ferrari Compl. LH Strut Reinforcemen - 985900896$762.20Special order, ships in 7-14 days
26330777Ferrari Ejoform Fds M5X25 - 330777$8.72Special order, ships in 7-14 days
2714307534Ferrari Screw M10 x 1.25 x 30 TCEI - 14307534$5.65Available, ships in 3-6 days
28985874017Ferrari RH UPPER INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE - 985874017Price on requestContact us for price and availability
28985956497Ferrari RH UPPER INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE - 985956497Price on requestContact us for price and availability
29985874078Ferrari LH UPPER INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE - 985874078Price on requestContact us for price and availability
29985956496Ferrari LH UPPER INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE - 985956496Price on requestContact us for price and availability
3016044634Ferrari Screw - 16044634$4.56Special order, ships in 7-14 days
3111194074Ferrari Washer 8.6-16x1.9 - 11194074$0.08Available, ships in 3-6 days
3212646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
3315971334Ferrari Screw - 15971334$2.82Available, ships in 3-6 days
3411190574Ferrari Washer - 11190574$0.13Available, ships in 3-6 days
3512646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
3615970734Ferrari Screw - 15970734$0.86Available, ships in 3-6 days
37985874015Ferrari COMPL. RH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE - 985874015Price on requestContact us for price and availability
37985889005Ferrari COMPL. RH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE - 985889005Price on requestContact us for price and availability
38985873812Ferrari COMPL. LH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE - 985873812Price on requestContact us for price and availability
38985888319Ferrari COMPL. LH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE - 985888319Price on requestContact us for price and availability
39985874022Ferrari RH MIDDLE INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE - 985874022Price on requestContact us for price and availability
40985874020Ferrari LH Middle Internal Engine Co - 985874020$2,271.45Special order, ships in 7-14 days
41284430Ferrari Rivet - 284430$3.91Special order, ships in 7-14 days
4213550424Ferrari Washer - 13550424$0.31Available, ships in 3-6 days
4213550401Ferrari Washer 10.2-20x2 - 13550401$0.31Available, ships in 3-6 days
