Ferrari 12 Cilindri Spider — [VEHICLE TRIM] - E.14 - FRONT SHIELDS (diagram 0113)

Exploded view of the [vehicle trim] - e.14 - front shields on the Ferrari 12 Cilindri Spider, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

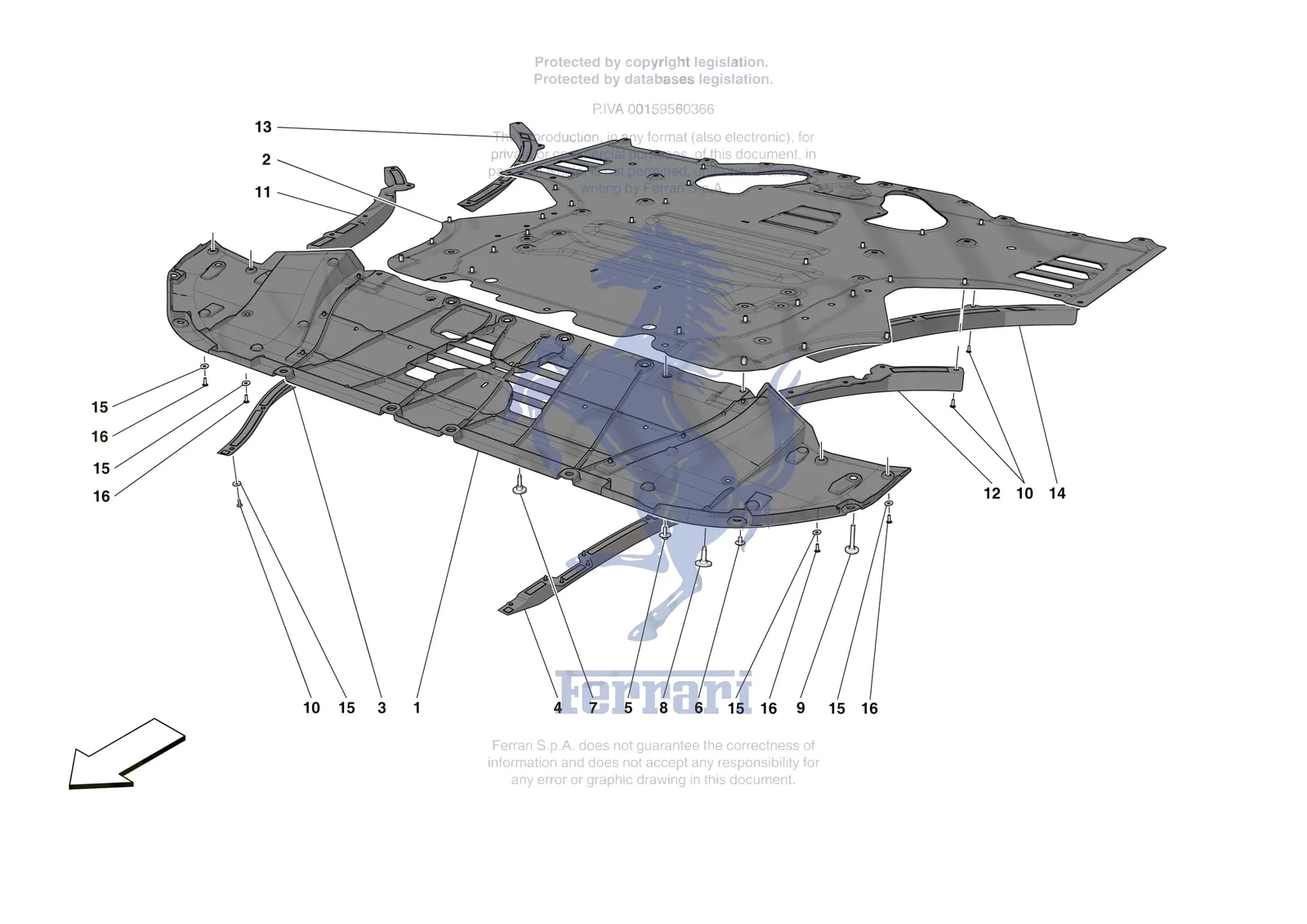

Ferrari 12 Cilindri Spider [VEHICLE TRIM] - E.14 - FRONT SHIELDS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1799544Ferrari Front Underbody Shield - 799544$1,155.62Special order, ships in 7-14 days
2874157Ferrari Compl. Engine Subframe Front - 874157$2,130.95Special order, ships in 7-14 days
3798709Ferrari Lateral Front Dam RH Front - 798709$113.08Special order, ships in 7-14 days
4798726Ferrari Lateral Front Dam LH Front - 798726$113.08Special order, ships in 7-14 days
581290900Ferrari Screw With Double Washer - 81290900$1.42In stock
682115900Ferrari Screw M6 x 14 With Washer - 82115900$1.23Available, ships in 3-6 days
784913100Ferrari Screw 5.6mm - 84913100$37.13Special order, ships in 7-14 days
883442900Ferrari Body Screw - 83442900$1.51In stock
985687400Ferrari 488 Rear Bumper Screw - 85687400$4.16In stock
1085833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
11799500Ferrari RH Lateral Front Dam - 799500$213.88Special order, ships in 7-14 days
12799501Ferrari LH Lateral Front Dam - 799501$213.88Special order, ships in 7-14 days
13799502Ferrari RH Central Front Dam - 799502$213.88Special order, ships in 7-14 days
14799515Ferrari LH Central Front Dam - 799515$213.88Special order, ships in 7-14 days
1512643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
16996106Ferrari Screw - 996106$1.30Special order, ships in 7-14 days
