Ferrari 12 Cilindri Spider — [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS (diagram 0157)

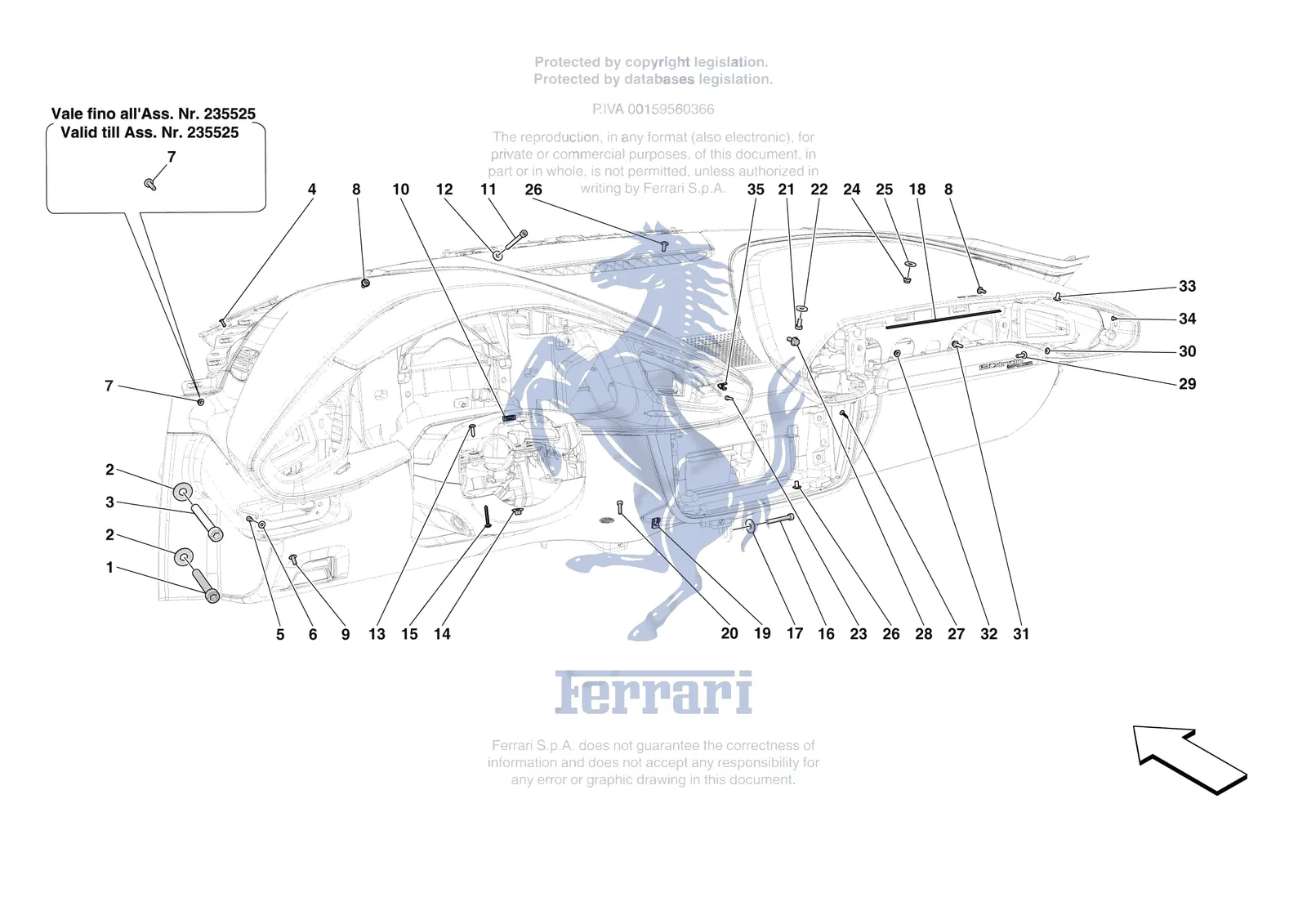

Exploded view of the [vehicle trim] - e.47.09 - dashboard - fasteners on the Ferrari 12 Cilindri Spider, with 47 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0157.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14304821 | Ferrari Allen Screw 6x55 - 14304821 | Superseded | Order 14304824 instead | |
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 88958200 | Ferrari Screw M3 x 6 - 88958200 | Superseded | Order 811421 instead | |
| 14496609 | Ferrari Steel Washer - 14496609 | Superseded | Order 12646824 instead | |
| 14496601 | Ferrari Washer - 14496601 | Superseded | Order 12646824 instead | |
| 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead | |
| 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days | |
| 1 | 84018500 | Ferrari Screw M10 x 75 - 84018500 | $10.02 | Special order, ships in 7-14 days |
| 2 | 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead |
| 3 | 14308574 | Ferrari Allen Screw 10x1.25x90 - 14308574 | $7.40 | Available, ships in 3-6 days |
| 4 | 67653400 | Ferrari Rivet - 67653400 | $0.38 | Special order, ships in 7-14 days |
| 5 | 14418074 | Ferrari Screw M3x8 - 14418074 | $0.40 | Available, ships in 3-6 days |
| 6 | 12639901 | Ferrari Washer - 12639901 | $0.17 | Available, ships in 3-6 days |
| 7 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 7 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 7 | 85834000 | Ferrari Screw M5 x 25 - 85834000 | $0.71 | Special order, ships in 7-14 days |
| 8 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 9 | 935243 | Ferrari Screw TBFTX T20 M4 x 10 Nerinox - 935243 | $0.96 | Special order, ships in 7-14 days |
| 10 | 835458 | Ferrari Raymond Clip - 835458 | $0.82 | Special order, ships in 7-14 days |
| 11 | 14304824 | Ferrari Allen Screw 6x55 - 14304824 | $0.50 | Available, ships in 3-6 days |
| 12 | 12647624 | Ferrari Washer D 6.45-16x2 - 12647624 | $0.19 | Available, ships in 3-6 days |
| 13 | 63343400 | Ferrari Screw 4x15 - 63343400 | $5.02 | Available, ships in 3-6 days |
| 13 | 15688801 | Ferrari Screw M3.5 x 13 - 15688801 | Superseded | Order 63343400 instead |
| 15 | 15689201 | Ferrari Screw M3.5 x 25 - 15689201 | $1.92 | Available, ships in 3-6 days |
| 16 | 14305924 | Ferrari Allen Screw 6x45 - 14305924 | $0.38 | Available, ships in 3-6 days |
| 16 | 231624 | Ferrari Allen Screw M6 x 45 - 231624 | Superseded | Order 14305924 instead |
| 17 | 10523107 | Ferrari Washer - 10523107 | $5.44 | Available, ships in 3-6 days |
| 19 | 67278400 | Ferrari BRACKET - 67278400 | $21.60 | Special order, ships in 7-14 days |
| 20 | 14303123 | Ferrari Screw - 14303123 | $0.12 | Available, ships in 3-6 days |
| 20 | 14303124 | Ferrari SCREW - 14303124 | Superseded | Order 14303123 instead |
| 21 | 10902028 | Ferrari Screw M6 x 12 - 10902028 | $0.96 | Available, ships in 3-6 days |
| 22 | 10523424 | Ferrari Washer D 6.15-18x2 - 10523424 | $0.92 | Available, ships in 3-6 days |
| 23 | 14418131 | Ferrari Screw M3 x 10 TCEI - 14418131 | $0.38 | Available, ships in 3-6 days |
| 24 | 102741 | Ferrari/Maserati Nyloc Nut M6 - 102741 | $0.45 | In stock |
| 25 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 26 | 85691900 | Ferrari Screw M5 x 8 TBFTX - 85691900 | $0.65 | Available, ships in 3-6 days |
| 27 | 65752800 | Ferrari Screw M4 x 10 TBEI - 65752800 | $4.12 | Available, ships in 3-6 days |
| 28 | 16286024 | Ferrari SCREW - 16286024 | $0.38 | Available, ships in 3-6 days |
| 29 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 30 | 14227474 | Ferrari Motif Clips - 14227474 | $0.27 | Available, ships in 3-6 days |
| 31 | 14440634 | Ferrari SCREW - 14440634 | $0.31 | Available, ships in 3-6 days |
| 31 | 16285127 | Ferrari Screw M5 x 16 - 16285127 | $1.05 | Special order, ships in 7-14 days |
| 33 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 34 | 811421 | Ferrari Screw M3 x 6 - 811421 | $0.82 | Special order, ships in 7-14 days |
| 35 | 85599600 | Ferrari Snap Fastener Clip - 85599600 | $0.44 | Special order, ships in 7-14 days |
