Ferrari 12 Cilindri — [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE (diagram 0106)

Exploded view of the [vehicle trim] - e.10 - rear lid substructure on the Ferrari 12 Cilindri, with 19 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

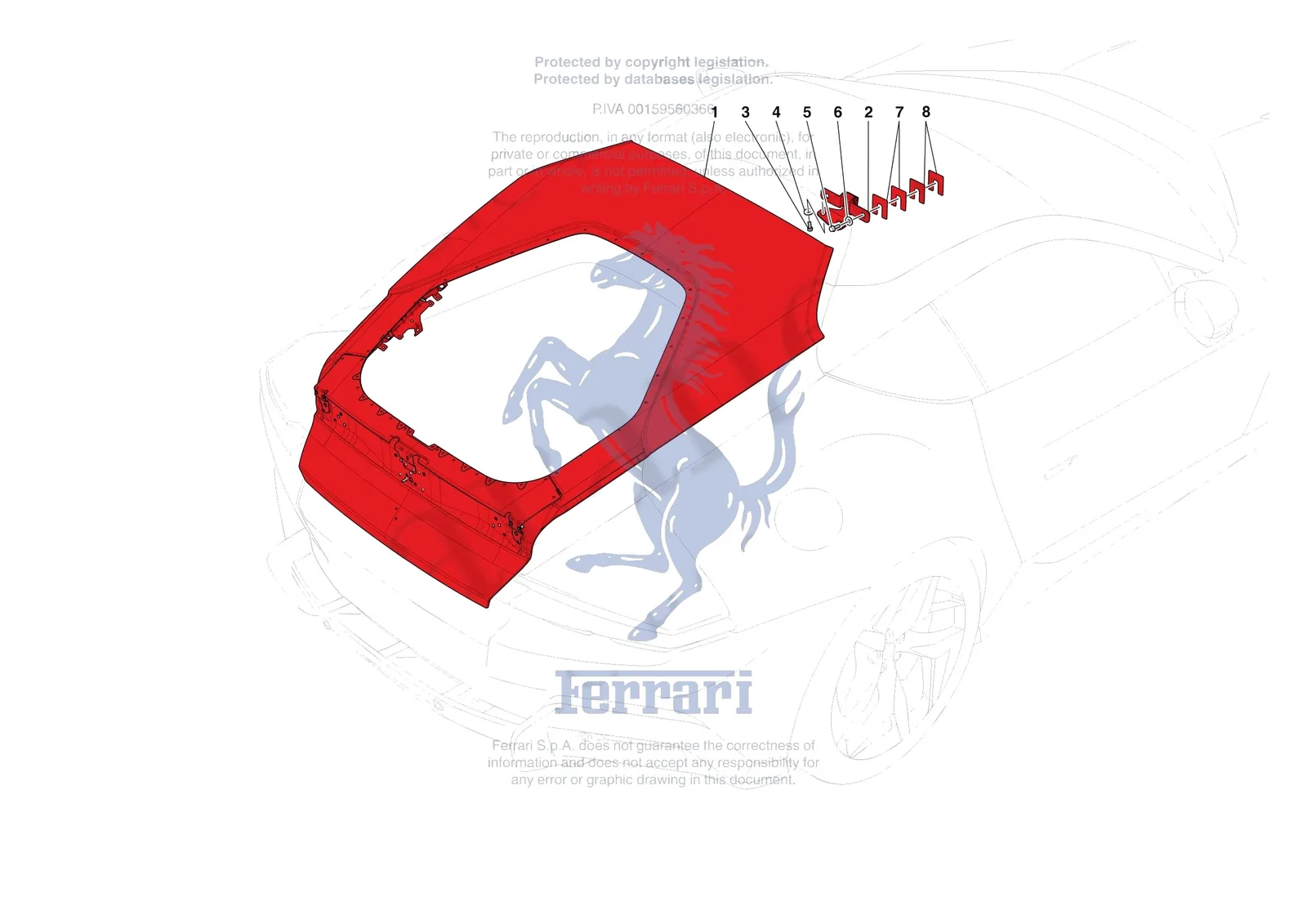

Ferrari 12 Cilindri [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
11617624Ferrari Screw - 11617624SupersededOrder 16287224 instead
80415900Ferrari Screw - 80415900$32.60Available, ships in 3-6 days
980674Ferrari Spacer 0.5mm - 980674$7.84Special order, ships in 7-14 days
84651000Ferrari Spacer 1.0mm - 84651000$6.96Special order, ships in 7-14 days
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
12647001Ferrari Washer - 12647001SupersededOrder 12647021 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
14496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
1985775010Ferrari Compl. Tailgate - 985775010$19,485.36Contact us to order
1985902727Ferrari Compl. Tailgate - 985902727$19,522.01Contact us to order
2820786Ferrari LH Hinge - 820786$565.49Special order, ships in 7-14 days
2820803Ferrari RH Hinge - 820803$565.49Special order, ships in 7-14 days
3893581Ferrari Screw M8 x 25 - 893581$1.48Special order, ships in 7-14 days
412647021Ferrari Washer - 12647021$0.57Special order, ships in 7-14 days
516287224Ferrari Screw M8x25 - 16287224$0.82Available, ships in 3-6 days
612646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
7242224Ferrari Spacer 1.0mm - 242224$5.19Special order, ships in 7-14 days
8242223Ferrari Spacer 0.5mm - 242223$4.98Special order, ships in 7-14 days

All 12 Cilindri diagrams
