Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Exhaust Pipes Assembly (diagram 012)

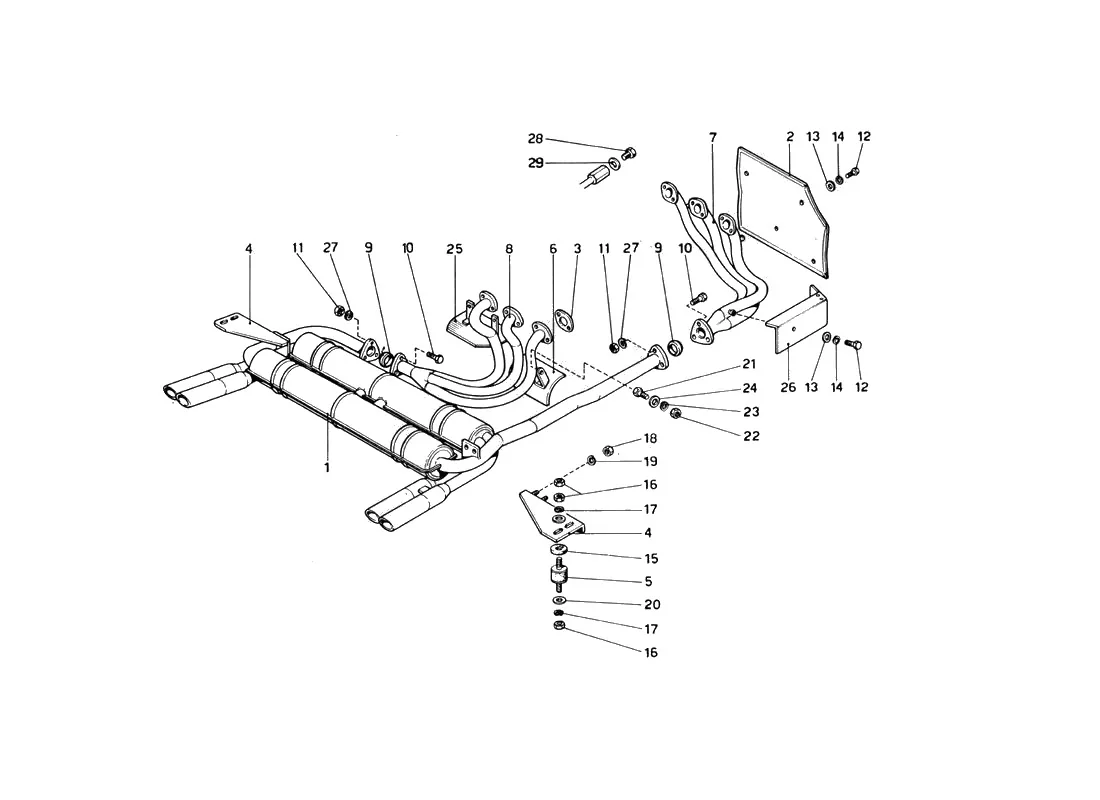

Exploded view of the exhaust pipes assembly on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 61 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Exhaust Pipes Assembly exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
120500Ferrari Main Silencer - 20500$8,875.90Special order, ships in 7-14 days
120500/TFerrari Main Silencer - TubiStyle - 20500/T$3,644.13Available, ships in 3-6 days
220507Ferrari Heat Shield - 20507$194.57Available, ships in 3-6 days
3106125Ferrari Copper Exhaust Gasket - 147707$16.12In stock
3105942Ferrari Gasket - 105942SupersededOrder 106125 instead
420408Ferrari Exhaust Mount Bracket (Pair) - 20408$116.02Available, ships in 3-6 days
5102947Ferrari Vibration Dampening Support - 102947$8.31In stock
5102007Ferrari Mounting - 102007SupersededOrder 102947 instead
620538Ferrari Heat Shield - 20538$116.02Available, ships in 3-6 days
613219Ferrari Heat Shield - 13219Price on requestContact us for price and availability
721015Ferrari Front Exhaust Manifold - 20544$757.90In stock
795200101Ferrari 246 Front Exhaust Manifold - 95200101$668.80In stock
720490Ferrari Front Manifold - 20490SupersededOrder 95200101 instead
720488Ferrari Front Manifold - 20488Price on requestContact us for price and availability
720545Ferrari Front Manifold - 20545$1,970.88Available, ships in 3-6 days
720539Ferrari Front Manifold RHD - 20539Price on requestContact us for price and availability
895200102Ferrari 246 Rear Exhaust Manifold - 95200102$877.80In stock
820491Ferrari Rear Manifold - 20491SupersededOrder 95200102 instead
820489Ferrari Rear Manifold - 20489SupersededOrder 20544 instead
820544Ferrari Rear Manifold - 20544$757.90Available, ships in 3-6 days
820540Ferrari Rear Manifold RHD - 20540SupersededOrder 20544 instead
9154979Ferrari Exhaust Pipe Donut Gasket - 154979$24.40In stock
9108483Ferrari Gasket O-Ring - 108483SupersededOrder 154979 instead
10103378Ferrari Bolt - 103378Price on requestContact us for price and availability
11100115Ferrari Brass Exhaust Nut - 100115SupersededOrder 114748 instead
11114748Ferrari Exhaust Lock Nut - 114748$7.85In stock
1210902124Ferrari Screw - 10902124$0.29In stock
1210902121Ferrari Bolt - 10902121SupersededOrder 10902124 instead
1295880306Ferrari Bolt 6x16 - 95880306SupersededOrder 10902124 instead
1312643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
14127494Ferrari Lock Washer - 127494$0.50In stock
1410516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
15146712Ferrari Gasket - 146712$1.28Available, ships in 3-6 days
15105924Ferrari Gasket - 105924SupersededOrder 146712 instead
16134041Ferrari Nut 6mm - 134041$1.80Available, ships in 3-6 days
1615896221Ferrari Nut - 15896221SupersededOrder 134041 instead
1895900701Ferrari Nut 8X1.25 Uni5588 - 95900701$0.84Available, ships in 3-6 days
18133989Ferrari Plain Nut M8 x 1.25 x 6.5 - 133989$0.84Available, ships in 3-6 days
19127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
1910516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
2110902221Ferrari Bolt M6 x 16 - 10902221$1.92Available, ships in 3-6 days
2110902324Ferrari Screw M6 x 18 - 10902324$0.27Available, ships in 3-6 days
2110902321Ferrari Bolt - 10902321SupersededOrder 10902324 instead
2513237Ferrari Heat Shield - Starter Motor - 13237$215.17Available, ships in 3-6 days
2620463Ferrari Heat Shield - 20463$159.66Available, ships in 3-6 days
2620521Ferrari Heat Shield - 20521Price on requestContact us for price and availability
2820429Ferrari Bolt - 20429SupersededOrder 103748 instead
29103749Ferrari Exhaust System Washer - 103749$0.55In stock
103748Ferrari Brass Bolt - 103748$22.56Available, ships in 3-6 days
124525Ferrari Brass Exhaust Nut - 124525SupersededOrder 114748 instead
105938Ferrari Brass Nut - 105938SupersededOrder 114748 instead
20377Ferrari Gasket - 20377SupersededOrder 106125 instead
95403Ferrari Gasket - 95403SupersededOrder 146712 instead
108272Ferrari Lock Nut - 108272SupersededOrder 114748 instead
20456Ferrari Mounting - 20456SupersededOrder 102947 instead
15896225Ferrari Nut - 15896225SupersededOrder 134041 instead
4155314Ferrari Nut - 4155314SupersededOrder 114748 instead
9162124Ferrari Nut - 9162124SupersededOrder 114748 instead
95304Ferrari Nut - 95304SupersededOrder 114748 instead
13214Ferrari Shield - 13214Price on requestContact us for price and availability
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
