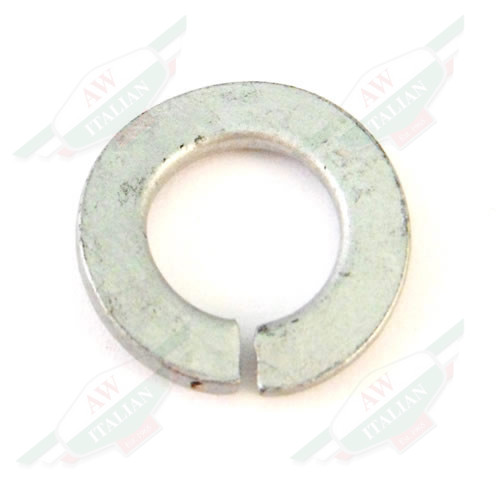

Ferrari Spring Washer 8mm – 127496

Name: Ferrari Spring Washer 8mm - 127496
Brand: Ferrari
SKU: 127496
Price: 0.12 USD
Availability: InStock

AW Approved

?Original or OEM — genuine Ferrari parts, or parts made by the Original Equipment Manufacturer that supplies Ferrari. AW Approved — quality aftermarket parts vetted and approved by AW Italian.

PART # 127496

$0.12

Available Ships in 3-6 Days

Description

Ferrari Spring Washer 8mm, part number 127496. Listed in our catalogue for 76 Ferrari models, including the 206 GT Dino, 208 GT4 Dino, 208 GTB/GTS Carburetor. Replaces part numbers 10516670,10516671,10516673,10516677.

Every product we sell is backed by our 1-year warranty, giving you added confidence with every purchase. We're committed to knowledgeable service, reliable fulfillment, and helping you get the right part the first time.

Not sure it’s the right part for your car? Contact our team before you order and we’ll help you confirm it.

Fits the following vehicles

76 vehicles · 1279 positions

Ferrari 206 GT Dino4 positions

Item No.	Diagram (page)	Qty
7	`009` Air Filter And Manifolds	2
11	`037` Engine Ignition	2
16	`012` Blow - By	4
29	`013` Exhaust Pipes Assembly	2

Ferrari 208 GT4 Dino19 positions

Item No.	Diagram (page)	Qty
4	`030` Hand-Brake Control	3
8	`019` Clutch Unit And Cover	4
13	`111` Bumpers And Mouldings	20
15	`028` Brake System	1
15	`035` Rear Suspension - Shock Absorber And Brake Disc	12
18	`043` Throttle Control (For RHD Versions)	1
20	`013` Exhaust System	6
23	`001` Engine - Gearbox And Supports	8
23	`005` Cylinder Head (Right)	8
25	`018` Clutch Operating Control	1
25	`024` Inside Gearbox Controls	1
26	`030` Hand-Brake Control	1
27	`006` Cylinder Head (Left)	8
31	`124` Windshield Wiper, Washer And Horn	1
36	`021` Gearbox - Differential Housing And Oil Sump	6
36	`044` Pedal Board - Clutch Control (For RHD Versions)	2
40	`039` Electric Generating System	1
48	`021` Gearbox - Differential Housing And Oil Sump	1
51	`015` Lubrication System	4

Ferrari 208 GTB/GTS Carburetor20 positions

Item No.	Diagram (page)	Qty
4	`029` Hand - Brake Control	3
5	`038` Electric Generating System	1
8	`018` Clutch Unit And Cover	4
15	`034` Rear Suspension - Shock Absorber And Brake Disc	12
17	`012` Exhaust System	12
18	`105` Front Compartment Lid	6
18	`117` Windshield Wiper, Washer And Horn	1
19	`032` Front Suspension - Shock Absorber And Brake Disc	2
23	`001` Engine - Gearbox And Supports	8
23	`005` Cylinder Head (Right)	8
25	`017` Clutch Operating Control	1
25	`023` Inside Gearbox Controls	1
27	`006` Cylinder Head (Left)	8
29	`012` Exhaust System	4
37	`014` Lubrication System	2
38	`038` Electric Generating System	1
43	`016` Water Pump And Pipings	4
48	`020` Gearbox - Differential Housing And Oil Sump	1
54	`011` Throttle Control	1
67	`026` Pedal Board - Brake And Clutch Controls	2

Ferrari 208 GTB/GTS Turbo20 positions

Item No.	Diagram (page)	Qty
5	`031` Brake System (For Car Without Antiskid System)	1
8	`019` Clutch And Controls	4
8	`048` Electric Generating System	1
8	`102` Front & Rear Bumpers	4
10	`113` Interior Trim, Accessories And Seats	8
12	`013` Throttle Housing And Linkage	2
15	`041` Rear Suspension - Shock Absorber And Brake Disc (Up To Car No. 76625)	12
18	`106` Front Compartment Lid	4
21	`035` Steering Box And Linkage	4
23	`001` Engine - Gearbox & Supports	8
23	`014` Exhaust System	2
23	`114` Seat	8
25	`025` Inside Gearbox Controls	1
27	`042` Rear Suspension - Shock Absorber And Brake Disc (Starting From Car No. 76626)	2
28	`020` Clutch Release Control (For Car With Antiskid System)	2
36	`048` Electric Generating System	1
39	`036` Steering Column	2
48	`022` Gearbox - Differential Housing And Oil Pump	1
51	`016` Lubrication System	4
67	`028` Pedal Boad - Brake And Clutch Controls (For Car Without Antiskid System)	2

Ferrari 208 Turbo16 positions

Item No.	Diagram (page)	Qty
4	`030` Hand-Brake Controll	3
8	`019` Clutch And Controls	4
11	`016` Lubrication System	2
12	`013` Throttle Control	2
15	`035` Rear Suspension - Shock Absorber And Brake Disc	12
18	`116` Windshields Wiper, Washer And Horn	1
19	`033` Front Suspension - Shock Absorber And Brake Disc	2
23	`001` Engine - Gearbox And Supports	8
23	`006` Cylinder Head (Left)	8
25	`024` Inside Geabox Controls	1
27	`005` Cylinder Head (Right)	8
28	`014` Exhaust System	2
32	`021` Gearbox - Differential Housing And Oil Sump	2
38	`039` Electric Generating System	1
42	`039` Electric Generating System	1
67	`027` Pedal Board - Brake And Clutch Controls	2

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132)14 positions

Item No.	Diagram (page)	Qty
7	`050` Brake Hydraulic System On Wheels (Variants For Usa Versions)	1
15	`047` Exhaust System (Variants For Usa Versions)	12
19	`012` Exhaust Pipes Assembly	4
19	`018` Clutch Unit And Cover	4
19	`028` Handbrake Control	1
21	`037` Current Generating System - Starting Motor	2
28	`004` Flywheel And Intermediate Gearbox Housing	2
29	`033` Rear Suspension - Shock Absorber	12
30	`023` Gearbox Inner Controls	1
31	`017` Clutch Disengagement	1
37	`014` Cooling System	2
45	`041` Throttle Control (Variants For RHD Versions)	1
46	`002` Oil Sump - Gearbox And Differential	7
48	`001` Crankcase And Cylinder Heads	12

Ferrari 275 GTB16 positions

Item No.	Diagram (page)	Qty
3	`018` Trasmission Shaft	1
5	`020` Rear Suspension	1
6	`013` Clutch	1
6	`013A` Clutch - LHD Upto 31-12-1965	1
8	`026` Tyres Wheels & Shaft	1
11	`014` Gearbox Casing - Differential	1
13	`009` Timing Control	1
14	`019` Differential & Driveshaft	1
19	`011` Engine Ignition	1
28	`008` Exhaust & Manifolds	1
37	`022` Pedal Box	1
43	`028` Steering Column	1
51	`004` Cylinder Head	1
53	`021` Front Suspension	1
63	`017` Oil Pump & Linkage	1
85	`022A` Pedal Box - LHD Upto 31-12-1965	1

Ferrari 275 GTB42 positions

Item No.	Diagram (page)	Qty
11	`003` Crankshaft - Connecting Rods	1
16	`011` Timing - Controls	12

Ferrari 275 GTS16 positions

Item No.	Diagram (page)	Qty
3	`018` Transmission Shaft	1
5	`020` Rear Suspension	1
6	`013` Clutch	1
6	`013A` Clutch - LHD Upto 31-12-1965	1
8	`026` Tyres Wheels & Shaft	1
11	`014` Gearbox Casing - Differential	1
13	`009` Timing Control	1
14	`019` Differential & Driveshaft	1
19	`011` Engine Ignition	1
28	`008` Exhaust & Manifolds	1
37	`022` Pedal Box	1
43	`028` Steering Column	1
51	`004` Cylinder Head	1
53	`021` Front Suspension	1
63	`017` Oil Pump & Linkage	1
85	`022A` Pedal Box - LHD Upto 31-12-1965	1

Ferrari 288 GTO13 positions

Item No.	Diagram (page)	Qty
4	`026` Inside Gearbox Controls	1
5	`031` Hand - Brake Control	2
6	`012` Exhaust System	4
7	`015` Lubrication - Filter And Oil Pumps	2
8	`009` Throttle Bodies And Accelerator Control	2
15	`029` Brake System	1
16	`014` Lubrication System	3
29	`019` Clutch And Controls	6
31	`036` Rear Suspension -Shock Absorber And Brake Disc	2
32	`025` Lay Shaft Gears	6
39	`033` Steering Column	2
40	`018` Clutch Release Control	5
49	`019` Clutch And Controls	4

Ferrari 308 GT4 Dino 197624 positions

Item No.	Diagram (page)	Qty
4	`030` Hand - Brake Control	3
8	`019` Clutch Unit And Cover	4
9	`052` Exhaust System (U.S. And Australian Versions 1976)	4
12	`046` Front Air Pump And Pipings (U.S. 1976 Version)	1
12	`047` Rear Air Pump And Pipings (U.S. And Australian Versions 1976)	1
13	`111` Bumpers And Mouldings	20
15	`028` Brake System (Up To No. 11482 GS-12... GD-11462 USA)	1
15	`035` Rear Suspension - Shock Absorber And Brake Discs	12
18	`043` Throttle Control (R.H.D Version)	1
19	`033` Front Suspension - Shock Absorber And Brake Discs	2
21	`013` Exhaust System	6
23	`001` Engine - Gearbox And Supports	8
23	`005` Cylinder Head (Right)	8
25	`018` Clutch Operating Control	1
25	`024` Inside Gearbox Controls	1
26	`030` Hand - Brake Control	1
27	`006` Cylinder Head (Left)	1
31	`124` Windshield Wiper, Washer And Horn	1
36	`021` Gearbox - Differential Housing And Oil Sump	6
36	`044` Pedal Board - Clutch Control (R.H.D Version)	2
38	`039` Electric Generating System	1
40	`039` Electric Generating System	1
48	`021` Gearbox - Differential Housing And Oil Sump	1
51	`015` Lubrication System	4

Ferrari 308 GT4 Dino 197923 positions

Item No.	Diagram (page)	Qty
4	`029` Hand - Brake Control	3
5	`039` Electric Generating System	1
5	`053` Exhaust System (Variants For Usa - Aus And J Version)	4
8	`018` Clutch Unit And Cover	4
9	`050` Intake Air Cleaner Valve And Lines (Variants For Usa - Aus And J Version)	1
9	`051` Intake Air Cleaner Valve And Lines (Variants For Usa - Aus And J Version)	1
9	`054` Exhaust System (Variants For Usa - Aus And J Version)	4
12	`046` Air Pump And Piping (Variants For Usa - Aus And J Version)	1
13	`052` Fuel System - Carburetors And Controls (Variants For Usa - Aus And J Version)	2
15	`034` Rear Suspension - Shock Absorber & Brake Disc	12
18	`043` Throttle Control (Variants For RHD Version)	1
19	`032` Front Suspension - Shock Absorber And Brake Disc	2
21	`012` Exhaust System	6
23	`001` Engine - Gearbox And Supports	8
23	`005` Cylinder Head (Right)	8
25	`017` Clutch Operating Control	1
25	`023` Inside Gearbox Controls	1
26	`048` Antievaporative Emission Control System (Variants For Usa - Aus And J Version)	2
27	`006` Cylinder Head (Left)	8
36	`044` Pedal Board - Clutch Controls (Variants For RHD Version)	2
38	`039` Electric Generating System	1
48	`020` Gear - Differential Housing And Oil Sump	1
51	`014` Lubrication System	4

Ferrari 308 GTB 1976 Fibreglass19 positions

Item No.	Diagram (page)	Qty
4	`031` Hand-Brake Control	3
5	`040` Electric Generating System	1
8	`020` Clutch Unit And Cover	4
8	`031` Hand-Brake Control	2
15	`036` Rear Suspension - Shock Absorber And Brake Disc	12
17	`013` Exhaust System	6
18	`044` Throttle Control (Variants For RHD Versions)	1
19	`034` Front Suspension - Shock Absorber And Brake Disc	2
23	`001` Engine - Gearbox And Supports	8
23	`005` Cylinder Head (Right)	8
24	`120` Windshield Wiper, Washer And Horn	1
25	`019` Clutch Operating Control	1
25	`025` Inside Gearbox Controls	1
27	`006` Cylinder Head (Left)	8
29	`013` Exhaust System	4
31	`170` Windshield Wiper, Washer And Horn (Valid For RHD - Aus Versions)	1
36	`045` Pedal Board - Clutch Control (Variants For RHD Versions)	2
48	`022` Gearbox - Differential Housing And Oil Sump	1
67	`028` Pedal Board -Brake And Clutch Controls	2

Ferrari 308 GTB/GTS Carburetor25 positions

Item No.	Diagram (page)	Qty
4	`033` Hand-Brake Control	3
5	`043` Electric Generating System	1
8	`021` Clutch Unit And Cover	4
12	`050` Air Pump And Piping (Variants For Aus Version)	1
15	`038` Rear Suspension - Shock Absorber And Brake Disc	12
17	`012` Exhaust System	12
18	`047` Throttle Control (Variants For RHD Versions)	1
18	`106` Front Compartment Lid	6
18	`156` Front Compartment Lid (Variants For RHD - Aus Versions)	6
19	`036` Front Suspension - Shock Absorber And Brake Disc	2
23	`001` Engine - Gearbox And Supports	8
23	`005` Cylinder Head (Right)	8
24	`120` Windshield Wiper, Washer And Horn	1
24	`170` Windshield Wiper, Washer And Horn (Variants For RHD - Aus Versions)	1
25	`020` Clutch Operating Control	1
25	`027` Inside Gearbox Controls	1
27	`006` Cylinder Head (Left)	8
29	`012` Exhaust System	4
36	`048` Pedal Board - Clutch Control (Variants For RHD Versions)	2
37	`017` Lubrication System (308 Gts And Aus)	2
38	`043` Electric Generating System	1
41	`015` Lubrication System (308 Gtb)	4
48	`023` Gearbox - Differential Housing And Oil Sump (308 Gtb)	1
48	`024` Gearbox - Differential Housing And Oil Sump (308 Gts And Aus)	1
67	`030` Pedal Board - Brake And Clutch Controls	2

Ferrari 308 GTB/GTS JAP19 positions

Item No.	Diagram (page)	Qty
4	`034` Handbrake Control	3
5	`017` Exhaust System	4
8	`023` Clutch Unit & Cover	4
9	`013` Intake Air Cleaner Valve & Lines	1
12	`009` Air Pump & Pipings	1
15	`039` Rear Suspension - Shock Absorber & Brake Disc	12
18	`106` Front Compartment Lid	6
19	`037` Front Suspension - Shock Absorber & Brake Disc	2
23	`001` Engine - Gearbox and Supports	8
23	`005` Cylinder Head (Right)	8
25	`022` Clutch Operating Control	1
25	`028` Inside Gearbox Controls	1
26	`011` Antievaporative Emission Control System	2
27	`006` Cylinder Head (Left)	8
38	`043` Electric Generating System	1
40	`043` Electric Generating System	1
48	`025` Gearbox - Differential Housing & Oil Sump	1
51	`019` Lubrication System	4
67	`031` Pedal Board - Brake & Clutch Controls	2

Ferrari 308 GTB/GTS USA22 positions

Item No.	Diagram (page)	Qty
4	`034` Hand - Brake Control	3
5	`017` Exhaust System	4
8	`023` Clutch Unit And Cover	4
9	`013` Intake Air Cleaner Valve And Lines	1
12	`009` Air Pump And Pipings	1
15	`039` Rear Suspension - Shock Absorber And Brake Disc	12
18	`106` Front Compartment Lid	6
19	`037` Front Suspension - Shock Absorber And Brake Disc	2
23	`001` Engine - Gearbox And Supports	8
23	`005` Cylinder Head (Right)	8
25	`022` Clutch Operating Control	1
25	`028` Inside Gearbox Controls	1
26	`011` Antievaporative Emission Control System	2
27	`006` Cylinder Head (Left)	8
38	`043` Electric Generating System	1
40	`043` Electric Generating System	1
41	`014` Carburettors And Air Cleaner	2
48	`025` Gearbox - Differential Housing And Oil Sump	1
51	`019` Lubrication System	4
54	`016` Throttle Control	1
56	`021` Water Pump And Pipings	2
67	`031` Pedal Board - Brake And Clutch Controls	2

Ferrari 308 GTBi/GTSi19 positions

Item No.	Diagram (page)	Qty
4	`029` Hand-Brake Control	3
7	`013` Exhaust System	2
8	`018` Clutch And Controls	4
11	`015` Lubrication System	2
15	`034` Rear Suspension - Shock Absorber And Brake Disc	12
18	`042` Throttle Control (Variants For RHD Versions)	1
18	`105` Front Compartment Lid	6
18	`117` Windshield Wiper, Washer And Horn	1
19	`032` Front Suspension - Shock Absorber And Brake Disc	2
23	`001` Engine - Gearbox And Supports	8
23	`006` Cylinder Head (Left)	8
25	`023` Inside Gearbox Controls	1
27	`005` Cylinder Head (Right)	8
36	`043` Pedal Board - Clutch Control (Variants For RHD Versions)	2
38	`038` Electric Generating System	1
42	`038` Electric Generating System	1
48	`020` Gearbox - Differential Housing And Oil Sump	1
51	`015` Lubrication System	4
67	`026` Pedal Board - Brake And Clutch Controls	2

Ferrari 308 Quattrovalvole21 positions

Item No.	Diagram (page)	Qty
4	`029` Hand - Brake Controls	3
8	`018` Clutch And Controls	4
8	`039` Electric Generating System (Engine With 2 Individual Belts)	1
9	`038` Electric Generating System (Engine With Single Belt)	1
11	`015` Lubrication System	2
12	`012` Throttle Housing And Linkage	2
15	`034` Rear Suspension - Shock Absorber And Brake Disc	12
18	`043` Throttle Control (Variants For RHD Version)	1
18	`105` Front Compartment	6
18	`116` Windshield Wiper, Washer And Horn	1
19	`032` Front Suspension -Shock Absorber And Brake Disc	2
22	`006` Cylinder Head (Left)	8
23	`001` Engine - Gearbox And Supports	8
24	`005` Cylinder Head (Right)	8
25	`023` Inside Gearbox Controls	1
36	`044` Pedal Board - Clutch Control (Variants For RHD Version)	2
42	`038` Electric Generating System (Engine With Single Belt)	1
44	`013` Exhaust System	1
48	`020` Gearbox - Differential Housing And Oil Sump	1
52	`031` Steering Column	2
67	`026` Pedal Board - Brake And Clutch Controls	2

Ferrari 308 Quattrovalvole USA15 positions

Item No.	Diagram (page)	Qty
4	`031` Hand - Brake Control	3
8	`020` Clutch and Control	4
8	`040` Electric Generating System	1
12	`014` Throttle Housing and Linkage	2
15	`036` Rear Suspension - Shock Absorber and Brake Disc	12
18	`105` Front Compartment Lid	6
18	`117` Windshield Wiper Washer and Horn	1
19	`034` Front Suspension - Shock Absorber and Brake Disc	2
22	`006` Cylinder Head (Left)	8
23	`001` Engine - Gearbox and Supports	8
24	`005` Cylinder Head (Right)	8
25	`025` Inside Gearbox Controls	1
48	`022` Gearbox - Differential Housing and Oil Sump	1
51	`017` Lubrication System	4
67	`028` Pedal Board - Brake and Clutch Controls	2

Ferrari 328 GTB/GTS (1985)17 positions

Item No.	Diagram (page)	Qty
5	`032` Brake System	1
8	`023` Clutch And Controls	4
8	`043` Electric Generating System	1
12	`016` Throttle Housing And Linkage	2
15	`039` Rear Suspension - Shock Absorber And Brake Disc	12
18	`047` Throttle Control (Variants For RHD Version)	1
18	`108` Front Compartment Lid	4
23	`001` Engine - Gearbox And Supports	8
25	`028` Inside Gearbox Controls	1
30	`101` Body Shell - Outer Elements (Not For U.S. And Sa Version)	6
36	`048` Pedal Board Clutch Control (Variants For RHD Version)	2
39	`036` Steering Column	2
44	`017` Exhaust System (Not For U.S. And Sa Version)	1
48	`025` Gearbox - Differential Housing And Oil Sump	1
51	`020` Lubrication System	4
51	`043` Electric Generating System	1
67	`031` Pedal Board - Brake And Clutch Controls	2

Ferrari 328 GTB/GTS (1988)23 positions

Item No.	Diagram (page)	Qty
—	`021` Lubrication System	4
—	`027` Gearbox - Differential Housing And Oil Pump	1
5	`036` Brake System (For Car Without Antiskid System)	1
8	`024` Clutch And Controls	4
8	`053` Electric Generating System	1
10	`103` Rear Bumpers	2
10	`119` Interior Trim, Accessories And Seats	8
12	`017` Throttle Housing And Linkage	2
15	`046` Rear Suspension - Shock Absorber And Brake Disc (Up To Car No. 76625)	12
16	`102` Front Bumpers	4
18	`057` Throttle Control (Variants For RHD Version)	1
18	`112` Front Compartment Lid	4
21	`040` Steering Box And Linkage	4
23	`001` Engine - Gearbox And Supports	8
23	`120` Sports Seat	8
25	`030` Inside Gearbox Controls	1
27	`047` Rear Suspension - Shock Absorber And Brake Disc (Starting From Car No. 76626)	12
28	`025` Clutch Release Control (For Car With Antiskid System)	2
36	`058` Pedal Board - Clutch Controll (For Car Without Antiskid System - Variants For RHD Version)	2
38	`059` Pedal Board - Clutch Controll (For Car With Antiskid System - Variants For RHD Version)	2
39	`041` Steering Column	2
51	`053` Electric Generating System	1
67	`033` Pedal Board - Brake And Clutch Controls (For Car Without Antiskid System)	2

Ferrari 330 GT 2+2 Mk.129 positions

Item No.	Diagram (page)	Qty
5	`025` Rear Axle	12
9	`017` Clutch Housing And Gear Box	4
11	`009` Exhaust Manifolds, Silencers And Extensions	20
11	`030` Pedal Board	3
13	`025` Rear Axle	24
16	`035` Tyres - Wheels - Hubs - Axle	16
17	`013` Distributors And Controls	6
17	`020` Countershaft	1
18	`009` Exhaust Manifolds, Silencers And Extensions	12
18	`016` Clutch	6
19	`022` Overdrive And Gearbox Clamping	2
20	`033` Front Brakes And Hubs	16
21	`022` Overdrive And Gearbox Clamping	4
22	`009` Exhaust Manifolds, Silencers And Extensions	6
24	`022` Overdrive And Gearbox Clamping	4
25	`026` Rear Suspension	4
25	`034` Rear Brakes And Handbrake	1
26	`010` Timing	10
28	`030` Pedal Board	2
33	`030` Pedal Board	1
34	`016` Clutch	1
34	`025` Rear Axle	16
38	`030` Pedal Board	2
38	`031` Brake Control	7
39	`037` Steering Wheel And Steering Shaft	2
42	`028` Front Wheel Suspension Upper Arms	4
45	`034` Rear Brakes And Handbrake	2
47	`005` Cylinder Heads	20
47	`030` Pedal Board	4

Ferrari 330 GTC21 positions

Item No.	Diagram (page)	Qty
6	`022` Rear Suspension - Levers	2
8	`015` Clutch And Controls	6
9	`026` Pedal Board - Clutch Control	1
10	`020` Transmission Shaft	3
13	`020` Transmission Shaft	8
14	`010` Timing - Controls	10
14	`023` Rear Suspension - Wheel Carrier	12
17	`012` Oil Pump And Filters	1
17	`029` Front & Rear Brakes Discs & Master Cylinder	32
19	`013` Distributors And Controls	6
19	`038` Air Conditioning	2
29	`009` Exhaust Pipes Assembly	12
30	`027` Pedal Board - Brake Control	2
33	`009` Exhaust Pipes Assembly	8
34	`014` Generator And Battery	1
40	`024` Front Suspension - Wishbones	4
48	`015` Clutch And Controls	2
49	`016` Gearbox - Differential	12
50	`036` Radiator And Water Pump	2
60	`004` Cylinder Heads	20
60	`019` Gearshift Controls And Speedometer Drive	4

Ferrari 348 GTB/GTS/GTC/Spider16 positions

Item No.	Diagram (page)	Qty
4	`119` DOORS - OPENING CONTROL AND HINGES	12
5	`015` EXHAUST SYSTEM -Not for USA, CDN, CH, AUS-	2
5	`016` EXHAUST SYSTEM -Valid for USA AND CDN-	2
5	`019` LUBRICATION - PUMPS AND OIL SUMPS	4
13	`119` DOORS - OPENING CONTROL AND HINGES	12
17	`140` WINDSHIELD WIPER AND CONTROLS	2
21	`031` INSIDE GEARBOX CONTROLS	3
21	`042` FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC	4
23	`044` REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC	4
24	`034` BRAKE HYDRAULIC -Not for GD-	2
26	`041` STEERING COLUMN	2
28	`017` EXHAUST SYSTEM -Valid for CH AND AUS-	4
28	`024` CLUTCH AND CONTROLS	4
31	`031` INSIDE GEARBOX CONTROLS	1
52	`028` GEARBOX COVERS	7
61	`020` LUBRICATION SYSTEM	3

Ferrari 348 tb/ts22 positions

Item No.	Diagram (page)	Qty
3	`028` Outside Gearbox Controls	4
4	`116` Doors - Opening Control And Hinges	12
5	`014B` Exhaust System - Valid For Catalytic Vehicles - For Usa Spyder	2
5	`016` Lubrication - Pumps And Oil Sumps	4
11	`022` Clutch Release Control - Not For RHD	4
13	`116` Doors - Opening Control And Hinges	12
17	`130` Windshield Wiper And Movement	2
21	`027` Inside Gearbox Controls	3
21	`037A` Front Suspension - Shock Absorber And Brake Disc - Valid From Car Ass. Nr. 8799	4
23	`039A` Rear Suspension - Shock Absorber And Brake Disc - Valid From Car Ass. Nr. 8799	4
24	`030` Brake Hydraulic System - Not For RHD	2
26	`036` Steering Column	2
27	`133` Electrical Boards	2
28	`014` Exhaust System - Not For Catalytic Vehicles	4
28	`014A` Exhaust System - Valid For Catalytic Vehicles - Not For Usa Spyder	4
28	`021` Clutch - Controls	4
31	`027` Inside Gearbox Controls	1
31	`037` Front Suspension - Shock Absorber And Brake Disc - Valid Till Car Ass. Nr. 8798	4
38	`039` Rear Suspension - Shock Absorber And Brake Disc - Valid till Car Ass. Nr. 8798	12
39	`039` Rear Suspension - Shock Absorber And Brake Disc - Valid till Car Ass. Nr. 8798	4
52	`024` Gearbox Covers	7
61	`017` Lubrication System	3

Ferrari 360 Challenge11 positions

Item No.	Diagram (page)	Qty
4	`033` Brake System	2
14	`038` Front Suspension - Shock Absorber And Brake Disc	8
14	`040` Rear Suspension - Shock Absorber And Brake Disc	8
19	`104` Frame - Rear Elements Structures And Plates	12
21	`022` Clutch And Controls	2
25	`023` Pedals	1
26	`104` Frame - Rear Elements Structures And Plates	12
28	`045` Current Generator - Starting Motor	3
31	`024` F1 Clutch Hydraulic Control	5
32	`033` Brake System	2
33	`024` F1 Clutch Hydraulic Control	2

Ferrari 360 Challenge Stradale18 positions

Item No.	Diagram (page)	Qty
4	`039` Brake System -Not For Gd-	2
4	`040` Brake System -Valid For Gd-	2
6	`122` Tunnel - Framework And Accessories	1
7	`042` Hand-Brake Control	3
9	`042` Hand-Brake Control	3
11	`027` Pedals -Not For Gd-	1
12	`028` Pedals -Valid For Gd-	2
20	`104` Frame - Rear Elements Structures And Plates	8
27	`104` Frame - Rear Elements Structures And Plates	4
28	`052` Current Generator - Starting Motor	3
29	`019` Exhaust System	4
31	`029` F1 Clutch Hydraulic Control	2
31	`040` Brake System -Valid For Gd-	2
31	`046` Front Suspension - Shock Absorber And Brake Disc	4
32	`039` Brake System -Not For Gd-	2
33	`029` F1 Clutch Hydraulic Control	2
39	`019` Exhaust System	8
39	`048` Rear Suspension - Shock Absorber And Brake Disc	4

Ferrari 360 Modena21 positions

Item No.	Diagram (page)	Qty
3	`126` Tunnel - Framework And Accessories	1
4	`042` Brake System -Not For Gd-	2
4	`043` Brake System -Valid For Gd-	2
7	`045` Hand-Brake Control	3
9	`045` Hand-Brake Control	3
14	`049` Front Suspension - Shock Absorber And Brake Disc	8
14	`051` Rear Suspension - Shock Absorber And Brake Disc	8
20	`104` Frame - Rear Elements Structures And Plates	8
22	`043` Brake System -Valid For Gd-	2
25	`029` Pedals -Not For Gd-	1
27	`104` Frame - Rear Elements Structures And Plates	4
28	`055` Current Generator - Starting Motor	3
29	`019` Exhaust System	4
29	`020` Racing Exhaust System -Optional-	4
31	`031` F1 Clutch Hydraulic Control -Valid For F1-	2
31	`049` Front Suspension - Shock Absorber And Brake Disc	4
32	`042` Brake System -Not For Gd-	2
33	`031` F1 Clutch Hydraulic Control -Valid For F1-	2
36	`030` Pedals -Valid For Gd-	2
39	`020` Racing Exhaust System -Optional-	8
39	`051` Rear Suspension - Shock Absorber And Brake Disc	4

Ferrari 360 Spider21 positions

Item No.	Diagram (page)	Qty
3	`133` Tunnel - Framework And Accessories	1
4	`042` Brake System -Not For Gd-	2
4	`043` Brake System -Valid For Gd-	2
7	`045` Hand-Brake Control	3
9	`045` Hand-Brake Control	3
14	`049` Front Suspension - Shock Absorber And Brake Disc	8
14	`051` Rear Suspension - Shock Absorber And Brake Disc	8
20	`104` Frame - Rear Elements Structures And Plates	8
22	`043` Brake System -Valid For Gd-	2
25	`029` Pedals -Not For Gd-	1
27	`104` Frame - Rear Elements Structures And Plates	4
28	`055` Current Generator - Starting Motor	3
29	`019` Exhaust System	4
29	`020` Racing Exhaust System -Optional-	4
31	`031` F1 Clutch Hydraulic Control -Valid For F1-	2
31	`049` Front Suspension - Shock Absorber And Brake Disc	4
32	`042` Brake System -Not For Gd-	2
33	`031` F1 Clutch Hydraulic Control -Valid For F1-	2
36	`030` Pedals -Valid For Gd-	2
39	`020` Racing Exhaust System -Optional-	8
39	`051` Rear Suspension - Shock Absorber And Brake Disc	4

Ferrari 365 GT 2+2 MK1 up to 1281022 positions

Item No.	Diagram (page)	Qty
3	`032` Pedal Board - Clutch Control	3
5A	`035` Front Brake Disc & Master-Cylinder	24
6	`038` Rear Brake Disc & Wheel	24
8	`018` Clutch And Controls	6
9	`025` Transmission Shaft	3
11	`025` Transmission Shaft	8
11	`027` Rear Axle And Axle	24
11	`029` Rear Suspension - Damper And Self-Levelling Unit	2
14	`019` Gear Box	3
14	`031` Front Wheel Suspension - Bottom Arms	4
15	`014` Oil Pump & Filters	1
15	`030` Front Wheel Suspension - Upper Arms	4
17	`027` Rear Axle And Axle	12
19	`002` Oil Sump	4
19	`016` Distributors & Controls	10
19	`029` Rear Suspension - Damper And Self-Levelling Unit	12
20	`013` Hydraulic Steering Pump & Controls	5
22	`038` Rear Brake Disc & Wheel	16
26	`037` Hand-Brake Control	3
32	`033` Pedal Board - Brake Control	2
34	`041` Radiator & Water Pump	2
39	`005` LH Cylinder Head	20

Ferrari 365 GT 2+2 MK2 from 1281120 positions

Item No.	Diagram (page)	Qty
3	`032` Pedal Board - Clutch Control	3
10A	`035` Front Brake Disc And Master-Cylinder	16
11	`027` Rear Axle & Axle	24
13	`017` Generator Accumulator Coils & Starter	1
14	`019` Gear Box	2
15	`014` Oil Pump And Filters	1
15	`030` Front Wheel Suspension - Upper Arms	4
15	`033` Pedal Board - Brake Control	1
16	`025` Transmission Shaft	8
17	`027` Rear Axle & Axle	12
19	`002` Oil Sump	1
19	`029` Rear Suspension - Damper And Self-Levelling Unit	12
20	`013` Hydraulic Steering Pump And Controls	5
27	`018` Clutch & Controls	6
30	`016` Distributors & Controls	6
32	`013` Hydraulic Steering Pump And Controls	3
32	`037` Hand-Brake Control	4
37	`011` Timing (Controls)	5
39	`005` Cylinder Head (Left)	20
40	`032` Pedal Board - Clutch Control	1

Ferrari 365 GT4 2+215 positions

Item No.	Diagram (page)	Qty
4	`026` Transmission Shaft	8
5	`039` Rear Suspension And Brake Disc	12
11	`031` Brake Hydraulic System On Wheels	4
14	`038` Front Suspension - Wishbones	4
18	`020` Pedal Board - Clutch Control	1
20	`019` Clutch And Controls	6
21	`048` Pedal Board - Clutch Control (RHD Version)	1
22	`037` Front Suspension - Shock Absorber	16
25	`047` Throttle Control (RHD Version)	4
28	`033` Handbrake Control	3
30	`014` Exhaust Manifold And Piping	12
32	`034` Power Steering	1
33	`025` Gear Shift Outer And Inner Controls	6
35	`005` Cylinder Head (Left)	20
40	`033` Handbrake Control	2

Ferrari 365 GT4 BB21 positions

Item No.	Diagram (page)	Qty
3	`017` Clutch Release Control	2
3	`028` Hand-Brake Control	3
5	`033` Rear Suspension - Brake Disc	12
7	`011` Exhaust System	8
12	`014` Cooling System (Up To Car No. 17845)	1
12	`014A` Cooling System (From Car No. 17847)	1
13	`023` Gearbox Controls (Up To Car No. 17535)	7
13	`23A` Gearbox Controls (From Car No. 17543 To 18821)	7
13	`23B` Gearbox Controls (From Car No. 18825)	7
14	`106` Front Compartment Lid	6
14	`107` Rear Bonnet	6
21	`003` Cylinder Head (Right)	10
21	`004` Cylinder Head (Left)	10
24	`031` Front Suspension - Shock Absorbers	16
34	`016` Clutch And Controls	1
39	`037` Current Generation (Up To Car No. 18263)	1
39	`041` Clutch Release Control (For RHD)	2
39	`37A` Current Generation (From Car No. 18265)	1
49	`010` Throttle Control	4
56	`014A` Cooling System (From Car No. 17847)	2
56	`016` Clutch And Controls	4

Ferrari 365 GTB4 (Daytona)28 positions

Item No.	Diagram (page)	Qty
4	`026` Pedal Board & Clutch Control	7
5	`020` Gearbox Controls & Oil Pump	4
5	`020A` Gearbox Controls & Oil Pump (1974 Revision - Cars With Air Pollution System)	4
9	`007` Engine Oil Pump	2
10	`016` Transmission Shaft	3
11	`009` Cooling System - Water Pump & Radiator	2
11	`009A` Cooling System - Water Pump & Radiator (1974 Revision - Cars With Air Pollution System)	2
13	`011` Intake Manifolds - Air Intake	18
13	`011A` Intake Manifolds - Air Intake (1974 Revision - Cars With Air Pollution System)	18
13	`016` Transmission Shaft	8
15	`008` Engine Oil Filters & Brake Booster Vacuum Pump	3
18	`025` Shock Absorber, Hub & Rear Brake Disc	12
19	`037` Air Conditioning	3
22	`005` Timing	3
25	`010` Distributors & Controls	6
27	`023` Shock Absorber, Hub & Front Brake Disc	16
32	`023` Shock Absorber, Hub & Front Brake Disc	2
34	`020` Gearbox Controls & Oil Pump	4
34	`020A` Gearbox Controls & Oil Pump (1974 Revision - Cars With Air Pollution System)	4
35	`005` Timing	12
36	`030` Hand Brake Control	3
37	`015` Clutch & Controls	6
39	`032` Steering Box & Steering Linkage	1
40	`024` Rear Suspension	2
40	`036A` Exhaust System (1974 Revision - Cars With Air Pollution System)	12
44	`004` Cylinder Heads - Camshaft Valves	20
51	`017` Transmission Case - Differential	16
71	`007` Engine Oil Pump	4

Ferrari 365 GTC419 positions

Item No.	Diagram (page)	Qty
5	`038` Rear Suspension & Brake Discs	12
7	`025` Torque Tube	2
7	`025A` Torque Tube - Revision Oct 1972	2
11	`030` Hydraulic Brakes on Wheels	4
15	`035` Steering Column	4
18	`019` Clutch Pedal LHD	1
20	`018` Clutch	6
21	`047` RHD Clutch Pedal	1
22	`017` Water Circuit	2
22	`036` Front Suspension & Shock	16
25	`046` RHD Accelerator & Cable	4
25	`050` USA Diverter Valves - Air Pollution System Oct 1972	1
25	`053` USA Exhaust - Air Pollution System Oct 1972	24
28	`032` Handbrakes	3
30	`013` Exhaust Manifold & Piping	12
33	`024` Gear Selector & Forks	6
35	`005` Cylinder Head Left	20
35	`005A` Cylinder Head Left - Revision Oct 1972	20
51	`037` Front Suspension Arms	4

Ferrari 400 GT / 400 Auto21 positions

Item No.	Diagram (page)	Qty
—	`023` Outside Gearbox Controlls (400 Automatic)	2
4	`030` Propeller Shaft	8
5	`044` Rear Suspension - Brake Disc	12
10	`105` Cooling Electric Fans, Heating And Windscreen Washer	1
11	`036` Brakes System	4
14	`043` Front Suspension - Wishbones	4
15	`041` Steering Controls	2
16	`012` Throttle Control	2
20	`024` Clutch System And Controls (400 Gt)	6
21	`025` Clutch Release Control (400 Gt)	1
21	`054` Clutch Release Control (400 Gt - Variants For RHD Version)	1
25	`021` Automatic Transmission (400 Automatic)	1
25	`039` Hydraulic Steering System	1
25	`053` Throttle Control (Variants For RHD Version)	4
28	`038` Hand-Brake Control	3
28	`042` Front Suspension - Shock Absorber	2
30	`016` Exhaust System	12
33	`029` Inside Abd Outside Gearbox Controls (400 Gt)	6
35	`005` Cylinder Head (Left)	20
37	`019` Cooling System	4
37	`049` Current Generator And Starting Motor	1

Ferrari 400i21 positions

Item No.	Diagram (page)	Qty
4	`030` Propeller Shaft	8
5	`049` Rear Suspension - Brake Disc	12
7	`018` Cooling System	4
11	`038` Brakes System	2
14	`046` Front Suspension - Wishbones	4
16	`012` Throttles Controls (For Lhd)	5
20	`013` Throttles Controls (For RHD)	1
20	`023` Clutch System And Control (400 Gt)	6
21	`024` Clutch Release Control (400 Gt - For Lhd)	1
21	`025` Clutch Release Control (400 Gt - For RHD)	1
22	`022` Outside Gearbox Controls (400 Automatic)	2
25	`009` Fuel Tanks, Pumps, Lines	2
25	`041` Hydraulic Steering System	1
26	`020` Automatic Transmission (400 Automatic)	2
28	`040` Hand-Brake Control	3
28	`045` Front Suspension - Shock Absorber And Brake Disc	2
30	`015` Exhaust System	12
33	`029` Inside And Outside Gearbox Controls (400 Gt)	6
35	`005` Cylinder Head (Left)	20
42	`053` Current Generators And Starting Motor	1
54	`011` Fuel Injection System - Air Intake, Lines	4

Ferrari 41221 positions

Item No.	Diagram (page)	Qty
4	`031` Propeller Shaft	8
7	`051` Rear Suspension - Brake Disc	12
11	`024A` Clutch System And Control - 412M - From Car 70005	6
14	`019` Cooling System	3
14	`040` Abs	1
15	`046` Steering Column	2
16	`013` Throttle Controls (For Lhd)	5
18	`039` Brake System	1
20	`014` Throttle Controls (For RHD)	1
20	`024` Clutch System And Control - 412M - To Car 70005	6
21	`025` Clutch Release Control - 412M Lhd	1
22	`023` Outside Gearbox Controls - 412A	2
23	`014` Throttle Controls (For RHD)	1
25	`014` Throttle Controls (For RHD)	4
25	`043` Hydraulic Steering System	1
26	`021` Automatic Transmission - 412A	2
28	`042` Hand - Brake Control	3
33	`030` Inside And Outside Gearbox Controls - 412M	6
35	`005` Cylinder Head (Left)	20
52	`048` Front Suspension - Levers	4
54	`012` Fuel Injection System - Air Intake, Lines	4

Ferrari 430 Scuderia16 positions

Item No.	Diagram (page)	Qty
3	`135` Tunnel - Substructure And Accessories	1
7	`041` Parking Brake Control	2
9	`041` Parking Brake Control	2
13	`029` Hydraulic F1 Gearbox And Clutch Control	2
15	`029` Hydraulic F1 Gearbox And Clutch Control	1
17	`027` Pedal Board -Not For Gd-	1
18	`145` Ecus And Sensors In Front Compartment And Engine Compartment	4
20	`105` Chassis - Structure, Rear Elements And Panels	8
23	`039` Brake System -Applicable For Gd-	2
26	`105` Chassis - Structure, Rear Elements And Panels	4
29	`020` Racing Exhaust System	4
31	`045` Front Suspension - Shock Absorber And Brake Disc	4
34	`038` Brake System -Not Applicable For Gd-	2
39	`020` Racing Exhaust System	8
39	`047` Rear Suspension - Shock Absorber And Brake Disc	4
47	`029` Hydraulic F1 Gearbox And Clutch Control	2

Ferrari 430 Scuderia Spider 16M16 positions

Item No.	Diagram (page)	Qty
3	`135` Tunnel - Substructure And Accessories	1
7	`041` Parking Brake Control	2
9	`041` Parking Brake Control	2
13	`029` Hydraulic F1 Gearbox And Clutch Control	2
15	`029` Hydraulic F1 Gearbox And Clutch Control	1
17	`027` Pedal Board -Not For Gd-	1
18	`145` Ecus And Sensors In Front Compartment And Engine Compartment	4
20	`105` Chassis - Structure, Rear Elements And Panels	8
23	`039` Brake System -Applicable For Gd-	2
26	`105` Chassis - Structure, Rear Elements And Panels	4
29	`020` Racing Exhaust System	4
31	`045` Front Suspension - Shock Absorber And Brake Disc	4
34	`038` Brake System -Not Applicable For Gd-	2
39	`020` Racing Exhaust System	8
39	`047` Rear Suspension - Shock Absorber And Brake Disc	4
47	`029` Hydraulic F1 Gearbox And Clutch Control	2

Ferrari 456 GT/GTA18 positions

Item No.	Diagram (page)	Qty
3	`014` Injection Device	2
4	`032` Main Shaft Gears And Gearbox Oil Pump -Not For 456 Gta-	1
6	`036` Outside Gearbox Controls -Valid For 456 Gta-	4
15	`046` Control Unit And Hydraulic Equipment For Abs System	3
21	`103` Rear Structures And Components	4
22	`015` Ignition Device	4
24	`026` Clutch - Controls -Not For 456 Gta-	4
29	`027` Clutch Housing -Valid For 456 Gta-	4
32	`034` Inside Gearbox Controls -Not For 456 Gta-	7
33	`059` Rear Suspension - Shock Absorber And Brake Disc	4
36	`057` Front Suspension - Shock Absorber And Brake Disc	4
39	`021` Lubrication System - Tank	3
50	`042` Pedals And Accelerator Control -Not For Gd-	2
52	`043` Pedals And Accelerator Control -Valid For Gd-	2
54	`025` Water Pump	2
54	`133` Windshield Wiper, Washer And Horns	2
57	`004` R.H. Cylinder Head	1
60	`005` L.H. Cylinder Head	1

Ferrari 456 MGT/MGTA 20 positions

Item No.	Diagram (page)	Qty
3	`017` Injection Device	2
4	`035` Main Shaft Gears And Gearbox Oil Pump -Not For 456M Gta-	1
6	`039` Outside Gearbox Controls -Valid For 456M Gta-	4
6	`117` Doors - Opening Control And Hinges	10
19	`018` Ignition Device	4
21	`103` Rear Structures And Components	4
23	`005` L.H. Cylinder Head	1
24	`029` Clutch - Controls -Not For 456M Gta-	4
28	`030` Clutch Housing -Valid For 456M Gta-	4
32	`037` Inside Gearbox Controls -Not For 456M Gta-	7
33	`062` Rear Suspension - Shock Absorber And Brake Disc	4
35	`038` Outside Gearbox Controls -Not For 456M Gta-	2
36	`060` Front Suspension - Shock Absorber And Brake Disc	4
39	`024` Lubrication System - Tank	3
40	`132` Windshield Wiper, Washer And Horns	2
50	`045` Pedals And Accelerator Control -Not For Gd-	2
50	`046` Pedals And Accelerator Control -Valid For Gd-	2
54	`028` Water Pump	2
57	`004` R.H. Cylinder Head	1
63	`046` Pedals And Accelerator Control -Valid For Gd-	1

Ferrari 458 Italia1 position

Item No.	Diagram (page)	Qty
23	`121` Racing Seat	10

Ferrari 458 Speciale1 position

Item No.	Diagram (page)	Qty
7	`119` Racing Seat And Rollbar	10

Ferrari 488 Pista1 position

Item No.	Diagram (page)	Qty
11	`0108` [VEHICLE TRIM] - E.12 - ROLLBAR	8

Ferrari 512 BB (Carburetor)25 positions

Item No.	Diagram (page)	Qty
3	`028` Hand-Brake Control	3
5	`033` Rear Suspension Hub And Brake Disc	12
8	`011` Exhaust System	16
10	`017` Clutch Release Control	2
10	`041` Clutch Release Control (For RHD Version)	2
12	`014` Cooling System	1
12	`014A` Cooling System (1978 Revision)	1
13	`023` Gear Box Controls	7
14	`106` Front Compartment Lid	6
14	`107` Rear Bonnet	1
21	`003` Cylinder Head (Right)	10
21	`004` Cylinder Head (Left)	10
21	`004A` Cylinder Head (Left) (1978 Revision)	10

Showing the first 800 of 1279 positions — open the linked diagrams to browse the rest.

Additional Information

Replaces	10516670, 10516671, 10516673, 10516677
Also known as	106852
Alternative parts	12601374, 95930512, 60147, 241-33-010-90, 241-12-019-90, 241-20-019-90, 241-20-021-90, 241-20-024-90, 241-23-005-90, 241-23-013-90, 241-23-034-90, 241-24-025-90, 241-26-042-90, 241-28-011-90, 241-28-028-90, 241-28-038-90, 241-28-047-90, 241-32-045-90, 241-33-016-90
