Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Gearbox Inner Controls (diagram 023)

Exploded view of the gearbox inner controls on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 66 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

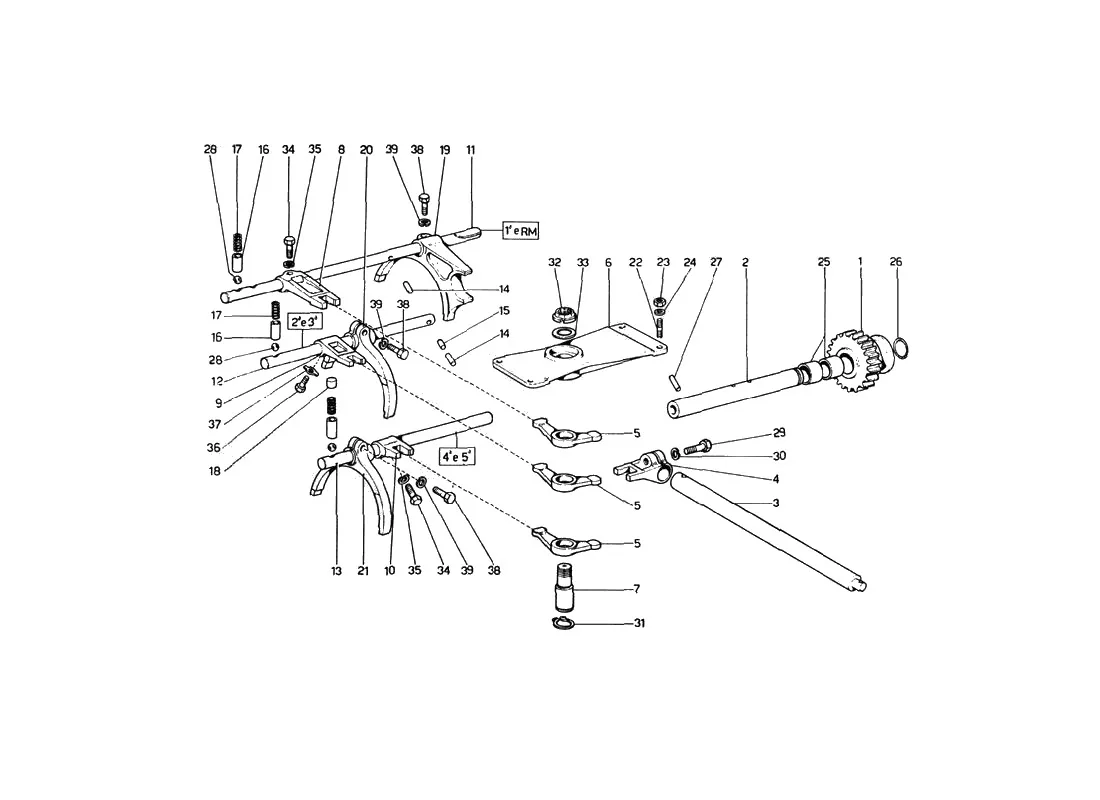

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Gearbox Inner Controls exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1523910Ferrari Reverse Gear Idler - 523910$338.69Available, ships in 3-6 days
2523911Ferrari Reverse Gear Idler Pin - 523911SupersededOrder 524465 instead
2524465Ferrari Reverse Gear Idler Pin - 524465$420.50Available, ships in 3-6 days
2524591Ferrari Reverse Gear Idler Pin - 524591$248.96Available, ships in 3-6 days
3105733Ferrari Shaft - 105733$402.90Special order, ships in 7-14 days
3523949Ferrari Shaft - 523949$301.63Available, ships in 3-6 days
4106213Ferrari Lever - 106213Price on requestContact us for price and availability
4523950Ferrari Fork - 523950Price on requestContact us for price and availability
4524962Ferrari Fork - 524962Price on requestContact us for price and availability
5104265Ferrari Lever - 104265$414.92Available, ships in 3-6 days
6104203Ferrari Support - 104203Price on requestContact us for price and availability
7104266Ferrari Shaft - 104266$131.89Available, ships in 3-6 days
8106214Ferrari Control Fork 1st & RM - 106214$303.02Available, ships in 3-6 days
8523955Ferrari Control Fork 1st & RM - 523955SupersededOrder 106214 instead
8524963Ferrari Control Fork 1st & RM - 524963SupersededOrder 106214 instead
9106215Ferrari Control Fork 2nd & 3rd - 106215$255.55Available, ships in 3-6 days
9523956Ferrari Control Fork 2nd & 3rd - 523956SupersededOrder 106215 instead
9524964Ferrari Control Fork 2nd & 3rd - 524964SupersededOrder 106215 instead
10106216Ferrari Control Fork 4th & 5th - 106216$259.19Available, ships in 3-6 days
10523957Ferrari Control Fork 4th & 5th - 523957SupersededOrder 106216 instead
10524965Ferrari Control Fork 4th & 5th - 524965SupersededOrder 106216 instead
11523958Ferrari Selector Shaft 1st & RM - 523958$323.95Available, ships in 3-6 days
12523959Ferrari Selector Shaft 2nd & 3rd - 523959$300.21Available, ships in 3-6 days
13523960Ferrari Selector Shaft 4th & 5th - 523960$300.21Available, ships in 3-6 days
14106374Ferrari Selector Pin - 106374$50.37Available, ships in 3-6 days
14104276Ferrari Selector Pin - 104276$11.44Available, ships in 3-6 days
15106375Ferrari Selector Pin - 106375Price on requestContact us for price and availability
15103010Ferrari Selector Pin - 103010Price on requestContact us for price and availability
16104277Ferrari Bush - 104277$125.00Available, ships in 3-6 days
17100750Ferrari Gear Selector Fork Spring - 100750$2.48In stock
18104278Ferrari Spacer - 104278Price on requestContact us for price and availability
19523964Ferrari Selector Fork 1st & RM Gears 13mm - 523964Price on requestContact us for price and availability
19524902Ferrari Selector Fork 1st & RM Gears 12mm - 524902$738.32Available, ships in 3-6 days
20523965Ferrari Selector Fork 2nd & 3rd Gears 13mm - 523965$443.02Available, ships in 3-6 days
20524903Ferrari Selector Fork 2nd & 3rd Gears 12mm - 524903Price on requestContact us for price and availability
21523966Ferrari Selector Fork 4th & 5th Gears 13mm - 523966Price on requestContact us for price and availability
21524904Ferrari Selector Fork 4th & 5th Gears 12mm - 524904Price on requestContact us for price and availability
2211500120Ferrari Stud - 11500120SupersededOrder 11500124 instead
2315896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
2411197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
2411197771Ferrari Washer - 11197771SupersededOrder 11197774 instead
2595870317Ferrari Bush - 95870317$12.36Available, ships in 3-6 days
2695860063Ferrari O-Ring viton - 95860063$2.70Available, ships in 3-6 days
2710336110Ferrari Pin - 10336110$62.85Special order, ships in 7-14 days
28101612Ferrari Ball - 101612$1.96Available, ships in 3-6 days
2916043624Ferrari Screw - 16043624$0.85In stock
2916043621Ferrari Screw - 16043621SupersededOrder 16043624 instead
30127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
3010516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
3111066876Ferrari Circlip 20E - 11066876$0.13Available, ships in 3-6 days
32103225Ferrari Lock Ring - 103225$54.23Available, ships in 3-6 days
32103225/AFerrari Lock Ring (Nyloc) - 103225/A$54.23Available, ships in 3-6 days
3394830Ferrari Washer - 94830Price on requestContact us for price and availability
3416043534Ferrari Screw M8 x 22 - 16043534$0.65Available, ships in 3-6 days
3416043521Ferrari Bolt - 16043521SupersededOrder 16043534 instead
36104279Ferrari Bolt - 104279$53.97Available, ships in 3-6 days
37103587Ferrari Locktab - 103587$14.45Available, ships in 3-6 days
106526Ferrari Bolt - 106526SupersededOrder 16043624 instead
16043611Ferrari Bolt - 16043611SupersededOrder 16043624 instead
109767Ferrari Shaft - 109767Price on requestContact us for price and availability
11066875Ferrari Snap Ring - 11066875SupersededOrder 11066876 instead
11500124Ferrari Stud - 11500124$6.61Available, ships in 3-6 days
13540820Ferrari Stud - 13540820SupersededOrder 11500124 instead
108916Ferrari Support - 108916Price on requestContact us for price and availability
114864Ferrari Support - 114864Price on requestContact us for price and availability
11500121Ferrari Threaded Stud - 11500121SupersededOrder 11500124 instead

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
