Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Handbrake Control (diagram 028)

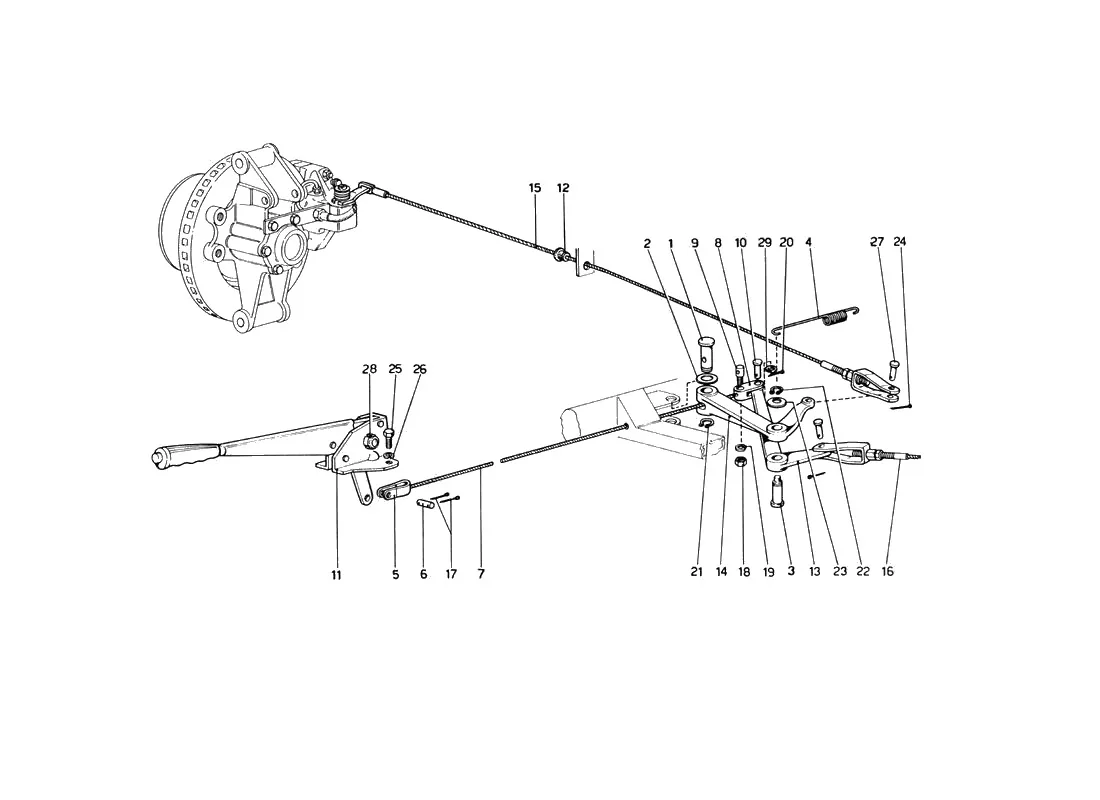

Exploded view of the handbrake control on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 38 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/028.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 680472 | Ferrari Pin - 680472 | Price on request | Contact us for price and availability |
| 2 | 680874 | Ferrari Washer - 680874 | Price on request | Contact us for price and availability |
| 3 | 680473 | Ferrari Pin - 680473 | $123.78 | Available, ships in 3-6 days |
| 4 | 680474 | Ferrari Spring - 680474 | $18.46 | Available, ships in 3-6 days |
| 5 | 105780 | Ferrari Fork - 105780 | $5.00 | Available, ships in 3-6 days |
| 6 | 105781 | Ferrari Pin - 105781 | Price on request | Contact us for price and availability |
| 7 | 680803 | Ferrari 246 Dino GT Main Handbrake Cable - 680803 | $46.20 | In stock |
| 8 | 680475 | Ferrari Fork - 680475 | Price on request | Contact us for price and availability |
| 9 | 105789 | Ferrari Pin - 105789 | $43.18 | Available, ships in 3-6 days |
| 10 | 101195 | Ferrari Clevis Pin - 101195 | $45.96 | Available, ships in 3-6 days |
| 10 | 680898 | Ferrari Pin - 680898 | $45.96 | Available, ships in 3-6 days |
| 11 | 680867 | Ferrari Handbrake Lever - 680867 | Price on request | Contact us for price and availability |
| 12 | 105794 | Ferrari Handbrake Cable Collar - 105794 | $13.15 | Available, ships in 3-6 days |
| 13 | 680899 | Ferrari Rocker Arm - 680899 | $264.54 | Special order, ships in 7-14 days |
| 14 | 680900 | Ferrari Rocker Arm - 680900 | Price on request | Contact us for price and availability |
| 15 | 680902 | Ferrari 246 Handbrake Cable - 680902 | $44.00 | In stock |
| 16 | 680901 | Ferrari 246 Handbrake Cable -680901 | $46.41 | In stock |
| 17 | 10734208 | Ferrari Split Pin D. 2 x 12 - 10734208 | $0.06 | Available, ships in 3-6 days |
| 17 | 10734201 | Ferrari Split Pin - 10734201 | Superseded | Order 10734208 instead |
| 18 | 16102314 | Ferrari Nut M8 x 5 - 16102314 | $0.13 | Available, ships in 3-6 days |
| 18 | 16100821 | Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821 | Superseded | Order 16102314 instead |
| 19 | 127496 | Ferrari Spring Washer 8mm - 127496 | $0.12 | Available, ships in 3-6 days |
| 19 | 10516670 | Ferrari Spring Washer 8mm - 10516670 | Superseded | Order 127496 instead |
| 21 | 11066476 | Ferrari Circlip - 11066476 | $1.17 | Available, ships in 3-6 days |
| 22 | 11066276 | Ferrari Circlip - 11066276 | $1.17 | Available, ships in 3-6 days |
| 25 | 16043121 | Ferrari Bolt 8X15 Uni 188 - 16043121 | Superseded | Order 16043124 instead |
| 27 | 103218 | Ferrari Clevis Pin - 103218 | $37.56 | Available, ships in 3-6 days |
| 27 | 10004910 | Ferrari Clevis Pin - 10004910 | $38.30 | Available, ships in 3-6 days |
| 28 | 105778 | Ferrari Locknut - 105778 | $19.46 | Available, ships in 3-6 days |
| 29 | 95930512 | Ferrari Washer - 95930512 | $0.06 | Available, ships in 3-6 days |
| 29 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 109225 | Ferrari Handbrake Lever - 109225 | Price on request | Contact us for price and availability | |
| 16100825 | Ferrari Nut - 16100825 | Superseded | Order 16102314 instead | |
| 16102321 | Ferrari Nut - 16102321 | Price on request | Contact us for price and availability | |
| 16102311 | Ferrari RH Thread Nut - 16102311 | Superseded | Order 16102314 instead | |
| 16043124 | Ferrari Screw M8 x 14 - 16043124 | $0.33 | Special order, ships in 7-14 days | |
| 13550621 | Ferrari Washer - 13550621 | Price on request | Contact us for price and availability | |
| - | 680802 | Ferrari Cable Assy - 680802 | Price on request | Contact us for price and availability |
