Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Steering Box And Steering Linkages (diagram 030)

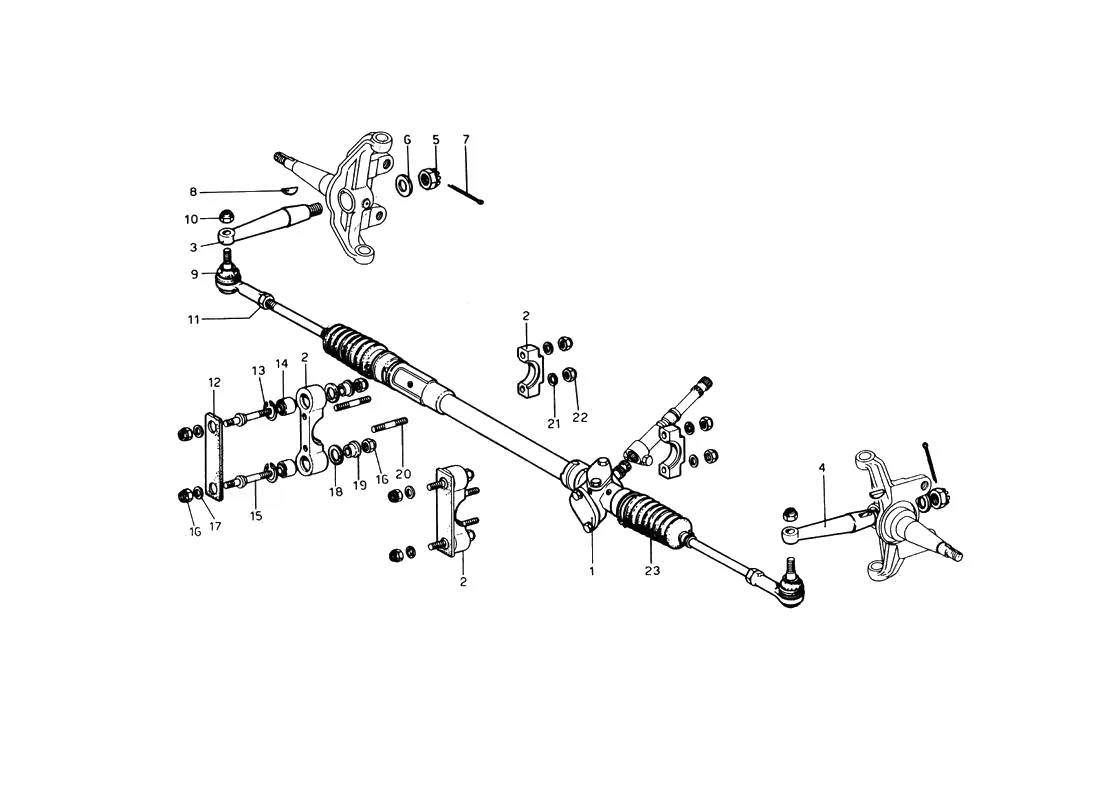

Exploded view of the steering box and steering linkages on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/030.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 104498 | Ferrari Steering Rack LHD - 104498 | Price on request | Contact us for price and availability |
| 1 | 106474 | Ferrari Steering Rack RHD - 106474 | $1,107.91 | Available, ships in 3-6 days |
| 1 | 149202/A | Ferrari Steering Rack RHD - 149202/A | $1,101.39 | Available, ships in 3-6 days |
| 2 | 103286 | Ferrari Support - 103286 | $118.47 | Special order, ships in 7-14 days |
| 3 | 760119 | Ferrari RH Steering Lever - 760119 | $470.66 | Available, ships in 3-6 days |
| 4 | 760120 | Ferrari LH Steering Lever - 760120 | $1,932.58 | Special order, ships in 7-14 days |
| 5 | 104486 | Ferrari Castellated Nut - 104486 | $15.12 | Available, ships in 3-6 days |
| 6 | 104485 | Ferrari Washer - 104485 | Price on request | Contact us for price and availability |
| 7 | 95900014 | Ferrari Split Pin - 95900014 | Price on request | Contact us for price and availability |
| 8 | 104484 | Ferrari Woodruff Key - 104484 | Price on request | Contact us for price and availability |
| 9 | 149201/199 | Ferrari 246/308 Steering Rack w/ Outer Tie Rod Ends - 149201/199 | $660.00 | In stock |
| 9 | 149199 | Ferrari 246/308 Tie Rod End - 149199 | $71.50 | In stock |
| 9 | 104499 | Ferrari Track Rod Joint - 104499 | $89.41 | Available, ships in 3-6 days |
| 10 | 104500 | Ferrari Nyloc Nut - 104500 | $2.30 | Available, ships in 3-6 days |
| 12 | 103288 | Ferrari Rubber Pad - 103288 | $16.03 | Available, ships in 3-6 days |
| 13 | 11057876 | Ferrari Circlip - 11057876 | $0.13 | Available, ships in 3-6 days |
| 14 | 103369 | Ferrari Steering Rack Mount Bushing - 103369 | $50.38 | In stock |
| 15 | 103290 | Ferrari Steering Rack Support Bolt - 103290 | $120.41 | Available, ships in 3-6 days |
| 16 | 104030 | Ferrari/Maserati Nut - 104030 | $0.88 | In stock |
| 16 | 16104121 | Ferrari Nyloc Nut - 16104121 | Superseded | Order 104030 instead |
| 17 | 10519624 | Ferrari Washer 8.15 - 17 x 2 - 10519624 | $0.27 | Available, ships in 3-6 days |
| 17 | 10519621 | Ferrari Washer - 10519621 | Superseded | Order 10519624 instead |
| 17 | 10730321 | Ferrari Washer - 10730321 | $1.50 | Available, ships in 3-6 days |
| 18 | 103287 | Ferrari Washer - 103287 | $8.45 | Available, ships in 3-6 days |
| 19 | 103289 | Ferrari Bush - 103289 | $93.05 | Available, ships in 3-6 days |
| 20 | 95920413 | Ferrari Stud 8x35 P5 - 95920413 | Price on request | Contact us for price and availability |
| 21 | 95129 | Ferrari Washer - 95129 | Price on request | Contact us for price and availability |
| 23 | 95860403 | Ferrari 246/308/328 Steering Rack Bellows-95860403 | $31.90 | In stock |
| 149201 | Ferrari 246/308 Steering Rack - 149201 | $595.00 | In stock | |
| 94629 | Ferrari Key - 94629 | Price on request | Contact us for price and availability | |
| 16104125 | Ferrari Nut - 16104125 | Superseded | Order 104030 instead | |
| 95208 | Ferrari Nut - 95208 | Price on request | Contact us for price and availability | |
| 149201BUSH | Ferrari Steering Rack Bushing - 149201BUSH | $54.95 | In stock | |
| 123911 | Ferrari Steering Rack LHD - 123911 | Price on request | Contact us for price and availability | |
| 149202 | Ferrari Steering Rack RHD - 149202 | $18.96 | Available, ships in 3-6 days | |
| 740353 | Ferrari Support - 740353 | Price on request | Contact us for price and availability | |
| 92302 | Ferrari Washer - 92302 | Price on request | Contact us for price and availability |
