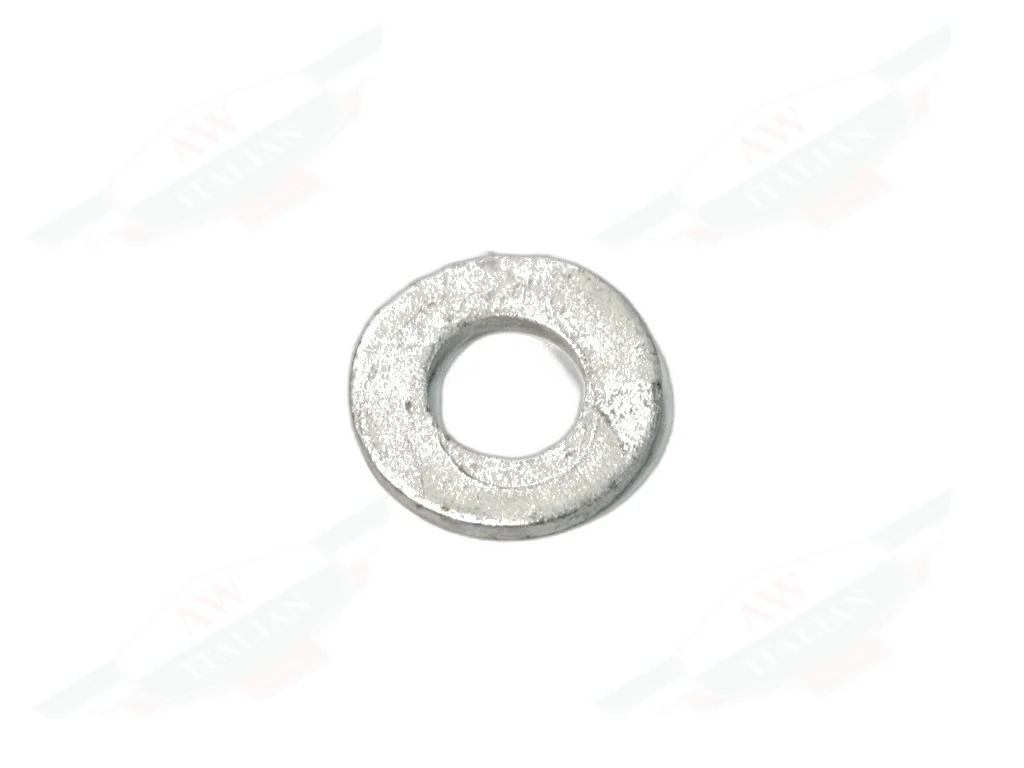

Ferrari Washer 8.15 – 17 x 2 – 10519624

Name: Ferrari Washer 8.15 - 17 x 2 - 10519624
Brand: Ferrari
SKU: 10519624
Price: 0.27 USD
Availability: InStock

Original or OEM

?Original or OEM — genuine Ferrari parts, or parts made by the Original Equipment Manufacturer that supplies Ferrari. AW Approved — quality aftermarket parts vetted and approved by AW Italian.

PART # 10519624

$0.27

Available Ships in 3-6 Days

Description

Ferrari Washer 8.15 – 17 x 2, part number 10519624. Listed in our catalogue for 100 Ferrari models, including the 12 Cilindri, 12 Cilindri Spider, 206 GT Dino. Replaces part numbers 10519601,10519621,10519620,93798.

Every product we sell is backed by our 1-year warranty, giving you added confidence with every purchase. We're committed to knowledgeable service, reliable fulfillment, and helping you get the right part the first time.

Not sure it’s the right part for your car? Contact our team before you order and we’ll help you confirm it.

Fits the following vehicles

100 vehicles · 631 positions

Ferrari 12 Cilindri1 position

Item No.	Diagram (page)	Qty
23	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari 12 Cilindri Spider1 position

Item No.	Diagram (page)	Qty
23	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari 206 GT Dino1 position

Item No.	Diagram (page)	Qty
19	`037` Engine Ignition	3

Ferrari 208 GT4 Dino12 positions

Item No.	Diagram (page)	Qty
3	`030` Hand-Brake Control	3
4	`039` Electric Generating System	4
7	`016` Cooling System	2
14	`006` Cylinder Head (Left)	2
15	`005` Cylinder Head (Right)	2
16	`038` Engine Ignition	2
19	`025` Outside Gearbox Controls	2
20	`030` Hand-Brake Control	3
20	`031` Steering Box And Linkage	4
33	`021` Gearbox - Differential Housing And Oil Sump	4
33	`032` Steering Column	2
50	`015` Lubrication System	4

Ferrari 208 GTB/GTS Carburetor10 positions

Item No.	Diagram (page)	Qty
3	`029` Hand - Brake Control	3
4	`038` Electric Generating System	2
4	`108` Bumpers And Mouldings	4
14	`006` Cylinder Head (Left)	1
17	`024` Outside Gearbox Controls	2
20	`029` Hand - Brake Control	3
20	`030` Steering Box And Linkage	4
33	`020` Gearbox - Differential Housing And Oil Sump	4
33	`031` Steering Column	2
36	`014` Lubrication System	2

Ferrari 208 GTB/GTS Turbo9 positions

Item No.	Diagram (page)	Qty
3	`048` Electric Generating System	3
5	`035` Steering Box And Linkage	4
12	`034` Hand - Brake Control	1
13	`013` Throttle Housing And Linkage	1
17	`026` Outside Gearbox Controls	2
19	`036` Steering Column	4
33	`022` Gearbox - Differential Housing And Oil Pump	5
37	`048` Electric Generating System	1
50	`016` Lubrication System	4

Ferrari 208 Turbo13 positions

Item No.	Diagram (page)	Qty
3	`030` Hand-Brake Controll	2
4	`039` Electric Generating System	3
13	`013` Throttle Control	1
17	`025` Outside Gearbox Controls	2
18	`108` Bumpers, Mouldings And External Lights	6
20	`030` Hand-Brake Controll	3
20	`031` Steering Box And Linkage	4
33	`021` Gearbox - Differential Housing And Oil Sump	7
33	`032` Steering Column	2
35	`116` Windshields Wiper, Washer And Horn	2
50	`016` Lubrication System	4
59	`039` Electric Generating System	1
67	`017` Cooling System	4

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132)5 positions

Item No.	Diagram (page)	Qty
10	`014` Cooling System	2
17	`030` Steering Box And Steering Linkages	4
17	`044` Air Pump & Alternator (Variants For Usa Versions)	1
19	`036` Engine Ignition	3
43	`029` Steering Control	2

Ferrari 250 GT (Engine 128F)(1956-1959)1 position

Item No.	Diagram (page)	Qty
23	`011` Ignition System	6

Ferrari 275 GTB3 positions

Item No.	Diagram (page)	Qty
6	`012B` Generator - Battery & Coils - RHD Variants	1
20	`011` Engine Ignition	1
27	`030` Radiator & Water Pump	1

Ferrari 275 GTB42 positions

Item No.	Diagram (page)	Qty
20	`014` Distributors And Controls	6
40	`016` Radiator And Water Pump	1

Ferrari 275 GTS3 positions

Item No.	Diagram (page)	Qty
6	`012B` Generator - Battery & Coils - RHD Variants	1
20	`011` Engine Ignition	1
27	`030` Radiator & Water Pump	1

Ferrari 288 GTO8 positions

Item No.	Diagram (page)	Qty
6	`040` Electric Generating System	3
11	`032` Steering Box And Linkage	4
12	`009` Throttle Bodies And Accelerator Control	1
15	`018` Clutch Release Control	1
23	`107` Bumpers - Lights - Outer Name	4
39	`018` Clutch Release Control	3
40	`040` Electric Generating System	2
60	`033` Steering Column	4

Ferrari 308 GT4 Dino 197618 positions

Item No.	Diagram (page)	Qty
3	`030` Hand - Brake Control	3
4	`039` Electric Generating System	3
7R	`054` Water Radiator - Gear - Lever Housing (U.S. 1976 Version)	2
8	`052` Exhaust System (U.S. And Australian Versions 1976)	4
14	`006` Cylinder Head (Left)	2
15	`005` Cylinder Head (Right)	2
16	`038` Engine Ignition (2 Distributors)	2
16	`053` Engine Ignition (U.S. And Australian Versions 1976)	2
16	`38A` Engine Ignition (1 Distributor)	1
17	`25A` Outside Gearbox Controls (From No. 11324 Gs - 11300 Gd - 10360 U.S. Version)	2
20	`030` Hand - Brake Control	3
20	`031` Steering Box And Linkage	4
20	`051` Fuel System (Up To No. 11462 - U.S. 1976 Version)	2
20	`51A` Fuel System (From No.11994 - U.S. 1976 Version)	2
33	`021` Gearbox - Differential Housing And Oil Sump	4
33	`032` Steering Column	2
44	`025` Outside Gearbox Controls (Up To No. 10114 Gs - 10100 Gd - 10358 U.S. Version)	2
50	`015` Lubrication System	4

Ferrari 308 GT4 Dino 197915 positions

Item No.	Diagram (page)	Qty
3	`029` Hand - Brake Control	3
4	`039` Electric Generating System	3
4	`053` Exhaust System (Variants For Usa - Aus And J Version)	4
7	`015` Cooling System	2
8	`054` Exhaust System (Variants For Usa - Aus And J Version)	4
14	`006` Cylinder Head (Left)	2
16	`055` Engine Ignition (Variants For Usa - Aus And J Version)	2
17	`024` Outside Gearbox Controls	2
20	`029` Hand - Brake Control	3
20	`030` Steering Box And Linkage	4
20	`048` Antievaporative Emission Control System (Variants For Usa - Aus And J Version)	2
20	`049` Antievaporative Emission Control System (Variants For Usa - Aus And J Version)	2
33	`020` Gear - Differential Housing And Oil Sump	4
33	`031` Steering Column	2
50	`014` Lubrication System	4

Ferrari 308 GTB 1976 Fibreglass13 positions

Item No.	Diagram (page)	Qty
3	`031` Hand-Brake Control	3
4	`040` Electric Generating System	2
4	`109` Bumpers And Mouldings	4
4	`159` Bumpers And Mouldings (Valid For RHD - Aus Versions)	4
7	`017` Cooling System	2
9	`015` Lubrication System	1
14	`006` Cylinder Head (Left)	2
16	`039` Engine Ignition	1
17	`026` Outside Gearbox Controls	2
20	`031` Hand-Brake Control	3
20	`032` Steering Box And Linkage	4
33	`022` Gearbox - Differential Housing And Oil Sump	4
33	`033` Steering Column	2

Ferrari 308 GTB/GTS Carburetor18 positions

Item No.	Diagram (page)	Qty
3	`033` Hand-Brake Control	3
4	`043` Electric Generating System	2
4	`109` Bumpers And Mouldings	4
4	`159` Bumpers And Mouldings (Variants For RHD - Aus Versions)	4
7	`018` Cooling System	2
8	`054` Exhaust System (Variants For Aus Version)	4
9	`015` Lubrication System (308 Gtb)	1
14	`006` Cylinder Head (Left)	1
16	`055` Engine Ignition (Variants For Aus Version)	2
17	`028` Outside Gearbox Controls	2
20	`033` Hand-Brake Control	3
20	`034` Steering Box And Linkage	4
20	`052` Fuel System (Variants For Aus Version)	2
33	`023` Gearbox - Differential Housing And Oil Sump (308 Gtb)	4
33	`024` Gearbox - Differential Housing And Oil Sump (308 Gts And Aus)	4
33	`035` Steering Column	2
36	`017` Lubrication System (308 Gts And Aus)	2
71	`016` Oil Filter And Pumps (308 Gtb)	2

Ferrari 308 GTB/GTS JAP14 positions

Item No.	Diagram (page)	Qty
3	`034` Handbrake Control	3
4	`017` Exhaust System	4
4	`043` Electric Generating System	2
7	`020` Cooling System	2
14	`006` Cylinder Head (Left)	2
15	`005` Cylinder Head (Right)	2
16	`042` Engine Ignition	1
17	`029` Outside Gearbox Controls	2
20	`011` Antievaporative Emission Control System	2
20	`034` Handbrake Control	3
20	`035` Steering Box & Linkage	4
33	`025` Gearbox - Differential Housing & Oil Sump	4
33	`036` Steering Column	2
50	`019` Lubrication System	4

Ferrari 308 GTB/GTS USA14 positions

Item No.	Diagram (page)	Qty
3	`034` Hand - Brake Control	3
4	`017` Exhaust System	4
4	`043` Electric Generating System	2
7	`020` Cooling System	2
14	`006` Cylinder Head (Left)	2
15	`005` Cylinder Head (Right)	3
16	`042` Engine Ignition	1
17	`029` Outside Gearbox Controls	2
20	`011` Antievaporative Emission Control System	2
20	`034` Hand - Brake Control	3
20	`035` Steering Box And Linkage	4
33	`025` Gearbox - Differential Housing And Oil Sump	4
33	`036` Steering Column	2
50	`019` Lubrication System	4

Ferrari 308 GTBi/GTSi11 positions

Item No.	Diagram (page)	Qty
3	`029` Hand-Brake Control	3
4	`038` Electric Generating System	3
4	`108` Bumpers And Moldings	4
7	`016` Cooling System	2
14	`013` Exhaust System	12
17	`024` Outside Gearbox Controls	2
20	`029` Hand-Brake Control	3
20	`030` Steering Box And Linkage	4
33	`020` Gearbox - Differential Housing And Oil Sump	5
33	`031` Steering Column	2
50	`015` Lubrication System	4

Ferrari 308 Quattrovalvole13 positions

Item No.	Diagram (page)	Qty
3	`029` Hand - Brake Controls	2
4	`013` Exhaust System	24
4	`038` Electric Generating System (Engine With Single Belt)	3
4	`039` Electric Generating System (Engine With 2 Individual Belts)	3
13	`012` Throttle Housing And Linkage	1
17	`024` Outside Gearbox Controls	2
18	`108` Bumpers, Moldings And External Lights	4
20	`029` Hand - Brake Controls	3
20	`030` Steering Box And Linkage	4
31	`031` Steering Column	2
33	`020` Gearbox - Differential Housing And Oil Sump	5
35	`116` Windshield Wiper, Washer And Horn	2
50	`015` Lubrication System	4

Ferrari 308 Quattrovalvole USA12 positions

Item No.	Diagram (page)	Qty
3	`031` Hand - Brake Control	2
4	`015` Exhaust System	1
4	`040` Electric Generating System	3
7	`018` Cooling System	2
13	`014` Throttle Housing and Linkage	1
17	`026` Outside Gearbox Controls	2
20	`031` Hand - Brake Control	3
20	`032` Steering Box and Linkage	4
33	`022` Gearbox - Differential Housing and Oil Sump	5
33	`033` Steering Column	2
35	`117` Windshield Wiper Washer and Horn	2
50	`017` Lubrication System	4

Ferrari 328 GTB/GTS (1985)11 positions

Item No.	Diagram (page)	Qty
4	`017` Exhaust System (Not For U.S. And Sa Version)	24
4	`018` Exhaust System (For U.S. And Sa Version)	1
4	`043` Electric Generating System	3
5	`035` Steering Box And Linkage	4
12	`034` Hand - Brake Control	1
13	`016` Throttle Housing And Linkage	1
17	`029` Outside Gearbox Controls	2
19	`036` Steering Column	4
33	`025` Gearbox - Differential Housing And Oil Sump	5
50	`020` Lubrication System	4
63	`102` Body Shell - Outer Elements (For U.S. And Sa Version)	8

Ferrari 328 GTB/GTS (1988)9 positions

Item No.	Diagram (page)	Qty
4	`019` Exhaust System (For Us - Sa - Ch87 And Ch88 Version)	4
4	`053` Electric Generating System	3
5	`018` Exhaust System (Not For Us - Sa - Ch87 And Ch88 Version)	4
5	`040` Steering Box And Linkage	4
12	`039` Hand - Brake Control	1
13	`017` Throttle Housing And Linkage	1
17	`031` Outside Gearbox Controls	2
19	`041` Steering Column	4
26	`103` Rear Bumpers	8

Ferrari 330 GT 2+2 Mk.11 position

Item No.	Diagram (page)	Qty
16	`013` Distributors And Controls	6

Ferrari 330 GTC2 positions

Item No.	Diagram (page)	Qty
20	`013` Distributors And Controls	6
39	`036` Radiator And Water Pump	1

Ferrari 348 GTB/GTS/GTC/Spider9 positions

Item No.	Diagram (page)	Qty
4	`019` LUBRICATION - PUMPS AND OIL SUMPS	4
5	`119` DOORS - OPENING CONTROL AND HINGES	12
11	`039` HAND-BRAKE CONTROL	1
14	`015` EXHAUST SYSTEM -Not for USA, CDN, CH, AUS-	2
14	`016` EXHAUST SYSTEM -Valid for USA AND CDN-	2
14	`119` DOORS - OPENING CONTROL AND HINGES	12
24	`017` EXHAUST SYSTEM -Valid for CH AND AUS-	2
28	`144` ELECTRICAL BOARDS	2
55	`047` CURRENT GENERATOR - STARTING MOTOR	3

Ferrari 348 tb/ts10 positions

Item No.	Diagram (page)	Qty
4	`016` Lubrication - Pumps And Oil Sumps	4
5	`116` Doors - Opening Control And Hinges	12
11	`034` Hand-Brake Control	1
13	`022` Clutch Release Control - Not For RHD	2
14	`014B` Exhaust System - Valid For Catalytic Vehicles - For Usa Spyder	2
14	`116` Doors - Opening Control And Hinges	12
24	`014` Exhaust System - Not For Catalytic Vehicles	2
24	`014A` Exhaust System - Valid For Catalytic Vehicles - Not For Usa Spyder	2
28	`133` Electrical Boards	2
61	`042A` Current Generator (Valid From Engine Nr. 30738) - Battery	3

Ferrari 360 Challenge6 positions

Item No.	Diagram (page)	Qty
4	`017` Pumps And Oil Sump	6
20	`104` Frame - Rear Elements Structures And Plates	12
27	`104` Frame - Rear Elements Structures And Plates	12
29	`015` Exhaust System	4
29	`045` Current Generator - Starting Motor	3
34	`024` F1 Clutch Hydraulic Control	2

Ferrari 360 Challenge Stradale5 positions

Item No.	Diagram (page)	Qty
4	`021` Pumps And Oil Sump	6
5	`134` Anti-Theft Electrical Boards And Devices	2
21	`104` Frame - Rear Elements Structures And Plates	8
29	`052` Current Generator - Starting Motor	3
34	`029` F1 Clutch Hydraulic Control	2

Ferrari 360 Modena5 positions

Item No.	Diagram (page)	Qty
4	`022` Pumps And Oil Sump	6
5	`139` Anti-Theft Electrical Boards And Devices	2
21	`104` Frame - Rear Elements Structures And Plates	8
29	`055` Current Generator - Starting Motor	3
34	`031` F1 Clutch Hydraulic Control -Valid For F1-	2

Ferrari 360 Spider5 positions

Item No.	Diagram (page)	Qty
4	`022` Pumps And Oil Sump	6
5	`147` Anti-Theft Electrical Boards And Devices	2
21	`104` Frame - Rear Elements Structures And Plates	8
29	`055` Current Generator - Starting Motor	3
34	`031` F1 Clutch Hydraulic Control -Valid For F1-	2

Ferrari 365 GT 2+2 MK1 up to 128102 positions

Item No.	Diagram (page)	Qty
17	`041` Radiator & Water Pump	1
20	`016` Distributors & Controls	10

Ferrari 365 GT 2+2 MK2 from 128112 positions

Item No.	Diagram (page)	Qty
41	`041` Radiator & Water Pump	1
46	`016` Distributors & Controls	6

Ferrari 365 GT4 2+23 positions

Item No.	Diagram (page)	Qty
15	`018` Cooling System	4
35	`033` Handbrake Control	2
44	`036` Steering Columm	4

Ferrari 365 GT4 BB17 positions

Item No.	Diagram (page)	Qty
4	`028` Hand-Brake Control	3
8	`011` Exhaust System	8
10	`036` Engine Ignition	1
13	`107` Rear Bonnet	6
13	`30A` Steering Column (From Car No. 18825)	4
15	`106` Front Compartment Lid	6
16	`028` Hand-Brake Control	1
17	`029` Steering Box And Linkage	4
21	`23B` Gearbox Controls (From Car No. 18825)	2
22	`041` Clutch Release Control (For RHD)	4
31	`037` Current Generation (Up To Car No. 18263)	1
31	`37A` Current Generation (From Car No. 18265)	1
32	`004` Cylinder Head (Left)	2
32	`038` Air Conditioning System	2
33	`014` Cooling System (Up To Car No. 17845)	2
33	`014A` Cooling System (From Car No. 17847)	2
43	`030` Steering Column (Up To Car No. 18221)	2

Ferrari 365 GTB4 (Daytona)6 positions

Item No.	Diagram (page)	Qty
26	`009` Cooling System - Water Pump & Radiator	1
26	`009A` Cooling System - Water Pump & Radiator (1974 Revision - Cars With Air Pollution System)	1
29	`038` Air Conditioning System	8
30	`030` Hand Brake Control	1
45	`010` Distributors & Controls	1
55	`033` Steering Control	4

Ferrari 365 GTC44 positions

Item No.	Diagram (page)	Qty
15	`017` Water Circuit	4
35	`032` Handbrakes	2
36	`016` Water & Oil Pump	1
36	`016A` Water & Oil Pump - Revision Oct 1972	1

Ferrari 400 GT / 400 Auto4 positions

Item No.	Diagram (page)	Qty
15	`019` Cooling System	4
28	`041` Steering Controls	4
35	`038` Hand-Brake Control	2
39	`038` Hand-Brake Control	3

Ferrari 400i8 positions

Item No.	Diagram (page)	Qty
8	`018` Cooling System	2
14	`048` Rear Suspension - Self Leveling Valve And Oil Lines	4
18	`042` Power Steering Oil Tank - Self Levelling Devices (For RHD)	1
24	`009` Fuel Tanks, Pumps, Lines	2
28	`044` Steering Control	4
35	`040` Hand-Brake Control	2
39	`040` Hand-Brake Control	3
47	`053` Current Generators And Starting Motor	2

Ferrari 4128 positions

Item No.	Diagram (page)	Qty
14	`050` Rear Suspension - Self - Levelling Valve And Oil Lines	4
28	`046` Steering Column	4
30	`016` Exhaust System	12
35	`042` Hand - Brake Control	2
38	`016A` Exhaust System - Swiss Cars	12
39	`042` Hand - Brake Control	3
42	`055` Alternators And Starting Motor	2
72	`019` Cooling System	2

Ferrari 430 Scuderia3 positions

Item No.	Diagram (page)	Qty
9	`147` Antitheft System Ecus And Devices	2
16	`029` Hydraulic F1 Gearbox And Clutch Control	1
21	`105` Chassis - Structure, Rear Elements And Panels	8

Ferrari 430 Scuderia Spider 16M3 positions

Item No.	Diagram (page)	Qty
9	`147` Antitheft System Ecus And Devices	2
16	`029` Hydraulic F1 Gearbox And Clutch Control	1
21	`105` Chassis - Structure, Rear Elements And Panels	8

Ferrari 456 GT/GTA11 positions

Item No.	Diagram (page)	Qty
6	`132` Stereo Equipment	4
10	`062` Battery	1
11	`063` Alternator - Starting Motor - Air Conditioning Compressor	3
19	`050` Hand-Brake Control -Valid For 456 Gta-	1
19	`106` Rear Bumper And Movable Spoiler -Not For 456 Gta-	4
19	`107` Rear Bumper And Movable Spoiler -Valid For 456 Gta-	4
30	`060` Rear Suspension - Wishbones And Stabilizer Bar	4
35	`046` Control Unit And Hydraulic Equipment For Abs System	2
43	`049` Hand-Brake Control -Valid For 456 Gt-	1
55	`050` Hand-Brake Control -Valid For 456 Gta-	1
60	`050` Hand-Brake Control -Valid For 456 Gta-	1

Ferrari 456 MGT/MGTA 5 positions

Item No.	Diagram (page)	Qty
11	`066` Alternator - Starting Motor - Air Conditioning Compressor	3
19	`053` Hand-Brake Control -Valid For 456M Gta-	1
19	`062` Rear Suspension - Shock Absorber And Brake Disc	8
43	`052` Hand-Brake Control -Not For 456M Gta-	1
55	`053` Hand-Brake Control -Valid For 456M Gta-	1

Ferrari 458 Italia1 position

Item No.	Diagram (page)	Qty
26	`033` Steering Control	4

Ferrari 458 Speciale1 position

Item No.	Diagram (page)	Qty
24	`032` Steering Control	4

Ferrari 458 Speciale Aperta (Convertible)1 position

Item No.	Diagram (page)	Qty
24	`032` Steering Control	4

Ferrari 458 Spider1 position

Item No.	Diagram (page)	Qty
24	`033` Steering Control	4

Ferrari 512 BB (Carburetor)14 positions

Item No.	Diagram (page)	Qty
2	`014A` Cooling System (1978 Revision)	2
4	`028` Hand-Brake Control	3
10	`036` Engine Ignition	1
13	`107` Rear Bonnet	1
15	`106` Front Compartment Lid	6
16	`028` Hand-Brake Control	1
20	`029` Steering Rack And Linkage	4
21	`023` Gear Box Controls	2
31	`037` Alternator, Starter And Battery	1
32	`004` Cylinder Head (Left)	2
32	`004A` Cylinder Head (Left) (1978 Revision)	2
32	`038` Air Conditioning System	2
33	`030` Steering Column	2
36	`012` Lubrication - Blow-By And Oil Reservoir	1

Ferrari 512 BBi11 positions

Item No.	Diagram (page)	Qty
2	`013` Cooling System	2
4	`027` Hand-Brake Control	3
13	`009` Throttle Control	1
16	`027` Hand-Brake Control	1
20	`028` Steering Rack And Linkage	4
21	`022` Gearbox Controls	2
32	`004` Cylinder Head (Left)	2
33	`029` Steering Column	2
36	`011` Lubrication - Blow-By And Oil Reservoir	1
54	`016` Clutch Release Control	1
57	`016` Clutch Release Control	1

Ferrari 512 M17 positions

Item No.	Diagram (page)	Qty
3	`028` Clutch Release Control -RHD	2
5	`017` Throttle Control -RHD	2
5	`018` Exhaust System -Not For Usa, Cdn, Aus, Ch	4
5	`019` Exhaust System -Valid For Usa, Cdn, Aus, Ch	4
11	`042` Hand - Brake Control	1
12	`050` Battery	1
13	`016` Throttle Control - Lhd	1
15	`017` Throttle Control -RHD	1
15	`027` Clutch Release Control - Lhd	2
21	`034` Gearbox Controls	2
23	`112` Door - Power Window	2
24	`051` Current Generator	1
25	`125` Lamps	2
27	`051` Current Generator	2
37	`028` Clutch Release Control -RHD	3
38	`051` Current Generator	3
39	`027` Clutch Release Control - Lhd	3

Ferrari 512 TR20 positions

Item No.	Diagram (page)	Qty
3	`028` Clutch Release Control -Valid For Gd-	2
5	`017` Throttle Control -Valid For Gd-	2
5	`018` Exhaust System -Not For Usa, Cdn, Aus, Ch-	4
5	`019` Exhaust System -Valid For Usa, Cdn, Aus, Ch-	4
8	`052` Current Generator -Valid Till Engine No ...-	3
10	`052` Current Generator -Valid Till Engine No ...-	1
11	`043` Hand - Brake Control	1
13	`016` Throttle Control -Not For Gd-	1
15	`017` Throttle Control -Valid For Gd-	1
15	`027` Clutch Release Control -Not For Gd-	2
17	`051` Battery	1
21	`034` Gearbox Controls	2
23	`112` Door - Power Window	2
24	`051` Battery	1
24	`053` Current Generator -Valid From Engine No ...-	1
25	`124` Lamps	2
27	`053` Current Generator -Valid From Engine No ...-	2
37	`028` Clutch Release Control -Valid For Gd-	3
38	`053` Current Generator -Valid From Engine No ...-	3
39	`027` Clutch Release Control -Not For Gd-	3

Ferrari 550 Barchetta3 positions

Item No.	Diagram (page)	Qty
11	`054` Alternator - Starting Motor - Air Conditioning Compressor	3
27	`051` Rear Suspension - Wishbones And Stabilizer Bar	4
43	`044` Hand-Brake Control	1

Ferrari 550 Maranello3 positions

Item No.	Diagram (page)	Qty
11	`055` Alternator - Starting Motor - Air Conditioning Compressor	3
27	`052` Rear Suspension - Wishbones And Stabilizer Bar	4
43	`045` Hand-Brake Control	1

Ferrari 575 SuperAmerica3 positions

Item No.	Diagram (page)	Qty
11	`060` Alternator - Starting Motor - Air Conditioning Compressor	3
27	`056` Rear Suspension - Wishbones And Stabilizer Bar	4
43	`048` Hand-Brake Control	1

Ferrari 575M Maranello3 positions

Item No.	Diagram (page)	Qty
11	`060` Alternator - Starting Motor - Air Conditioning Compressor	3
27	`056` Rear Suspension - Wishbones And Stabilizer Bar	4
43	`048` Hand-Brake Control	1

Ferrari 599 GTB Fiorano5 positions

Item No.	Diagram (page)	Qty
4	`043` Parking Brake Control	2
17	`125` Tunnel - Substructure And Accessories	8
19	`046` Steering Control	4
22	`054` Alternator, Starter Motor And Ac Compressor	3
63	`103` Structures And Elements, Front Of Vehicle	8

Ferrari 599 GTO5 positions

Item No.	Diagram (page)	Qty
4	`039` Parking Brake Control	2
13	`125` Tunnel - Substructure And Accessories	2
19	`042` Steering Control	4
22	`050` Alternator, Starter Motor And Ac Compressor	3
63	`103` Structures And Elements, Front Of Vehicle	8

Ferrari 599 SA Aperta5 positions

Item No.	Diagram (page)	Qty
4	`039` Parking Brake Control	2
13	`126` Tunnel - Substructure And Accessories	2
19	`042` Steering Control	4
22	`050` Alternator, Starter Motor And Ac Compressor	3
64	`103` Structures And Elements, Front Of Vehicle	8

Ferrari 612 Scaglietti2 positions

Item No.	Diagram (page)	Qty
11	`061` Alternator - Starter Motor - Ac Compressor	3
19	`052` Steering Control	4

Ferrari 612 Sessanta2 positions

Item No.	Diagram (page)	Qty
11	`061` Alternator - Starter Motor - Ac Compressor	3
19	`052` Steering Control	4

Ferrari 812 Competizione1 position

Item No.	Diagram (page)	Qty
17	`0095` [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE	10

Ferrari 812 CompetizioneA1 position

Item No.	Diagram (page)	Qty
28	`0095` [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE	10

Ferrari 812 GTS1 position

Item No.	Diagram (page)	Qty
49	`0102` STRUCTURES AND ELEMENTS FRONT OF VEHICLE	10

Ferrari 812 Superfast2 positions

Item No.	Diagram (page)	Qty
17	`024` Gearbox Housing	4
49	`102` Structures And Elements, Front Of Vehicle	8

Ferrari California3 positions

Item No.	Diagram (page)	Qty
7	`043` Steering Column Assembly And Steering Wheel	4
14	`106` FRONT STRUCTURES AND CHASSIS BOX SECTIONS -Applicable up to Ass.ly No. 103178-	2
25	`107` FRONT STRUCTURES AND CHASSIS BOX SECTIONS -Applicable from Ass.ly No. 103179 (see note A for excluded Ass.ly Numbers)-	8

Ferrari California T1 position

Item No.	Diagram (page)	Qty
28	`101` Structures And Elements, Front Of Vehicle	8

Ferrari Enzo4 positions

Item No.	Diagram (page)	Qty
10	`125` Passengers And Engine Compartments Control Units	2
18	`022` F1 Clutch Hydraulic Control	4
25	`047` Battery	1
53	`048` Alternator, Starting Motor And A.C. Compressor	3

Ferrari F12 Berlinetta4 positions

Item No.	Diagram (page)	Qty
7	`033` Steering Control	4
17	`025` Gearbox Housing	8
49	`102` Structures And Elements, Front Of Vehicle	8
68	`125` Dashboard	3

Ferrari F12tdf4 positions

Item No.	Diagram (page)	Qty
7	`031` Steering Control	4
17	`024` Gearbox Housing	4
33	`117` Front Bumper	6
49	`102` Structures And Elements, Front Of Vehicle	8

Ferrari F355 B/GTS/Spider Mo. 2.75 positions

Item No.	Diagram (page)	Qty
4	`020` Pumps And Oil Sump	4
4	`038` Hand-Brake Control	1
5	`122` Doors - Opening Control And Hinges	12
14	`122` Doors - Opening Control And Hinges	12
53	`017` Exhaust System	2

Ferrari F355 B/GTS/Spider Mo. 5.2 / ABS Bosch F16 positions

Item No.	Diagram (page)	Qty
4	`019` Pumps And Oil Sump	4
4	`044` Hand-Brake Control	1
5	`122` Doors - Opening Control And Hinges	12
14	`122` Doors - Opening Control And Hinges	12
32	`103` Central Part Structures	4
53	`016` Exhaust System	2

Ferrari F409 positions

Item No.	Diagram (page)	Qty
3	`014` Accelerator Control	1
6	`053` Current Generation	3
11	`043` Steering Box And Linkage	4
15	`048` Rear Suspension - Levers	4
22	`044` Steering Control	2
23	`028` Brakes And Clutch Control Pedals	9
31	`029` Clutch And Control	6
34	`028` Brakes And Clutch Control Pedals	3
51	`013` Air Injection Device -Valid For Usa-	4

Ferrari F430 Challenge2 positions

Item No.	Diagram (page)	Qty
21	`104` Frame - Rear Elements And Plates	8
34	`023` Clutch And Gearbox Hydraulic Control	2

Ferrari F430 Coupe3 positions

Item No.	Diagram (page)	Qty
9	`138` Antitheft System Ecus And Devices	2
16	`027` F1 Gearbox And Clutch Hydraulic Control -Applicable For F1-	1
21	`104` Chassis - Structure, Rear Elements And Panels	8

Ferrari F430 Spider3 positions

Item No.	Diagram (page)	Qty
9	`147` Antitheft System Ecus And Devices	2
16	`027` F1 Gearbox And Clutch Hydraulic Control -Applicable For F1-	1
21	`104` Chassis - Structure, Rear Elements And Panels	8

Ferrari F5011 positions

Item No.	Diagram (page)	Qty
9	`116` Passive Safety Belts System -Valid For Usa-	6
13	`114` Seats And Safety Belts -Not For Usa-	12
15	`100` Frame And Structures	20
16	`114` Seats And Safety Belts -Not For Usa-	4
17	`115` Seats And Safety Belts -Valid For Usa-	4
21	`039` Steering Column	2
30	`047` Alternator And Starting Motor	3
39	`044` Rear Suspension - Shock Absorber And Stabilizer Bar	4
44	`111` Doors - Hinges And Opening Control	16
47	`100` Frame And Structures	4
48	`044` Rear Suspension - Shock Absorber And Stabilizer Bar	4

Ferrari F801 position

Item No.	Diagram (page)	Qty
13	`0040` [GEARBOX] - C.1 - GEARBOX AND FASTENERS	2

Ferrari FF2 positions

Item No.	Diagram (page)	Qty
7	`034` Steering Control	4
65	`124` Dashboard	8

Ferrari La Ferrari1 position

Item No.	Diagram (page)	Qty
11	`027` Steering Control	4

Ferrari La Ferrari Aperta1 position

Item No.	Diagram (page)	Qty
11	`027` Steering Control	4

Ferrari Mondial 813 positions

Item No.	Diagram (page)	Qty
3	`019` Clutch Release Control	2
3	`042` Pedal Board - Clutch Control (Variants For RHD Versions)	2
4	`039` Electric Generating System	2
13	`012` Throttle Housing And Linkage	1
14	`013` Exhaust System	12
17	`025` Outside Gearbox Controls	2
20	`030` Hand-Brake Control	1
32	`009` Fuel Pump And Pipes	2
33	`021` Gearbox - Differential Housing And Oil Sump	5
37	`019` Clutch Release Control	3
37	`042` Pedal Board - Clutch Control (Variants For RHD Versions)	3
50	`015` Lubrication System	4
55	`043` Throttle Control And Brake Hydraulic System (Variants For RHD Version)	1

Ferrari Mondial 8 USA11 positions

Item No.	Diagram (page)	Qty
3	`022` Clutch Release Control	2
4	`015` Exhaust System	4
4	`042` Electric Generating System	3
11	`033` Hand - Brake Control	1
13	`014` Throttle Housing and Linkage	1
16	`034` Steering Box and Linkage	4
17	`028` Outside Gearbox Controls	2
32	`011` Fuel Pump and Pipes	2
33	`024` Gearbox - Differential Housing and Oil Sump	5
37	`022` Clutch Release Control	3
50	`018` Lubrification System	4

Ferrari Mondial Cabriolet 3.2 (Inc Coupe)21 positions

Item No.	Diagram (page)	Qty
3	`026` Clutch Release Control (For Car Without Antiskid System)	2
3	`053` Pedal Board - Clutch Control (For Car Without Antiskid System – RHD)	2
4	`019` Exhaust System (Not For Us And Sa Version)	28
4	`020` Exhaust System (For Us And Sa Version)	4
4	`050` Electric Generation System	3
11	`041` Hand - Brake Control	1
11	`042` Steering Box And Linkage	4
13	`018` Throttle Housing And Linkage	1
17	`033` Outside Gearbox Controls	2
32	`012` Fuel Pump And Pipes (Not For Us Version)	2
32	`013` Fuel Pump And Pipes (For Us Version)	2
33	`029` Gearbox - Differential Housing And Oil Sump	1
35	`054` Pedal Board - Clutch Control (For Car With Antiskid System – RHD)	3
35	`115` Bumpers And Moldings	8
37	`026` Clutch Release Control (For Car Without Antiskid System)	3
37	`053` Pedal Board - Clutch Control (For Car Without Antiskid System – RHD)	3
38	`027` Clutch Release Control (For Car With Antiskid System)	2
38	`050` Electric Generation System	2
39	`056` Throttle Control And Brake Hydraulic System (For Cars With Antiskid System – RHD)	2
50	`022` Lubrication System	4
55	`055` Throttle Control And Brake Hydraulic System (For Cars Without Antiskid System – RHD)	1

Ferrari Mondial QV Coupe & Cabriolet20 positions

Item No.	Diagram (page)	Qty
3	`020` Clutch Release Control	2
3	`048` Pedal Board - Clutch Control (Variants For RHD)	2
4	`014` Exhaust System	28
4	`044` Electric Generating System - (Engine With Single Belt)	3
4	`045` Electric Generating System - (Engine With 2 Belts)	3
11	`034` Hand - Brake Control (Valid For RHD - For Lhd From Chassis No. 43013)	1
11	`035` Steering Box And Linkage	4
13	`013` Throttle Housing And Linkage	1
17	`026` Outside Gearbox Controls	2
20	`033` Hand - Brake Control (Valid Only For Lhd Up To Chassis No. 43011)	1
24	`010` Fuel Pump And Pipes (Cabriolet)	1
32	`009` Fuel Pump And Pipes (Quattrovalvole)	2
33	`022` Gearbox - Differential Housing And Oil Sump	5
37	`020` Clutch Release Control	3
37	`048` Pedal Board - Clutch Control (Variants For RHD)	3
38	`045` Electric Generating System - (Engine With 2 Belts)	2
50	`016` Lubrication System	4
55	`049` Throttle Control And Brake Hydraulic System (Variants For RHD)	1
60	`044` Electric Generating System - (Engine With Single Belt)	2
72	`036` Steering Column	2

Ferrari Mondial t Coupe & Cabriolet15 positions

Item No.	Diagram (page)	Qty
4	`022` Exhaust System -Not For Cars With Catalysts And 77Db-	4
4	`023` Exhaust System -For Cars With Catalysts And 77Db-	4
4	`025` Lubrication - Pumps And Oil Sumps	4
8	`031` Electronic Clutch - Controls	1
9	`022` Exhaust System -Not For Cars With Catalysts And 77Db-	2
9	`023` Exhaust System -For Cars With Catalysts And 77Db-	2
9	`061` Clutch Release Control -Valid For Gd-	2
11	`048` Hand-Brake Control	1
12	`033` Pedals Case And Support -Valid For Cars With F.E.-	2
13	`021` Throttle Housing And Linkage	1
38	`032` Clutch Release Control -Valid For Gs-	2
38	`145` Windshield Wiper And Horns	2
39	`062` Throttle Pedal And Brake Hydraulic System -Valid For Gd-	2
44	`126` Bumpers	8
48	`062` Throttle Pedal And Brake Hydraulic System -Valid For Gd-	1

Ferrari Monza SP11 position

Item No.	Diagram (page)	Qty
17	`0095` [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE	10

Ferrari Monza SP21 position

Item No.	Diagram (page)	Qty
17	`0095` [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE	10

Ferrari Portofino M1 position

Item No.	Diagram (page)	Qty
28	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari Purosangue1 position

Item No.	Diagram (page)	Qty
19	`0040` [GEARBOX] - C.1 - GEARBOX AND FASTENERS	4

Ferrari Roma1 position

Item No.	Diagram (page)	Qty
28	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari Roma Spider2 positions

Item No.	Diagram (page)	Qty
14	`0110` [VEHICLE TRIM] - E.13.02 - ROOF - KINEMATICS	6
28	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari SF90 Spider1 position

Item No.	Diagram (page)	Qty
18	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari SF90 Stradale1 position

Item No.	Diagram (page)	Qty
18	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari SF90 XX Spider1 position

Item No.	Diagram (page)	Qty
4	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari SF90 XX Stradale1 position

Item No.	Diagram (page)	Qty
18	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari Testarossa TR 8514 positions

Item No.	Diagram (page)	Qty
2	`048` Current Generation	3
3	`051` Clutch Release Control (Variants For RHD Versions)	2
6	`052` Brake Hydraulic System - Accelerator Control (Variants For RHD)	2
9	`020` Exhaust System (For U.S. - Sa And Ch87)	4
11	`025` Cooling System	2
11	`039` Hand-Brake Control	1
11	`040` Steering Box And Linkage	4
13	`018` Throttle Control	1
14	`109` Rear Hood	2
15	`028` Clutch Release Control	1
21	`034` Gear Box Controls	2
37	`051` Clutch Release Control (Variants For RHD Versions)	3
39	`028` Clutch Release Control	3
44	`048` Current Generation	1

Ferrari Testarossa TR 8714 positions

Item No.	Diagram (page)	Qty
2	`048` Current Generation (Apr89)	3
3	`051` Clutch Release Control (Variants For RHD Versions)	2
6	`052` Brake Hydraulic System - Accelerator Control (Variants For RHD)	2
9	`020` Exhaust System (For U.S. - Sa And Ch87) (Apr89)	4
11	`025` Cooling System (Apr89)	1
11	`039` Hand-Brake Control (Apr89)	1
11	`040` Steering Box & Linkage (Apr89)	4
13	`018` Throttle Control (Apr89)	1
14	`109` Rear Hood	2
15	`028` Clutch Release Control	1
21	`034` Gear Box Controls (Apr89)	2
37	`051` Clutch Release Control (Variants For RHD Versions)	3
39	`028` Clutch Release Control	3
44	`048` Current Generation (Apr89)	1

Ferrari Testarossa TR 9014 positions

Item No.	Diagram (page)	Qty
2	`056` Current Generation	3
3	`059` Clutch Release Control	2
6	`060` Brake Hydraulic System - Accelerator Control (Variants For RHD)	2
9	`020` Exhaust System (For Us - Sa And Cat Version)	4
11	`025` Cooling System	1
11	`040` Hand - Brake Control	1
11	`041` Steering Box And Linkage	4
13	`018` Throttle Control	1
14	`109` Rear Hood	2
15	`029` Clutch Release Control	1
21	`035` Gearbox Controls	2
37	`059` Clutch Release Control	3
39	`029` Clutch Release Control	3
44	`056` Current Generation	1
