Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Rear Suspension - Shock Absorber (diagram 033)

Exploded view of the rear suspension - shock absorber on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

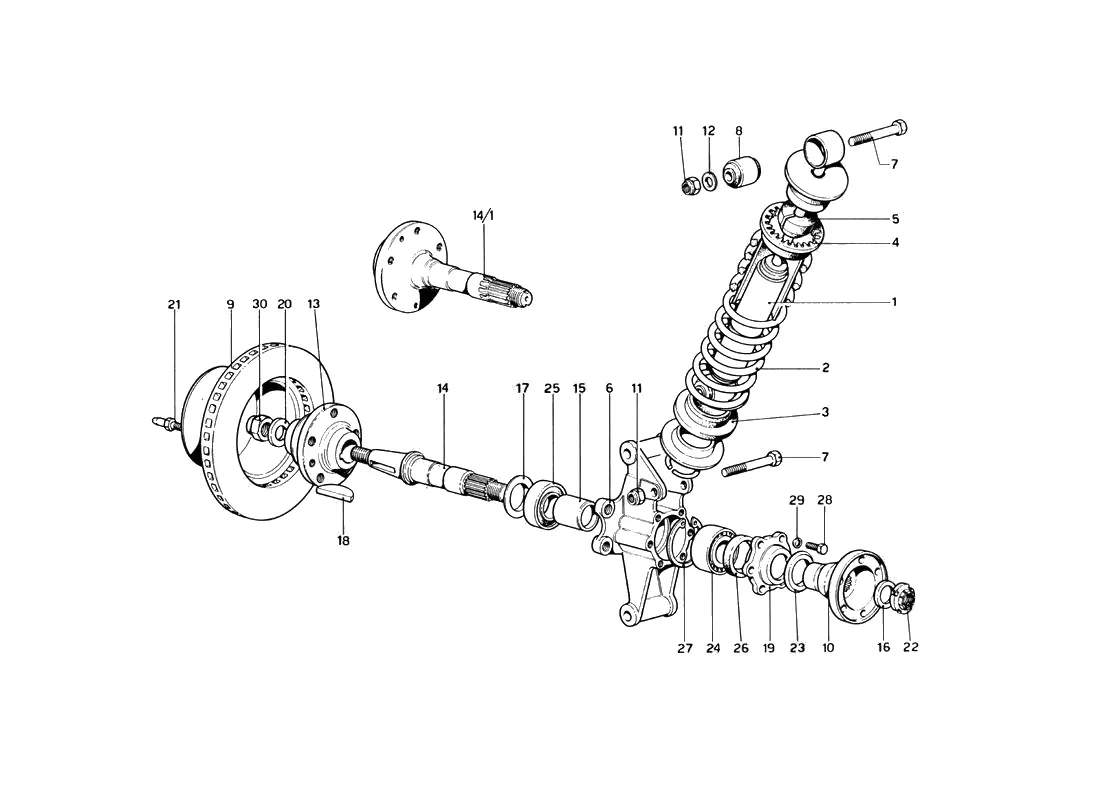

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Rear Suspension - Shock Absorber exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1601988Ferrari 246 Rear Shock Absorber - 601988Price on requestContact us
2601632Ferrari 246 Rear Springs - 601632F$437.80In stock
3103263/4Ferrari Shock Spring Seat Upper & Lower Pair - 103263/4$79.20In stock
3103264Ferrari Lower Spring Pad - 103264$72.20Available, ships in 3-6 days
4118747Ferrari Shock Absorber Cover - 118747$68.20In stock
4100776Ferrari Shock Absorber Cover - 100776SupersededOrder 118747 instead
5601406Ferrari Rubber - 601406Price on requestContact us for price and availability
6601735Ferrari LH Rear Suspension Upright - 601735Price on requestContact us for price and availability
6601734Ferrari RH Rear Suspension Upright - 601734$717.75Available, ships in 3-6 days
7106419Ferrari Suspension Bolt - 106419$31.35In stock
7601475Ferrari Bolt - 601475SupersededOrder 106419 instead
8100809Ferrari Shock Bushing - 100809$25.25In stock
9104458KITFerrari 308 Rear Brake Pad & Rotor Set - 104458KIT$616.00In stock
9104458/2Ferrari 208/246/308 Rear Brake Rotor Pair (2) - 104458/2$566.50In stock
9681008Ferrari Rear Brake Disc - 681008SupersededOrder 104458 instead
10101631Ferrari Flange - 101631Price on requestContact us for price and availability
11102825Ferrari Locking Suspension Nut - 102825$1.10In stock
1195900617Ferrari Nyloc Nut - 95900617SupersededOrder 102825 instead
12101445Ferrari Washer - 101445$1.17Available, ships in 3-6 days
13700578Ferrari Hub - 700578SupersededOrder 700729 instead
13700729Ferrari Rear Hub Shaft - 700729$2,481.26Available, ships in 3-6 days
14700624Ferrari Rear Hub - 700624Price on requestContact us for price and availability
14700652Ferrari Rear Hub - 700652Price on requestContact us for price and availability
15700579Ferrari Spacer - 700579$74.08Available, ships in 3-6 days
16105511Ferrari Washer - 105511Price on requestContact us for price and availability
16102291Ferrari Washer - 102291$15.98Available, ships in 3-6 days
17104355Ferrari Dust Cover - 104355$107.30Special order, ships in 7-14 days
18104356Ferrari Woodruff Key - 104356$8.89Available, ships in 3-6 days
19700626Ferrari Flange - 700626$221.15Available, ships in 3-6 days
20104357Ferrari Washer - 104357$31.70Available, ships in 3-6 days
21700741Ferrari Wheel Fixing Screw/Pin - 700741Price on requestContact us for price and availability
22102289Ferrari Ring Nut - Rear Suspension - 102289$36.14In stock
23700625Ferrari Dust Cover - 700625$43.36Available, ships in 3-6 days
2495890403Ferrari Double Ball Bearing Rear Wheel - 95890403$127.47Available, ships in 3-6 days
25101220Ferrari Rear Outer Wheel Bearing - 101220$79.20In stock
25101220KIT1Ferrari 308 2V Rear Wheel Bearing & Seal Kit - 101220KIT1$181.50In stock
25101220KIT2Ferrari 308 QV Rear Wheel Bearing & Seal Kit - 101220KIT2$181.50In stock
2695850313Ferrari 246 Rear Hub Oil Seal - 95850313$38.50In stock
2711061576Ferrari Circlip - 11061576$3.47Available, ships in 3-6 days
2816043424Ferrari Bolt M8 x 20 - 16043424$0.38Available, ships in 3-6 days
2816043421Ferrari Bolt - 16043421SupersededOrder 16043424 instead
29127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
2910516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
3014044371Ferrari Nut - 14044371$32.41Available, ships in 3-6 days
601171Ferrari 206Gt Rear Shock Absorber - 601171$344.42Available, ships in 3-6 days
100808Ferrari Bolt - 100808SupersededOrder 106419 instead
119373Ferrari Drive Flange - 119373$699.37Available, ships in 3-6 days
111522Ferrari Flange - 111522Price on requestContact us for price and availability
119377Ferrari Flange - 119377$903.71Special order, ships in 7-14 days
580723Ferrari Flange - 580723Price on requestContact us for price and availability
600925Ferrari Shock Absorber Cover - 600925SupersededOrder 118747 instead
700406Ferrari Washer - 700406$46.11Available, ships in 3-6 days

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
