Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Current Generating System - Starting Motor (diagram 037)

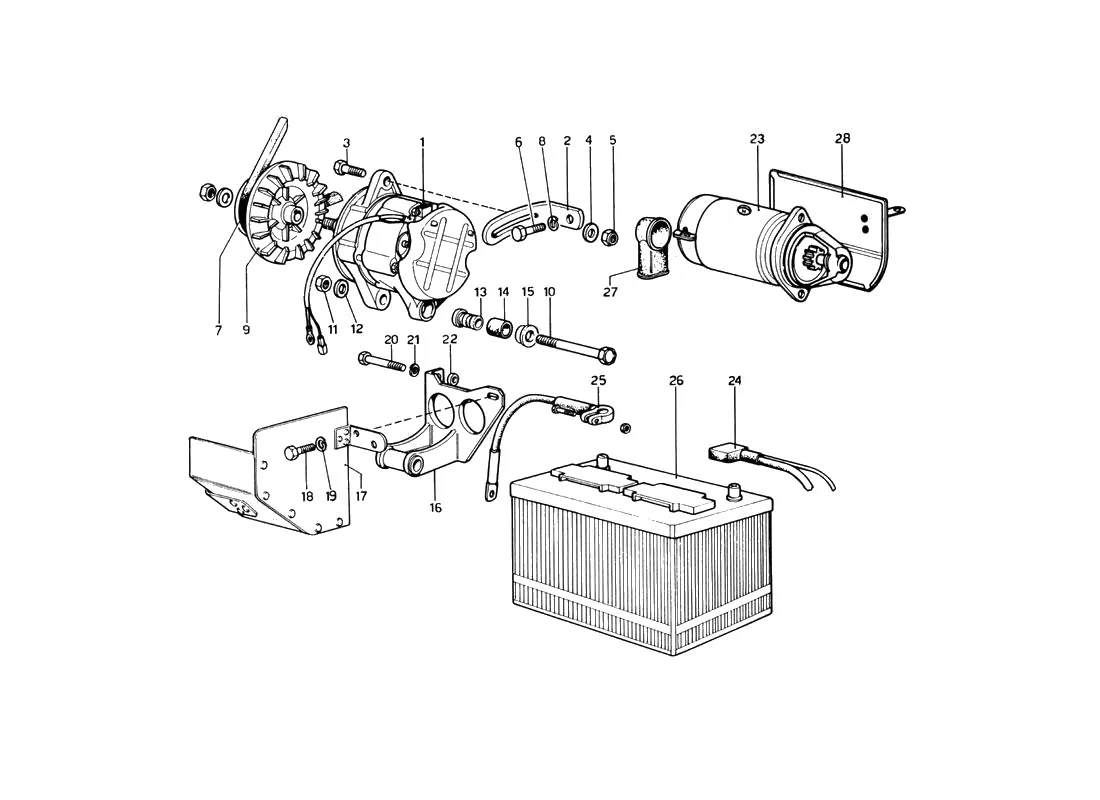

Exploded view of the current generating system - starting motor on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/037.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 300074 | Ferrari 206/246 Alternator - 300074 | $753.50 | In stock |
| 1 | 300075 | Ferrari Alternator - 300075 | $685.19 | Available, ships in 3-6 days |
| 2 | 300081 | Ferrari Alternator Bracket - 300081 | Price on request | Contact us for price and availability |
| 3 | 11307030 | Ferrari Bolt 10X40 Uni184 - 11307030 | $8.51 | Available, ships in 3-6 days |
| 4 | 300079 | Ferrari Washer - 300079 | Price on request | Contact us for price and availability |
| 5 | 300080 | Ferrari Nut - 300080 | Price on request | Contact us for price and availability |
| 6 | 300084 | Ferrari Bolt - 300084 | Price on request | Contact us for price and availability |
| 7 | 300094 | Ferrari Alternator Belt - 300094 | $80.27 | Available, ships in 3-6 days |
| 7 | 300060 | Ferrari Alternator Belt - 300060 | $80.27 | Available, ships in 3-6 days |
| 8 | 300085 | Ferrari Washer - 300085 | Price on request | Contact us for price and availability |
| 9 | 4247694 | Ferrari Alternator Pulley & Fan - 4247694 | $568.60 | Available, ships in 3-6 days |
| 10 | 300076 | Ferrari Bolt - 300076 | $16.29 | Available, ships in 3-6 days |
| 11 | 300078 | Ferrari Nut - 300078 | Price on request | Contact us for price and availability |
| 12 | 300077 | Ferrari Washer - 300077 | Price on request | Contact us for price and availability |
| 13 | 4085213 | Ferrari Bush - 4085213 | $78.05 | Available, ships in 3-6 days |
| 14 | 105392 | Ferrari Bush - 105392 | $30.42 | Available, ships in 3-6 days |
| 14 | 4085212 | Ferrari Bush - 4085212 | $30.42 | Available, ships in 3-6 days |
| 15 | 300083 | Ferrari Bush - 300083 | Price on request | Contact us for price and availability |
| 16 | 30981 | Ferrari Support - 30981 | Price on request | Contact us for price and availability |
| 16 | 300059 | Ferrari Support - 300059 | Price on request | Contact us for price and availability |
| 17 | 300027 | Ferrari Heat Shield - Alternator - 300027 | $290.33 | Available, ships in 3-6 days |
| 17 | 300015 | Ferrari Heat Shield - 300015 | Price on request | Contact us for price and availability |
| 18 | 15970721 | Ferrari Bolt M10 x 1.25 x 25 UNI 5740 - 15970721 | $0.71 | Available, ships in 3-6 days |
| 19 | 127497 | Ferrari Spring Washer 10mm - 127497 | $0.69 | In stock |
| 19 | 10516871 | Ferrari Washer - 10516871 | Superseded | Order 127497 instead |
| 21 | 127496 | Ferrari Spring Washer 8mm - 127496 | $0.12 | Available, ships in 3-6 days |
| 21 | 10516670 | Ferrari Spring Washer 8mm - 10516670 | Superseded | Order 127496 instead |
| 22 | 300033 | Ferrari Spacer - 300033 | $21.26 | Available, ships in 3-6 days |
| 22 | 30986 | Ferrari Spacer - 30986 | $29.36 | Special order, ships in 7-14 days |
| 23 | 13243 | Ferrari 246 Starter Motor - 13243 | $863.50 | In stock |
| 23 | 13243HT | Ferrari 246 High Torque Starter Motor - 13243HT | $596.05 | In stock |
| 23 | 13243/X | Ferrari Starter Motor - 13243/X | $3,342.27 | Available, ships in 3-6 days |
| 24 | 400048 | Ferrari Cable 1320mm - 400048 | Price on request | Contact us for price and availability |
| 25 | 400049 | Ferrari Cable 360mm - 400049 | Price on request | Contact us for price and availability |
| 26 | 24603065 | Ferrari 246 Battery Cover - 24603065 | $141.90 | In stock |
| 27 | 100457 | Ferrari Cable Cover - 100457 | $204.43 | Special order, ships in 7-14 days |
| 28 | 13237 | Ferrari Heat Shield - Starter Motor - 13237 | $215.17 | Available, ships in 3-6 days |
| 107547 | Ferrari Battery Earth Cable - 107547 | $107.05 | Special order, ships in 7-14 days | |
| 13195 | Ferrari Cable Cover - 13195 | Price on request | Contact us for price and availability | |
| - | 300082 | Ferrari Alternator Bush Complete - 300082 | Price on request | Contact us for price and availability |
| - | 300065 | Ferrari Regulator - 300065 | Price on request | Contact us for price and availability |
| - | 300086 | Ferrari Regulator - 300086 | Price on request | Contact us for price and availability |
