Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Air Pump & Alternator (Variants For Usa Versions) (diagram 044)

Exploded view of the air pump & alternator (variants for usa versions) on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 77 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

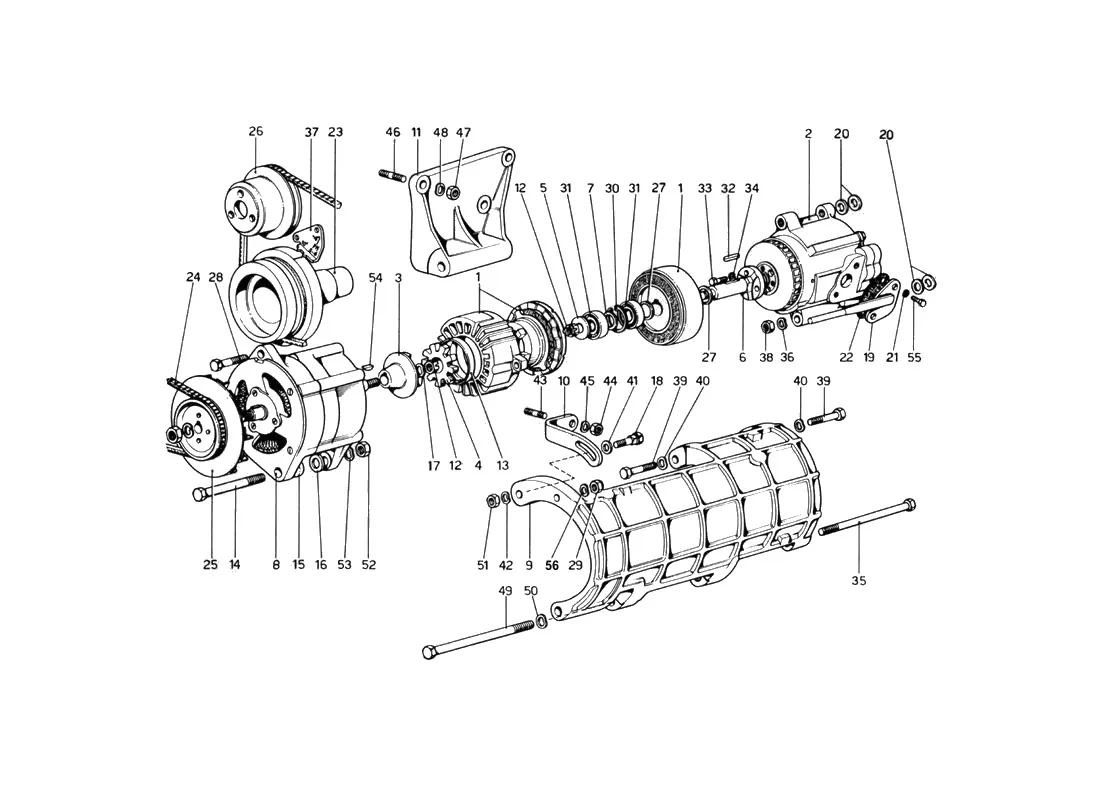

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Air Pump & Alternator (Variants For Usa Versions) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1350110Ferrari Air Pump Assy - 350110Price on requestContact us for price and availability
1350208Ferrari Air Pump Clutch - 350208$2,422.98Available, ships in 3-6 days
2350277Ferrari Air Pump - 350277Price on requestContact us for price and availability
3350120Ferrari Drive Flange - 350120$164.14Available, ships in 3-6 days
3350120/UFerrari Drive Flange - 350120/U$163.19Available, ships in 3-6 days
4350202Ferrari Joint - 350202Price on requestContact us for price and availability
5350117Ferrari Spacer - 350117$9.53Available, ships in 3-6 days
6350118Ferrari Air Pump Shaft - 350118Price on requestContact us for price and availability
7350044Ferrari Spacer - 350044Price on requestContact us for price and availability
8350276Ferrari Alternator GCA119 - 350276Price on requestContact us for price and availability
9350111Ferrari Air Pump Casing 246 Gt - 350111Price on requestContact us for price and availability
10350119Ferrari Bracket - 350119Price on requestContact us for price and availability
11350114Ferrari Air Pump Bracket - 350114$506.13Available, ships in 3-6 days
11350114/UFerrari Air Pump Bracket - 350114/U$503.14Available, ships in 3-6 days
12104011Ferrari Self Locking Nut 10x1mm - 104011$21.77Available, ships in 3-6 days
13350180Ferrari Ring - 350180Price on requestContact us for price and availability
14350204Ferrari Bolt - 350204Price on requestContact us for price and availability
15350205Ferrari Distance Piece - 350205Price on requestContact us for price and availability
1710519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
1710519620Ferrari Washer - 10519620SupersededOrder 10519624 instead
18350210Ferrari Bolt - 350210Price on requestContact us for price and availability
19350213Ferrari Air Pulley Assy - 350213Price on requestContact us for price and availability
19350355Ferrari Air Pulley Assy - 350355Price on requestContact us for price and availability
20350214Ferrari Distance Piece - 350214Price on requestContact us for price and availability
2195930510Ferrari Washer 7R4 - 95930510$0.59Available, ships in 3-6 days
2112603871Ferrari Wavy Washer 7mm - 12603871$0.59Available, ships in 3-6 days
22350091Ferrari Gasket - 350091Price on requestContact us for price and availability
2312789Ferrari 246 Damper Pulley A/C version - 12789$1,843.23Available, ships in 3-6 days
2312790Ferrari Pulley 246 Usa - 12790$1,843.23Available, ships in 3-6 days
24350280Ferrari 246 Water Pump - 350280$53.90In stock
25300058Ferrari Pulley Fan - 300058$447.81Available, ships in 3-6 days
25300050Ferrari Pulley Fan - 300050$233.20Available, ships in 3-6 days
2626830Ferrari Pulley - 26830$225.11Available, ships in 3-6 days
27350252Ferrari Spacer - 350252Price on requestContact us for price and availability
2816044124Ferrari Screw M8 x 45 - 16044124$1.02Available, ships in 3-6 days
2816044121Ferrari Screw - 16044121$1.02Available, ships in 3-6 days
29104030Ferrari/Maserati Nut - 104030$0.88In stock
2916104121Ferrari Nyloc Nut - 16104121SupersededOrder 104030 instead
3011059476Ferrari Circlip - 11059476$0.52Available, ships in 3-6 days
3195890900Ferrari Sealed Ball Bearing - 95890900$27.12Available, ships in 3-6 days
3295900206Ferrari Woodruff Key 5x5x25 - 95900206$3.41Available, ships in 3-6 days
3395940218Ferrari Bolt - 95940218Price on requestContact us for price and availability
3410516570Ferrari Washer/Shim - 10516570Price on requestContact us for price and availability
3595533Ferrari Bolt - 95533Price on requestContact us for price and availability
3612601371Ferrari Washer - 12601371$0.06Available, ships in 3-6 days
3612601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
3712786Ferrari Timing Plate - 12786Price on requestContact us for price and availability
3816102314Ferrari Nut M8 x 5 - 16102314$0.13Available, ships in 3-6 days
3816100821Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821SupersededOrder 16102314 instead
3995940220Ferrari Bolt - 95940220Price on requestContact us for price and availability
4012601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
4012601471Ferrari Washer - 12601471SupersededOrder 12601474 instead
4110520024Ferrari Washer - 10520024$4.35Available, ships in 3-6 days
4110520021Ferrari Washer - 10520021SupersededOrder 10520024 instead
4313449321Ferrari Stud - 13449321Price on requestContact us for price and availability
4410791021Ferrari Nut LHD - 10791021$1.25Available, ships in 3-6 days
4510516870Ferrari Spring Washer - 10516870Price on requestContact us for price and availability
4613546221Ferrari Stud Bolt - 13546221SupersededOrder 13546224 instead
4995538Ferrari Bolt - 95538Price on requestContact us for price and availability
5012601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
5012646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
52142438Ferrari Nut M12 x 1.25 - 142438$1.65Available, ships in 3-6 days
5216101521Ferrari Nut - 16101521$1.65Available, ships in 3-6 days
5495900201Ferrari Woodruff Key - 95900201Price on requestContact us for price and availability
5595940219Ferrari Bolt - 95940219Price on requestContact us for price and availability
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
11059475Ferrari Circlip - 11059475Price on requestContact us for price and availability
16100825Ferrari Nut - 16100825SupersededOrder 16102314 instead
16102321Ferrari Nut - 16102321Price on requestContact us for price and availability
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
16102311Ferrari RH Thread Nut - 16102311SupersededOrder 16102314 instead
106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
13546224Ferrari Stud - 13546224$30.61Available, ships in 3-6 days
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead
10520001Ferrari Washer - 10520001SupersededOrder 10520024 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
