Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Exhaust System (Variants For Usa Versions) (diagram 047)

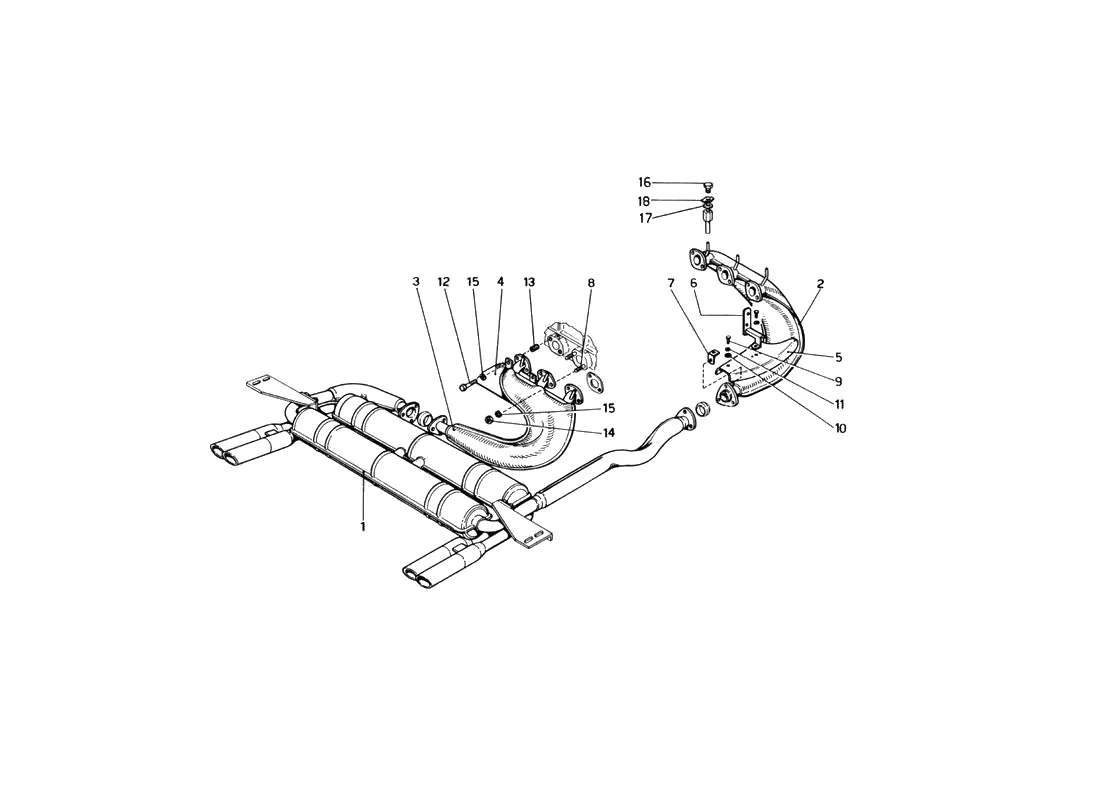

Exploded view of the exhaust system (variants for usa versions) on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 35 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/047.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 20518 | Ferrari Main Silencer USA Specification - 20518 | Price on request | Contact us for price and availability |
| 2 | 20481 | Ferrari 246 Front Exhaust Manifold USA Spec - 20481 | $5,506.04 | Available, ships in 3-6 days |
| 2 | 20481/A | Ferrari 246 Front Exhaust Manifold USA Spec - 20481/A | Price on request | Special order, ships in 7-14 days |
| 3 | 20480 | Ferrari 246GT/S Rear Manifold USA Spec - 20480 | $5,506.04 | Available, ships in 3-6 days |
| 3 | 20480/A | Ferrari 246GT/S Rear Manifold USA Spec - 20480/A | Price on request | Special order, ships in 7-14 days |
| 4 | 13241 | Ferrari Shield - 13241 | Price on request | Contact us for price and availability |
| 5 | 20502 | Ferrari 246Gt Heat Shield Ver/Us - 20502 | $281.25 | Available, ships in 3-6 days |
| 6 | 20503 | Ferrari Heatshield Bracket - 20503 | Price on request | Contact us for price and availability |
| 7 | 20506 | Ferrari Plate - 20506 | $14.13 | Available, ships in 3-6 days |
| 8 | 13544021 | Ferrari Stud - 13544021 | Superseded | Order 13544024 instead |
| 9 | 10902221 | Ferrari Bolt M6 x 16 - 10902221 | $1.92 | Available, ships in 3-6 days |
| 10 | 12639701 | Ferrari Washer - 12639701 | Price on request | Contact us for price and availability |
| 11 | 127494 | Ferrari Lock Washer - 127494 | $0.50 | In stock |
| 11 | 10516470 | Ferrari Washer 6 R 4 - 10516470 | Superseded | Order 127494 instead |
| 12 | 16044321 | Ferrari Screw M8 x 55 - 16044321 | $1.05 | Available, ships in 3-6 days |
| 13 | 105510 | Ferrari Heli Coil - 105510 | Superseded | Order 13525870 instead |
| 14 | 114748 | Ferrari Exhaust Lock Nut - 114748 | $7.85 | In stock |
| 14 | 105938 | Ferrari Brass Nut - 105938 | Superseded | Order 114748 instead |
| 15 | 127496 | Ferrari Spring Washer 8mm - 127496 | $0.12 | Available, ships in 3-6 days |
| 15 | 10516670 | Ferrari Spring Washer 8mm - 10516670 | Superseded | Order 127496 instead |
| 16 | 20429 | Ferrari Bolt - 20429 | Superseded | Order 103748 instead |
| 17 | 103749 | Ferrari Exhaust System Washer - 103749 | $0.55 | In stock |
| 18 | 103587 | Ferrari Locktab - 103587 | $14.45 | Available, ships in 3-6 days |
| 103748 | Ferrari Brass Bolt - 103748 | $22.56 | Available, ships in 3-6 days | |
| 100115 | Ferrari Brass Exhaust Nut - 100115 | Superseded | Order 114748 instead | |
| 124525 | Ferrari Brass Exhaust Nut - 124525 | Superseded | Order 114748 instead | |
| 108272 | Ferrari Lock Nut - 108272 | Superseded | Order 114748 instead | |
| 14499370 | Ferrari Lock Washer - 14499370 | Price on request | Contact us for price and availability | |
| 4155314 | Ferrari Nut - 4155314 | Superseded | Order 114748 instead | |
| 9162124 | Ferrari Nut - 9162124 | Superseded | Order 114748 instead | |
| 95304 | Ferrari Nut - 95304 | Superseded | Order 114748 instead | |
| 103299 | Ferrari Spacer - 103299 | Price on request | Contact us for price and availability | |
| 740291 | Ferrari Spacer - 740291 | Price on request | Contact us for price and availability | |
| 106850 | Ferrari Spring Washer 6mm - 106850 | Superseded | Order 127494 instead | |
| 13544024 | Ferrari Stud 8x16 Stem 50 - 13544024 | $1.36 | Available, ships in 3-6 days |
