Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Brake Hydraulic System On Wheels (Variants For Usa Versions) (diagram 050)

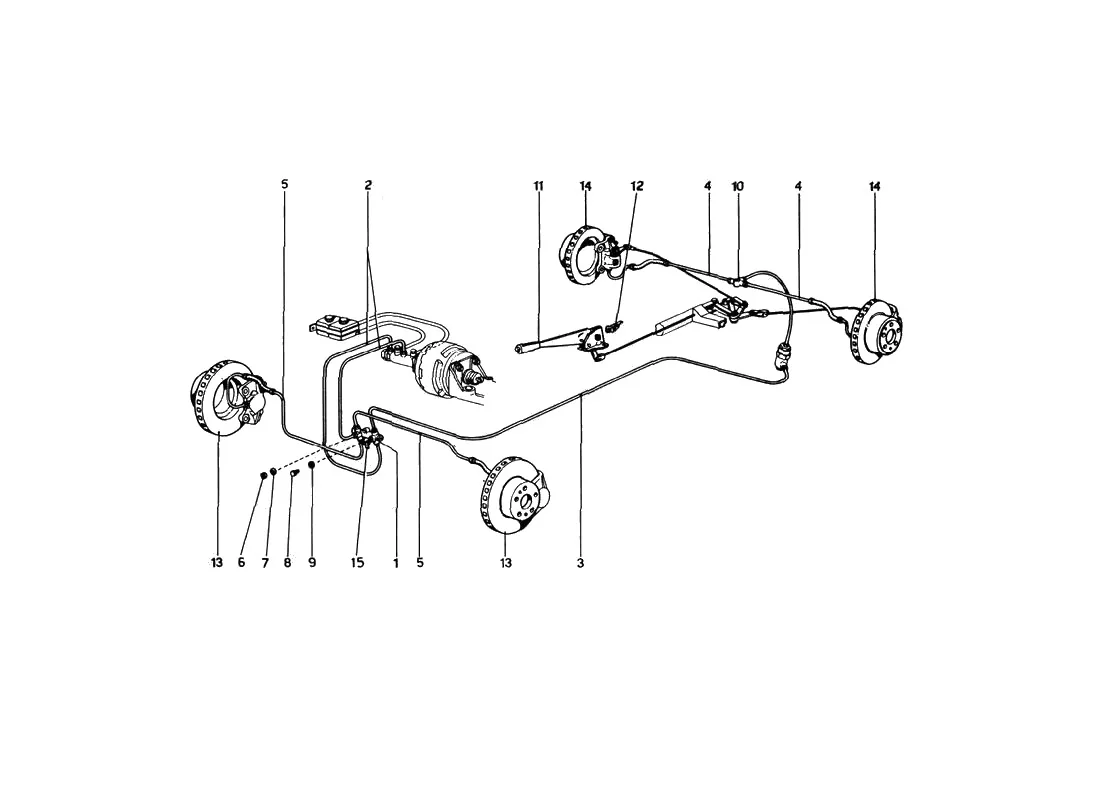

Exploded view of the brake hydraulic system on wheels (variants for usa versions) on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/050.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 101415 | Ferrari Brake Balance Valve F/R - 101415 | Price on request | Contact us for price and availability |
| 2 | 104469 | Ferrari RH Brake Pipe - 104469 | Price on request | Contact us for price and availability |
| 3 | 104471 | Ferrari Brake Line - 104471 | $22.46 | Available, ships in 3-6 days |
| 3 | 681059 | Ferrari Brake Line - 681059 | Price on request | Contact us for price and availability |
| 4 | 104470 | Ferrari RH Small Pipe - 104470 | Superseded | Order 680850 instead |
| 4 | 680850 | Ferrari Tube - 680850 | $18.65 | Available, ships in 3-6 days |
| 6 | 16102314 | Ferrari Nut M8 x 5 - 16102314 | $0.13 | Available, ships in 3-6 days |
| 6 | 16100821 | Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821 | Superseded | Order 16102314 instead |
| 7 | 127496 | Ferrari Spring Washer 8mm - 127496 | $0.12 | Available, ships in 3-6 days |
| 7 | 10516670 | Ferrari Spring Washer 8mm - 10516670 | Superseded | Order 127496 instead |
| 8 | 106368 | Ferrari Plug - 106368 | $3.39 | Available, ships in 3-6 days |
| 9 | 10260160 | Ferrari Copper Washer D. 10 - 14 x 1 - 10260160 | $1.99 | Available, ships in 3-6 days |
| 10 | 101394 | Ferrari 3-Way Union - 101394 | $177.28 | Available, ships in 3-6 days |
| 11 | 680966 | Ferrari Hand Brake Lever - 680966 | Price on request | Contact us for price and availability |
| 12 | 101188 | Ferrari Handbrake Switch - 101188 | $6.73 | Available, ships in 3-6 days |
| 12 | 802-80-816-00 | Ferrari Glove Box Switch - 802-80-816-00 | $6.60 | Available, ships in 3-6 days |
| 13 | 681007/2 | Ferrari 246 Front Brake Rotor Pair (2) - 681007/2 | $706.30 | In stock |
| 14 | 104458KIT | Ferrari 308 Rear Brake Pad & Rotor Set - 104458KIT | $616.00 | In stock |
| 14 | 104458/2 | Ferrari 208/246/308 Rear Brake Rotor Pair (2) - 104458/2 | $566.50 | In stock |
| 14 | 681008 | Ferrari Rear Brake Disc - 681008 | Superseded | Order 104458 instead |
| 15 | 107621 | Ferrari Brake Light Sender Unit - 107621 | $643.50 | In stock |
| 680980 | Ferrari 3-Way Union - 680980 | Superseded | Order 101394 instead | |
| 16100825 | Ferrari Nut - 16100825 | Superseded | Order 16102314 instead | |
| 16102321 | Ferrari Nut - 16102321 | Price on request | Contact us for price and availability | |
| 16102311 | Ferrari RH Thread Nut - 16102311 | Superseded | Order 16102314 instead | |
| 105949 | Ferrari Switch - 105949 | Price on request | Contact us for price and availability | |
| 680990 | Ferrari Switch - 680990 | Price on request | Contact us for price and availability | |
| 680854 | Ferrari Tube - 680854 | Price on request | Contact us for price and availability | |
| 680979 | Ferrari Valve - 680979 | Price on request | Contact us for price and availability |
