Ferrari 275 GTS — Gearbox Casing - Differential (diagram 014)

Exploded view of the gearbox casing - differential on the Ferrari 275 GTS, with 69 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

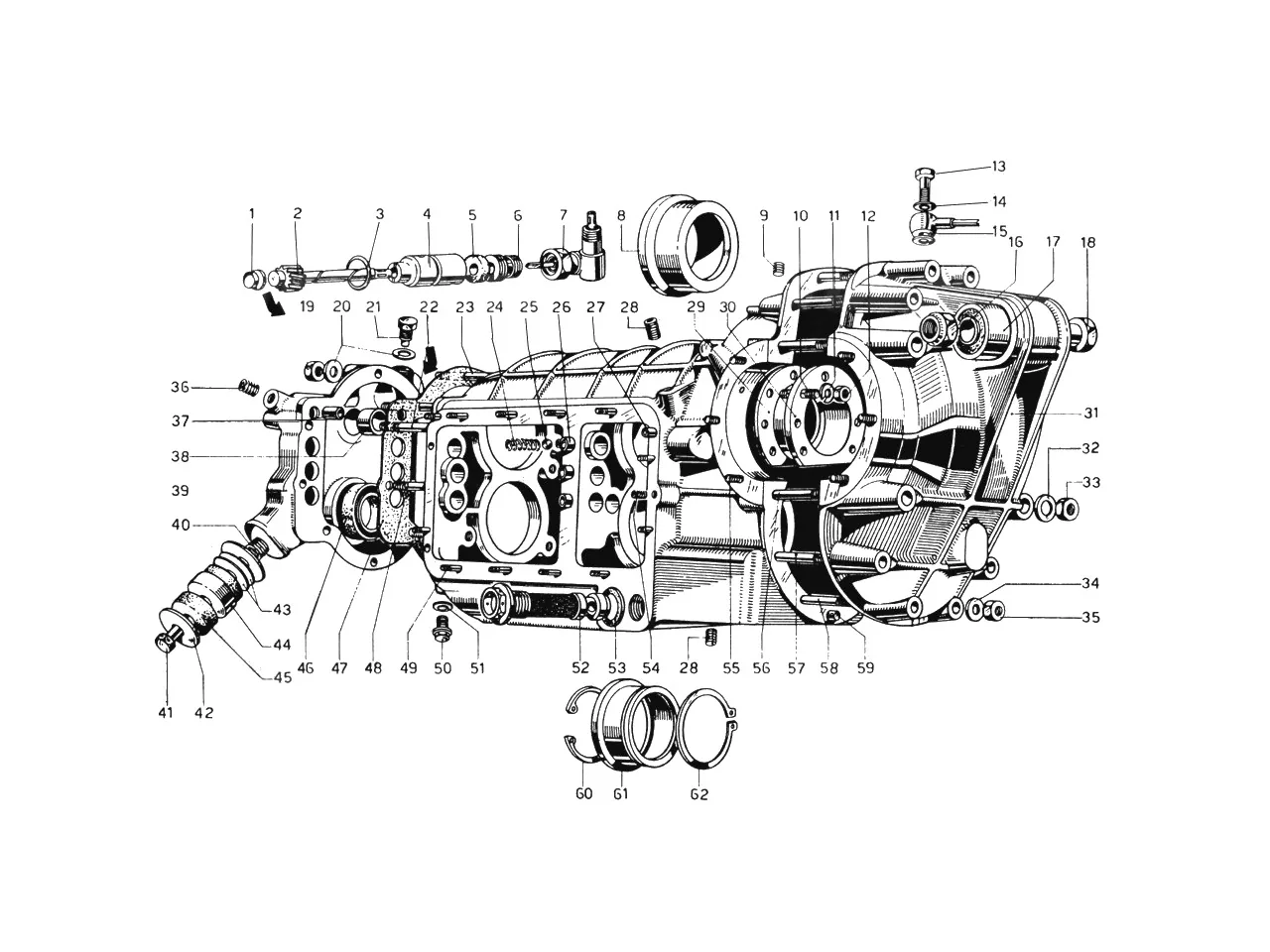

Ferrari 275 GTS Gearbox Casing - Differential exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1520708Ferrari Button - 520708SupersededOrder 101354 instead
1101354Ferrari Location Peg - 101354$36.99Available, ships in 3-6 days
2520765Ferrari Speedo Drive Pinion 10/33 - 520765Price on requestContact us for price and availability
2520923Ferrari Speedo Drive Pinion 9/32 - 520923Price on requestContact us for price and availability
2520988Ferrari Speedo Drive Pinion 7/32 - 520988Price on requestContact us for price and availability
395860096Ferrari O-Ring - 95860096$5.63Available, ships in 3-6 days
4520704Ferrari Speedo Drive Housing - 520704Price on requestContact us for price and availability
595850001Ferrari Speedometer Drive Oil Seal - 95850001$7.10In stock
6520707Ferrari Speedo Drive Housing - 520707$109.71Available, ships in 3-6 days
7101353Ferrari Angle Drive - 101353$7,749.30Available, ships in 3-6 days
795400403Ferrari Angle Drive - 95400403Price on requestContact us for price and availability
8520696Ferrari Carrier - 520696Price on requestContact us for price and availability
1095920403Ferrari Stud 8X16 P2 - 95920403Price on requestContact us for price and availability
11127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
1110516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
1295900504Ferrari Nut M8 D2 - 95900504$0.96Available, ships in 3-6 days
1392929Ferrari Banjo Bolt Oil - 92929Price on requestContact us for price and availability
1495910602Ferrari Fibre Washer - 95910602Price on requestContact us for price and availability
1561425Ferrari Transaxle Breather Union - 61425Price on requestContact us for price and availability
1612575911Ferrari Nyloc Nut - 12575911Price on requestContact us for price and availability
1794073Ferrari 250Gte/L330gtmk1+2Silent Bloc - 94073$81.19Available, ships in 3-6 days
1795930801Ferrari Silentbloc SAGA 7324.80993 - 95930801$145.69Available, ships in 3-6 days
18520165Ferrari Bolt - 520165Price on requestContact us for price and availability
1995900505Ferrari Nut M8 D4 - 95900505$0.96Available, ships in 3-6 days
2012601371Ferrari Washer - 12601371$0.06Available, ships in 3-6 days
2012601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
21520709Ferrari Bolt - 520709SupersededOrder 101349 instead
21101349Ferrari Bolt - 101349$21.24Available, ships in 3-6 days
2295920422Ferrari Stud 8X75 P2 - 95920422$31.05Available, ships in 3-6 days
2395920417Ferrari Stud 8X50 P2 - 95920417$2.70Available, ships in 3-6 days
2453684Ferrari Selector Spring - 53684$75.59Available, ships in 3-6 days
25101612Ferrari Ball - 101612$1.96Available, ships in 3-6 days
2653123Ferrari Bush - 53123SupersededOrder 100749 instead
26100749Ferrari Bush - 100749$98.71Available, ships in 3-6 days
27MC2063/6Ferrari Dowel 8x12 GC2 - MC2063/6$3.68Available, ships in 3-6 days
29520692Ferrari Shim Refer To Sizes /1 To /12 - 520692$109.19Available, ships in 3-6 days
29520692/9Ferrari Shim 2.50mm - 520692/9$108.54Available, ships in 3-6 days
30520693Ferrari Carrier - 520693Price on requestContact us for price and availability
31520646Ferrari Rear Cover Only - 520646Price on requestContact us for price and availability
3212601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
3212601470Ferrari Washer - 12601470SupersededOrder 12601474 instead
3395900508Ferrari Nut 10 D4 - 95900508Price on requestContact us for price and availability
36101639Ferrari Grub Screw - 101639$1.80Available, ships in 3-6 days
37100041Ferrari Dowel - 100041$14.22Available, ships in 3-6 days
38520686Ferrari Bush - 520686$30.48Special order, ships in 7-14 days
39520645Ferrari Front Cover Only - 520645Price on requestContact us for price and availability
4095870308Ferrari Insert 12BF2 - 95870308Price on requestContact us for price and availability
4195881053Ferrari Bolt - 95881053Price on requestContact us for price and availability
42520163Ferrari Washer - 520163Price on requestContact us for price and availability
4355335Ferrari Washer - 55335Price on requestContact us for price and availability
44520938Ferrari Cup - 520938Price on requestContact us for price and availability
45100734Ferrari Bush - 100734$77.76Available, ships in 3-6 days
45520641Ferrari Rubber - 520641SupersededOrder 100734 instead
4695850220Ferrari Oil Seal - 95850220$4.91Available, ships in 3-6 days
47520648Ferrari Gasket - 520648$29.63Available, ships in 3-6 days
4995920110Ferrari Stud 6X22 P1 - 95920110Price on requestContact us for price and availability
5195910601Ferrari Fibre Washer 8GR2 - 95910601$1.23Available, ships in 3-6 days
52520687Ferrari Gearbox Drain Plug/Filter - 520687$514.99In stock
53102645Ferrari Copper Washer - 102645$3.03In stock
53520161Ferrari Copper Washer - 520161SupersededOrder 102645 instead
5595920404Ferrari Stud 8X18 P6 - 95920404Price on requestContact us for price and availability
60520694Ferrari Internal Circlip - 520694Price on requestContact us for price and availability
61520691Ferrari Carrier - 520691$87.17Available, ships in 3-6 days
62520695Ferrari External Circlip - 520695$45.65Available, ships in 3-6 days
524541Ferrari Angle Drive - 524541SupersededOrder 101353 instead
100735Ferrari Cup - 100735Price on requestContact us for price and availability
12575915Ferrari Nyloc Nut 16X1.5 - 12575915$5.50Available, ships in 3-6 days
104283Ferrari Washer - 104283SupersededOrder 102645 instead
-95400703Ferrari Speedo Cable Tr.065 X 2000 - 95400703Price on requestContact us for price and availability

All 275 GTS diagrams
