Ferrari 275 GTS — Pedal Box (diagram 022)

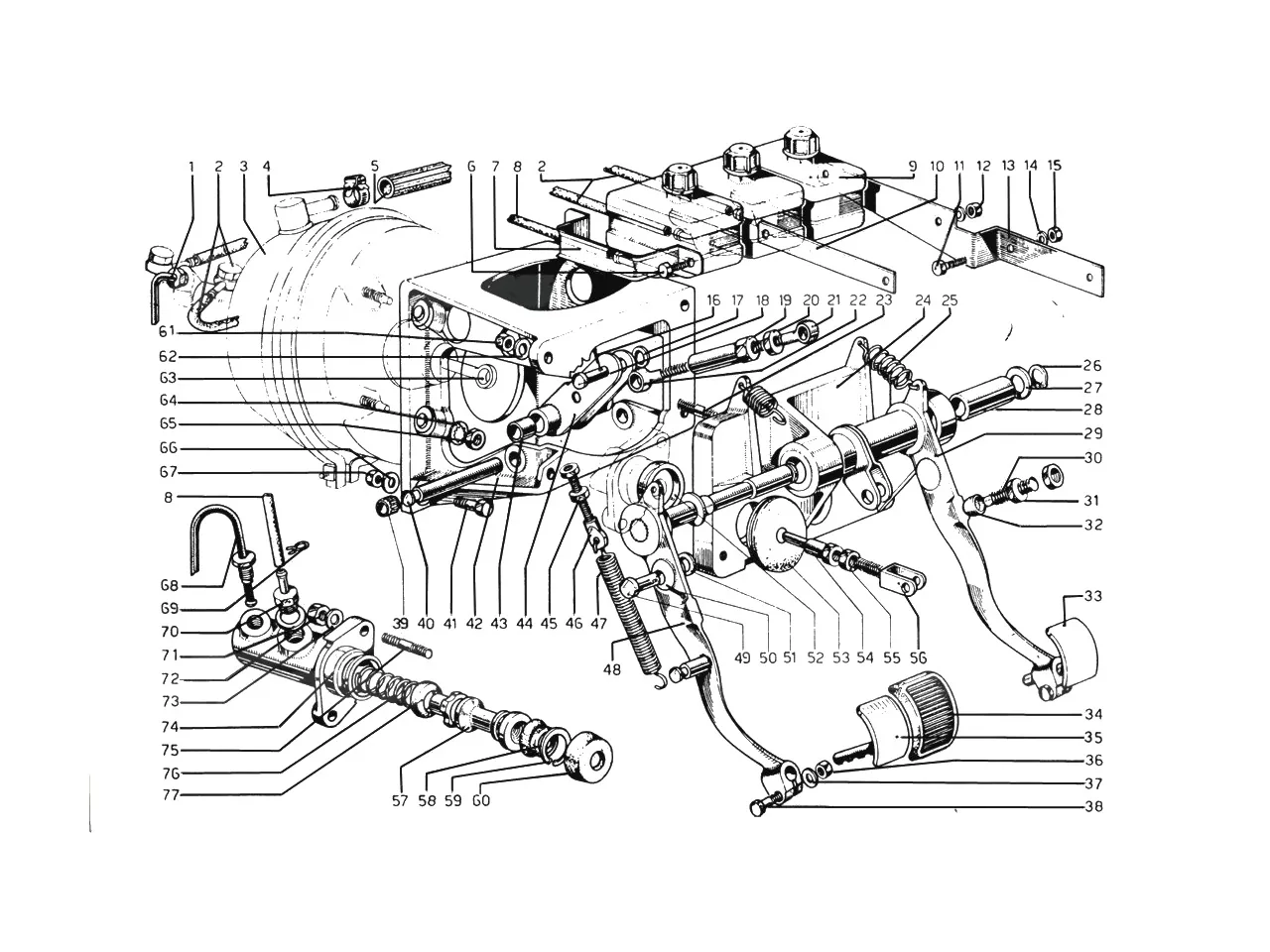

Exploded view of the pedal box on the Ferrari 275 GTS, with 74 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 275 GTS Pedal Box exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1680124Ferrari Oil Pipe - 680124Price on requestContact us for price and availability
2680150Ferrari Rubber Tube - 680150Price on requestContact us for price and availability
3MC3111/1Ferrari Dunlop Servo C 48 - MC3111/1Price on requestSpecial order, ships in 7-14 days
494101Ferrari Clip - 94101Price on requestContact us for price and availability
7660444Ferrari 275B/Resv Bracket - 660444Price on requestContact us for price and availability
8660197Ferrari Rubber Tube - 660197Price on requestContact us for price and availability
9660442Ferrari Brake Reservoir - 660442SupersededOrder 103168 instead
10680179Ferrari Bracket - 680179Price on requestContact us for price and availability
1215896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
13680149Ferrari Reservoir Bracket 275GTB - 680149Price on requestContact us for price and availability
13680167Ferrari Reservoir Bracket 275GTS - 680167Price on requestContact us for price and availability
14127494Ferrari Lock Washer - 127494$0.50In stock
1410516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
17100964Ferrari Washer - 100964Price on requestContact us for price and availability
18660169Ferrari Clevis Pin - 660169$29.00Available, ships in 3-6 days
19660168Ferrari Adjuster - 660168Price on requestContact us for price and availability
21660167Ferrari RH Tie Rod - 660167Price on requestContact us for price and availability
22660166Ferrari Adjuster - 660166Price on requestContact us for price and availability
2395920108Ferrari Stud 6x18 P5 - 95920108Price on requestContact us for price and availability
24660151Ferrari Spacer - 660151SupersededOrder 101313 instead
24101313Ferrari Spacer - 101313$46.73Available, ships in 3-6 days
25660312Ferrari Spring - 660312$53.53Special order, ships in 7-14 days
2611066676Ferrari Circlip - 11066676$0.34Available, ships in 3-6 days
27660177Ferrari Washer - 660177Price on requestContact us for price and availability
28660176Ferrari Spacer - 660176Price on requestContact us for price and availability
29660152Ferrari Brake Pedal Lever - 660152Price on requestContact us for price and availability
3094930Ferrari Dowel Pin - 94930Price on requestContact us for price and availability
31103181Ferrari Nut 8x1 - 103181$3.79Available, ships in 3-6 days
3267505Ferrari Rubber Nipple - 67505$30.80Available, ships in 3-6 days
33660175Ferrari Brake Pedal - 660175Price on requestContact us for price and availability
3467071Ferrari 250/275/330 Clutch & Brake Pedal Pad - 67071$49.98In stock
35660174Ferrari Clutch Pedal - 660174Price on requestContact us for price and availability
37127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
3710516670Ferrari Spring Washer 8mm - 10516670SupersededOrder 127496 instead
3895880515Ferrari Bolt 8X28 B2 - 95880515$3.07Available, ships in 3-6 days
3995850605Ferrari Compensator Ring Bush - 95850605$1.11Available, ships in 3-6 days
40660162Ferrari Pin - 660162Price on requestContact us for price and availability
42660345Ferrari Support - 660345Price on requestContact us for price and availability
43660347Ferrari Bush - 660347$9.90Available, ships in 3-6 days
44660309Ferrari Return Lever - 660309Price on requestContact us for price and availability
46660306Ferrari 365GT 2+2 Brake Pedal Adj Rod - 660306$80.25Available, ships in 3-6 days
47660193Ferrari Pedal Spring - 660193$33.43Available, ships in 3-6 days
48660156Ferrari Clutch Pedal Lever - 660156Price on requestContact us for price and availability
49660165Ferrari Pin - 660165Price on requestContact us for price and availability
52660173Ferrari Spacer - 660173Price on requestContact us for price and availability
53660187Ferrari Grommet - 660187Price on requestContact us for price and availability
54660163Ferrari Plunger - 660163Price on requestContact us for price and availability
5595900413Ferrari Nut Id10 Uni 209 - 95900413Price on requestContact us for price and availability
56660164Ferrari Servo Linkage - 660164Price on requestContact us for price and availability
574093922Ferrari Piston - 4093922$43.60Available, ships in 3-6 days
57660443/5Ferrari Master Cylinder Piston - 660443/5Price on requestSpecial order, ships in 7-14 days
58660443Ferrari Clutch Master Cylinder - 660443$324.50In stock
58660443/6Ferrari Master Cylinder Seal - 660443/6Price on requestSpecial order, ships in 7-14 days
59660443/7Ferrari Master Cylinder Circlip - 660443/7$2.68Available, ships in 3-6 days
604064358Ferrari Dustcover Clutch Master Cyl - 4064358$3.51Available, ships in 3-6 days
60660443/8Ferrari Dust Cover - 660443/8Price on requestSpecial order, ships in 7-14 days
63680140Ferrari Tie Rod - 680140Price on requestContact us for price and availability
68660181Ferrari Brake Hose - 660181Price on requestContact us for price and availability
6994951Ferrari Clip - 94951Price on requestContact us for price and availability
70660443/1Ferrari Master Cylinder Adaptor - 660443/1Price on requestSpecial order, ships in 7-14 days
71660443/2Ferrari Master Cylinder Copper Washer - 660443/2$5.25Available, ships in 3-6 days
7312601371Ferrari Washer - 12601371$0.06Available, ships in 3-6 days
7312601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
7595920405Ferrari Stud 8X20 P2 - 95920405$23.21Available, ships in 3-6 days
764088567Ferrari Master Cylinder Spring - 4088567$8.51Available, ships in 3-6 days
76660443/3Ferrari Spring - 660443/3Price on requestSpecial order, ships in 7-14 days
103168Ferrari Brake Fluid Reservoir - 103168$71.50In stock
95023Ferrari Clip - 95023Price on requestContact us for price and availability
4115453Ferrari Gasket - 4115453$5.12Available, ships in 3-6 days
144-81-852-00Ferrari Sl Switch - 144-81-852-00SupersededOrder 101663 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
4177124Ferrari Stop Switch - 4177124SupersededOrder 101663 instead
660522Ferrari Switch Stop - 660522SupersededOrder 101663 instead
-101663Ferrari Brake Light Switch - 101663$42.85In stock
