Ferrari 296 GTB — [MECHANICAL SYSTEM] - D.31 - STEERING BOX (diagram 0086)

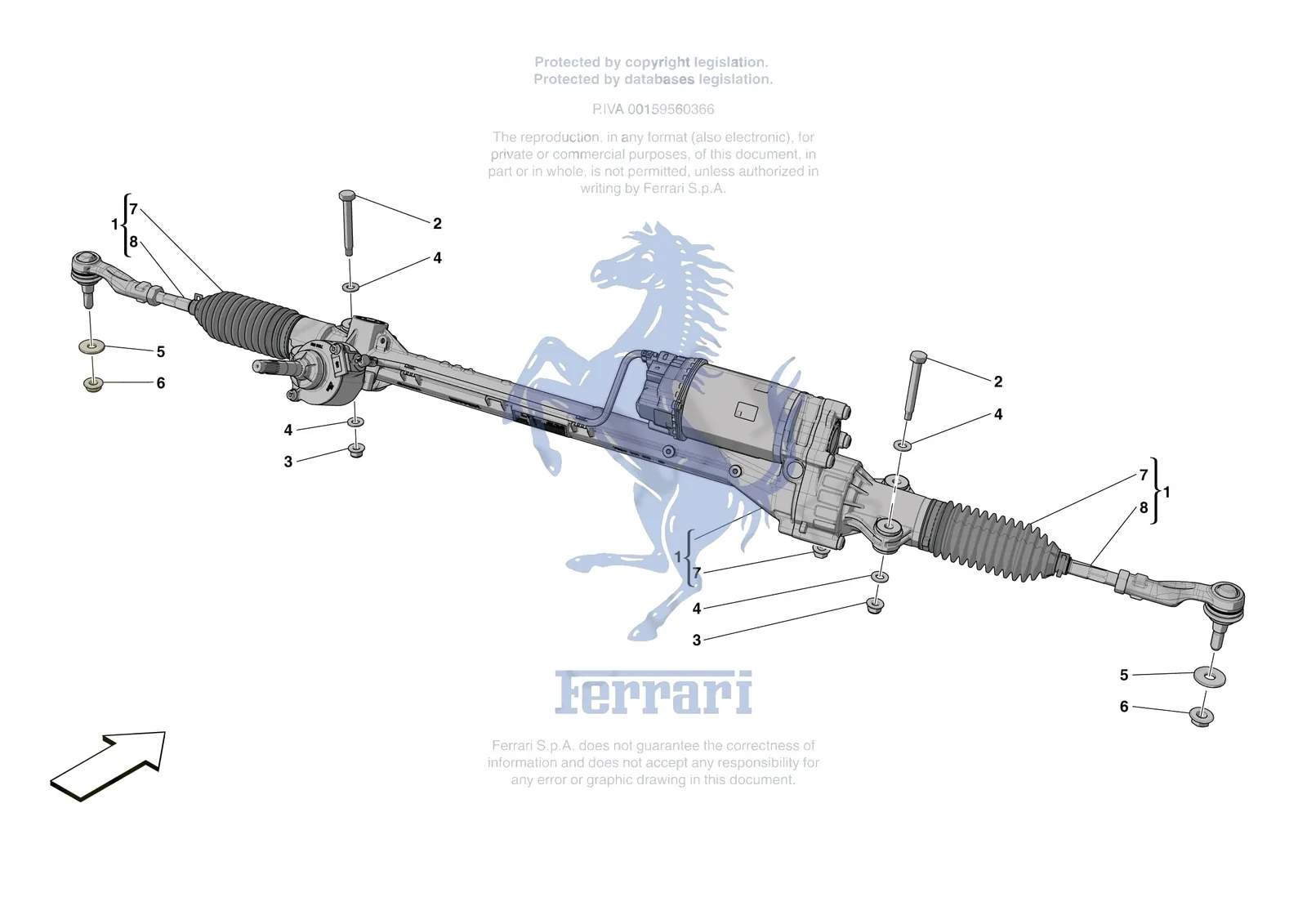

Exploded view of the [mechanical system] - d.31 - steering box on the Ferrari 296 GTB, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [MECHANICAL SYSTEM] - D.31 - STEERING BOX exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0086.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14496609 | Ferrari Steel Washer - 14496609 | Superseded | Order 12646824 instead | |
| 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead | |
| 126648 | Ferrari Washer - 126648 | Superseded | Order 14496624 instead | |
| 14496601 | Ferrari Washer - 14496601 | Superseded | Order 12646824 instead | |
| 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead | |
| 1 | 771714 | Ferrari Compl. Electric Steering Box - 771714 | $14,251.73 | Special order, ships in 7-14 days |
| 1 | 771746 | Ferrari Compl. Electric Steering Box - 771746 | $20,545.54 | Special order, ships in 7-14 days |
| 1 | 774395 | Ferrari Compl. Electric Steering Box - 774395 | $15,120.51 | Special order, ships in 7-14 days |
| 1 | 774396 | Ferrari Compl. Electric Steering Box - 774396 | $20,723.44 | Special order, ships in 7-14 days |
| 2 | 277720 | Ferrari Screw M10 x 1.25 x 80 - 277720 | $7.84 | Available, ships in 3-6 days |
| 3 | 14058621 | Ferrari Flanged Nut M10 x 1.25 x 11.8 - 14058621 | $0.79 | Special order, ships in 7-14 days |
| 4 | 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days |
| 5 | 316032 | Ferrari Washer - 316032 | $3.03 | Available, ships in 3-6 days |
| 6 | 149807 | Ferrari Self-Locking Nut For Top And Bottom Ball Joints - 149807 | $2.13 | Available, ships in 3-6 days |
| 7 | 318847 | Ferrari Steering Box Gaiter Replacem - 318847 | $245.85 | Special order, ships in 7-14 days |
| 8 | 318837 | Ferrari Rod End For Steering Box - 318837 | $1,671.97 | Special order, ships in 7-14 days |
