Ferrari 296 GTB — [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE (diagram 0096)

Exploded view of the [vehicle trim] - e.01.02 - structures and elements centre of vehicle on the Ferrari 296 GTB, with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

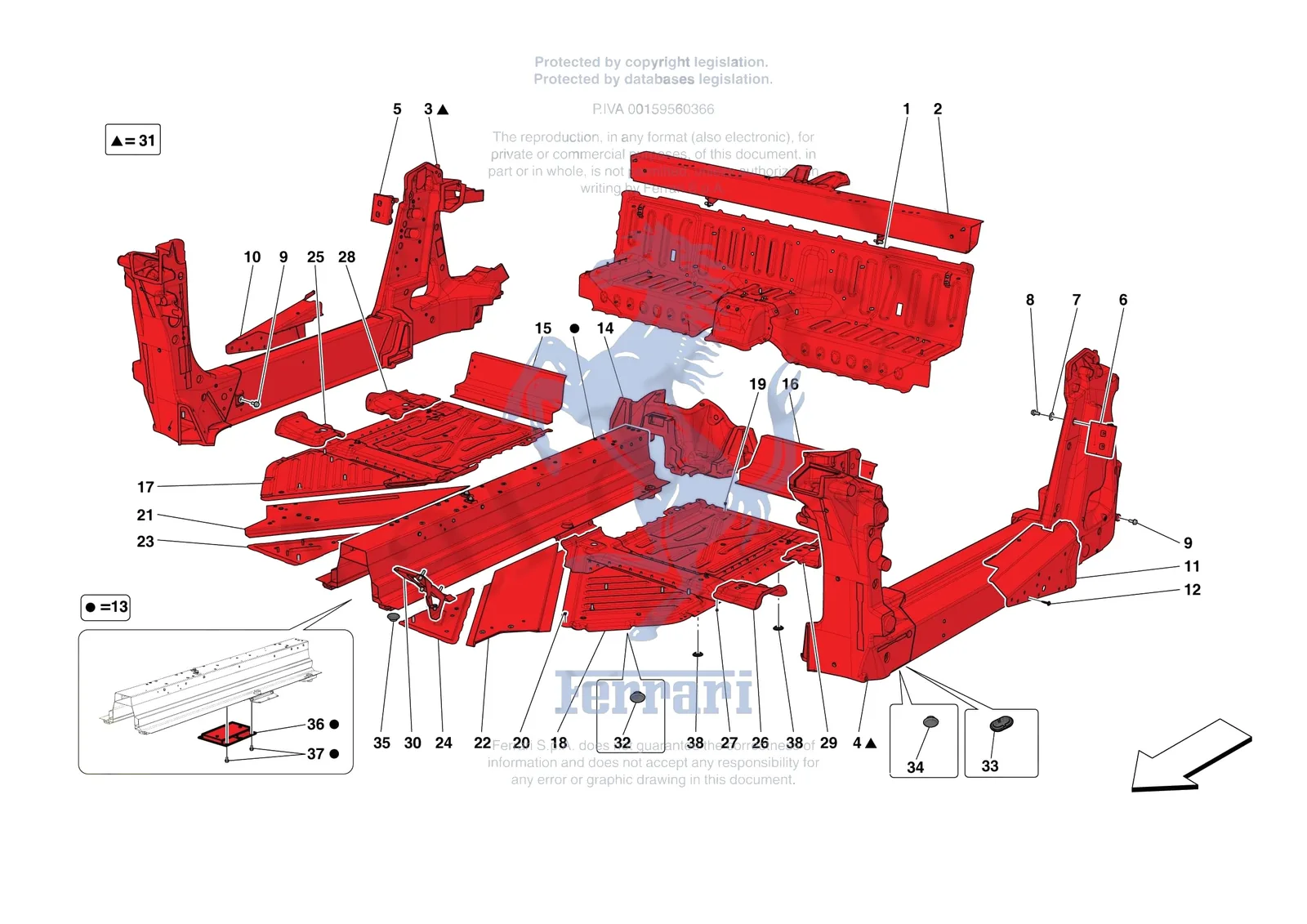

Ferrari 296 GTB [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
84841400Ferrari Adhesive Plug - 84841400SupersededOrder 84832400 instead
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
14496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
1985966586Ferrari Rear Firewall - 985966586$4,802.86Contact us to order
2985966644Ferrari TANK CROSS MEMBER - 985966644Price on requestContact us for price and availability
3985966686Ferrari Center Sidewall Dx Cataforiz - 985966686$24,097.08Contact us to order
4985966692Ferrari Center Sidewall Sx Cataforiz - 985966692$25,325.05Contact us to order
5966526Ferrari RH Lock Striker Reinforcemen - 966526$236.02Special order, ships in 7-14 days
6966603Ferrari LH Lock Striker Reinforcemen - 966603$223.73Special order, ships in 7-14 days
712646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
816287134Ferrari Screw - 16287134$2.13Special order, ships in 7-14 days
916297934Ferrari Flanged Screw M8 x 18 - 16297934$1.30Special order, ships in 7-14 days
10985966582Ferrari RH B-Pillar Truss - 985966582$811.38Special order, ships in 7-14 days
11985966689Ferrari LH B-Pillar Truss - 985966689$811.38Special order, ships in 7-14 days
12330777Ferrari Ejoform Fds M5X25 - 330777$8.72Special order, ships in 7-14 days
13955035306Ferrari Centre Tunnel - 955035306SupersededOrder 985966553 instead
13955035558Ferrari Centre Tunnel - 955035558$10,399.60Contact us to order
13985790808Ferrari Centre Tunnel - 985790808$9,982.77Special order, ships in 7-14 days
13985966553Ferrari Centre Tunnel - 985966553$10,259.10Contact us to order
14985913071Ferrari Compl. Rear Tunnel Casting - 985913071$5,896.45Special order, ships in 7-14 days
15985966612Ferrari RH Rear Floor Cross Member - 985966612$2,271.45Special order, ships in 7-14 days
16985966520Ferrari LH Rear Floor Cross Member - 985966520$2,248.03Special order, ships in 7-14 days
17985966493Ferrari RH Floor Panel - 985966493$5,758.29Contact us to order
18985966562Ferrari LH Floor Panel - 985966562$5,758.29Contact us to order
21955062927Ferrari RH Torque Box Reinforcement - 955062927SupersededOrder 985966635 instead
21985966635Ferrari RH Torque Box Reinforcement - 985966635$1,893.26Special order, ships in 7-14 days
21985790779Ferrari RH TORQUE BOX REINFORCEMENT EXTRUSION - 985790779Price on requestContact us for price and availability
22955062926Ferrari LH Torque Box Reinforcement - 955062926Price on requestContact us for price and availability
22985966698Ferrari LH Torque Box Reinforcement - 985966698$1,770.31Special order, ships in 7-14 days
22985790736Ferrari LH TORQUE BOX REINFORCEMENT EXTRUSION - 985790736Price on requestContact us for price and availability
23985966602Ferrari Compl. Front RH Floor Endpie - 985966602$811.38Special order, ships in 7-14 days
23985791218Ferrari COMPL. FRONT RH FLOOR ENDPIECE - 985791218Price on requestContact us for price and availability
24985966547Ferrari Compl. Front LH Floor Endpie - 985966547$737.61Special order, ships in 7-14 days
24985790695Ferrari COMPL. FRONT LH FLOOR ENDPIECE - 985790695Price on requestContact us for price and availability
25985966646Ferrari RH Front Outer Seat Reinforc - 985966646$885.15Special order, ships in 7-14 days
26985966489Ferrari LH Front Outer Seat Reinforc - 985966489$885.15Special order, ships in 7-14 days
27981854Ferrari Rivet - 981854$0.46Special order, ships in 7-14 days
28985907531Ferrari RH Rear Outer Seat Reinforce - 985907531$688.45Special order, ships in 7-14 days
29985907529Ferrari LH Rear Outer Seat Reinforce - 985907529$688.45Special order, ships in 7-14 days
30985966594Ferrari Compl. Accelerator Pedal Mou - 985966594$590.08Special order, ships in 7-14 days
30985790770Ferrari COMPL. ACCELERATOR PEDAL MOUNTING BRACKET - 985790770Price on requestContact us for price and availability
3285492800Ferrari Acoustic Closure Cap 28 x 22 - 85492800$3.41Special order, ships in 7-14 days
3382882400Ferrari Cap For Slot - 82882400$7.19Special order, ships in 7-14 days
3482299600Ferrari Plug For Front Master Point - 82299600$5.00Available, ships in 3-6 days
3584832400Ferrari Adhesive Plug - 84832400$2.59Special order, ships in 7-14 days
36985966628Ferrari INTERNAL TUNNEL REINFORCEMENT - 985966628Price on requestContact us for price and availability
3814507187Ferrari Rubber Plug - 14507187$13.95Available, ships in 3-6 days
