Ferrari 296 GTS — [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE (diagram 0096)

Exploded view of the [vehicle trim] - e.01.02 - structures and elements centre of vehicle on the Ferrari 296 GTS, with 50 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

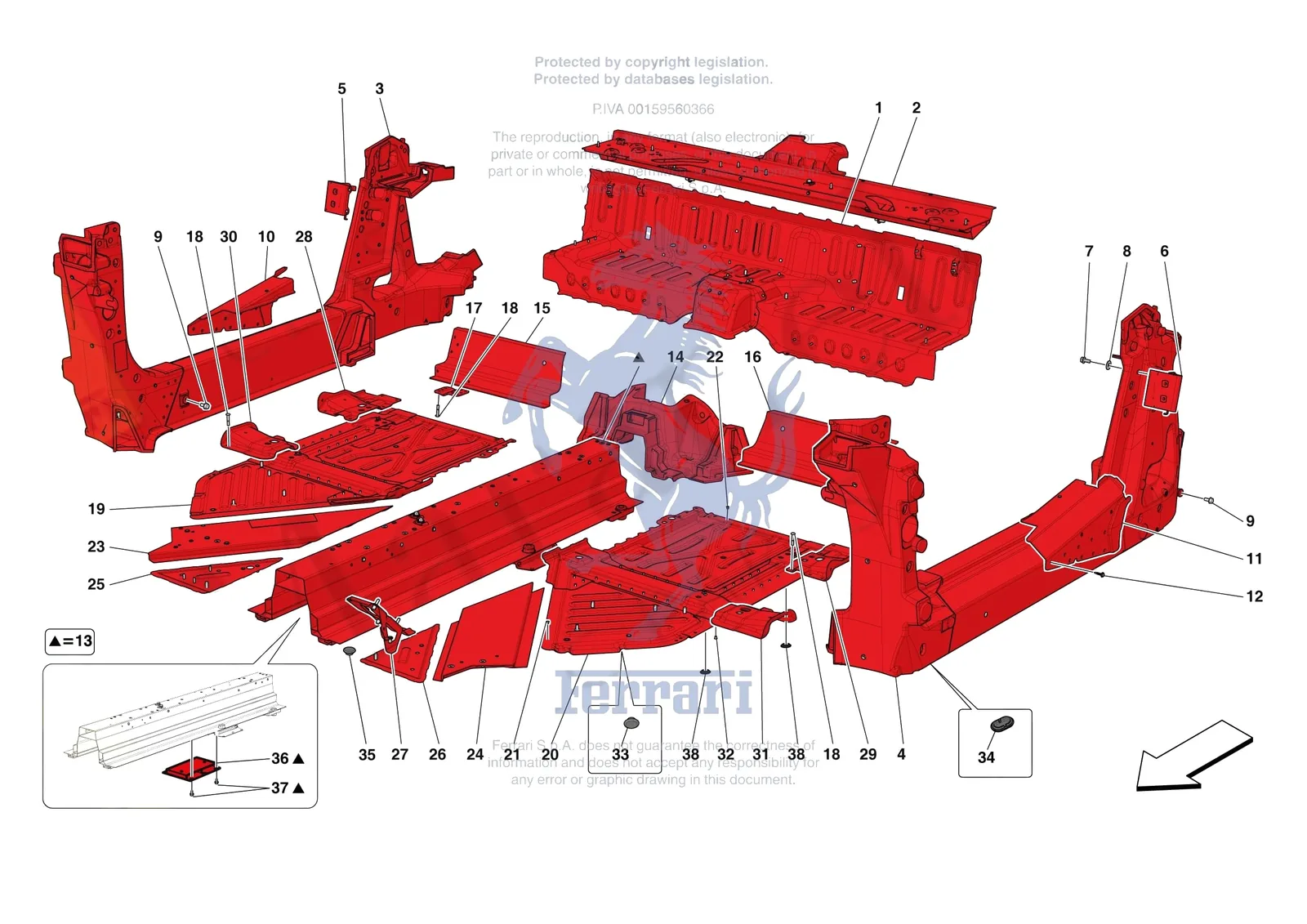

Ferrari 296 GTS [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
84841400Ferrari Adhesive Plug - 84841400SupersededOrder 84832400 instead
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
14496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
1985787363Ferrari Rear Firewall - 985787363$4,479.71Contact us to order
2985787430Ferrari Tank Cross Member - 985787430$6,444.42Special order, ships in 7-14 days
3985787381Ferrari RH Centre Sidewall - 985787381$24,246.79Contact us to order
4985787406Ferrari LH Centre Sidewall - 985787406$24,246.79Contact us to order
5787449Ferrari RH Lock Striker Mounting Bra - 787449$270.44Special order, ships in 7-14 days
6787446Ferrari LH Lock Striker Mounting Bra - 787446$270.44Special order, ships in 7-14 days
716287134Ferrari Screw - 16287134$2.13Special order, ships in 7-14 days
812646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
916297934Ferrari Flanged Screw M8 x 18 - 16297934$1.30Special order, ships in 7-14 days
10985787443Ferrari RH B-Pillar Truss - 985787443$1,352.32Special order, ships in 7-14 days
11985787441Ferrari LH B-Pillar Truss - 985787441$1,303.14Special order, ships in 7-14 days
12330777Ferrari Ejoform Fds M5X25 - 330777$8.72Special order, ships in 7-14 days
13955035306Ferrari Centre Tunnel - 955035306SupersededOrder 985966553 instead
13955035558Ferrari Centre Tunnel - 955035558$10,399.60Contact us to order
13985790808Ferrari Centre Tunnel - 985790808$9,982.77Special order, ships in 7-14 days
13985966553Ferrari Centre Tunnel - 985966553$10,259.10Contact us to order
14985913071Ferrari Compl. Rear Tunnel Casting - 985913071$5,896.45Special order, ships in 7-14 days
15985832469Ferrari RH Rear Floor Cross Member - 985832469$3,589.84Special order, ships in 7-14 days
16985832467Ferrari LH Rear Floor Cross Member - 985832467$3,550.03Special order, ships in 7-14 days
17793670Ferrari Lateral Reinforcement Plate - 793670$120.46Special order, ships in 7-14 days
18204430Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430$2.82Available, ships in 3-6 days
19985966493Ferrari RH Floor Panel - 985966493$5,758.29Contact us to order
20985966562Ferrari LH Floor Panel - 985966562$5,758.29Contact us to order
23955062927Ferrari RH Torque Box Reinforcement - 955062927SupersededOrder 985966635 instead
23985966635Ferrari RH Torque Box Reinforcement - 985966635$1,893.26Special order, ships in 7-14 days
23985790779Ferrari RH TORQUE BOX REINFORCEMENT EXTRUSION - 985790779Price on requestContact us for price and availability
24955062926Ferrari LH Torque Box Reinforcement - 955062926Price on requestContact us for price and availability
24985966698Ferrari LH Torque Box Reinforcement - 985966698$1,770.31Special order, ships in 7-14 days
24985790736Ferrari LH TORQUE BOX REINFORCEMENT EXTRUSION - 985790736Price on requestContact us for price and availability
25985966602Ferrari Compl. Front RH Floor Endpie - 985966602$811.38Special order, ships in 7-14 days
25985791218Ferrari COMPL. FRONT RH FLOOR ENDPIECE - 985791218Price on requestContact us for price and availability
26985966547Ferrari Compl. Front LH Floor Endpie - 985966547$737.61Special order, ships in 7-14 days
26985790695Ferrari COMPL. FRONT LH FLOOR ENDPIECE - 985790695Price on requestContact us for price and availability
27985966594Ferrari Compl. Accelerator Pedal Mou - 985966594$590.08Special order, ships in 7-14 days
27985790770Ferrari COMPL. ACCELERATOR PEDAL MOUNTING BRACKET - 985790770Price on requestContact us for price and availability
28985907531Ferrari RH Rear Outer Seat Reinforce - 985907531$688.45Special order, ships in 7-14 days
29985907529Ferrari LH Rear Outer Seat Reinforce - 985907529$688.45Special order, ships in 7-14 days
30985966646Ferrari RH Front Outer Seat Reinforc - 985966646$885.15Special order, ships in 7-14 days
31985966489Ferrari LH Front Outer Seat Reinforc - 985966489$885.15Special order, ships in 7-14 days
32981854Ferrari Rivet - 981854$0.46Special order, ships in 7-14 days
3385492800Ferrari Acoustic Closure Cap 28 x 22 - 85492800$3.41Special order, ships in 7-14 days
3482882400Ferrari Cap For Slot - 82882400$7.19Special order, ships in 7-14 days
3584832400Ferrari Adhesive Plug - 84832400$2.59Special order, ships in 7-14 days
36985966628Ferrari INTERNAL TUNNEL REINFORCEMENT - 985966628Price on requestContact us for price and availability
3814507187Ferrari Rubber Plug - 14507187$13.95Available, ships in 3-6 days
